MOTORCRAFT PARTS - 2.7L

Motorcraft Part Number

Component

FA-1912A

Air filter element.

FL-2062

Oil filter.

BAGM-94RH7-800

Battery.

SP-542

Spark plugs.

FP-80 (odor)

Cabin air filter.

WW-2350 (driver side)

Windshield wiper blade.

WW-1750 (passenger side)

WW-1206 (rear window)

We recommend Motorcraft® replacement parts available at your nearest dealer or at fordparts.com for scheduled maintenance. These parts
meet or exceed specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and
durability. Your warranty may be void for any damage related to use of other parts.

If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

Replace the spark plugs at the appropriate intervals. For spark plug replacement, contact an authorized dealer.   See General Maintenance
Information (page 524).

391

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

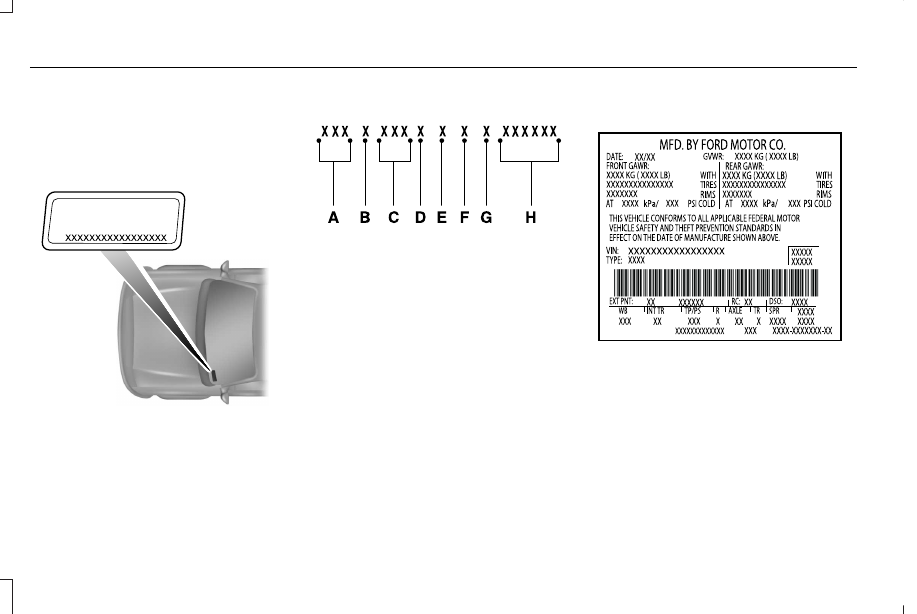

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is located
on the left-hand side of the instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where the
Safety Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post, or
the edge of the door near the door latch,
next to the driver's seating position.

392

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label.  The
following table shows the transmission code
along with the transmission description.

Code

Description

8

Eight-speed automatic transmission 8F35

F

Eight-speed automatic transmission 8F57

393

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

CAPACITIES AND SPECIFICATIONS - 2.0L

Capacities

WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service

the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

5.5 qt (5.2 L)

Engine oil (with oil filter).

9.7 qt (9.2 L)

Engine coolant.

Between MIN/MAX on brake fluid reservoir

Brake fluid.

28.1 ± 1.0 fl oz (830 ± 30 ml)

Rear differential fluid (All-wheel drive).

12.7 ± 1.7 fl oz (375 ± 50 ml)

Power Transfer Unit (PTU) fluid (All-wheel drive).

11.6 qt (11 L)

1

Automatic transmission fluid.

Fill as required

Windshield washer fluid.

18.4 gal (69.7 L)

Fuel tank (Front-wheel drive).

18.5 gal (70 L)

Fuel tank (All-wheel drive).

21 oz (0.595 kg)

A/C refrigerant.

394

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

Capacity

Item

22 oz (0.624 kg)

A/C refrigerant (Mexico).

3.2 fl oz (95 ml)

A/C refrigerant compressor oil.

1

Approximate dry fill capacity.  Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C946-B1

Motor oil (U.S.):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil
XO-5W30-Q1SP

WSS-M2C946-B1

Motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP6

WSS-M2C946-B1

Motor oil (Mexico):
Motorcraft® SAE 5W-30 Synthetic Motor Oil
MXO-5W30-QSP

WSS-M97B44-D

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

395

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

Specification

Name

WSS-M97B44-D

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

-

Rear differential (All Wheel Drive) fluid:
Motorcraft® SAE 75W Disconnect RDU Fluid
XY-75W-QL

WSS-M2C942-A

Power Transfer Unit (PTU) fluid (All Wheel Drive):
Motorcraft® SAE 75W-85 Premium Synthetic Rear Axle Fluid
XY-75W85-QL

WSS-M2C949-A

Automatic transmission fluid:

MERCON® ULV

Motorcraft® MERCON® ULV Automatic Transmission Fluid
XT-12-QULV

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

396

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

Specification

Name

WSS-M17B21-A

A/C refrigerant (U.S.):
R-1234yf Refrigerant
YN-33-A

WSS-M17B21-A

A/C refrigerant (Canada):
R-1234yf Refrigerant
HS7Z-19B519-BA

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

WSS-M2C300-A2

A/C refrigerant compressor oil (U.S. and Canada):
Motorcraft® R-1234yf Refrigerant PAG Oil
YN-35

WSH-M1C231-B

A/C refrigerant compressor oil (Mexico):
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

397

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

Specification

Name

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

-

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage, which the vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

E276075

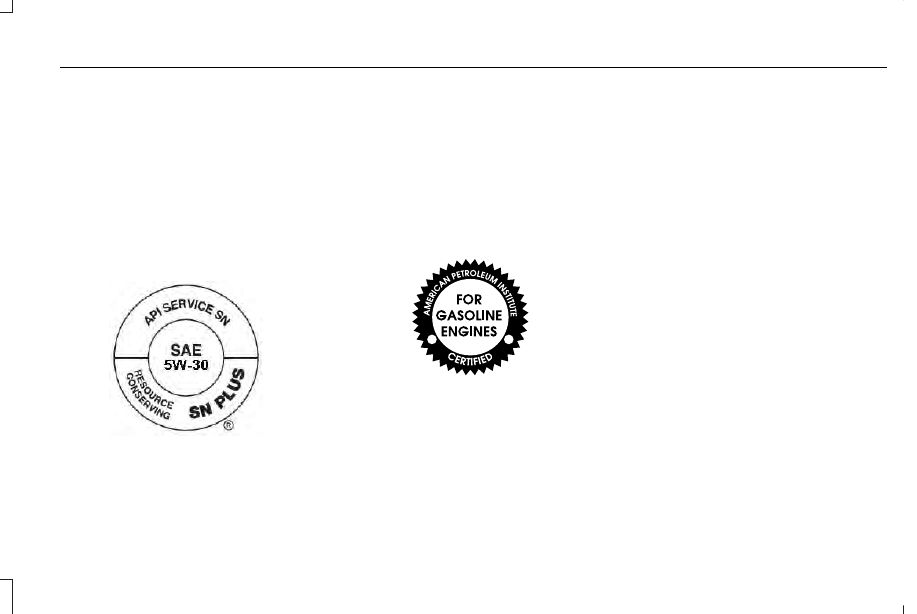

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet API
SN requirements and display the API
Certification Mark for gasoline engines.  Do
not use oil labeled with API SN service
category unless the label also displays the
API certification mark.

398

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

E142732

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by your vehicle warranty.

Note: We recommend using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials may result in
brake system damage and possible failure.

Note:  Automatic transmissions that require
MERCON ULV transmission fluid should only
use MERCON ULV transmission fluid.  The
use of any other fluid may cause
transmission damage.

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C953-B1

Engine Oil - SAE 0W-30

399

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

E240523

CAPACITIES AND SPECIFICATIONS - 2.7L

Capacities

WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service

the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

400

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

Capacity

Item

6.0 qt (5.7 L)

Engine oil (with oil filter).

12.5 qt (11.8 L)

Engine coolant.

Between MIN/MAX on brake fluid reservoir

Brake fluid.

28.1 ± 1.0 fl oz (830 ± 30 ml)

Rear differential fluid (All-wheel drive).

12.7 ± 1.7 fl oz (375 ± 50 ml)

Power Transfer Unit (PTU) fluid (All-wheel drive).

12.2 qt (11.5 L)

1

Automatic transmission fluid.

Fill as required

Windshield washer fluid.

18.4 gal (69.7 L)

Fuel tank (Front-wheel drive).

18.5 gal (70 L)

Fuel tank (All-wheel drive).

21 oz (0.595 kg)

A/C refrigerant.

22 oz (0.624 kg)

A/C refrigerant (Mexico).

3.2 fl oz (95 ml)

A/C refrigerant compressor oil.

1

Approximate dry fill capacity.  Actual amount may vary during fluid changes.

401

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

Specifications

Materials

Specification

Name

WSS-M2C946-B1

Motor oil (U.S.):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil
XO-5W30-Q1SP

WSS-M2C946-B1

Motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP6

WSS-M2C946-B1

Motor oil (Mexico):
Motorcraft® SAE 5W-30 Synthetic Motor Oil
MXO-5W30-QSP

WSS-M97B44-D

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

WSS-M97B44-D

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

402

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

Specification

Name

-

Rear differential (All Wheel Drive) fluid:
Motorcraft® SAE 75W Disconnect RDU Fluid
XY-75W-QL

WSS-M2C942-A

Power Transfer Unit (PTU) fluid (All Wheel Drive):
Motorcraft® SAE 75W-85 Premium Synthetic Rear Axle Fluid
XY-75W85-QL

WSS-M2C949-A

Automatic transmission fluid:

MERCON® ULV

Motorcraft® MERCON® ULV Automatic Transmission Fluid
XT-12-QULV

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSS-M17B21-A

A/C refrigerant (U.S.):
R-1234yf Refrigerant
YN-33-A

WSS-M17B21-A

A/C refrigerant (Canada):
R-1234yf Refrigerant
HS7Z-19B519-BA

403

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

Specification

Name

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

WSS-M2C300-A2

A/C refrigerant compressor oil (U.S. and Canada):
Motorcraft® R-1234yf Refrigerant PAG Oil
YN-35

WSH-M1C231-B

A/C refrigerant compressor oil (Mexico):
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

-

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

404

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage, which the vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

E276075

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet API
SN requirements and display the API
Certification Mark for gasoline engines.  Do
not use oil labeled with API SN service
category unless the label also displays the
API certification mark.

E142732

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by your vehicle warranty.

Note: We recommend using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials may result in
brake system damage and possible failure.

Note:  Automatic transmissions that require
MERCON ULV transmission fluid should only
use MERCON ULV transmission fluid.  The
use of any other fluid may cause
transmission damage.

405

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,

we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C953-B1

Engine Oil - SAE 0W-30

E240523

406

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications
