Tire Pressure Monitoring System

Action

Message

One or more tires on your vehicle have low tire pressure.   See Tire Pressure Monitoring System

(page 372).

Tire Pressure Low

The tire pressure monitoring system is malfunctioning. If the warning stays on or continues to

come on, contact an authorized dealer. See Tire Pressure Monitoring System (page 372).

Tire Pressure Monitor Fault

A tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on

how the system operates under these conditions,  See Tire Pressure Monitoring System (page
372).  If the warning stays on or continues to come on, contact an authorized dealer as soon as

possible.

Tire Pressure Sensor Fault

Transmission

Action

Message

You switched the engine off and shift select lever is in any position other than park (P).

Shift to Park

Transmission is too cold. Wait for it to warm up before you drive.

Transmission Warming Up Please Wait

Displays when the brake pedal needs to be depressed.

Press Brake Pedal

The transmission is overheating and needs to cool.  Stop in a safe place as soon as it’s possible.

Transmission Over Temperature Stop

Safely

See an authorized dealer.

Transmission Service Required

135

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Information Displays

Action

Message

The transmission is overheating and needs to cool.  Stop in a safe place as soon as it’s possible.

Transmission Too Hot Press Brake

The transmission has limited functionality.  See an authorized dealer.

Transmission Limited Function See Manual

A reminder to shift into park. In addition, this message is typical after reconnecting or recharging

the battery until you cycle the ignition to the on mode.  See Changing the 12V Battery (page

329).

Transmission Not in Park

Displays when there is a system fault and the park brake needs to be depressed before exiting

the vehicle. See your authorized dealer.

SHIFT SYS FAULT Confirm Park Brake

Apply Before Exiting the Vehicle

See your authorized dealer.

SHIFT SYS FAULT Service Required

Displays when there is a system fault while the vehicle is shifting to park. See your authorized

dealer.

SHIFT SYS FAULT Vehicle is Shifting to

Park

Displays when there is a system fault while the vehicle is shifting to reverse. See your authorized

dealer.

SHIFT SYS FAULT Reverse Unavailable

Service Required

See an authorized dealer.

SHIFT SYS FAULT Drive Unavailable Select

S for Drive Service Required

See your authorized dealer.

SHIFT SYS FAULT Neutral Unavailable

Service Required

See your authorized dealer.

SHIFT SYS FAULT Sport Unavailable

Service Required

Displays when an invalid gear has been selected.

Invalid Gear Selection

136

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Information Displays

Action

Message

Displays when the brake pedal needs to be depressed to enable the transmission to shift from

park.

Depress Brake to Shift from Park

Displays when neutral hold is active. See Automatic Transmission (page 188).

Stay in Neutral Mode Engaged

Displays when the neutral button N needs to be pressed again to enter neutral hold. See Auto-

matic Transmission (page 188).

To Stay in Neutral When Exiting Vehicle

Select N Again

137

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Information Displays

AUTOMATIC CLIMATE CONTROL

E289586

Note: Depending on your vehicle option
package, the controls may look different
from what you see here.

Note: You can control some of the climate
features through the touchscreen.

Note:  You can switch temperature units
between Fahrenheit and Celsius.

Setting the Blower Motor Speed

Press and release + or - to adjust
the volume of air circulated in the
vehicle.

Setting the Temperature

Press and release + or - on the left-hand side
of the climate control to set the left-hand
temperature.

Note: This control also adjusts the right-hand
side temperature when you switch off dual
zone mode.

Press and release + or - on the right-hand
side of the climate control to set the
right-hand temperature.

Switching Auto Mode On and Off

Press and release the button to
switch on automatic operation,
then set the temperature.

The system adjusts the blower motor speed,
air distribution, air conditioning operation,
and outside or recirculated air to reach and
maintain the temperature you have set.

Switching the Air Conditioning On and
Off

Press and release the button.

Use air conditioning with recirculated air to
improve cooling performance and efficiency.

Note: In certain conditions, such as
maximum defrost, the air conditioning
compressor may continue to operate even
though you switch off the air conditioning.

Switching the Climate Control On and
Off

Press and release the button.

Switching Dual Zone Mode On and Off

E265280

Press and release the button to
switch on temperature control for
the right-hand side of the vehicle.

Switching Defrost On and Off

Press and release the button to
distribute air through the
windshield air vents and de-mister.

You can also use this setting to defog and
clear the windshield of a thin covering of ice.

138

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Climate Control

Switching Maximum Air Conditioning
On and Off

Press and release the button for
maximum cooling.

The driver and passenger temperatures are
set to LO, recirculated air flows through the
instrument panel air vents, air conditioning
turns on and the blower motor adjusts to the
highest speed.

Switching Recirculated Air On and Off

Press and release the button to
switch between outside air and
recirculated air.

The air currently in the passenger
compartment recirculates. This may reduce
the time needed to cool the interior, when
used with A/C, and reduce unwanted odors
from entering your vehicle.

Note: Recirculated air may turn off, or
prevent you from switching on, in all air flow
modes except MAX A/C to reduce the risk
of fogging. Recirculation may also turn on
and off in various air distribution control
combinations during hot weather to improve
cooling efficiency.

Switching the Rear Heated Seats On
and Off

 (If Equipped)

See Heated Seats (page 154).

Switching the Rear Ventilated Seats
On and Off

 (If Equipped)

E268558

See Climate Controlled Seats
(page 155).

HINTS ON CONTROLLING THE
INTERIOR CLIMATE

General Hints

Note: Prolonged use of recirculated air may
cause the windows to fog up.

Note: You may feel a small amount of air
from the footwell air vents regardless of the
air distribution setting.

Note: To reduce humidity build-up inside
your vehicle, do not drive with the system
switched off or with recirculated air always
switched on.

Note: Do not place objects under the front
seats as this may interfere with the airflow
to the rear seats.

Note: Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.

Note: To improve the time to reach a
comfortable temperature in hot weather,
drive with the windows open until you feel
cold air through the air vents.

Automatic Climate Control

Note: Adjusting the settings when your
vehicle interior is extremely hot or cold is not
necessary.

Note: The system adjusts to heat or cool the
interior to the temperature you select as
quickly as possible.

139

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Climate Control

Note: For the system to function efficiently,
the instrument panel and side air vents
should be fully open.

Note: If you select AUTO during cold outside
temperatures, the system directs air flow to
the windshield and side window air vents. In
addition, the blower motor may run at a
slower speed until the engine warms up.

Note: If you select AUTO during hot
temperatures and the inside of the vehicle
is hot, the system uses recirculated air to
maximize interior cooling. Blower motor
speed may also reduce until the air cools.

Quickly Heating the Interior

1. Press and release AUTO.
2. Adjust the temperature function to the

setting you prefer.

Recommended Settings for Heating

1. Press and release AUTO.

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary.

Quickly Cooling the Interior

1. Press and release MAX A/C.

Recommended Settings for Cooling

1. Press and release AUTO.

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary.

Defogging the Side Windows in Cold
Weather

1. Press and release defrost.

2. Adjust the temperature control to the

setting you prefer. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary.

HEATED WINDSHIELD

 (IF EQUIPPED)

Windshield Wiper De-Icer

E184884

When you switch the heated rear
window on, the windshield wiper
de-icer turns on.

HEATED REAR WINDOW

E184884

Press the button to clear the rear
window of thin ice and fog.  The
heated rear window turns off after

a short period of time.

Note: Do not use harsh chemicals, razor
blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window. The vehicle warranty may not
cover damage to the heated rear window
grid lines.

HEATED EXTERIOR MIRRORS

When you switch the heated rear window
on, the heated exterior mirrors turn on.

Note: Do not remove ice from the mirrors
with a scraper or adjust the mirror glass
when it is frozen in place.

Note: Do not clean the mirror housing or
glass with harsh abrasives, fuel or other
petroleum-based cleaning products. The
vehicle warranty may not cover damage
caused to the mirror housing or glass.

140

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Climate Control

CABIN AIR FILTER

Your vehicle is equipped with a cabin air
filter, which gives you and your passengers
the following benefits:
•

It improves your driving comfort by
reducing particle concentration.

•

It improves the interior compartment
cleanliness.

•

It protects the climate control
components from particle deposits.

You can locate the cabin air filter behind the
glove box.

Note: Make sure you have a cabin air filter
installed at all times. This prevents foreign
objects from entering the system. Running
the system without a filter in place could
result in degradation or damage to the
system.

Replace the filter at regular intervals.  See
Scheduled Maintenance (page 524).

For additional cabin air filter information, or
to replace the filter, see an authorized dealer.

REMOTE START

The system adjusts the interior temperature
depending on your chosen settings during
remote start.

You cannot adjust the climate control setting
during remote start operation.  When you
switch the ignition on, the climate control
system returns to the previous settings.  You
can now make adjustments.

Some features may remain on if they turn on
during remote start:
•

Driver heated seat.

•

Driver ventilated seat.

•

Heated steering wheel.

•

Heated mirrors.

•

Heated rear window.

•

Windshield wiper de-icer.

Note: If the passenger heated or ventilated
seats are on when you switch the vehicle
off, they default to the driver setting when
you switch the vehicle on.

You can adjust the default remote start
settings using the information display
controls.  See Information Displays (page
112).

Automatic Settings

In hot weather, the system sets to 72°F
(22°C). The ventilated seats set to high (if
available, and if you select AUTO in the
information display).

In moderate weather, the system heats or
cools (based on pre-selected settings). The
rear defroster, heated mirrors and heated or
ventilated seats do not turn on.

In cold weather, the system sets to 72°F
(22°C). The heated seats and heated steering
wheel set to high (if available, and if you
select AUTO in the information display). The
rear defroster and heated mirrors turn on.

141

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Climate Control

SITTING IN THE CORRECT
POSITION

WARNING: Sitting improperly, out of

position or with the seatback reclined too
far can take weight off the seat cushion
and affect the decision of the passenger
sensing system, resulting in serious injury
or death in the event of a crash. Always sit
upright against your seat back, with your
feet on the floor.

WARNING: Do not recline the

seatback too far as this can cause the
occupant to slide under the seatbelt,
resulting in serious injury in the event of a
collision.

WARNING: Do not place objects

higher than the top of the seat backrest.
Failure to follow this instruction could result
in personal injury or death in the event of
a sudden stop or crash.

E68595

When you use them properly, the seat, head
restraint, seatbelt and airbags will provide
optimum protection in the event of a crash.

We recommend that you follow these
guidelines:
•

Sit in an upright position with the base of
your spine as far back as possible.

•

Do not recline the seat backrest so that
your torso is more than 30° from the
upright position.

•

Adjust the head restraint so that the top
of it is level with the top of your head and
as far forward as possible. Make sure that
you remain comfortable.

•

Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 10 in (25 cm)
between your breastbone and the airbag
cover.

•

Hold the steering wheel with your arms
slightly bent.

•

Bend your legs slightly so that you can
press the pedals fully.

•

Position the shoulder strap of the seatbelt
over the center of your shoulder and
position the lap strap tightly across your
hips.

Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.

142

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Seats

HEAD RESTRAINTS

WARNING: Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk of
neck injury in the event of a crash. Do not
adjust the head restraint when your vehicle
is moving.

WARNING: The head restraint is a

safety device. Whenever possible it should
be installed and properly adjusted when
the seat is occupied. Failure to adjust the
head restraint properly could reduce its
effectiveness during certain impacts.

Note: Adjust the seat backrest to an upright
driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

Front Seat Manual Head Restraints

 (If

Equipped)

E138642

The front head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve adjust and unlock
button.

C

Guide sleeve unlock and remove
button.

D

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

1. Press and hold button C.
2. Push the head restraint down.

Removing the Head Restraint

1. Pull the head restraint up until it reaches

its highest position.

2. Press and hold buttons C and D.
3. Pull the head restraint up.

Note: You cannot remove front seat head
restraints that have entertainment system
video screens.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

143

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Seats

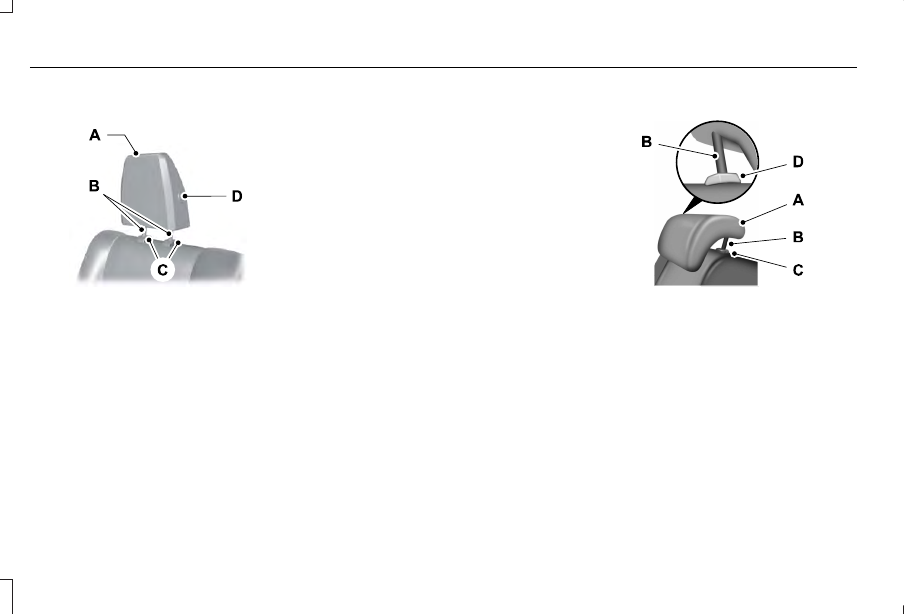

Rear Seat Outermost Head Restraints

E201128

The rear outermost head restraints consist
of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve unlock and remove
buttons.

C

Fold button.

D

Removing the Head Restraint

1. Press and hold both C buttons.
2. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Folding the Head Restraint

1. Press and hold button D.

2. Pull the head restraint back up to reset.

Rear Seat Center Head Restraint

E138645

The rear center head restraint consists of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve adjust and unlock
button.

C

Guide sleeve unlock and remove
button.

D

Raising the Head Restraint

Pull the head restraint up.

144

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Seats

Lowering the Head Restraint

1. Press and hold button C.
2. Push the head restraint down.

Removing the Head Restraint

1. Pull the head restraint up until it reaches

its highest position.

2. Press and hold buttons C and D.
3. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

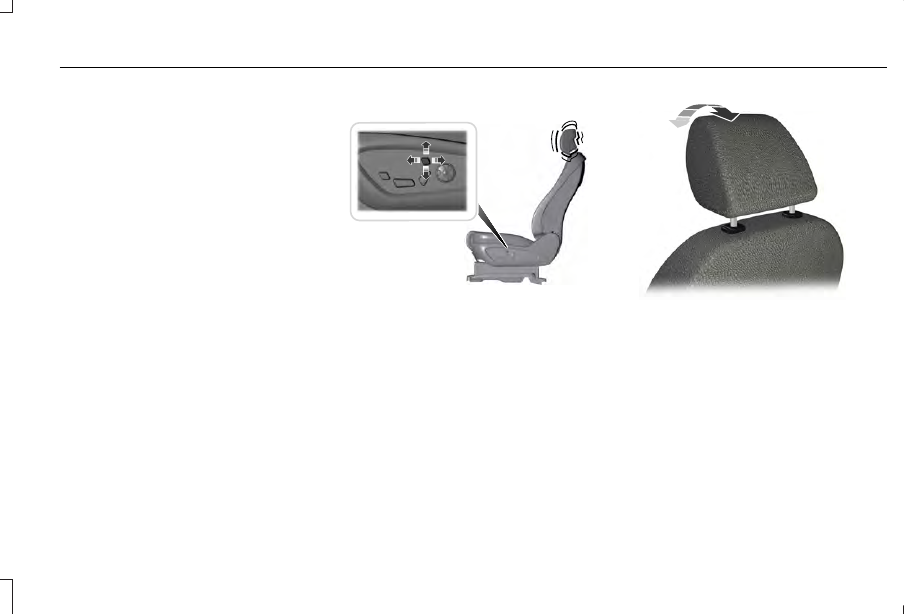

Power Front Head Restraint (If Equipped)

E196925

Tilting Manual Head Restraints

The front seat head restraints tilt for extra
comfort.

E144727

1. Adjust the seat backrest to an upright

driving or riding position.

2. Pivot the head restraint forward toward

your head to the desired position.

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, un-tilted
position.

145

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Seats

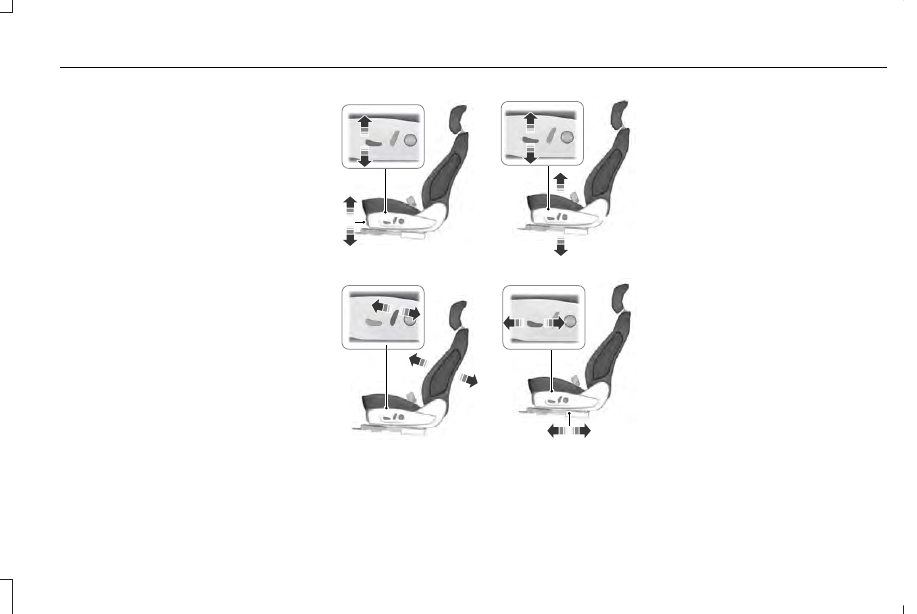

POWER SEATS

WARNING: Do not adjust the driver

seat or seat backrest when your vehicle is
moving. This may result in sudden seat
movement, causing the loss of control of
your vehicle.

WARNING: Do not place cargo or

any objects behind the seatback before
returning it to the original position.

146

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Seats

E200942

147

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Seats

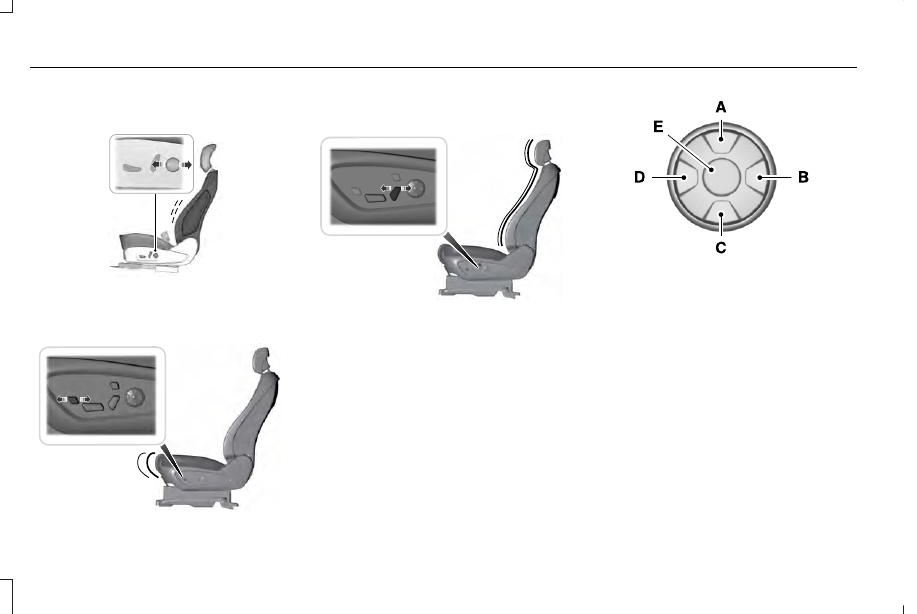

Adjusting the Lumbar Support

 (If Equipped)

E165608

Adjusting the Length of the Seat Cushion
(If Equipped)

E196924

Adjusting the Upper Seat Backrest and
Head Restraint (If Equipped)

E200950

Adjusting the Multi-Contour Front
Seats With Active Motion

 (If Equipped)

Note: The engine must be running or the
vehicle must be in accessory mode to
activate the seats.

Note: Allow a few seconds for any selection
to activate. The seat backrest and cushion
massage cannot function at the same time.

E156301

148

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Seats

Lumbar and Bolster Mode

Massage Mode

Upper lumbar

Back massage intensity adjustment

A

Lumbar decrease

Massage intensity decrease and off

1

B

Lower lumbar

2

Cushion massage intensity adjustment

C

Lumbar increase

Massage intensity increase

D

-

On and off

E

1

The massage feature defaults to an

alternating massage mode with back
massage intensity adjustment. The lumbar
and bolster features default to the middle
lumbar mode.

2

Press C a second time to adjust the back

bolster. Press C a third time to adjust the
cushion bolster.

You can also adjust this feature through the
touchscreen.

E142607

Press the Menu Settings icon, then
Vehicle. Choose Multi-Contour
Seats.

When switched on, the system displays
directions for you to adjust the lumbar
settings in your seat or to set the massage
function.

To access and make adjustments to the
lumbar setting:

1. Choose the seat to adjust.

2. Press the + or - to adjust the lumbar

intensity.

To access and make adjustments to the
massage setting:

1. Press the Menu Settings icon, then

Vehicle. Choose Multi-Contour Seats.

2. Choose the seat to adjust.

3. Press OFF, LO or HI.

MEMORY FUNCTION

WARNING: Before activating the

memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants are
clear of moving parts.

149

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Seats

WARNING: Do not use the memory

function when your vehicle is moving.

This feature automatically recalls the position
of the following:

•

Driver seat.

•

Power mirrors.

•

Optional power steering column.

The memory control is on the driver door.

E142554

Saving a PreSet Position

1. Switch the ignition on.
2. Adjust the memory features to your

desired position.

3. Press and hold the desired preset button

until you hear a single tone.

You can save up to three preset memory
positions. You can save a memory preset at
any time.

Recalling a PreSet Position

Press and release the preset button
associated with your desired driving position.
The memory features move to the position
stored for that preset.

Note: You can only recall a preset memory
position when the ignition is off, or when the
transmission is in park (P) or neutral (N) (and
your vehicle is not moving) if the ignition is
on.

You can also recall a preset memory position
by:
•

Pressing the unlock button on your
intelligent access key fob if it is linked to
a preset position.

•

Unlocking the intelligent driver door
handle if a linked key fob is present.

•

Recalling a personal profile in your SYNC
3 menu.

Note: Using a linked key fob to recall your
memory position when the ignition is off
moves the seat to the Easy Entry position.

Note: Pressing any active memory feature
adjustment control (or any memory button)
during a memory recall cancels the
operation.

Easy Entry and Exit Feature

If you enable the easy entry and exit feature,
it automatically moves the driver seat
position rearward up to 2 in (5 cm) when you
switch the ignition off.

The driver seat will return to its previous
position when you switch the ignition on.

150

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Seats
