Specification

Name

Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

WSS-M97B44-D2

Inverter system controller coolant (Canada)
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSS-M2C938-A

Automatic transmission fluid (U.S. and Mexico):

MERCON® LV

Motorcraft® MERCON® LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON® LV

Motorcraft® MERCON® LV Automatic Transmission Fluid
CXT-10-LV12

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSS-M17B21-A

A/C refrigerant (U.S.):

359

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Capacities and Specifications

Specification

Name

R-1234yf Refrigerant
YN-33-A

WSS-M17B21-A

A/C refrigerant (Canada):
R-1234yf Refrigerant
HS7Z-19B519-BA

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

WSS-M2C31-B2

A/C refrigerant compressor oil (U.S. and Canada):
Motorcraft® R-1234yf Refrigerant POE Oil
YN-34

-

A/C refrigerant compressor oil (Mexico):
Motorcraft® Electric A/C Compressor Oil
YN-32

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

360

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Capacities and Specifications

Specification

Name

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

-

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage which is not
covered by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet API
SN requirements and display the API
Certification Mark for gasoline engines.  Do
not use oil labeled with API SN service
category unless the label also displays the
API certification mark.

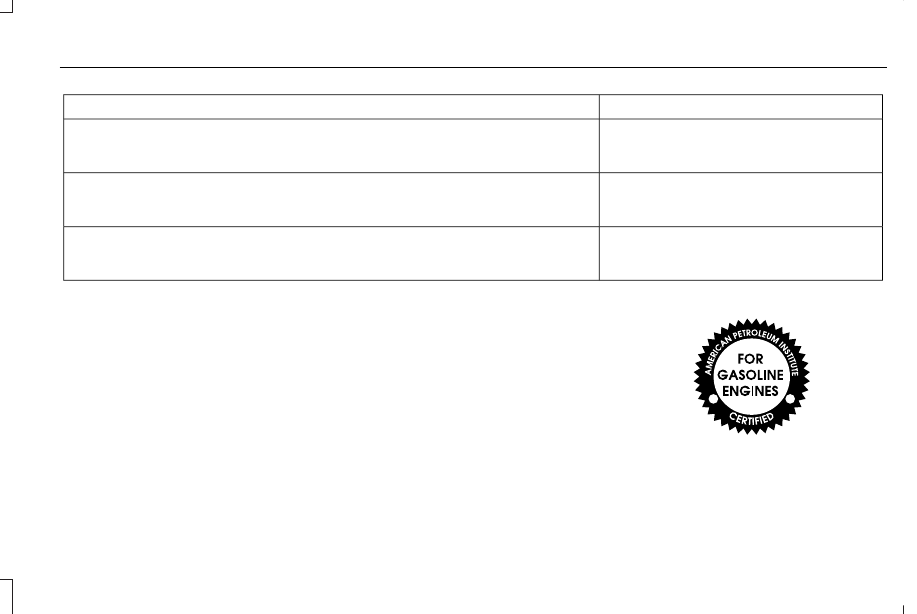

E142732

361

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Capacities and Specifications

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by your vehicle warranty.

Note: Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other materials
may result in brake system damage and
possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should only
use MERCON® LV transmission fluid.  The
use of any other fluid may cause
transmission damage.

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Specification

Name

WSS-M2C947-B1

Motorcraft® SAE 0W-20 Premium Synthetic Blend Motor Oil:
Engine oil - SAE 0W-20
XO-0W20-QSP

362

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Capacities and Specifications

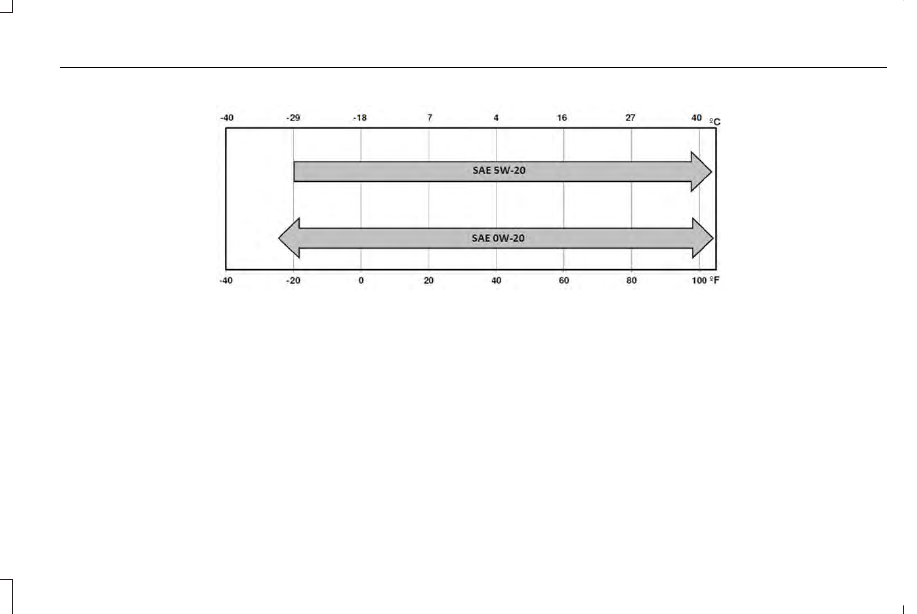

E240522

BULB SPECIFICATION CHART

Replacement bulbs are specified in the chart
below. Headlamp bulbs must be marked with
an authorized “D.O.T.” for North America to
make sure they have the proper lamp
performance, light brightness, light pattern,
and safe visibility. The correct bulbs will not
damage the lamp assembly or void the lamp
assembly warranty and will provide quality
bulb illumination time.

363

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Capacities and Specifications

Trade name

Function

LED

Headlamp high beam - high series

HID

Headlamp high beam - low series

LED

Headlamp low beam - high series

HID

Headlamp low beam - low series

LED

Side marker lamp - front

LED

Park lamp - front

LED

Signature lamp

LED

Daytime running lamp

LED

Turn lamp - front

LED

Tail and brake lamp

LED

Reverse lamp

LED

Turn lamp - rear

LED

Side marker lamp - rear

LED

License plate lamp

LED

Trunk lamp

364

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Capacities and Specifications

Trade name

Function

LED

High-mount brake lamp

LED

Side repeater lamp

LED

Glove compartment lamp

LED

Interior lamp

To replace any bulb, see your authorized dealer.

365

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Capacities and Specifications

GENERAL INFORMATION

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that you
use extreme caution when using any device
that may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the

use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

Radio Frequencies and Reception
Factors

AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:
•

AM: 530-1710 kHz

•

FM: 87.9-107.9 MHz

Note: Listening to loud audio for long
periods of time could damage your hearing.

Radio Reception Factors

The further you travel from an AM or FM station, the weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

366

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Audio System

CD and CD Player Information

Note: CD units play commercially pressed
4.7 in (12 cm) audio compact discs only. Due
to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in the
vehicle’s CD player.

Note:  Do not insert CDs with homemade
paper (adhesive) labels into the CD player
as the label may peel and cause the CD to
become jammed.  You should use a
permanent felt tip marker rather than
adhesive labels on your homemade CDs.
Ballpoint pens may damage CDs.  Ask an
authorized dealer for more information.

Note: Do not use any irregularly shaped
discs or discs with a scratch protection film
attached.

Always handle discs by their edges only.
Clean the disc with an approved CD cleaner
only.  Wipe it from the center of the disc
toward the edge.  Do not clean in a circular
motion.

Do not expose discs to direct sunlight or heat
sources for extended periods.

MP3 and WMA Track and Folder
Structure

Audio systems capable of recognizing and
playing MP3 and WMA individual tracks and
folder structures work as follows:
•

There are two different modes for MP3
and WMA disc playback: MP3 and WMA
track mode (system default) and MP3 and
WMA folder mode.

•

MP3 and WMA track mode ignores any
folder structure on the MP3 and WMA
disc. The player numbers each MP3 and
WMA track on the disc (noted by the MP3
or WMA file extension) from T001 to a
maximum of T255. The maximum number
of playable MP3 and WMA files may be
less depending on the structure of the
CD and exact model of radio present.

•

MP3 and WMA folder mode represents
a folder structure consisting of one level
of folders. The CD player numbers all
MP3 and WMA tracks on the disc (noted
by the MP3 or WMA file extension) and
all folders containing MP3 and WMA files,
from F001 (folder) T001 (track) to F253
T255.

•

Creating discs with only one level of
folders helps with navigation through the
disc files.

If you are burning your own MP3 and WMA
discs, it is important to understand how the
system reads the structures you create. While
various files may be present (files with
extensions other than MP3 and WMA), only
files with the MP3 and WMA extension are
played; other files are ignored by the system.
This enables you to use the same MP3 and
WMA disc for a variety of tasks on your work
computer, home computer and your
in-vehicle system.

367

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Audio System

In track mode, the system displays and plays
the structure as if it were only one level deep
(all MP3 and WMA files play, regardless of
being in a specific folder). In folder mode,
the system only plays the MP3 and WMA files
in the current folder.

AUDIO UNIT

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that you
use extreme caution when using any device
that may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

Note:  The touchscreen system controls most
of the audio features.

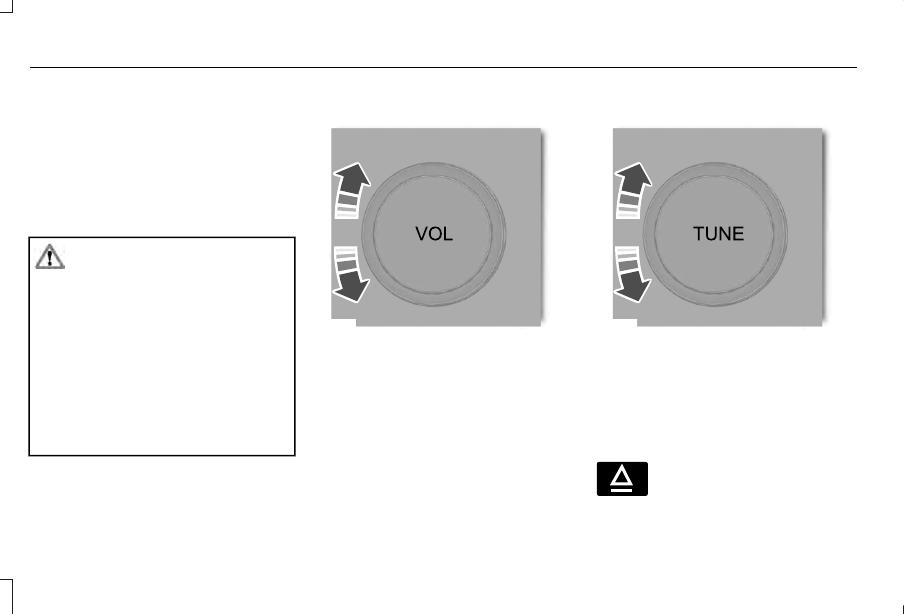

Adjusting the Volume

E265373

Turn to adjust the volume.

Changing Radio Stations

E265696

In radio mode, turn to search through the
radio frequency band.

In satellite radio mode, turn to find the
previous or next available satellite radio
station.

Ejecting the CD

 (If Equipped)

E265032

Press and release the button to
eject a CD.

368

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Audio System

Inserting a CD

 (If Equipped)

Insert a CD into the CD slot.

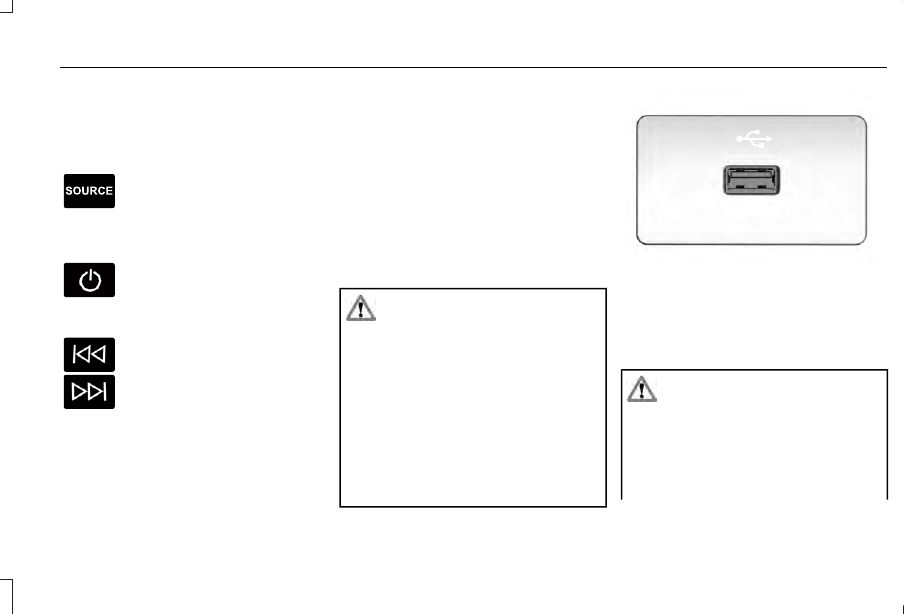

Selecting the Audio Modes

E265276

Press and release the button to
access different audio modes, for
example AM, FM and CD.

Switching the Audio Unit On and Off

Press and release the button.

Using Seek, Fast Forward and Reverse

In radio mode, select a frequency band and
press and release either button. The system
stops at the first station it finds in that
direction.

In CD mode, press and release to select the
next or previous track. Press and hold to
move quickly forward or backward through
the current track.

In satellite radio mode, press and release to
select the next or previous satellite radio
station. If you select a specific category (such
as jazz, rock or news), press to find the next
or previous station in the category you select.

USB PORT

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that you
use extreme caution when using any device
that may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

E201595

The USB port allows you to plug in media
playing devices, memory sticks and charge
devices, if supported.

MEDIA HUB

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that you
use extreme caution when using any device
that may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the

369

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Audio System

use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

The media hub may be on the instrument
panel or center console.

The media hub may contain one or more of
the following inputs:

•

USB ports.  See USB Port (page 369).

•

Audio input jack.

370

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Audio System

GENERAL INFORMATION

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that you
use extreme caution when using any device
that may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

Getting to Know Your System

The SYNC 3 system allows you to interact
with a variety of features using the
touchscreen and voice commands. By
integrating with your Bluetooth enabled
phone, the touchscreen provides easy
interaction with audio, multimedia, climate
control, navigation, and your phone's SYNC
3 compatible apps.

Using the Touchscreen

To operate the touchscreen, you can simply
touch the item or option that you want to
select. The button changes color when you
select it.

The SYNC 3 layout allows you to quickly
select the feature you wish to use.

371

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

E269856

372

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

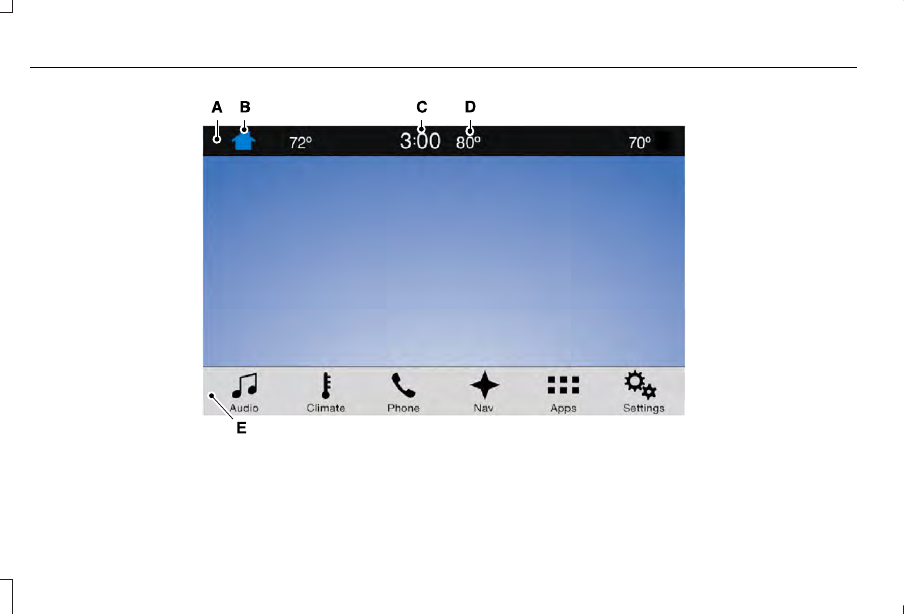

Action and Description

Menu Item

Item

This bar displays icons and messages pertaining to current system activities including climate
settings, voice commands and phone functions such as text messages.

Status Bar

A

This button is available on the main screens. Pressing it takes you to the home screen view.

Home

B

This shows the current time. You can set the clock manually or have it controlled by the vehicle's
GPS location.  See Settings (page 444).

Clock

C

This displays the current outside temperature.

Outside Temperature

D

You can touch any of the buttons on this bar to select a feature.

Feature Bar

E

The touchscreen allows you quick access to
all of your comfort, navigation,
communication and entertainment options.
Using the status and feature bar you can
quickly select the feature you want to use.

Note: Your system is equipped with a feature
that allows you to access and control audio
features for 10 minutes after you switch the
ignition off (and no doors open).

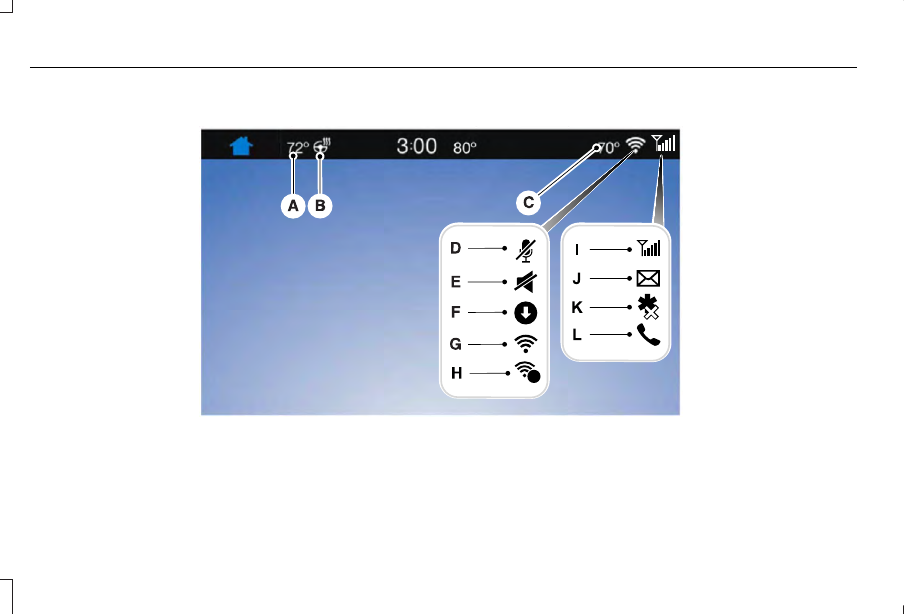

The Status Bar

Additional icons also display in the status bar
depending on market, vehicle options and
current operation. If a feature is not active,
the icon does not display. Certain icons may
move to the left or right depending on what
options are active.

373

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

E270077

i

374

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3
