ENGINE SPECIFICATIONS - 2.0L

Specification

Measurement

122

Cubic inches.

1-3-4-2

Firing order.

Coil on plug

Ignition system.

0.027-0.031 in. (0.70-0.80 mm)

Spark plug gap.

9.7:1

Compression ratio.

Drivebelt Routing

E161383

A

B

A. The long drivebelt is on the first pulley

groove closest to the engine.

B. The short drivebelt is on the second

pulley groove farthest from the engine.

343

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

MOTORCRAFT PARTS - 2.0L

Motorcraft part number

Component

FA-1908

Air filter element

FL-910-S

Oil filter

BXT-48H6-610

Battery (without start/stop)

BAGM-48H6-760

Battery (with start/stop)

SP-527

Spark plugs

FP70

Cabin air filter

WW-2550 (driver side)

Windshield wiper blade

WW-1575 (passenger side)

WW-1106 (rear window)

We recommend Motorcraft replacement parts available at your Ford dealer or at fordparts.com for scheduled maintenance. These parts meet
or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance,
emissions and durability. Your warranty may be void for any damage related to use of other parts.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer.  Replace the spark plugs at the appropriate intervals.   See Scheduled Maintenance
(page 476).

344

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

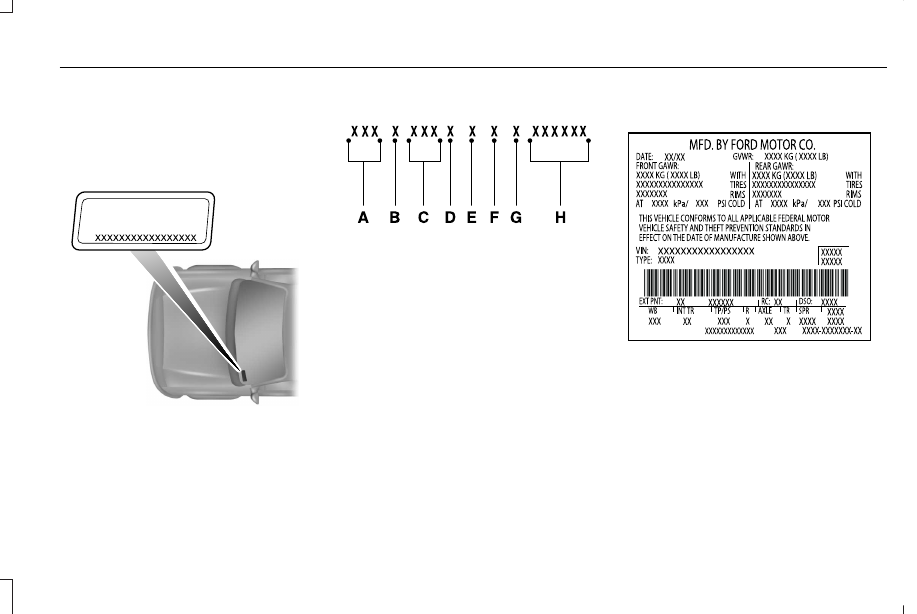

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is located
on the left-hand side of the instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where the
Safety Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post, or
the edge of the door near the door latch,
next to the driver's seating position.

345

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label. The following
table shows the transmission code along
with the transmission description.

Code

Description

6

Six-speed automatic transmission 6F35

346

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

CAPACITIES AND SPECIFICATIONS - 2.0L

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air
conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

5.7 qt (5.4 L)

Engine oil (with oil filter).

8.6 qt (8.1 L)

Engine coolant.

Between MIN/MAX on brake fluid reservoir

Brake fluid.

2.4 pt (1.15 L)

Rear differential fluid (All Wheel Drive).

17.9 fl oz (0.53 L)

Power Transfer Unit (PTU) fluid (All Wheel Drive).

9.0 qt (8.5 L)

1

Automatic transmission fluid.

Fill as required

Windshield washer fluid.

15.7 gal (59.4 L)

Fuel tank.

347

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

Capacity

Item

24 oz (0.68 kg)

A/C refrigerant.

2.7 fl oz (80.32 ml)

A/C refrigerant compressor oil.

1

Approximate dry fill capacity. Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C946-A

Recommended motor oil (U.S.):
Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil
XO-5W30-QSP

WSS-M2C946-A

Recommended motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP12

WSS-M2C946-A

Recommended motor oil (Mexico):
Motorcraft® SAE 5W-30 Synthetic Motor Oil
MXO-5W30-QSP

WSS-M97B44-D2

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

348

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

Specification

Name

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Rear differential fluid (All Wheel Drive) (U.S. and Mexico):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Rear differential fluid (All Wheel Drive) (Canada):
Motorcraft® SAE 80W-90 Premium Axle Lubricant
CXY-80W90-1L

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (All Wheel Drive) (U.S. and Mexico):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (All Wheel Drive) (Canada):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

WSS-M2C938-A

Automatic transmission fluid (U.S. and Mexico):

MERCON® LV

Motorcraft® MERCON® LV Automatic Transmission Fluid
XT-10-QLVC

349

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

Specification

Name

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON® LV

Motorcraft® MERCON® LV Automatic Transmission Fluid
CXT-10-LV12

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft® R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
R-134a Refrigerant
CYN-19-R

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

WSH-M1C231-B

A/C refrigerant compressor oil:
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

350

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

Specification

Name

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S.):
Motorcraft® Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Motorcraft® Penetrating Fluid
CXC-51-A

-

Lock cylinders (Mexico):
Motorcraft® Penetrating and Lock Lubricant
MXL-1

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage which is not
covered by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet API
SN requirements and display the API
Certification Mark for gasoline engines.  Do
not use oil labeled with API SN service
category unless the label also displays the
API certification mark.

351

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

E142732

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by your vehicle warranty.

Note: Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other materials
may result in brake system damage and
possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should only
use MERCON® LV transmission fluid.  The
use of any other fluid may cause
transmission damage.

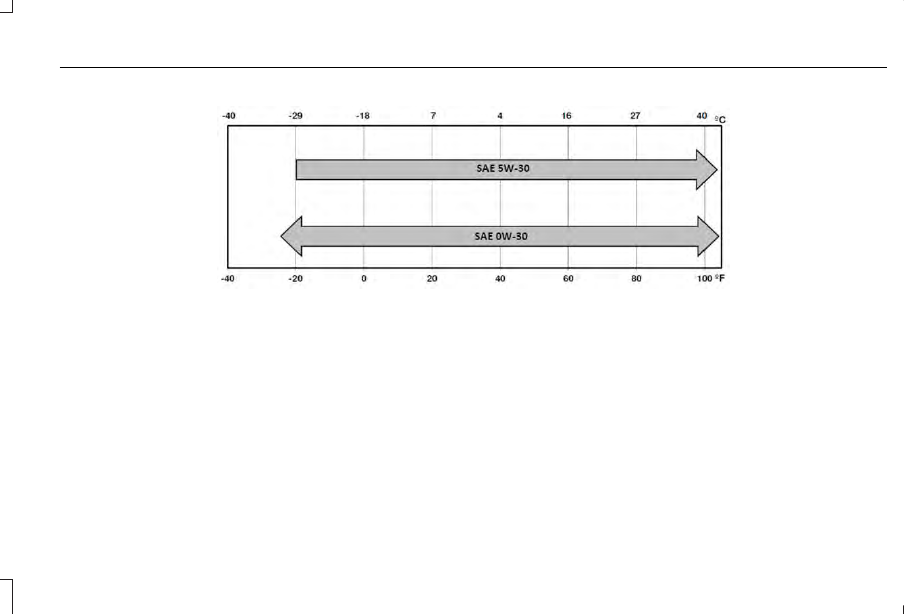

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C953-A1

Engine oil - SAE 0W-30

352

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

E240523

BULB SPECIFICATION CHART

The specified replacement bulbs are in the
chart below. Headlamp bulbs must be
marked with an authorized D.O.T.
(Department of Transportation) for North
America to affirm lamp performance, light
brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp
assembly or void the lamp assembly warranty
and will provide quality bulb burn time.

353

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

Trade number

Function

LED

Headlamp Low/High.

1

LED

Sidemarker - front.

1

LED

Park lamp - front.

1

7444NA

Turn lamp - front.

1

LED

Signal indicator mirror lamp.

LED

Welcome light.

LED

Approach lamp.

LED

Tail/brake lamp.

1

LED

Turn lamp - rear.

1

LED

Backup lamp.

1

W5W

License plate lamp.

354

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

Trade number

Function

LED

High-mount brake lamp.

1

LED

Interior lamps.

1

1

To replace these lamps, see your authorized dealer.

Note: To replace instrument panel lights, see your authorized dealer.

355

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Capacities and Specifications

GENERAL INFORMATION

Radio Frequencies and Reception
Factors

AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:
•

AM: 530-1710 kHz

•

FM: 87.9-107.9 MHz

Note: Listening to loud audio for long
periods of time could damage your hearing.

Radio Reception Factors

The further you travel from an AM or FM station, the weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

CD and CD Player Information

Note: CD units play commercially pressed
4.7 in (12 cm) audio compact discs only. Due
to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in the
vehicle’s CD player.

Note:  Do not insert CDs with homemade
paper (adhesive) labels into the CD player
as the label may peel and cause the CD to
become jammed.  You should use a
permanent felt tip marker rather than
adhesive labels on your homemade CDs.
Ballpoint pens may damage CDs.  Ask an
authorized dealer for more information.

Note: Do not use any irregularly shaped
discs or discs with a scratch protection film
attached.

Always handle discs by their edges only.
Clean the disc with an approved CD cleaner
only.  Wipe it from the center of the disc
toward the edge.  Do not clean in a circular
motion.

356

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Audio System

Do not expose discs to direct sunlight or heat
sources for extended periods.

MP3 and WMA Track and Folder
Structure

Audio systems capable of recognizing and
playing MP3 and WMA individual tracks and
folder structures work as follows:
•

There are two different modes for MP3
and WMA disc playback: MP3 and WMA
track mode (system default) and MP3 and
WMA folder mode.

•

MP3 and WMA track mode ignores any
folder structure on the MP3 and WMA
disc. The player numbers each MP3 and
WMA track on the disc (noted by the MP3
or WMA file extension) from T001 to a
maximum of T255. The maximum number
of playable MP3 and WMA files may be
less depending on the structure of the
CD and exact model of radio present.

•

MP3 and WMA folder mode represents
a folder structure consisting of one level
of folders. The CD player numbers all
MP3 and WMA tracks on the disc (noted
by the MP3 or WMA file extension) and
all folders containing MP3 and WMA files,
from F001 (folder) T001 (track) to F253
T255.

•

Creating discs with only one level of
folders helps with navigation through the
disc files.

If you are burning your own MP3 and WMA
discs, it is important to understand how the
system reads the structures you create. While
various files may be present (files with
extensions other than MP3 and WMA), only
files with the MP3 and WMA extension are
played; other files are ignored by the system.
This enables you to use the same MP3 and
WMA disc for a variety of tasks on your work
computer, home computer and your
in-vehicle system.

In track mode, the system displays and plays
the structure as if it were only one level deep
(all MP3 and WMA files play, regardless of
being in a specific folder). In folder mode,
the system only plays the MP3 and WMA files
in the current folder.

AUDIO UNIT

WARNING

Driving while distracted can result in
loss of vehicle control, crash and injury.

We strongly recommend that you use
extreme caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

Note: The touchscreen system controls most
of the audio features.

357

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Audio System

Note: Some features, such as satellite radio,
may not be available in your location. Check
with an authorized dealer.

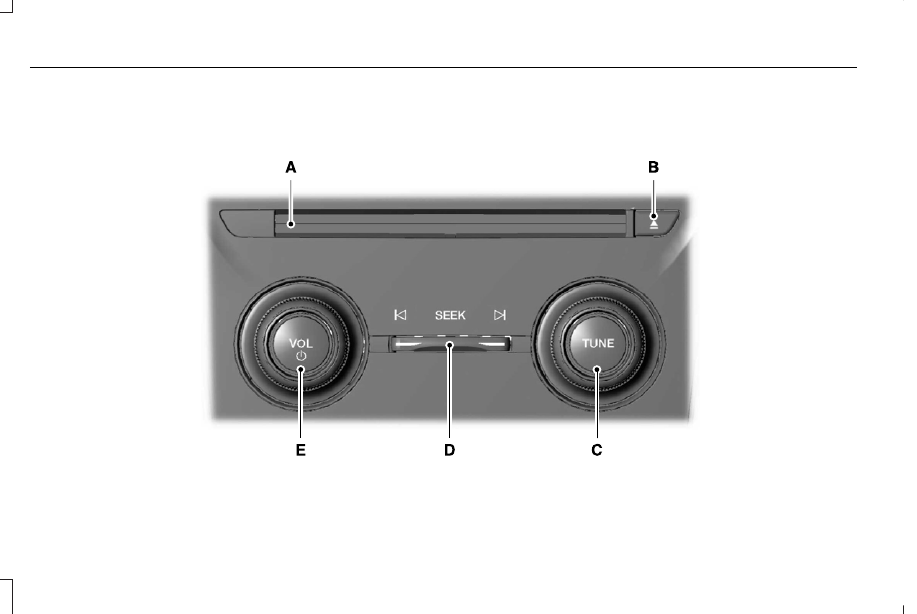

E245593

358

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Audio System
