Lincoln Continental (2019 year). Manual - part 24

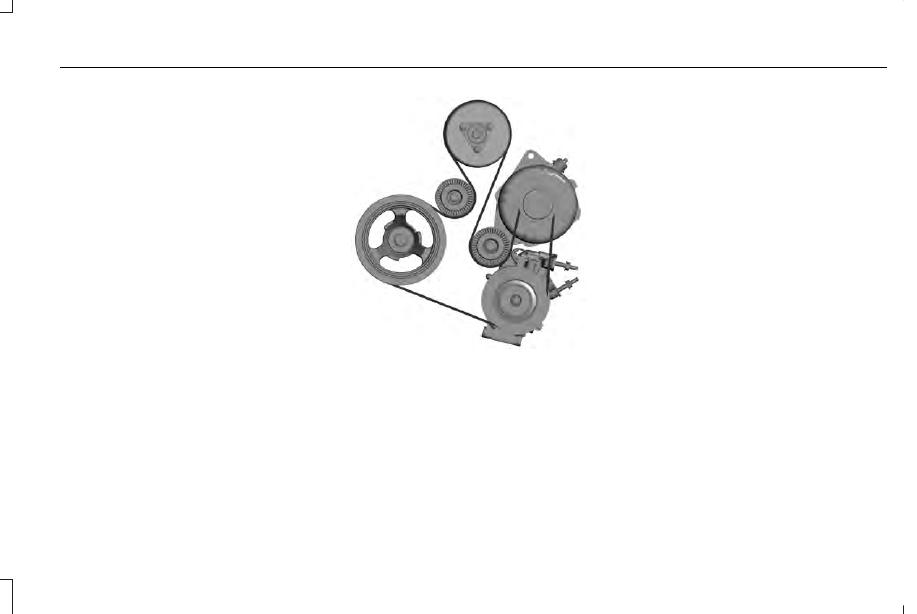

Drivebelt Routing

E221312

375

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

ENGINE SPECIFICATIONS - 3.7L

Specification

Measurement

227

Cubic inches.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

0.049 - 0.053 in (1.25 - 1.35 mm)

Spark plug gap.

10.5:1

Compression ratio.

Drivebelt Routing

3.7L Duratec

E191904

376

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

MOTORCRAFT PARTS - 2.7L

Motorcraft Part number

Component

FA-1912A

Air filter element.

FL-2062

Oil filter.

BAGM-94RH7-800

Battery.

SP-542

Spark plugs.

FP-80

Cabin air filter (combi).

WW-2431 (driver side)

Windshield wiper blade.

WW-2050 (passenger side)

We recommend Motorcraft® replacement
parts available at your authorized dealer or
at fordparts.com for scheduled maintenance.
The parts engineered for your vehicle meet
or exceed our specifications. Use of other
parts may impact vehicle performance,
emissions and durability. Your warranty may
be void for any damage related to use of
other parts.

If a Motorcraft® oil filter is not available, use
an oil filter that meets industry performance
specification SAE/USCAR-36.

For spark plug replacement, contact an
authorized dealer. Replace the spark plugs
at the appropriate intervals.   See Scheduled
Maintenance Record (page 540).

377

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

MOTORCRAFT PARTS - 3.0L

Motorcraft Part number

Component

FA-1912A

Air filter element.

FL-2062

Oil filter.

BAGM-94RH7-800

Battery.

SP-542

Spark plugs.

FG-1083

Fuel Filter.

FP-80

Cabin air filter (combi).

WW-2431 (driver side)

Windshield wiper blade.

WW-2050 (passenger side)

We recommend Motorcraft® replacement
parts available at your authorized dealer or
at fordparts.com for scheduled maintenance.
The parts engineered for your vehicle meet
or exceed our specifications. Use of other
parts may impact vehicle performance,
emissions and durability. Your warranty may
be void for any damage related to use of
other parts.

If a Motorcraft® oil filter is not available, use
an oil filter that meets industry performance
specification SAE/USCAR-36.

For spark plug replacement, contact an
authorized dealer. Replace the spark plugs
at the appropriate intervals.   See Scheduled
Maintenance Record (page 540).

378

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

MOTORCRAFT PARTS - 3.7L

Motorcraft Part number

Component

FA-1912A

Air filter element.

FL-500-S

Oil filter.

BAGM-48H6-760

Battery (non-Livery).

BAGM-94RH7-800

Battery (Livery).

SP-520

Spark plugs.

FP-80

Cabin air filter (combi).

WW-2431 (driver side)

Windshield wiper blade.

WW-2050 (passenger side)

We recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com for scheduled maintenance. The parts
engineered for your vehicle meet or exceed our specifications. Use of other parts may impact vehicle performance, emissions and durability.
Your warranty may be void for any damage related to use of other parts.

If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer.  Replace the spark plugs at the appropriate intervals.   See Scheduled Maintenance
(page 528).

379

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

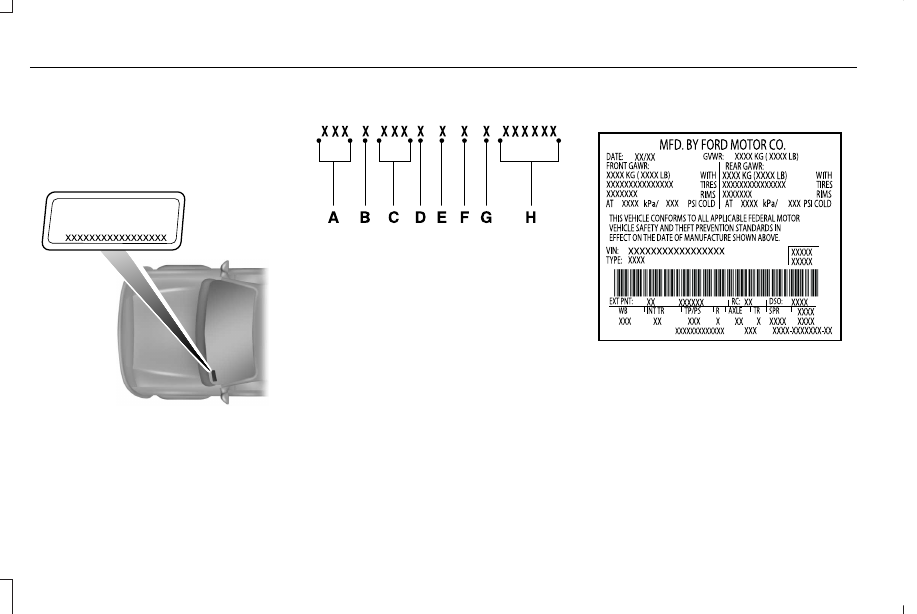

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is located
on the left-hand side of the instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where the
Safety Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post, or
the edge of the door near the door latch,
next to the driver's seating position.

380

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label.  The
following table shows the transmission code
along with the transmission description.

Code

Description

J

Six-speed automatic transmission 6F50

C

Six-speed automatic transmission 6F55

381

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

CAPACITIES AND SPECIFICATIONS - 2.7L

Capacities

WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service

the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

6.0 qt (5.7 L)

Engine oil (with oil filter).

10.9 qt (10.3 L)

Engine coolant (Front Wheel Drive).

11.0 qt (10.4 L)

Engine coolant (All Wheel Drive).

Between MIN/MAX on brake fluid reservoir

Brake fluid.

32.8–34.8 fl oz (970–1,030 ml)

Rear differential fluid (All Wheel Drive).

23.7 fl oz (700 ml)

1

Power Transfer Unit fluid (All Wheel Drive).

11.6 qt (11 L)

2

Automatic transmission fluid.

Fill as required

Windshield washer fluid.

18.0 gal (68.1 L)

Fuel tank.

382

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Capacity

Item

20 oz (0.57 kg)

A/C refrigerant.

5.24 fl oz (155 ml)

A/C refrigerant compressor oil.

1

Contact an authorized dealer for fluid level checking and filling.

2

Approximate dry fill capacity.  Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C946-B1

Motor oil (U.S.):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil
XO-5W30-Q1SP

WSS-M2C946-B1

Motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP12

WSS-M2C946-B1

Motor oil (Mexico):
Motorcraft® SAE 5W-30 Synthetic Motor Oil
MXO-5W30-Q1SP

WSS-M97B44-D2

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant

383

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Specification

Name

VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Rear differential fluid (All Wheel Drive) (U.S. and Mexico):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Rear differential fluid (All Wheel Drive) (Canada):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSL-M2C192-A

Power Transfer Unit fluid (All Wheel Drive) (U.S. and Mexico):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Power Transfer Unit fluid (All Wheel Drive) (Canada):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

WSS-M2C938-A

Automatic transmission fluid (U.S. and Mexico):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid

384

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Specification

Name

XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
CXT-10-LV12

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft® R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
R-134a Refrigerant
CYN-19-R

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

WSH-M1C231-B

A/C refrigerant compressor oil:
Motorcraft® PAG Refrigerant Compressor Oil

385

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Specification

Name

YN-12-D

ESA-M1C75-B

Transmission, parking brake linkage and pivots and brake pedal shift grease:
Premium Long-Life Grease
XG-1-E1

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

-

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

Note: Some Motorcraft® items may not be
available in Mexico.

386

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage which is not
covered by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet API
SN PLUS requirements and display the API
Certification Mark for gasoline engines.

E142732

E276075

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by your vehicle warranty.

Note: We recommend using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials may result in
brake system damage and possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should only
use MERCON® LV transmission fluid.  The
use of any other fluid may cause
transmission damage.

387

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,

we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Specification

Name

WSS-M2C953-A1

Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil:
Engine oil - SAE 0W-30

E240523

388

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

CAPACITIES AND SPECIFICATIONS - 3.0L

Capacities

WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service

the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

6.0 qt (5.7 L)

Engine oil (with oil filter).

11.6 qt (11 L)

Engine coolant.

Between MIN/MAX on brake fluid reservoir

Brake fluid.

32.0 fl oz (946 ml)

Rear differential fluid (All Wheel Drive).

1.9 fl oz (55 ml)

Rear differential fluid additive (All Wheel Drive).

23.7 fl oz (700 ml)

1

Power transfer unit fluid (All Wheel Drive).

11.6 qt (11 L)

2

Automatic transmission fluid.

Fill as required

Windshield washer fluid.

18.0 gal (68.1 L)

Fuel tank.

389

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Capacity

Item

20 oz (0.57 kg)

A/C refrigerant.

5.24 fl oz (155 ml)

A/C refrigerant compressor oil.

1

Contact an authorized dealer for fluid level checking and filling.

2

Approximate dry fill capacity.  Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C946-B1

Motor oil (U.S.):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil
XO-5W30-Q1SP

WSS-M2C946-B1

Motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP12

WSS-M2C946-B1

Motor oil (Mexico):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil
MXO-5W30-Q1SP

WSS-M97B44-D2

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant

390

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications
