Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

—

12

Rear seat recline.

40A

2

13

Powertrain control module relay.

—

14

Horn.

20A

1

15

A/C clutch.

10A

1

16

Not used.

—

17

Not used.

—

18

Heated rear window relay.

—

19

Electric cooling fan relay.

—

20

Electric cooling fan relay (3.0L engine).

—

21

Electric cooling fan (3.0L engine).

30A

2

22

Not used.

—

23

Not used.

—

24

Blower motor relay.

—

25

295

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Anti-lock brake system valves.

30A

2

26

Not used.

—

27

Rear climate controlled seats.

30A

2

28

Run/start relay.

—

29

Not used (spare).

10A

1

30

Electric power-assisted steering.

10A

1

31

Electric parking brake.

Anti-lock brake system module.

10A

1

32

Powertrain control module.

10A

1

33

Blind spot information system.

10A

1

34

Adaptive cruise control.
Front view camera.
360 degree camera module.
Rear camera.
Transmission range control module.

Not used.

—

35

Electric cooling fan relay.

—

36

296

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Rear seat recline relay.

—

37

A/C compressor clutch relay.

—

38

Horn relay.

—

39

Not used.

—

40

Not used.

—

41

Blower motor.

40A

2

42

Not used.

—

43

Body control module/voltage quality module
bus.

50A

3

44

Not used.

—

45

Electric cooling fan.

50A

3

46

Electric cooling fan.

50A

3

47

Body control module RP1 bus.

50A

3

48

Torque vectoring (3.0L engine).

40A

3

49

Body control module RP2 bus.

50A

3

50

297

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

—

51

Anti-lock brake system pump.

60A

3

52

Adaptive front steering.

40A

3

53

Heated windshield.

40A

2

54

Heated rear window.

40A

2

55

Power inverter.

40A

2

56

Power deck lid module.

30A

2

57

Manual deck lid latch.

Not used.

—

58

Not used.

—

59

Fuel pump.

30A

2

60

Not used.

—

61

Power point 2A.

20A

2

62

Power seat control module.

30A

2

63

Front heated seats.

298

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

—

64

Fuel pump 2.

30A

2

65

Passenger power seat.

30A

2

66

Power point 1B.

20A

2

67

Auxiliary blower.

15A

2

68

Power point 1A.

20A

2

69

Not used.

—

70

Not used.

—

71

Driver power seat module.

30A

2

72

Not used.

—

73

Wiper motor.

25A

2

74

Not used.

—

75

Not used (spare).

20A

2

76

Not used.

—

77

299

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Starter.

30A

2

78

Auxiliary transmission pump (2.0L engine with
start-stop).

20A

2

79

Not used.

—

80

USB smart charge - passenger side.

5A

1

81

USB smart charge - console.

5A

1

82

Electronic door latch (left-hand rear).

20A

1

83

USB smart charge - driver side.

5A

1

84

Electronic door latch (right-hand front).

20A

1

85

Electronic door latch (right-hand rear).

20A

1

86

Transmission range control module.

15A

1

87

Rear recline.

5A

1

88

Electronic door latch (left-hand front).

20A

1

89

300

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Powertrain control module relay.

10A

1

90

Brake on/off switch.

10A

1

91

Front multi-contour seat module.

15A

1

92

Rear multi-contour seats.

15A

1

93

Right-hand side high intensity discharge
headlamp.

20A

1

94

Left-hand side high intensity discharge
headlamp.

20A

1

95

Wiper park heater.

10A

1

96

Alternator sense line.

10A

1

97

Rain sensor.

5A

1

98

Not used.

—

99

1

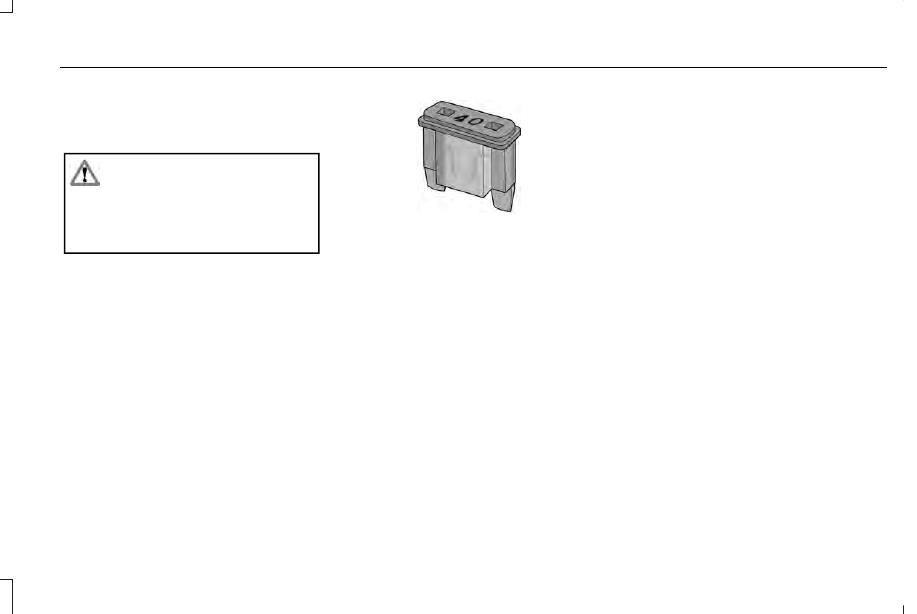

Micro fuse.

2

M-type fuse.

3

J-type fuse.

301

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Note:  Spare fuse amperage could vary.

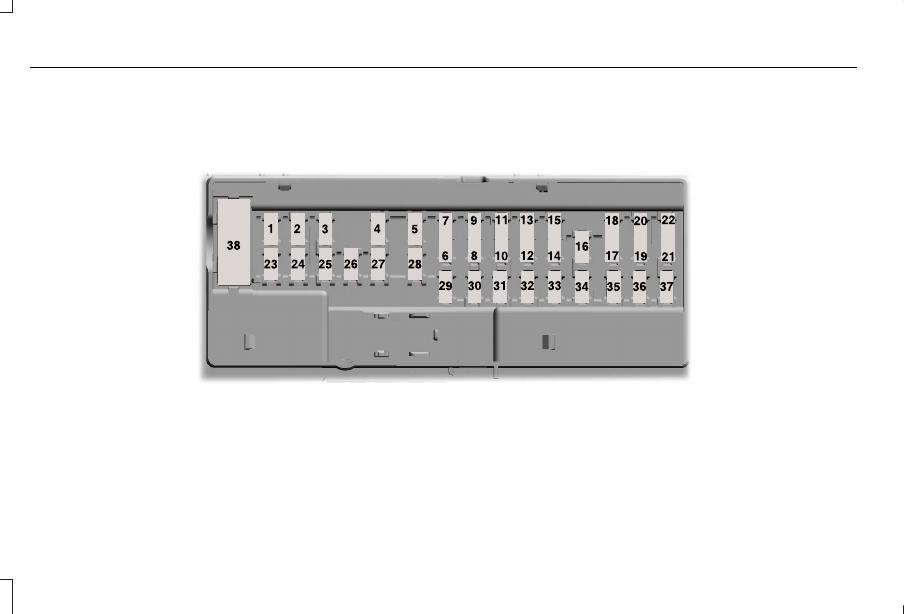

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel
to the left of the steering column.

Note: It may be easier to access the fuse
panel if you remove the finish trim piece.

E145984

302

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

—

1

Driver seat switch.

7.5A

1

2

Passenger seat switch.

Driver unlock relay.

20A

1

3

Not used (spare).

5A

1

4

Subwoofer amplifier.

20A

1

5

Revel digital signal processing amplifier.

Not used.

—

6

Not used.

—

7

Security horn.

10A

1

8

Not used.

10A

1

9

Telematics module.

5A

2

10

Power decklid module.

Keypad.

5A

2

11

Outside lock switch.
Combined security sensor module.

303

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Front control interface module (climate control).

7.5A

2

12

Gear shift module.
Rear climate control module.

Instrument cluster.

7.5A

2

13

Smart data link.
Steering column control module.

Restraints control module.

10A

1

14

Smart datalink connector power.

10A

2

15

Decklid release relay.

5A

2

16

Power decklid.

15A

2

Not used (spare).

5A

2

17

Push button start switch.

5A

2

18

Not used.

7.5A

2

19

Headlamp control module.

7.5A

1

20

Humidity sensor.

5A

2

21

304

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

5A

2

22

Delayed accessory power.

10A

1

23

Left front window switch.
Moonroof.
Rear window power sunshade module.
DC inverter.

Central lock relay.

30A

1

24

Left-hand front door zone module.

30A

1

25

Right-hand front door zone module.

30A

1

26

Moonroof.

30A

1

27

Revel digital signal processing amplifier.

20A

1

28

Left-hand rear door zone module.

30A

1

29

Right-hand rear door zone module.

30A

1

30

Column memory module.

15A

1

31

Advanced heads up display.

305

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

SYNC.

10A

1

32

Radio frequency receiver.

20A

1

33

Rear Seat Entertainment.

Run/start relay.

30A

1

34

Restraint control module.

5A

1

35

Lane keeping system module.

15A

1

36

Auto high beam.
Electrochromic mirrors.
Rear heated seats.
Vehicle dynamics module.

Heated steering wheel.

20A

1

37

Steering effort control module.
Steering angle control module.

Not used.

30A

3

38

1

Micro fuse.

2

Dual micro fuse.

3

Circuit breaker.

Note:  Spare fuse amperage could vary.

306

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

CHANGING A FUSE

Fuses

WARNING: Always replace a fuse

with one that has the specified amperage
rating. Using a fuse with a higher
amperage rating can cause severe wire
damage and could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses before
replacing any electrical components.

307

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

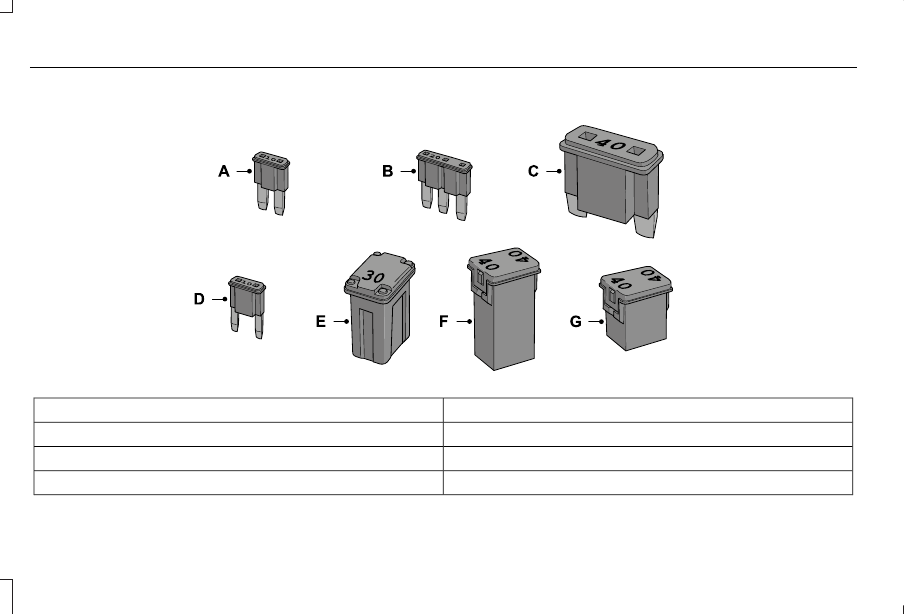

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

308

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

Fuse Type

Callout

Mini

D

M Case

E

J Case

F

J Case Low Profile

G

309

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Fuses

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale value.
There is a large network of authorized
dealers that are there to help you with their
professional servicing expertise. We believe
that their specially trained technicians are
best qualified to service your vehicle properly
and expertly. They are supported by a wide
range of highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service.  Check your
warranty information to find out which parts
and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications.  Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the engine
running in an enclosed space, unless you
are sure you have enough ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away from
the battery and all fuel related parts.

Working with the Engine Off

1. Set the parking brake and shift the

transmission to park (P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING: To reduce the risk of

vehicle damage and personal burn injuries,
do not start your engine with the air
cleaner removed and do not remove it
while the engine is running.

1. Set the parking brake and shift the

transmission to park (P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

Opening the Hood

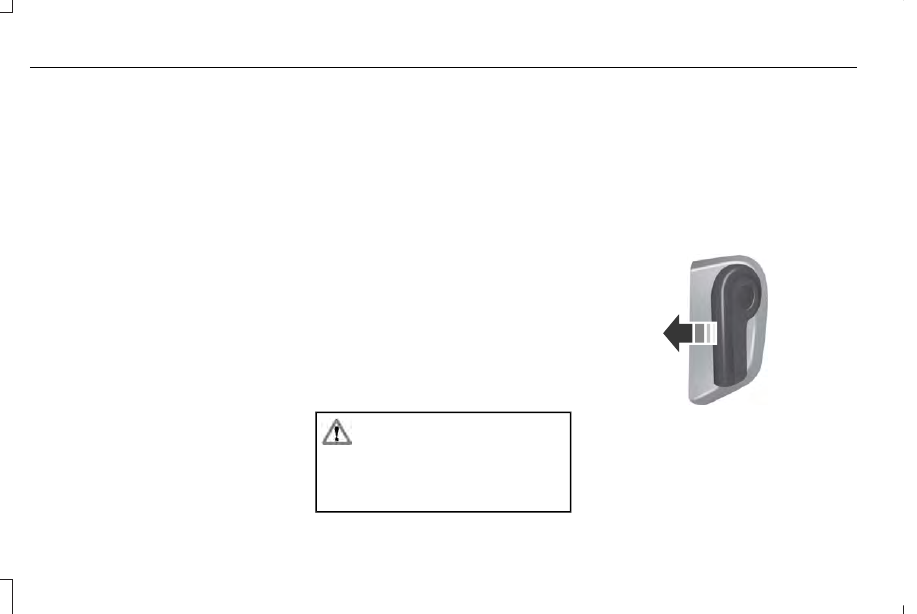

E142457

1. Inside the vehicle, pull the hood release

handle located under the left-hand side
of the instrument panel.

2. Slightly lift the hood.

3. Lift and release the hood latch.

310

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Maintenance
