Protected Components

Fuse Rating

Fuse or Relay Number

Brake on off switch.

10A

3

54

ALT sensor.

10A

3

55

Not used.

—

86

1

Micro 2 fuse.

2

M case fuse.

3

Micro 3 fuse.

Power Distribution Box - Bottom

There are fuses located on the bottom of the
fuse box. To access the bottom of the fuse
box, do the following:

295

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

E145983

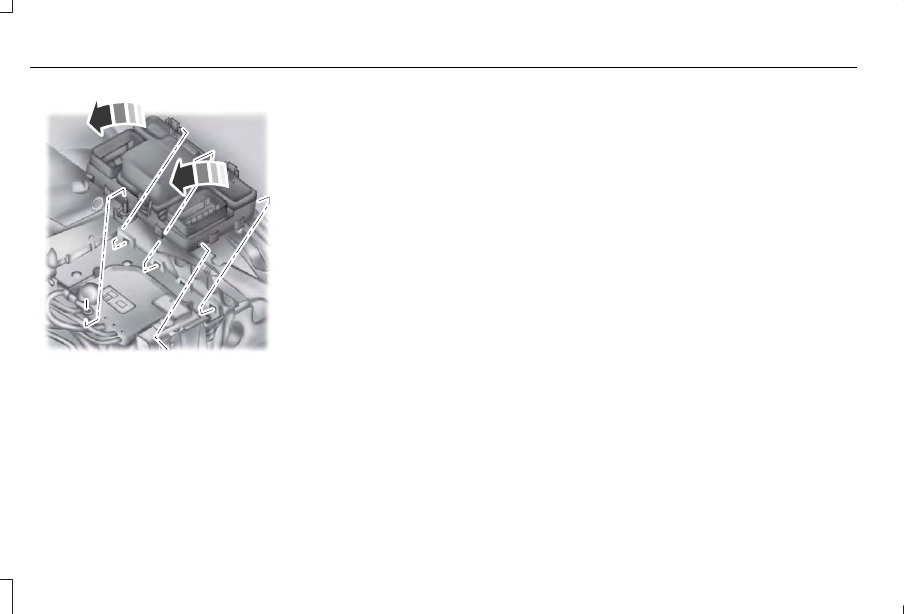

1. Release the two latches, located on both

sides of the fuse box.

2. Raise the inboard side of the fuse box

from the cradle.

3. Move the fuse box toward the center of

the engine compartment.

4. Pivot the outboard side of the fuse box

to access the bottom side.

296

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

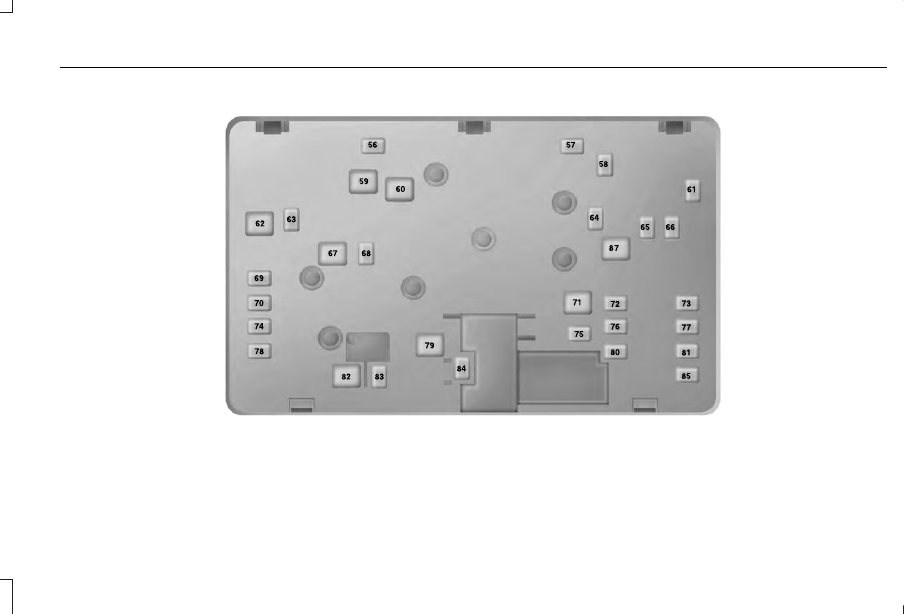

E190798

297

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Not used.

—

56

Power Point 1 - Driver Front.

20A

2

57

Fuel pump feed.

30A

1

58

Electronic fan 3.

40A

2

59

Electronic fan 1.

40A

2

60

Not used.

—

61

Body control module 1.

50A

2

62

Electronic fan 2.

25A

1

63

Headlamp washer.

20A

1

64

Front heated seat.

20A

1

65

Heated wiper park.

15A

1

66

Body control module 2.

50A

2

67

298

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Heated rear window.

40A

1

68

Anti-lock brake system valves.

30A

1

69

Passenger seat.

30A

1

70

Active front steering.

50A

1

71

Transmission oil pump (start/stop).

20A

1

72

Rear heated seats.

20A

1

73

Driver seat module.

30A

1

74

Wiper motor 1.

25A

1

75

Power liftgate module.

30A

1

76

Climate control seat module.

30A

1

77

Trailer lighting module.

40A

1

78

Blower motor.

40A

2

79

299

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Wiper motor 2.

25A

1

80

110 volt inverter.

40A

1

81

Not used.

–

82

TRCM (iShifter).

20A

1

83

Starter solenoid.

30A

1

84

Not used (spare).

30A

1

85

Anti-lock brake system pump.

60A

2

87

1

M case fuse.

2

J case fuse.

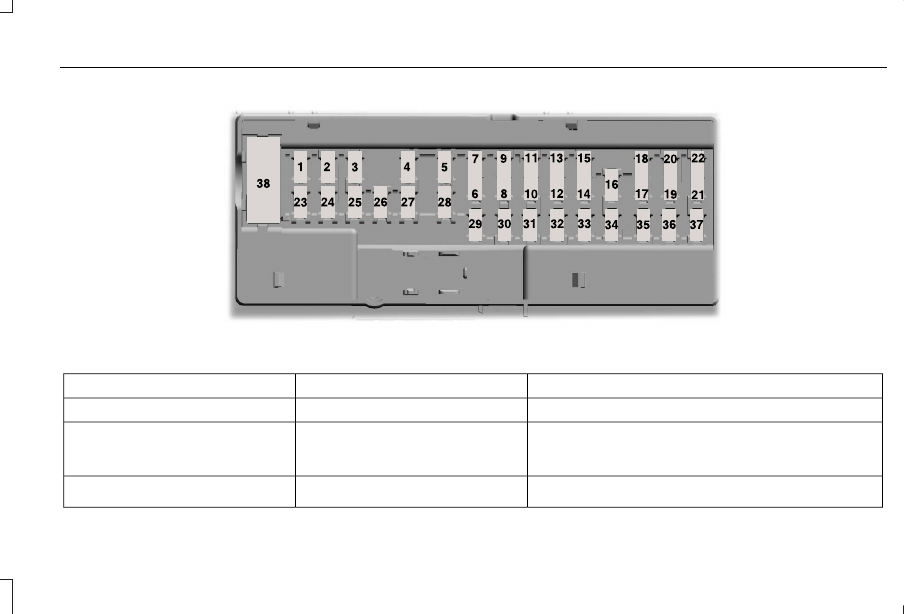

Passenger Compartment Fuse Panel

The fuse panel is located under the
instrument panel to the left of the steering
column.

Note: It may be easier to access the fuse
panel if you remove the finish trim piece.

300

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

E145984

Protected Components

Fuse Rating

Fuse or Relay Number

Not used.

–

1

Memory seats.

7.5A

1

2

Lumbar.
Driver seat module logic power.

Driver door unlock.

20A

1

3

301

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Not used (spare).

5A

1

4

Subwoofer amplifier.

20A

1

5

USB charger.

10A

2

6

Not used (spare).

10A

2

7

Security horn relay.

–

8

Rear seat entertainment system module.

10A

2

9

360 camera badge.

Keypad.

5A

2

10

Power liftgate module logic power.
Hands free liftgate module.
SYNC 3 module.
Embedded Modem.

Combined sensing module.

5A

2

11

Climate control module.

7.5A

2

12

Gear shift module.

Cluster.

7.5A

2

13

Steering column control module.
Smart datalink connector (gateway) module.

302

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Extended power module - power.

10A

2

14

Datalink power.

10A

2

15

Not used (spare).

15A

1

16

Not used (spare).

5A

2

17

Not used (spare).

5A

2

18

Extended power module - Run/Start.

7.5A

2

19

Active front steering logic power.

7.5A

2

20

Humidity and in-car temperature sensor.

5A

2

21

Occupant classification sensor.

5A

2

22

Delayed accessory (power inverter logic, moonroof logic,
driver window switch power).

10A

1

23

Central lock unlock.

20A

1

24

Driver door (window, mirror).

30A

1

25

Driver door module.

303

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Driver door lock indicator.
Driver lock switch illumination.

Front passenger door (window, mirror).

30A

1

26

Front passenger door module.
Front passenger lock indicator.
Front passenger switch illumination (window, lock).

Moonroof.

30A

1

27

Amplifier.

20A

1

28

Rear driver side door smart window.

30A

1

29

Rear passenger side door smart window.

30A

1

30

Not used (spare).

15A

1

31

Voice control (SYNC).

10A

1

32

Radio transceiver module.

Radio.

20A

1

33

Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker
38).

30A

1

34

304

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Not used (spare).

5A

1

35

Auto-dimming rear view mirror.

15A

1

36

Auto high beam/lane departure mirror module.
Rear heated seat module logic power.
Suspension module.

Not used (spare).

20A

1

37

Rear power windows.

30A

3

38

Rear window switch illumination.

1

Micro 2 fuse.

2

Micro 3 fuse.

3

Circuit breaker.

305

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.

Using a fuse with a higher amperage rating
can cause severe wire damage and could
start a fire.

E217331

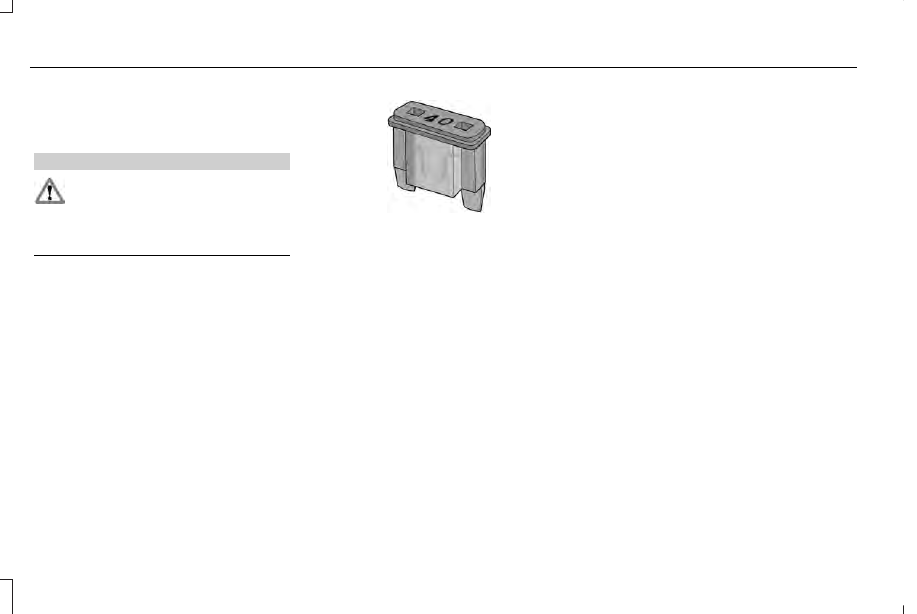

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses before
replacing any electrical components.

306

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

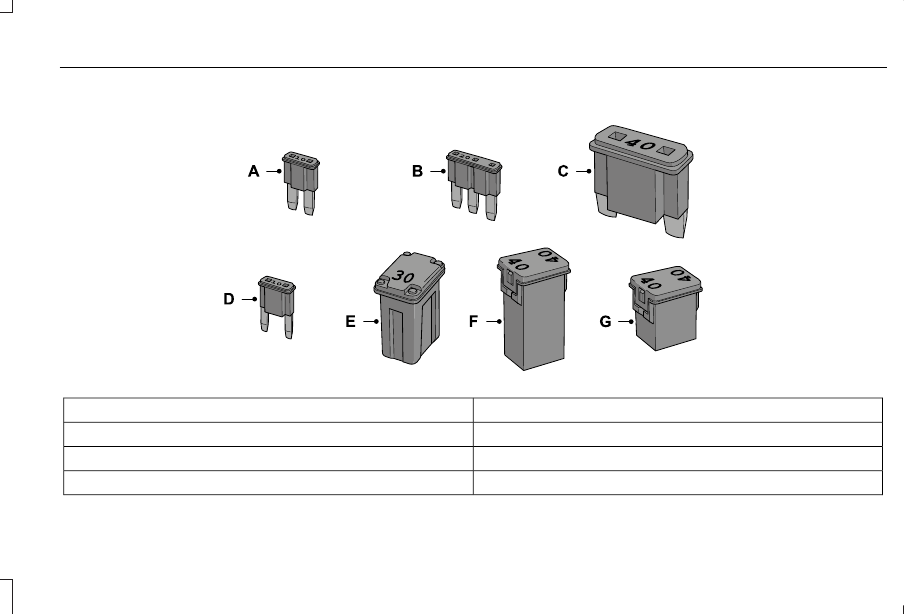

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

307

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

Fuse Type

Callout

Mini

D

M Case

E

J Case

F

J Case Low Profile

G

308

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Fuses

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale value.
There is a large network of authorized
dealers that are there to help you with their
professional servicing expertise. We believe
that their specially trained technicians are
best qualified to service your vehicle properly
and expertly. They are supported by a wide
range of highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which parts
and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the engine
running in an enclosed space, unless you
are sure you have enough ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away from
the battery and all fuel related parts.

Working with the Engine Off

1. Set the parking brake and shift to park

(P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING

To reduce the risk of vehicle damage
and/or personal burn injuries, do not

start your engine with the air cleaner
removed and do not remove it while the
engine is running.

1. Set the parking brake and shift to park

(P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

Opening the Hood

E142457

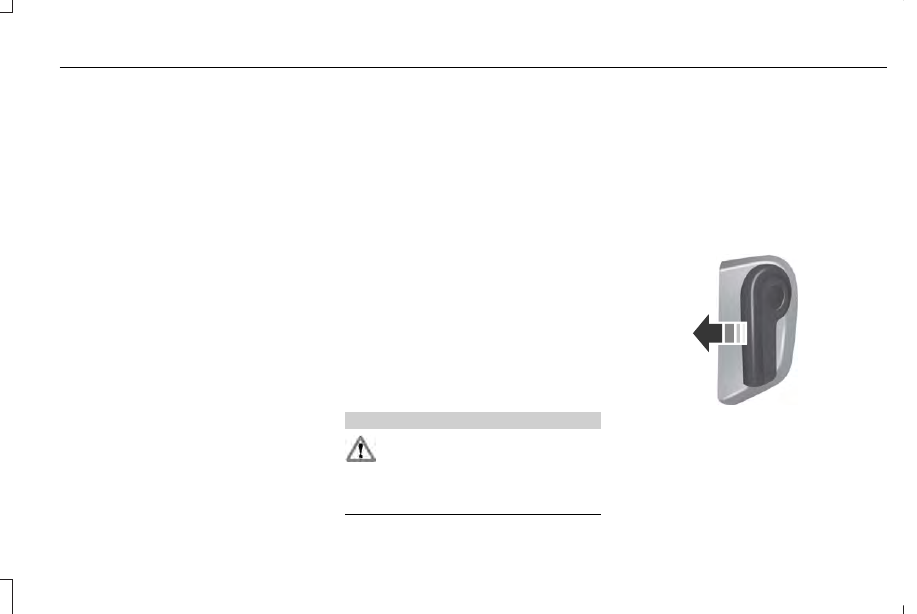

1. Inside the vehicle, pull the hood release

handle located under the left-hand side
of the instrument panel.

309

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Maintenance

E251115

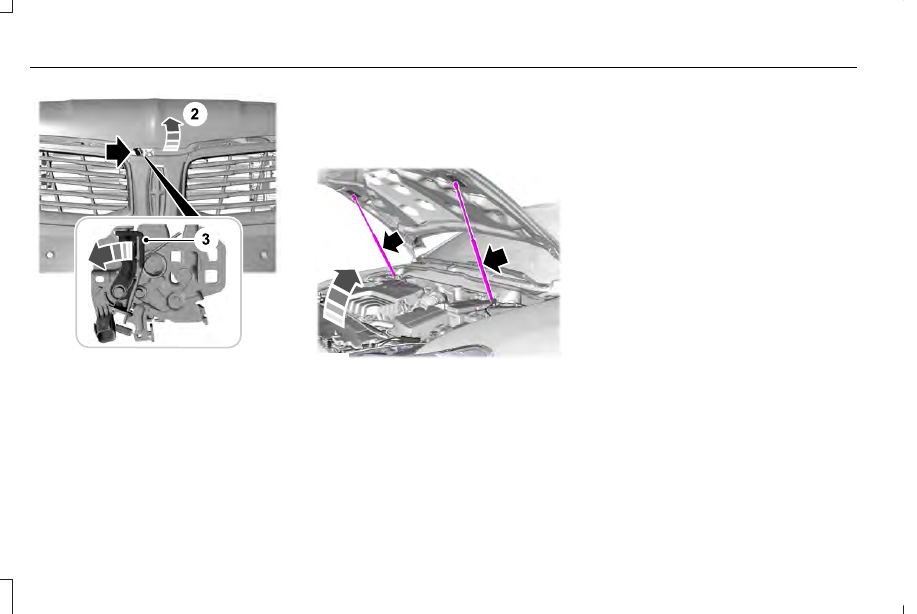

2. Slightly lift the hood.

3. Release the hood latch by pushing the

secondary release lever to your left-hand
side.

E202009

4

4. Open the hood. The hood struts

automatically supports the hood.

Closing the Hood

1. Lower the hood until it engages on to the

secondary latch.

2. Firmly push down on the front of the

hood to close it fully.

Note: Make sure that the hood is correctly
closed.

UNDER HOOD OVERVIEW - 2.7L
