If the transmission is in neutral (N), the side
sensing system provides visual distance
indication only when your vehicle is moving
below a speed of 5 mph (8 km/h) and there
is a front or rear parking aid obstacle
detected, and the side obstacle is within
24 in (60 cm) from the side of your vehicle.
When you stop your vehicle the visual
distance indication stops after four seconds.

If the side sensing system is not available,
the side distance indicator blocks do not
appear.

The side sensing system is not available
under the following condition:
•

If you switch the traction control system
off.

The side sensing system may not be
available until you have driven approximately
the length of your vehicle in order for the
system to reinitialize if:
•

You switch the ignition on, off and back
on.

•

Your vehicle remains stationary for over
two minutes.

•

The anti-lock brake system is activated.

•

The traction control system is activated.

•

When the steering wheel angle
information is not available, the side
sensing system is not available. The
vehicle must be driven at least 492 ft
(150 m) above 19 mph (30 km/h) to
recover the steering wheel angle
information.

ACTIVE PARK ASSIST

 (If Equipped)

Parallel Parking, Perpendicular
Parking, Parallel Park Out Assist

WARNINGS

You must remain in your vehicle when
the system turns on. At all times, you

are responsible for controlling your vehicle,
supervising the system and intervening, if
required. Failure to take care may result in
the loss of control of your vehicle, serious
personal injury or death.

The sensors may not detect objects in
heavy rain or other conditions that

cause interference.

WARNINGS

Active park assist does not apply the
brakes under any circumstances.

The system is designed to aid the
driver. It is not intended to replace your

attention and judgment. You are still
responsible to drive with due care and
attention.

Note: Active Park Assist is a multi-step
process and may require you to shift your
transmission multiple times. Follow the
on-screen instructions until you complete the
parking process.

Note: The Blind Spot Information System
does not detect traffic alongside or behind
your vehicle during an Active Park Assist
maneuver.

The system detects an available parallel or
perpendicular parking space and
automatically steers your vehicle into the
space (hands-free) while you control the
accelerator, gearshift and brakes. The system
visually and audibly guides you to park your
vehicle.

215

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

If you are uncomfortable with the proximity
to any vehicle or object, you may choose to
override the system by grabbing the steering
wheel or by pressing the button.

Parallel Park Out Assist automatically steers
your vehicle out of a parallel parking space
(hands-free) while you control the
accelerator, gearshift and brakes. The system
visually and audibly guides you to enter
traffic.

The system may not correctly operate in any
of the following conditions:
•

You use a spare tire or a tire significantly
worn more than the other tires.

•

One or more tires are improperly inflated.

•

You try to park on a tight curve.

•

Something passes between the front
bumper and the parking space. For
example, a pedestrian or cyclist.

•

The edge of the neighboring parked
vehicle is high off the ground. For
example, a bus, tow truck or flatbed
truck.

•

The weather conditions are poor.  For
example, during heavy rain, snow or fog.

Note:  Keep the sensors on the bumper or
fascia free from snow, ice and large
accumulations of dirt.  Covered sensors can
affect the system's accuracy.  Do not clean
the sensors with sharp objects.

Note: The sensors may not detect objects
with surfaces that absorb ultrasonic waves
or cause ultrasonic interference. For
example, motorcycle exhaust, truck air
brakes or horns.

Note: Following a change in tire size, the
system must recalibrate and operation may
be impaired for a short time.

Do not use the system if:
•

You have attached a foreign object close
to the sensors on the front or rear of your
vehicle. For example, a bike rack or
trailer.

•

You attach an overhanging object to the
roof. For example, a surfboard.

•

A foreign object damages or obstructs
the front or rear bumper or side sensors.

•

The correct tire size is not in use on your
vehicle. For example, a mini-spare tire.

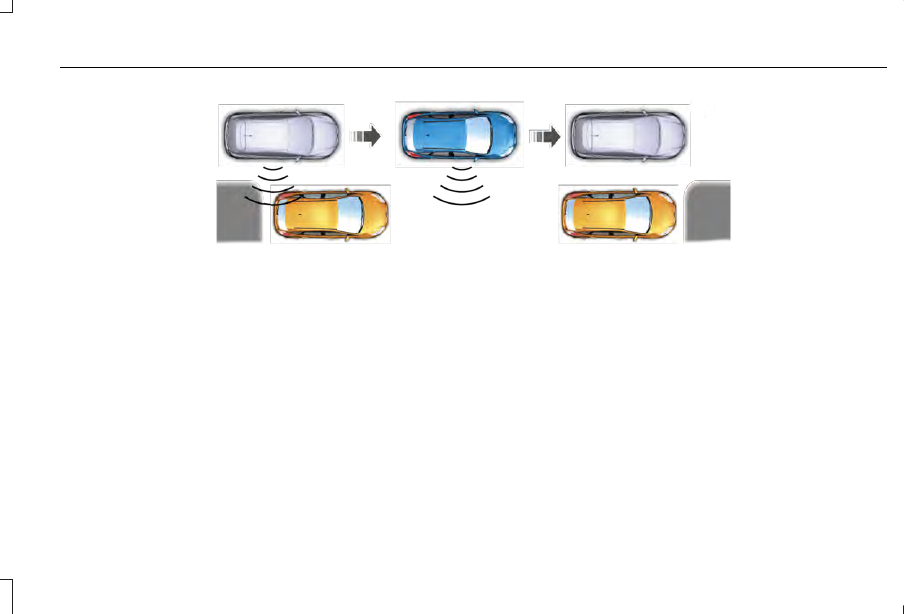

Using Active Park Assist - Parallel Parking

E146186

Press the Active Park Assist button
once to search for a parallel
parking space.

When driving at a speed less than 22 mph
(35 km/h), the system automatically scans
both sides of your vehicle for an available
parking space. The system displays a
message and a corresponding graphic to
indicate it is searching for a parking space.
Use the direction indicator to select
searching either to the left-hand side or
right-hand side of your vehicle.

Note: If the direction indicators are not used,
the system defaults to the passenger side
of your vehicle.

216

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

E130107

Note: You can also switch the system on
after you have already driven partially or
completely past a parking space. Press the
Active Park Assist button and the system
informs you if you have recently passed a
suitable parking space.

When the system finds a suitable space, it
displays a message and a tone sounds. Stop
your vehicle and follow the instructions on
the screen. If your vehicle is moving very
slowly, you may need to pull forward a short
distance before the system is ready to park.

Note: You must observe that the space the
system selects remains clear of obstructions
at all times during the maneuver.

Note: Drive your vehicle within 5 ft (1.5 m)
and as parallel as possible to the other
vehicles while passing a parking space.

Note: The system always offers the last
parking space it detects. For example, if your
vehicle detects multiple spaces while you
are driving, it offers the last one.

Note: If driven above approximately 22 mph
(35 km/h), the system shows a message to
alert you to reduce your vehicle speed.

Automatically Steering into a Parking
Space

Note: If your vehicle speed exceeds
approximately 6 mph (10 km/h) or you
interrupt the maneuver, the system switches
off and you need to take full control of your
vehicle.

When you shift the transmission into reverse
(R), with your hands off the steering wheel
and nothing obstructing its movement, your
vehicle steers itself into the space
(hands-free). The system displays instructions
to move your vehicle backward and forward
in the space.

217

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

E130108

When you believe your vehicle is properly
parked, or you hear a solid tone
accompanied by a display message, bring
your vehicle to a complete stop.

When the Active Park Assist maneuver is
complete, the system displays a message
and a tone sounds.

Note: You are responsible for checking your
parked vehicle and making any necessary
corrections before leaving your vehicle.

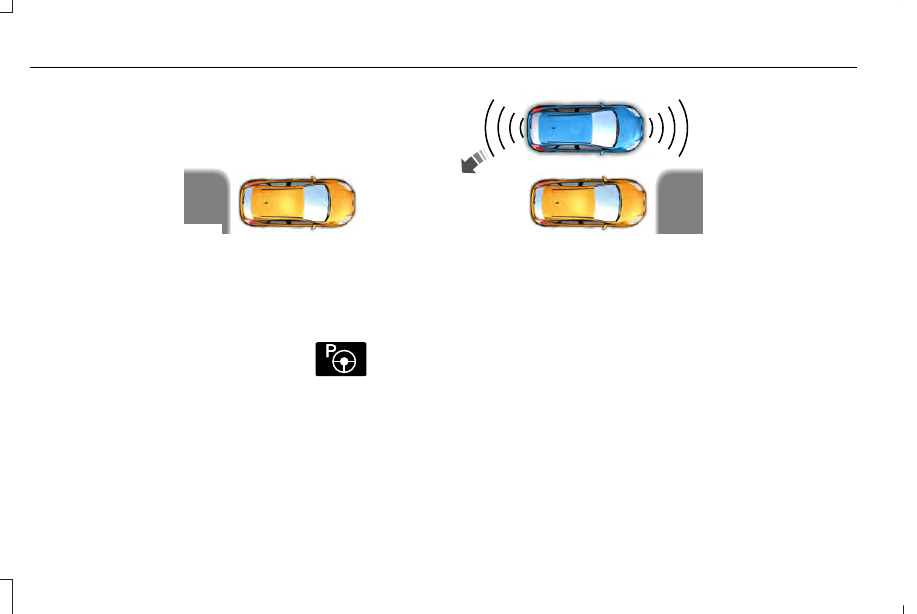

Using Active Park Assist - Perpendicular
Parking

E146186

Press the Active Park Assist button
twice to search for a perpendicular
parking space.

When driving at a speed less than 19 mph
(30 km/h), the system displays a message
and a corresponding graphic to indicate it is
searching for a parking space. Use the
direction indicator to select searching either
to the left-hand side or right-hand side of
your vehicle.

Note: If you do not make a selection, the
system defaults to the passenger side.

218

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

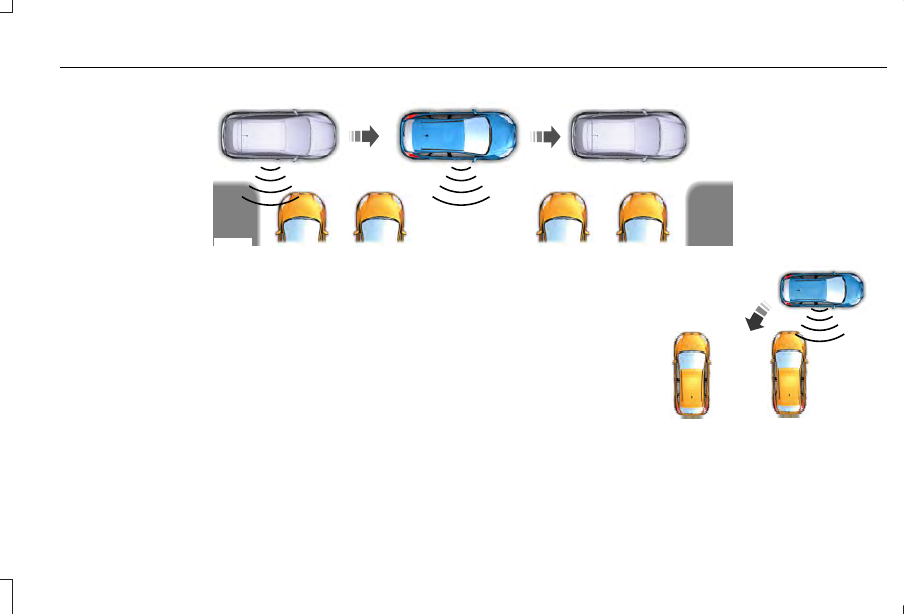

E186193

When the system finds a suitable space, it
displays a message and a tone sounds. Stop
your vehicle and follow the instructions on
the screen. If your vehicle is moving very
slowly, you may need to pull forward a short
distance before the system is ready to park.

Note: You must observe that the space the
system selects remains clear of obstructions
at all times during the maneuver.

Note: You should drive your vehicle within
5 ft (1.5 m) and as perpendicular as possible
to the other vehicles while passing a parking
space.

Note: The system always offers the last
detected parking space. For example, if your
vehicle detects multiple spaces while you
are driving, it offers the last one.

Note: If driven above approximately 19 mph
(30 km/h), the system shows a message to
alert you to reduce your vehicle speed.

Automatically Steering into a Parking
Space

Note: If your vehicle speed exceeds
approximately 6 mph (10 km/h) or you
interrupt the maneuver, the system switches
off and you need to take full control of your
vehicle.

E186191

219

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

When you shift the transmission into reverse
(R), with your hands off the wheel and
nothing obstructing its movement, your
vehicle steers itself into the space. The
system displays instructions to move your
vehicle backward and forward in the space.

When you believe your vehicle is properly
parked, or you hear a solid tone
accompanied by a display message, bring
your vehicle to a complete stop.

When the Active Park Assist maneuver is
complete, the system displays a message
and a tone sounds.

Note: You are responsible for checking your
parked vehicle and making any necessary
corrections before leaving your vehicle.

Using Active Park Assist - Parallel Park Out
Assist

E146186

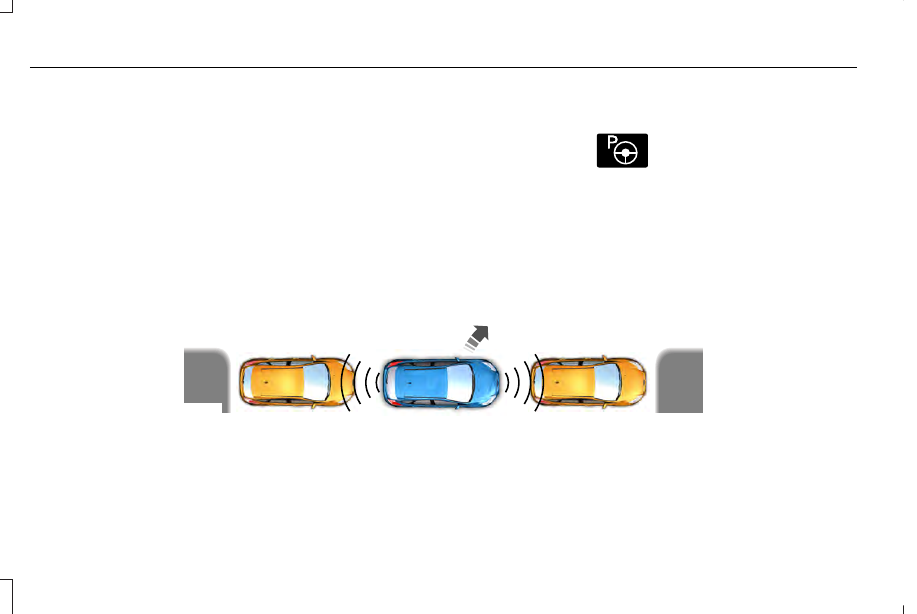

Press the Active Park Assist button
once while your vehicle is at rest
in a parallel parking space to use

Parallel Park Out Assist.

The system displays a message instructing
you to select a side. Use the direction
indicator to select which side of your vehicle
you want to exit the parking space.

E188012

220

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

The system determines the clearance to the
front and rear of your vehicle and
automatically steers your vehicle out of a
parallel parking space (hands-free) while you
control the accelerator, gearshift and brakes.
The system visually and audibly guides you
to enter traffic.

After the system directs your vehicle past
the adjacent vehicle or object, it guides you
to take control of the steering to complete
the exit out of the parking space.

Note: If the clearance in front of your vehicle
allows easy departure, the Parallel Park Out
Assist feature may not be available.

Note: You are responsible for controlling
your vehicle and making sure the path is
clear prior to pulling into traffic.

Note: Do not use this system to assist in
exiting perpendicular parking spaces.
Damages to your vehicle may occur.

Note: If your vehicle speed exceeds
approximately 3 mph (5 km/h) or you
interrupt the maneuver, the system switches
off and you need to take full control of your
vehicle.

Deactivating the Active Park Assist
Feature

You can manually deactivate the system by:
•

Pressing the Active Park Assist button
during an active maneuver.

•

Grabbing the steering wheel during an
active maneuver.

•

Driving above approximately 22 mph
(35 km/h) for 30 seconds while searching
for a parking space.

•

Driving above approximately 6 mph
(10 km/h) during an active maneuver.

•

Switching the traction control system off.

Certain vehicle conditions may also
deactivate the system, for example:
•

The traction control system activates.

•

There is an anti-lock brake system
activation or failure.

If a problem occurs with the system, a
warning message displays accompanied by
a tone.  Occasional system messages may
occur in normal operation.  For recurring or
frequent system faults, contact an authorized
dealer.

221

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

Troubleshooting the System

Possible Cause

Symptom

You may have the traction control system switched off.

The system does not look for a space.

The transmission is in reverse (R). Your vehicle must be moving forward to be able to
detect a parking space.

The sensors may be covered. For example, snow, ice or dirt buildup. Covered sensors
can affect how the system functions.

The system does not offer a parking space.

There is not enough room in the parking space for your vehicle to safely park.

There is not enough space for the parking maneuver on the opposite side of the parking
space.

The parking space is more than 5 ft (1.5 m) or less than 16 in (0.4 m) away.

Your vehicle speed is greater than 22 mph (35 km/h) for parallel parking, or greater than
19 mph (30 km/h) for perpendicular parking.

You recently disconnected or replaced the battery. After a battery disconnect, you must
drive your vehicle on a straight road for a short period of time.

Your vehicle is rolling in the opposite direction of the current transmission position. For
example, rolling forward when in reverse (R).

The system does not position the vehicle correctly.

An irregular curb along the parking space prevents the system from aligning your vehicle
properly.

222

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

Possible Cause

Symptom

Improperly parked vehicles or objects are boarding the space.

Your vehicle is too far past the parking space. The system performs best when you drive
the same distance past the parking space.

You have incorrectly installed or maintained the tires. For example, not inflated correctly,
improper size, or of different sizes.

A repair or alteration changes the detection capabilities.

A parked vehicle has a high attachment. For example, a salt sprayer, snowplow or moving
truck bed.

The parking space length or position of parked objects changes after your vehicle passes
the space.

The temperature around your vehicle quickly changes. For example, driving from a
heated garage into the cold, or after leaving a car wash.

223

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

REAR VIEW CAMERA

WARNINGS

The rear view camera system is a
reverse aid supplement device that still

requires the driver to use it in conjunction
with the interior and exterior mirrors for
maximum coverage.

Objects that are close to either corner
of the bumper or under the bumper,

might not be seen on the screen due to the
limited coverage of the camera system.

Reverse your vehicle as slow as
possible, higher speeds may limit your

reaction time to stop your vehicle.

Use caution when the rear cargo door
is ajar. If the rear cargo door is ajar, the

camera will be out of position and the video
image may be incorrect. All guidelines
disappear when the rear cargo door is ajar.
Some vehicles may not come equipped with
guidelines.

WARNINGS

Use caution when turning camera
features on or off when the

transmission is not in park (P). Make sure
your vehicle is not moving.

The rear view camera system provides a
video image of the area behind your vehicle.

During operation, lines appear in the display
which represent your vehicle’s path and
proximity to objects behind your vehicle.

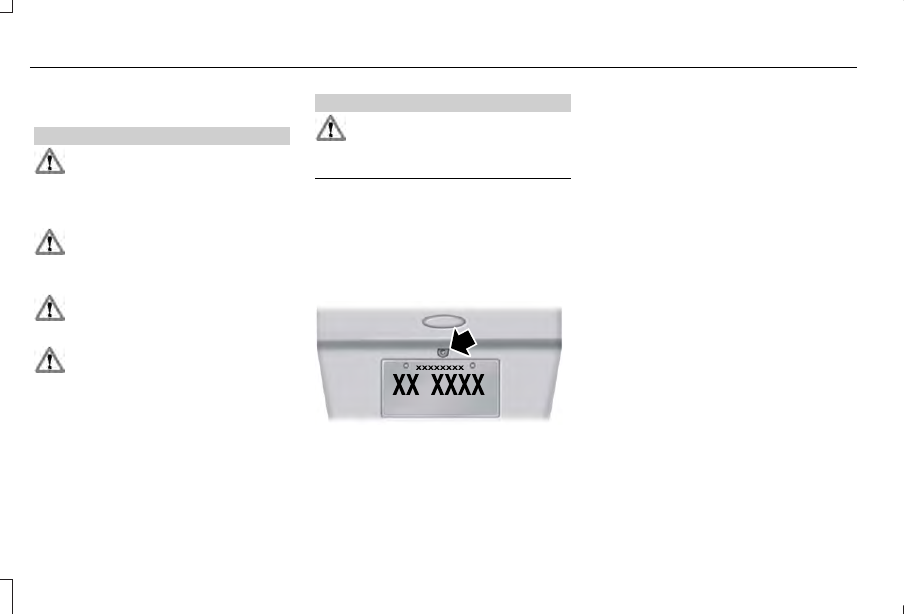

E142435

The camera is located on the rear cargo
door.

Using the Rear View Camera System

The rear view camera system displays what
is behind your vehicle when you place the
transmission in reverse (R).

Note: The reverse sensing system is not
effective at speeds above 3 mph (5 km/h)
and may not detect certain angular or
moving objects.

The system uses three types of guides to
help you see what is behind your vehicle:
•

Active guidelines: Show the intended
path of your vehicle when reversing.

•

Fixed guidelines: Show the actual path
your vehicle is moving in while reversing
in a straight line. This can be helpful
when backing into a parking space or
aligning your vehicle with another object
behind you.

•

Centerline: Helps align the center of your
vehicle with an object (for example, a
trailer).

Note: If the transmission is in reverse (R) and
the rear cargo door is open, no rear view
camera features will display.

224

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

Note: When towing, the camera only sees
what you are towing. This might not provide
adequate coverage as it usually provides in
normal operation and some objects might
not be seen. In some vehicles, the guidelines
may disappear when you connect the trailer
tow connector.

The camera may not operate correctly under
the following conditions:
•

Nighttime or dark areas if one or both
reverse lamps are not operating.

•

Mud, water or debris obstructs the
camera's view. Clean the lens with a soft,
lint-free cloth and non-abrasive cleaner.

•

The rear of your vehicle is hit or
damaged, causing the camera to become
misaligned.

Camera System Settings

You can access the rear view camera system
settings through the display screen.  See
General Information (page 118).

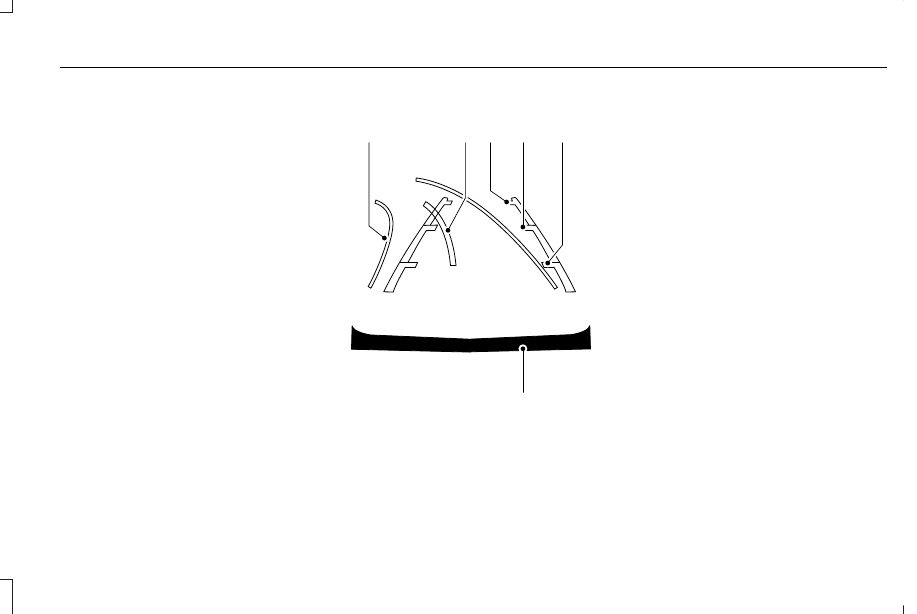

Camera Guidelines

Note: Active guidelines are only available
when the transmission is in reverse (R).

A

B C

D

F

E

E142436

Active guidelines

A

Centerline

B

Fixed guideline: Green zone

C

Fixed guideline: Yellow zone

D

Fixed guideline: Red zone

E

Rear bumper

F

Active guidelines are only shown with fixed
guidelines. To use active guidelines, turn the
steering wheel to point the guidelines toward
an intended path. If you change the steering
wheel position while reversing, your vehicle
might deviate from the original intended
path.

The fixed and active guidelines fade in and
out depending on the steering wheel
position. The active guidelines do not display
when the steering wheel position is straight.

Always use caution while reversing. Objects
in the red zone are closest to your vehicle
and objects in the green zone are farther
away. Objects are getting closer to your
vehicle as they move from the green zone
to the yellow or red zones. Use the side view
mirrors and rear view mirror to get better
coverage on both sides and rear of the
vehicle.

225

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

Obstacle Distance Indicator

 (If Equipped)

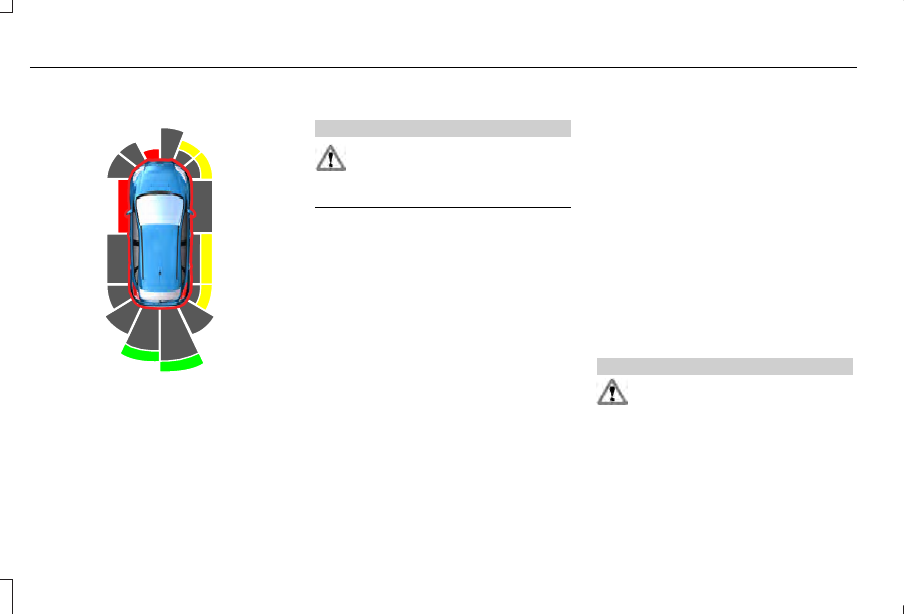

E190459

The system will provide an image of your
vehicle and the sensor zones. The zones will
highlight green, yellow and red when the
parking aid sensors detect an object in the
coverage area.

Manual Zoom

WARNING

When manual zoom is on, the full area
behind your vehicle may not show. Be

aware of your surroundings when using the
manual zoom feature.

Note: Manual zoom is only available when
the transmission is in reverse (R).

Note: When you enable manual zoom, only
the centerline is shown.

Selectable settings for this feature are Zoom
in (+) and Zoom out (-). Press the symbol in
the camera screen to change the view. The
default setting is Zoom OFF.

This allows you to get a closer view of an
object behind your vehicle. The zoomed
image keeps the bumper in the image to
provide a reference. The zoom is only active
while the transmission is in reverse (R).

Rear Camera Delay

Selectable settings for this feature are ON
and OFF. The default setting for the rear
camera delay is OFF.

When shifting the transmission out of reverse
(R) and into any gear other than park (P), the
camera image remains in the display until:
•

Your vehicle speed sufficiently increases.

•

You shift your vehicle into park (P)
(automatic transmission).

•

You apply the parking brake (manual
transmission).

360 DEGREE CAMERA

 (If Equipped)

WARNINGS

The 360 degree camera system still
requires the driver to use it in

conjunction with looking out of the windows,
and checking the interior and exterior mirrors
for maximum coverage.

226

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

WARNINGS

Use caution when turning camera
features on or off when the

transmission is not in park (P). Make sure
your vehicle is not moving.

Do not switch the camera features on
or off when your vehicle is moving.

Note: You may not see objects that are close
to either corner of the bumper or under the
bumper due to the limited coverage of the
camera system.

The 360 degree camera system consists of
front, side and rear cameras. The system:
•

Allows you to see what is directly in front
or behind your vehicle.

•

Provides cross traffic view in front and
behind your vehicle.

•

Allows you to see a top-down view of the
area outside your vehicle, including the
blind spots.

•

Provides visibility around your vehicle to
you in parking maneuvers such as:
•

Centering in a parking space.

•

Obstacles near vehicle.

•

Parallel parking.

E205884

The 360 degree camera system
button is located on the instrument
panel and allows you to toggle

through different camera views.

The front and rear cameras have multiple
screens which consist of:
•

Normal view with 360.

•

Normal view.

•

Split view.

When in park (P), neutral (N) or drive (D), only
the front images display when you press the
button. When in reverse (R), only the rear
images display when you press the button.

Note: The 360 degree camera system turns
off when your vehicle is in motion at low
speed, except when in reverse (R).

Camera Views

A small vehicle icon displays on the top left
corner of the image and illustrates which
camera you are viewing. Camera views are
laid out in the order the screens appear once
you press the button.

Note: The front video image disables when
your vehicle is in motion at low speed,
except when in reverse (R).

•

Front 360 + Normal: Contains the normal
front camera view next to a 360 degree
camera view. This view appears on the
screen when you press the button in any
gear other than reverse (R).

•

Front Normal View: Provides an image
of what is directly in front of your vehicle.
Access this view by pressing the camera
button from the Front 360 + Normal View
screen.

•

Front Split View: Provides an extended
view of what is in front of your vehicle.
Access this view by pressing the camera
button from the Front Normal View
screen.

227

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

•

Rear 360 + Normal: Contains the normal
rear camera view next to a 360 degree
camera view. Access this view by putting
your vehicle in reverse (R), or by pressing
the camera button from the Rear Split
View screen.

•

Rear Normal View: Provides an image
of what is directly behind your vehicle.
Access this view by pressing the camera
button from the Rear 360 + Normal
screen.

•

Rear Split View: Provides an extended
view of what is behind your vehicle.
Access this view by pressing the camera
button from the Rear Normal View
screen.

Keep Out Zone

E225016

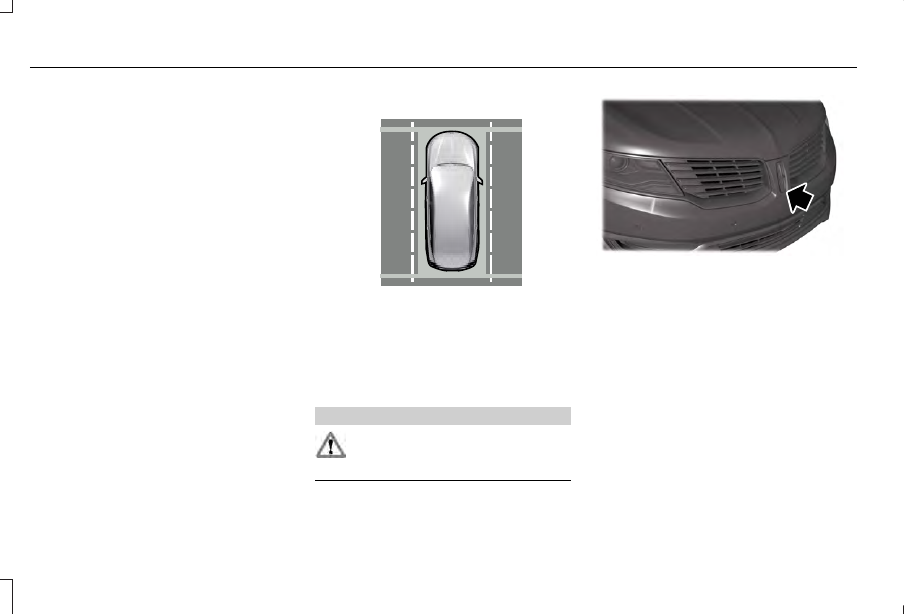

The Keep Out Zone is represented by the
yellow dotted lines running parallel to your
vehicle. It is designed to give you the
indication on the ground of the fully
extended outside mirror position.

Front Camera

WARNING

The front camera system still requires
the driver to use it in conjunction with

looking out of your vehicle.

E197234

The front video camera, located behind the
star emblem on the grille, provides a video
image of the area in front of your vehicle. It
adds assistance to the driver while driving
forward at low speeds. To use the front video
camera system, place the transmission in any
gear except reverse (R). An image displays
once you press the camera enable button.
The area shown on the screen may vary
according to your vehicle's orientation or
road conditions.

Note: Keep the star emblem free from snow,
ice and large accumulations of dirt. If
something is blocking the star emblem from
moving, the camera may not function.

228

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

Side Camera

The side view camera, located in the outside
mirror, provides a video image of the area
on the sides of your vehicle as part of the
front 360 + normal view and rear 360 +
normal view. It aids you while parking your
vehicle either forward or backwards.

Note: Use caution when using the 360 view
while any of the doors are ajar. A door that
is ajar causes the camera to be out of
position and the video image may be
incorrect.

229

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Parking Aids

PRINCIPLE OF OPERATION

Cruise control lets you maintain a set speed
without keeping your foot on the accelerator
pedal. You can use cruise control when your
vehicle speed is greater than 20 mph
(30 km/h).

USING CRUISE CONTROL

 (If Equipped)

WARNINGS

Do not use cruise control on winding
roads, in heavy traffic or when the road

surface is slippery. This could result in loss
of vehicle control, serious injury or death.

When you are going downhill, your
vehicle speed could increase above

the set speed. The system does not apply
the brakes.

Note: Cruise control disengages if the
vehicle speed decreases more than 10 mph
(16 km/h) below the set speed when driving
uphill.

To help the system to maintain the set speed
when going downhill, downshift to a lower
gear.

E145976

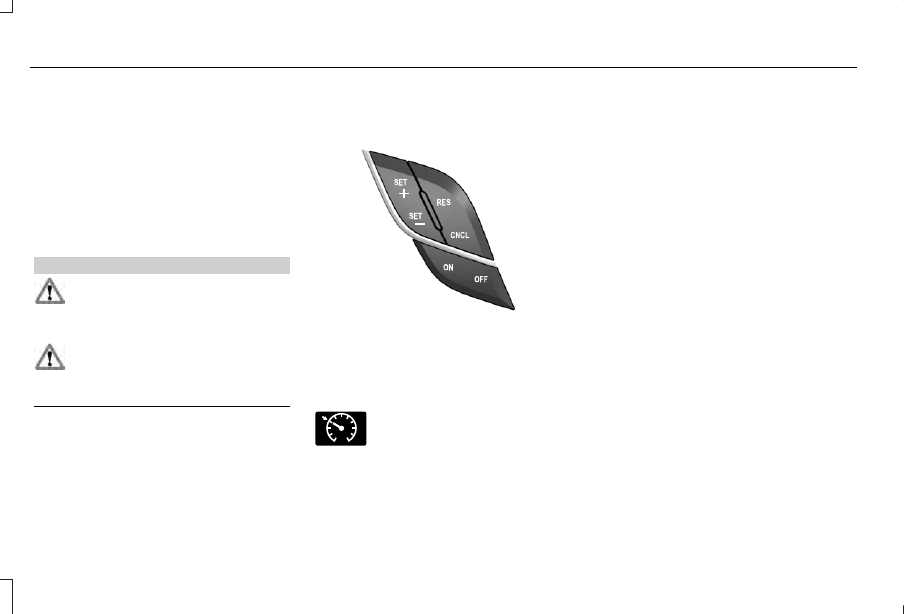

The cruise controls are on the steering
wheel.

Switching Cruise Control On

Press ON.

E71340

The indicator appears in the
information display.

Setting the Cruise Speed

1. Drive to desired speed.

2. Press SET+ or SET-.

3. Take your foot off the accelerator pedal.
Note: The indicator changes color.

Changing the Set Speed

Note:  If you accelerate by pressing the
accelerator pedal, the set speed will not
change.  When you release the accelerator
pedal, your vehicle returns to the speed that
you previously set.

•

Press SET+ or SET- to change the set
speed in small increments.

•

Press the accelerator or brake pedal until
you reach the desired speed. Press SET+
or SET-.

•

Press and hold SET+ or SET-. Release
the control when you reach the desired
speed.

Canceling the Set Speed

Press CNCL or tap the brake pedal.  The set
speed does not erase.

Resuming the Set Speed

Press RES.

230

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Cruise Control
