Protected components

Fuse amp rating

Fuse or relay number

Not used.

-

96

Not used.

-

97

A/C Clutch relay.

-

98

1

Mini Fuses

2

 Cartridge Fuses

3

 Micro Fuses

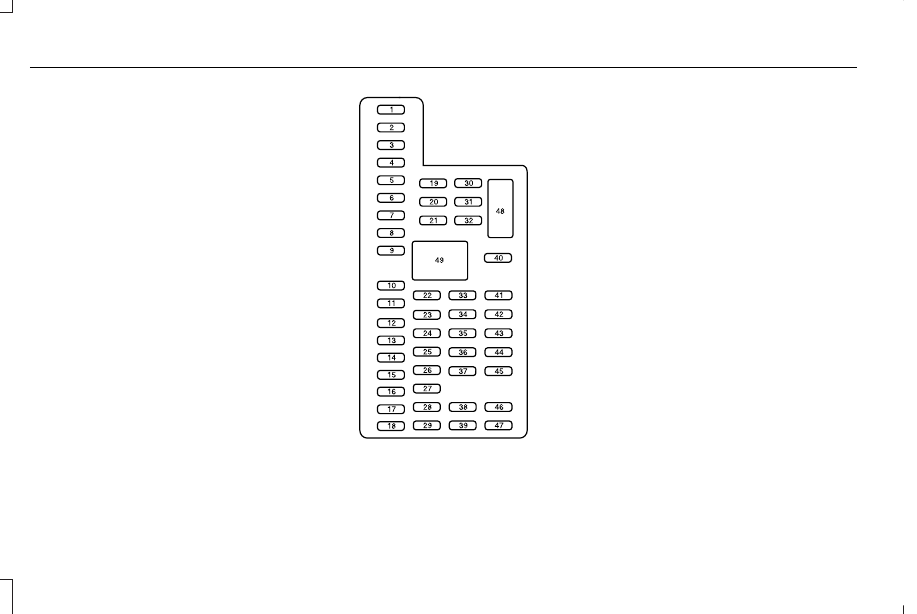

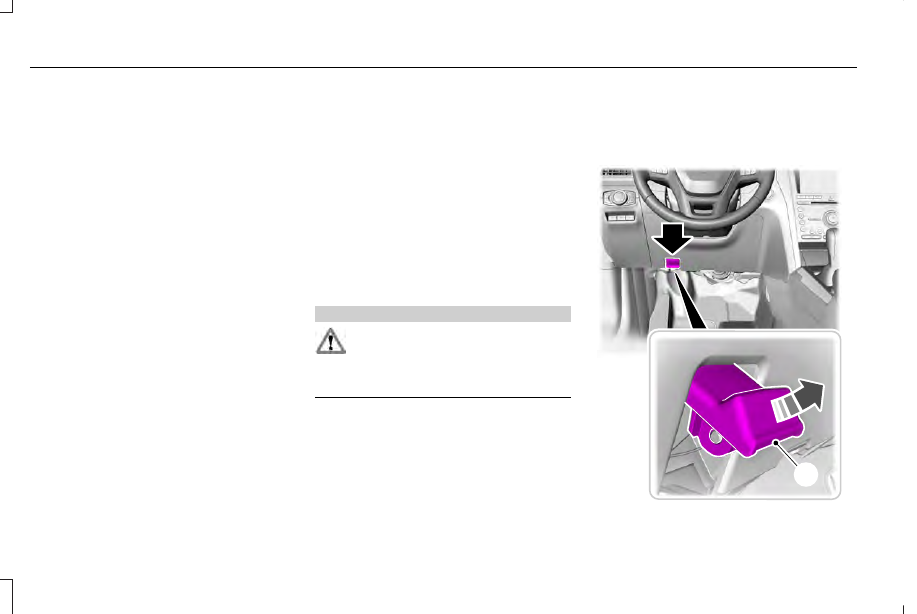

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel
to the left of the steering wheel. You may
need to remove a trim panel to access it.

231

MKS (CLE) Canada/United States of America, enUSA, First Printing

Fuses

E163102

232

MKS (CLE) Canada/United States of America, enUSA, First Printing

Fuses

Protected components

Fuse amp rating

Fuse or relay number

Left front and right rear smart window motors.

30A

1

Driver seat switch.

15A

2

Right front smart window motor.

30A

3

Demand lamps battery saver relay.

10A

4

Audio amplifier

20A

5

Active noise control module.

Not used (spare).

5A

6

Driver seat module logic.

7.5A

7

Left front door zone module.
Keypad.

Not used (spare).

10A

8

SYNC module.

10A

9

Electronic finish panel.
Radio frequency transceiver module.

Run accessory relay.

10A

10

Wiper relay.
Rain-sense subfuse.

Intelligent access module logic.

10A

11

Heads-up display.

Puddle lamp.

15A

12

233

MKS (CLE) Canada/United States of America, enUSA, First Printing

Fuses

Protected components

Fuse amp rating

Fuse or relay number

Backlighting LED.
Interior lighting.

Right-hand direction indicators.

15A

13

Left-hand direction indicators.

15A

14

Stop lamp.

15A

15

Backup lamp.

Right front low beam.

10A

16

Left front low beam.

10A

17

Start button.

10A

18

Keypad illumination.
Brake-shift interlock.
Powertrain control module wake-up.
Immobilizer transceiver module.

Audio amplifiers.

20A

19

All lock motor relay and coil.

20A

20

Driver lock motor relay and coil.

Not used (spare).

10A

21

Horn relay.

20A

22

Steering wheel control module logic

15A

23

Instrument cluster.

Steering wheel control module.

15A

24

234

MKS (CLE) Canada/United States of America, enUSA, First Printing

Fuses

Protected components

Fuse amp rating

Fuse or relay number

Decklid release.

15A

25

Push button ignition switch.

5A

26

Intelligent access module power.

20A

27

Not used (spare).

15A

28

Radio.

20A

29

Global positioning system module

Front park lamps.

15A

30

Not used (spare).

5A

31

Smart window motors.

15A

32

Master window and mirror switch.
Rear window power sunshade module.
Lock switch illumination.

Suspension module.

10A

33

Reverse park aid module.

10A

34

Automatic high beam and lane departure module.
Rear heated seat module.
Blind spot monitor module.
Rear video camera.

Motorized humidity sensor.

5A

35

Heads-up display.

Heated steering wheel.

10A

36

235

MKS (CLE) Canada/United States of America, enUSA, First Printing

Fuses

Protected components

Fuse amp rating

Fuse or relay number

Not used (spare).

10A

37

Moonroof module and switch.

10A

38

High beams.

15A

39

Rear park lamps.

10A

40

Occupant classification sensor.

7.5A

41

Restraint control module.

Not used (spare).

5A

42

Not used (spare).

10A

43

Not used (spare).

10A

44

Not used (spare).

5A

45

Climate control module.

10A

46

Fog lamp relay.

15A

47

Front passenger power window.

30A Circuit breaker

48

Rear power windows.

236

MKS (CLE) Canada/United States of America, enUSA, First Printing

Fuses

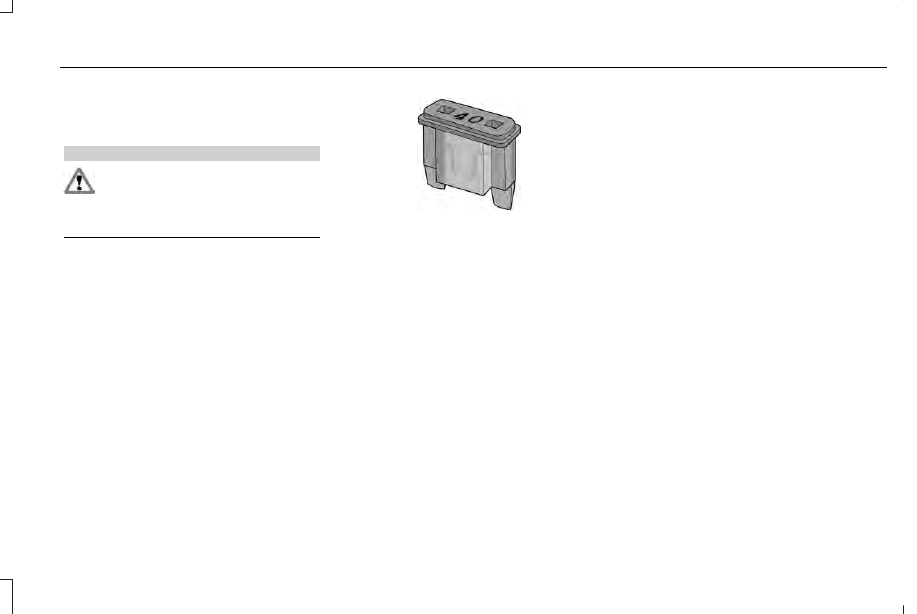

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can

cause severe wire damage and could start a
fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses before
replacing any electrical components.

237

MKS (CLE) Canada/United States of America, enUSA, First Printing

Fuses

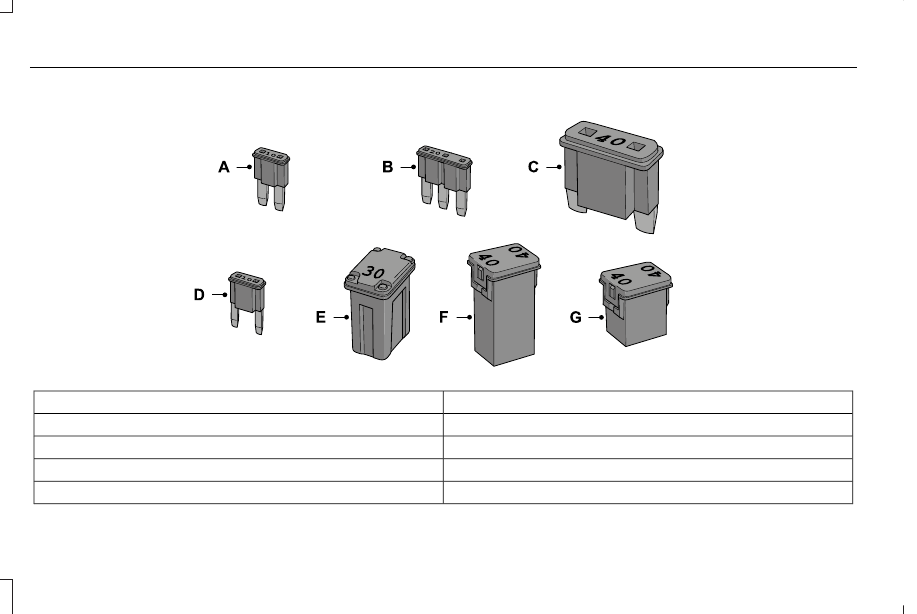

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

Mini

D

238

MKS (CLE) Canada/United States of America, enUSA, First Printing

Fuses

Fuse Type

Callout

M Case

E

J Case

F

J Case Low Profile

G

239

MKS (CLE) Canada/United States of America, enUSA, First Printing

Fuses

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale value.
There is a large network of authorized dealers
that are there to help you with their
professional servicing expertise. We believe
that their specially trained technicians are
best qualified to service your vehicle properly
and expertly. They are supported by a wide
range of highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which parts
and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the engine
running in an enclosed space, unless you
are sure you have enough ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away from
the battery and all fuel related parts.

Working with the Engine Off

1.

Set the parking brake and shift to park
(P).

2. Switch off the engine.
3. Block the wheels.

Working with the Engine On

WARNING

To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

1.

Set the parking brake and shift to park
(P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

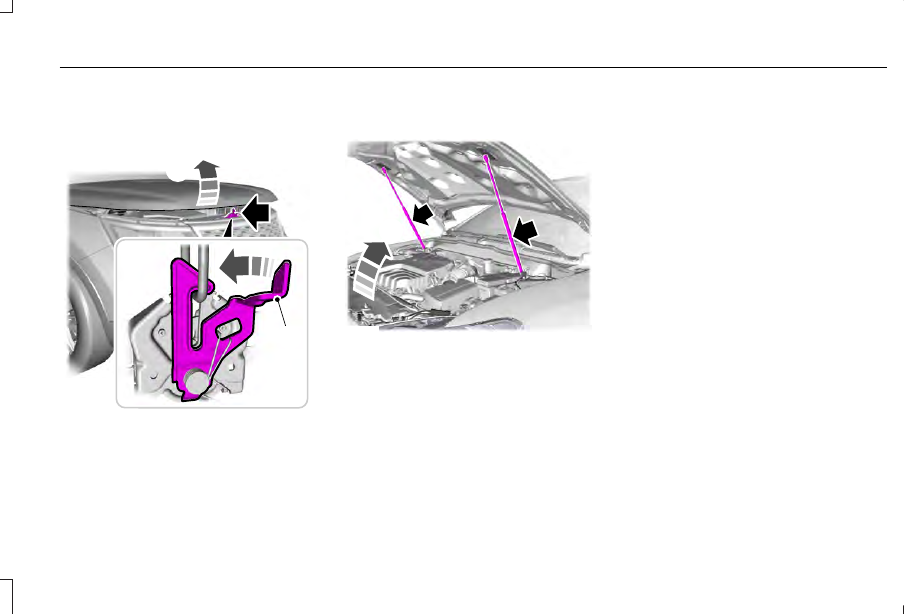

Opening the Hood

E203008

1

240

MKS (CLE) Canada/United States of America, enUSA, First Printing

Maintenance

1.

Inside the vehicle, pull the hood release
handle located under the left-hand side
of the instrument panel.

2. Slightly lift the hood.

2

E203009

3

3. Release the hood latch by pushing the

secondary release lever to your left-hand
side.

E202009

4

4. Open the hood. The hood struts

automatically support the hood.

Closing the Hood

1.

Lower the hood and allow it to drop under
its own weight for the last 8–12 in
(20–30 cm).

Note: Make sure that the hood is correctly
closed.

241

MKS (CLE) Canada/United States of America, enUSA, First Printing

Maintenance

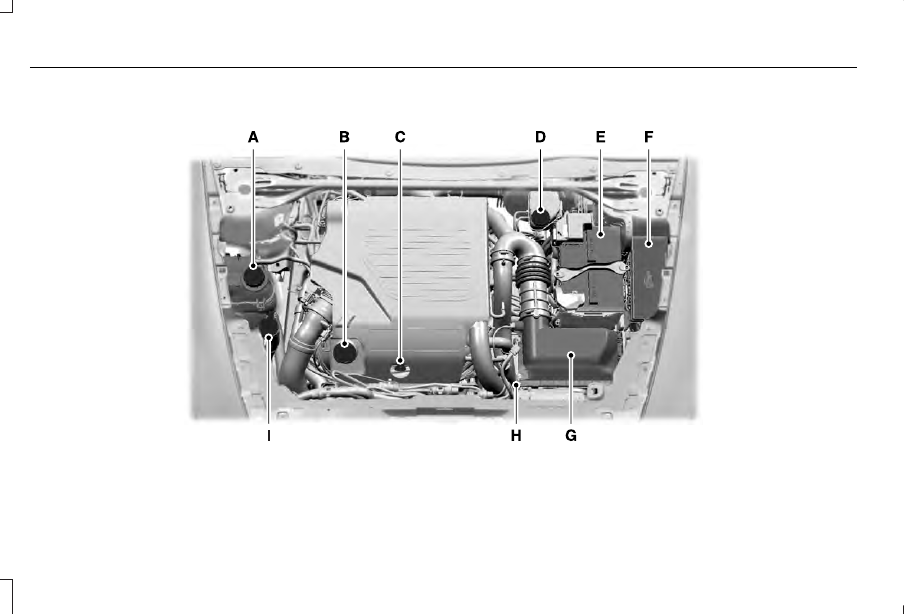

UNDER HOOD OVERVIEW - 3.5L ECOBOOST™

E173375

Engine coolant reservoir.  See Engine Coolant Check (page 247).

A.

Engine oil filler cap.  See Engine Oil Check (page 245).

B.

242

MKS (CLE) Canada/United States of America, enUSA, First Printing

Maintenance

Engine oil dipstick.  See Engine Oil Dipstick (page 245).

C.

Brake fluid reservoir.  See Brake Fluid Check (page 254).

D.

Battery.  See Changing the 12V Battery (page 255).

E.

Power distribution box.  See Fuses (page 223).

F.

Air filter assembly.  See Changing the Engine Air Filter (page 262).

G.

Automatic transmission dipstick (under air filter assembly).  See Automatic Transmission Fluid Check (page 250).

H.

Windshield washer fluid reservoir.  See Washer Fluid Check (page 254).

I.

243

MKS (CLE) Canada/United States of America, enUSA, First Printing

Maintenance

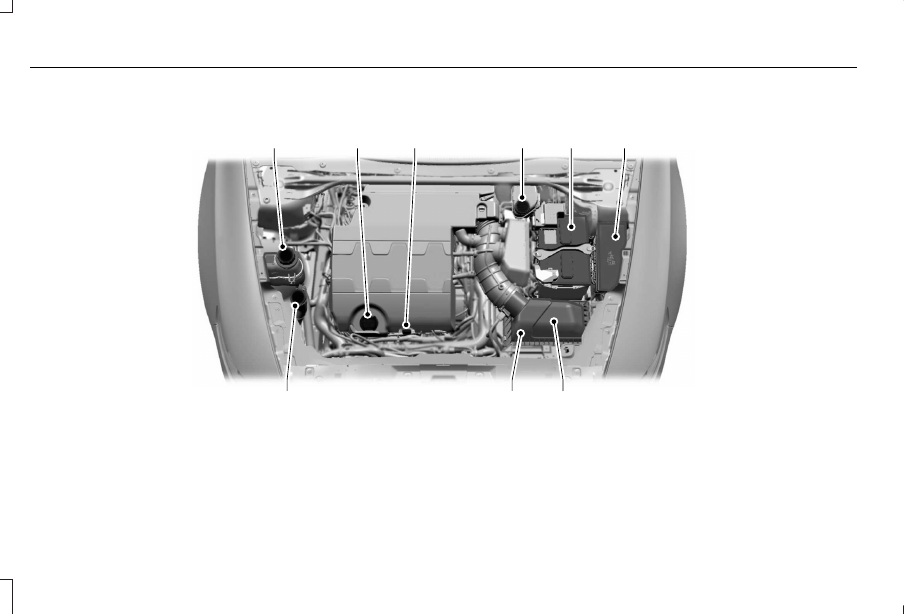

UNDER HOOD OVERVIEW - 3.7L

A

B

C

D

G

H

I

E

F

E173333

Engine coolant reservoir.  See Engine Coolant Check (page 247).

A.

Engine oil filler cap.  See Engine Oil Check (page 245).

B.

Engine oil dipstick.  See Engine Oil Dipstick (page 245).

C.

Brake fluid reservoir.  See Brake Fluid Check (page 254).

D.

244

MKS (CLE) Canada/United States of America, enUSA, First Printing

Maintenance

Battery.  See Changing the 12V Battery (page 255).

E.

Power distribution box.  See Fuses (page 223).

F.

Air filter assembly.  See Changing the Engine Air Filter (page 262).

G.

Automatic transmission dipstick (under air filter assembly).  See Automatic Transmission Fluid Check (page 250).

H.

Windshield washer fluid reservoir.  See Washer Fluid Check (page 254).

I.

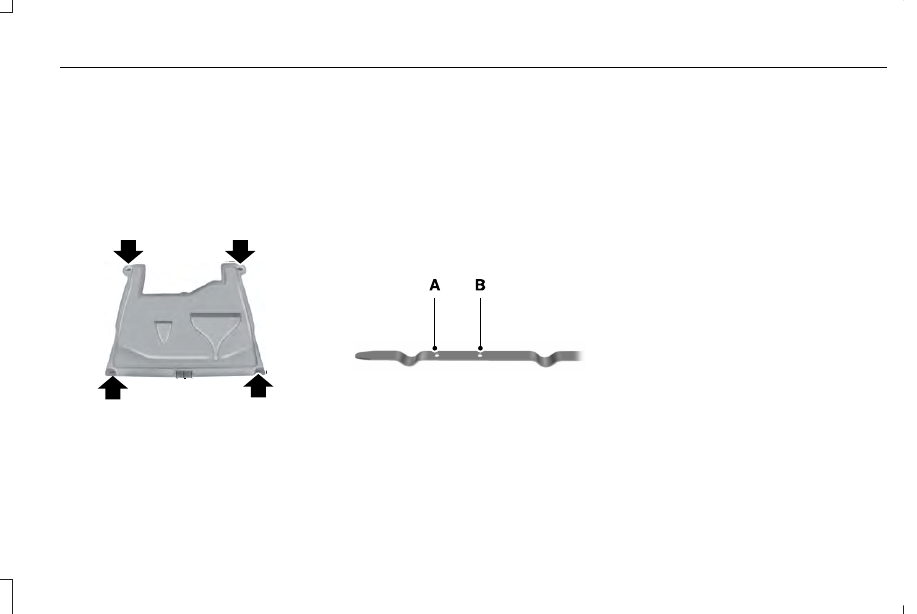

Engine Shield

E173374

Some vehicles may be equipped with an
aero-shield under the engine. This shield
needs to be removed for service, including oil
and filter changes. The shield has four
quick-release fasteners to secure it in place.

ENGINE OIL DIPSTICK

E146429

MIN

A

MAX

B

ENGINE OIL CHECK

Note: Check the level before starting the
engine.

Note:  Make sure that the oil level is between
the minimum and the maximum marks.

1.

Make sure that your vehicle is on level
ground.

2. Turn the engine off and wait 10 minutes

for the oil to drain into the oil pan.

3. Remove the dipstick and wipe it with a

clean, lint-free cloth. Replace the dipstick
and remove it again to check the oil level.

If the oil level is at the minimum mark, add
oil immediately.

Adding Engine Oil

Note: Do not remove the filler cap when the
engine is running.

245

MKS (CLE) Canada/United States of America, enUSA, First Printing

Maintenance

Note: Do not add oil further than the MAX
mark. Oil levels above the MAX mark may
cause engine damage.

E142732

Only use oils certified for gasoline engines by
the American Petroleum Institute (API). An
oil with this trademark symbol conforms to
the current engine and emission system
protection standards and fuel economy
requirements of the International Lubricants
Specification Advisory Committee (ILSAC).

1.

Remove the filler cap.

2. If the engine oil level is not within the

normal range, add engine oil that meets
Ford specifications.  See Capacities and
Specifications (page 296).

3. Remove the engine oil filler cap and use

a funnel to pour the engine oil into the
opening.

4. Wipe off any spilled oil.
5. Replace the filler cap. Turn it until you feel

a strong resistance.

OIL CHANGE INDICATOR RESET

Use the information display controls on the
steering wheel to reset the oil change
indicator.

From the main menu scroll to:

Action and description

Message

Press the right arrow button,
then from this menu scroll to
the following message.

Settings

Press the right arrow button,
then from this menu scroll to
the following message.

Vehicle

Press the right arrow button,
then from this menu scroll to
the following message.

Oil Life

Action and description

Message

Press and hold the OK button
until the instrument cluster
displays the following
message.

Hold OK to
Reset

Reset Successful

When the oil change indicator
resets the instrument cluster
displays 100%.

Remaining Life

{00}%

If the instrument cluster
displays one of the following
messages, repeat the process.

Not Reset

Reset Cancelled

246

MKS (CLE) Canada/United States of America, enUSA, First Printing

Maintenance
