To exit ERS mode, simply hold the gear selector to the right
(+) until the gear limit display disappears from the instru-
ment cluster.

WARNING!

Do not downshift for additional engine braking on a
slippery surface. The drive wheels could lose their grip
and the vehicle could skid, causing a collision or
personal injury.

Transmission Gear Position Dis-
play

Actual Gear(s) Allowed

1–2

1–3

1–4

1–5

1–6

NOTE:

To select the proper gear position for maximum

deceleration (engine braking), tap the gear selector to the
left (-) repeatedly as the vehicle slows. The transmission
will shift to the range from which the vehicle can best be
slowed down.

Overdrive Operation

The automatic transmission includes an electronically con-
trolled Overdrive (sixth gear). The transmission will auto-
matically shift into Overdrive if the following conditions
are present:
• The gear selector is in the DRIVE position.

• The transmission fluid has reached an adequate tem-

perature.

• The engine coolant has reached an adequate tempera-

ture.

• The vehicle speed is sufficiently high.
• The driver is not heavily pressing the accelerator.

Torque Converter Clutch

A feature designed to improve fuel economy has been
included in the automatic transmission on your vehicle. A
clutch within the torque converter engages automatically
at calibrated speeds. This may result in a slightly different

STARTING AND OPERATING

253

feeling or response during normal operation in the upper
gears. When the vehicle speed drops or during some
accelerations, the clutch automatically disengages.

NOTE:

The torque converter clutch will not engage until

the transmission fluid and engine coolant are warm [usu-
ally after 1 to 3 miles (2 to 5 km) of driving]. Because the
engine speed is higher when the torque converter clutch is
not engaged, it may seem as if the transmission is not
shifting into Overdrive when cold. This is normal. Using
the Electronic Range Select (ERS) shift control, when the
transmission is sufficiently warm, will demonstrate that
the transmission is able to shift into and out of Overdrive.

POWER STEERING

The standard power steering system will give you good
vehicle response and increased ease of maneuverability in
tight spaces. The system will provide mechanical steering
capability if power assist is lost.

If for some reason the power assist is interrupted, it will
still be possible to steer your vehicle. Under these condi-
tions, you will observe a substantial increase in steering
effort, especially at very low vehicle speeds and during
parking maneuvers.

NOTE:
• Increased noise levels at the end of the steering wheel

travel are considered normal and do not indicate that
there is a problem with the power steering system.

• Upon initial start-up in cold weather, the power steering

pump may make noise for a short amount of time. This
is due to the cold, thick fluid in the steering system. This
noise should be considered normal, and it does not in
any way damage the steering system.

CAUTION!

Prolonged operation of the steering system at the end
of the steering wheel travel will increase the steering
fluid temperature and it should be avoided when
possible. Damage to the power steering pump may
occur.

Power Steering Fluid Check

Checking the power steering fluid level at a defined service
interval is not required. The fluid should only be checked
if a leak is suspected, abnormal noises are apparent,
and/or the system is not functioning as anticipated. Coor-
dinate inspection efforts through an authorized dealer.

254

STARTING AND OPERATING

WARNING!

Fluid level should be checked on a level surface and
with the engine off to prevent injury from moving
parts and to ensure accurate fluid level reading. Do not
overfill. Use only manufacturer’s recommended power
steering fluid.

CAUTION!

Do not use chemical flushes in your power steering
system as the chemicals can damage your power steer-
ing components. Such damage is not covered by the
New Vehicle Limited Warranty.

If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from all
surfaces. Refer to “Fluids And Lubricants” in “Technical
Specifications” for the correct fluid type.

SPEED CONTROL — IF EQUIPPED

When engaged, the Speed Control takes over accelerator
operations at speeds greater than 25 mph (40 km/h).

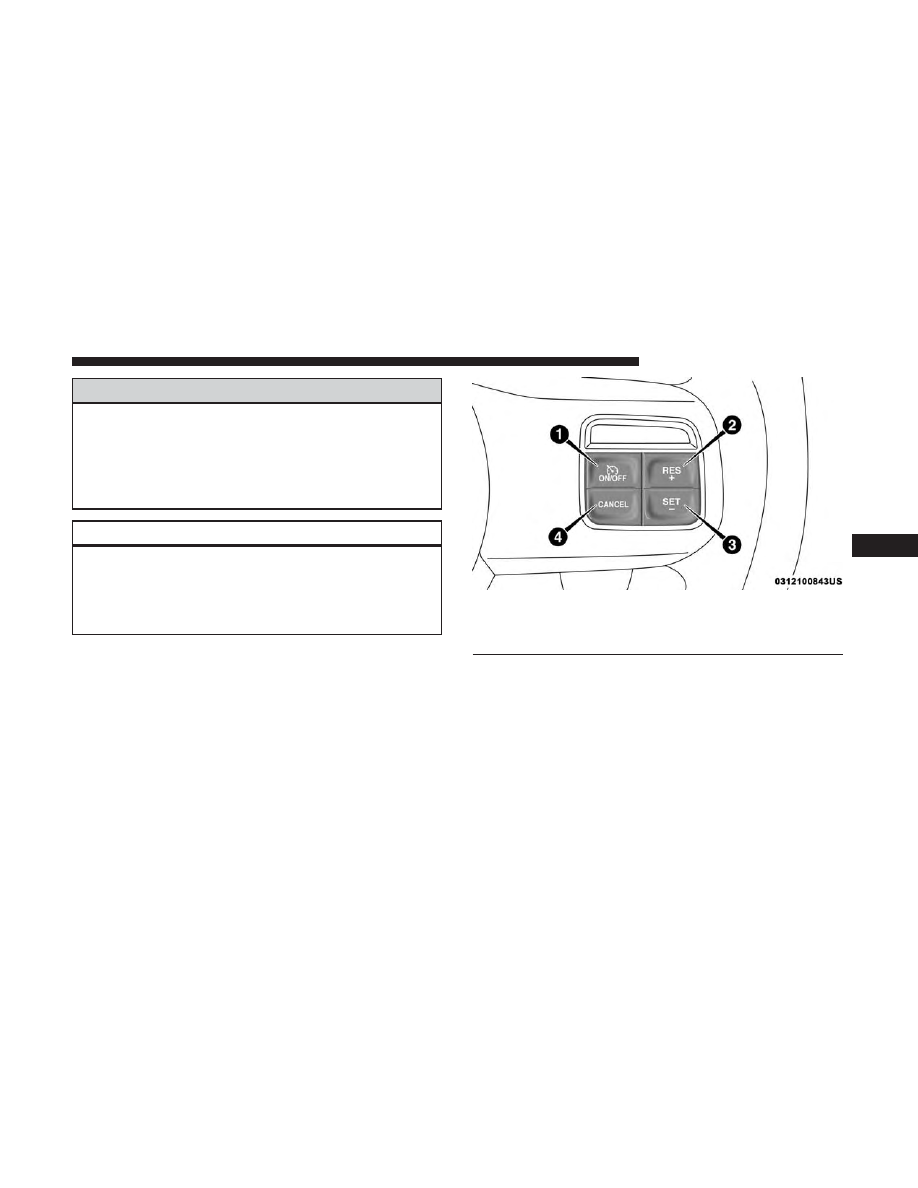

The Speed Control buttons are located on the right side of
the steering wheel.

NOTE:

In order to ensure proper operation, the Speed

Control System has been designed to shut down if multiple
Speed Control functions are operated at the same time. If
this occurs, the Speed Control System can be reactivated by
pushing the Speed Control ON/OFF button and resetting
the desired vehicle set speed.

Speed Control Buttons

1 — ON/OFF

3 — SET (-)

2 — RES (+)

4 — CANCEL

STARTING AND OPERATING

255

WARNING!

Speed Control can be dangerous where the system
cannot maintain a constant speed. Your vehicle could
go too fast for the conditions, and you could lose
control and have an accident. Do not use Speed Control
in heavy traffic or on roads that are winding, icy,
snow-covered or slippery.

To Activate

Push the ON/OFF button. The Cruise Indicator Light in
the instrument cluster display will illuminate. To turn the
system off, push the ON/OFF button a second time. The
Cruise Indicator Light will turn off. The system should be
turned off when not in use.

WARNING!

Leaving the Speed Control system on when not in use
is dangerous. You could accidentally set the system or
cause it to go faster than you want. You could lose
control and have an accident. Always leave the system
off when you are not using it.

To Set A Desired Speed

Turn the Speed Control on. When the vehicle has reached
the desired speed, push the SET (-) button and release.
Release the accelerator and the vehicle will operate at the
selected speed.

NOTE:

The vehicle should be traveling at a steady speed

and on level ground before pushing the SET (-) button.

To Vary The Speed Setting

To Increase Speed

When the Speed Control is set, you can increase speed by
pushing the RES (+) button.

The driver’s preferred units can be selected through the
instrument panel settings if equipped. Refer to “Getting To
Know Your Instrument Panel” for more information. The
speed decrement shown is dependant on the chosen speed
unit of U.S. (mph) or Metric (km/h):

U.S. Speed (mph)
• Pushing the RES (+) button once will result in a 1 mph

increase in set speed. Each subsequent tap of the button
results in an increase of 1 mph.

256

STARTING AND OPERATING

• If the button is continually pushed, the set speed will

continue to increase until the button is released, then the
new set speed will be established.

Metric Speed (km/h)
• Pushing the RES (+) button once will result in a 1 km/h

increase in set speed. Each subsequent tap of the button
results in an increase of 1 km/h.

• If the button is continually pushed, the set speed will

continue to increase until the button is released, then the
new set speed will be established.

To Decrease Speed

When the Speed Control is set, you can decrease speed by
pushing the SET (-) button.

U.S. Speed (mph)
• Pushing the SET (-) button once will result in a 1 mph

decrease in set speed. Each subsequent tap of the button
results in a decrease of 1 mph.

• If the button is continually pushed, the set speed will

continue to decrease until the button is released, then the
new set speed will be established.

Metric Speed (km/h)
• Pushing the SET (-) button once will result in a 1 km/h

decrease in set speed. Each subsequent tap of the button
results in a decrease of 1 km/h.

• If the button is continually pushed, the set speed will

continue to decrease until the button is released, then the
new set speed will be established.

To Accelerate For Passing

Press the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.

Using Speed Control On Hills

The transmission may downshift on hills to maintain the
vehicle set speed.

NOTE:

The Speed Control system maintains speed up and

down hills. A slight speed change on moderate hills is
normal.

On steep hills, a greater speed loss or gain may occur so it
may be preferable to drive without Speed Control.

STARTING AND OPERATING

257

WARNING!

To Resume Speed

To resume a previously set speed, push the RES (+) button
and release. Resume can be used at any speed above
20 mph (32 km/h).

To Deactivate

A soft tap on the brake pedal, pushing the CANCEL
button, or normal brake pressure while slowing the vehicle
will deactivate the Speed Control without erasing the set
speed from memory.

Pushing the ON/OFF button, or returning the ignition to
OFF, erases the set speed from memory.

PARKSENSE REAR PARK ASSIST — IF EQUIPPED

The ParkSense Rear Park Assist system provides visual and
audible indications of the distance between the rear fascia
and a detected obstacle when backing up, e.g. during a
parking maneuver.

Refer to “ParkSense System Usage Precautions” in this
section for limitations of this system and recommenda-
tions.

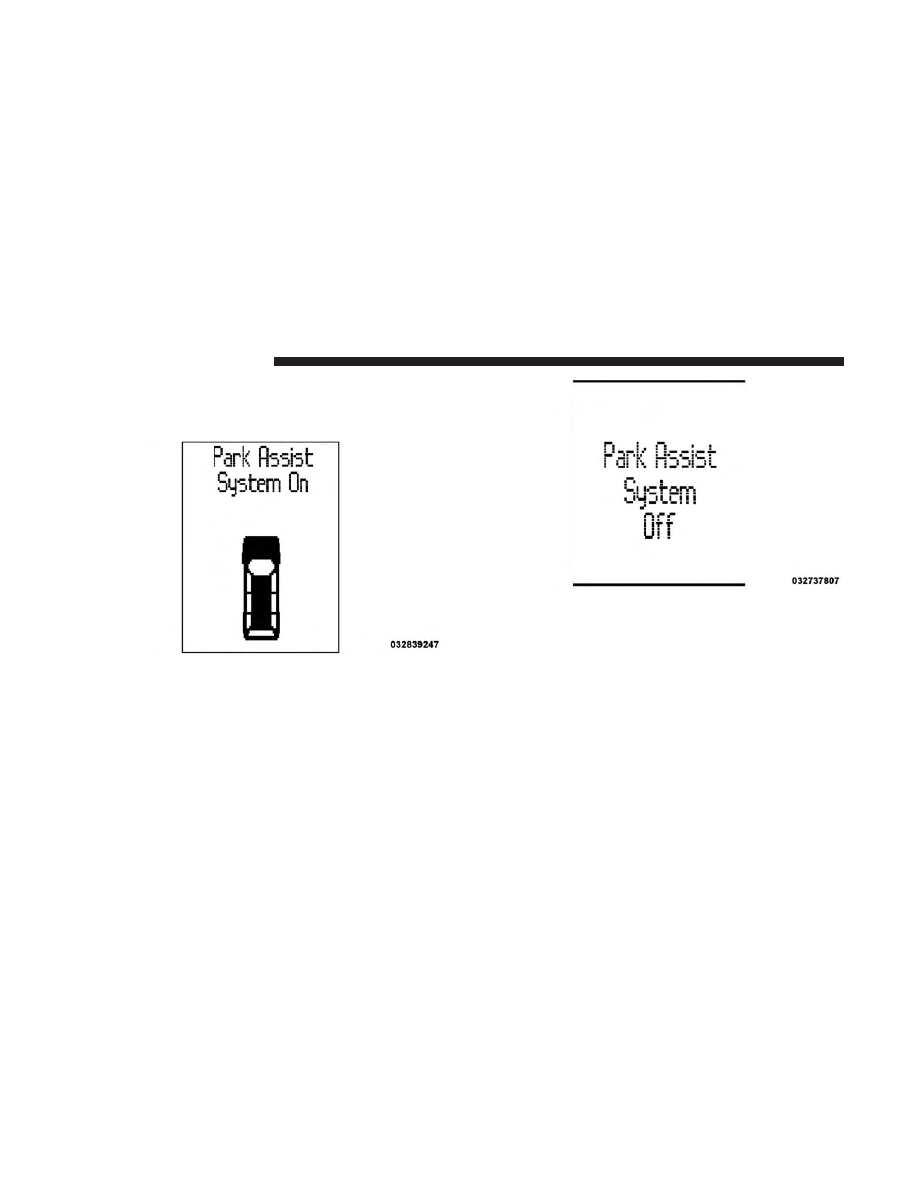

ParkSense will retain the last system state (enabled or
disabled) from the last ignition cycle when the ignition is
changed to the ON/RUN position.

ParkSense can be active only when the gear selector is in
REVERSE. If ParkSense is enabled at this gear selector
position, the system will remain active until the vehicle
speed is increased to approximately 7 mph (11 km/h) or
above. The system will become active again if the vehicle
speed is decreased to speeds less than approximately
6 mph (9 km/h).

258

STARTING AND OPERATING

ParkSense Sensors

The four ParkSense sensors, located in the rear fascia/
bumper, monitor the area behind the vehicle that is within
the sensors’ field of view. The sensors can detect obstacles
from approximately 12 inches (30 cm) up to 79 inches (200
cm) from the rear fascia/bumper in the horizontal direc-
tion, depending on the location, type and orientation of the
obstacle.

ParkSense Warning Display

The ParkSense Warning Display is located in the instru-
ment cluster display. It provides both visual and audible
warnings to indicate the distance between the rear fascia/
bumper and the detected obstacle.

The ParkSense Warning screen will only be displayed if
Sound and Display is selected from the Customer-
Programmable Features section of the instrument cluster
display. Refer to “Instrument Cluster Display” in “Getting
To Know Your Instrument Panel” for further information.

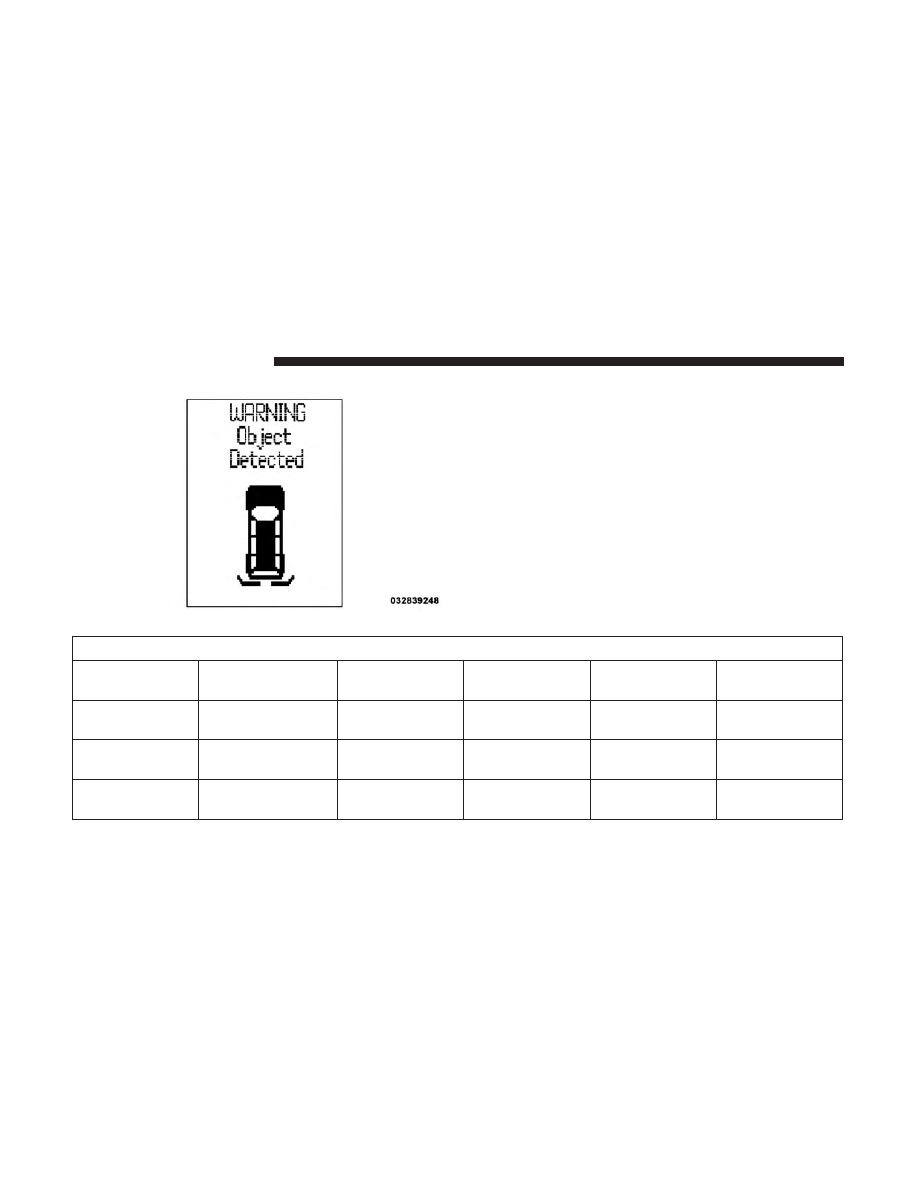

ParkSense Warning Display

STARTING AND OPERATING

259

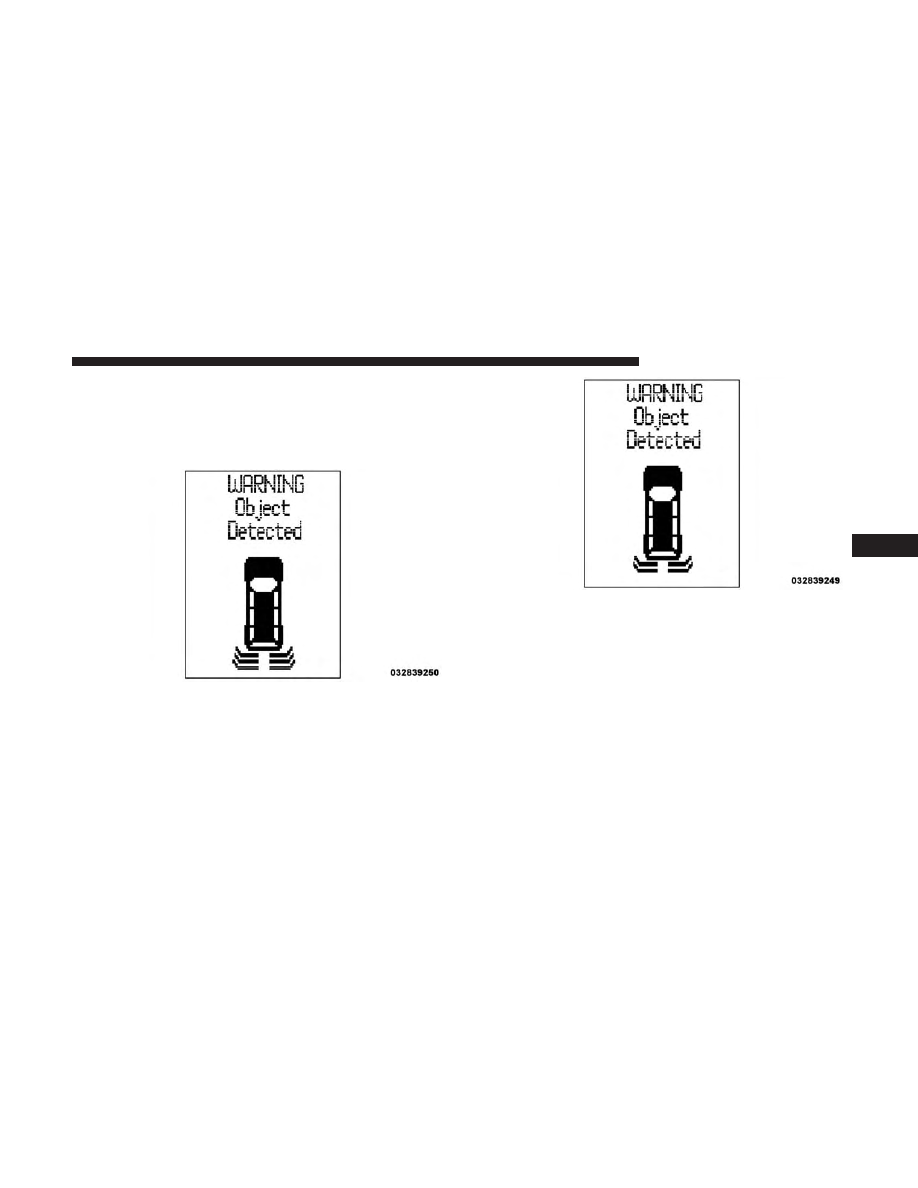

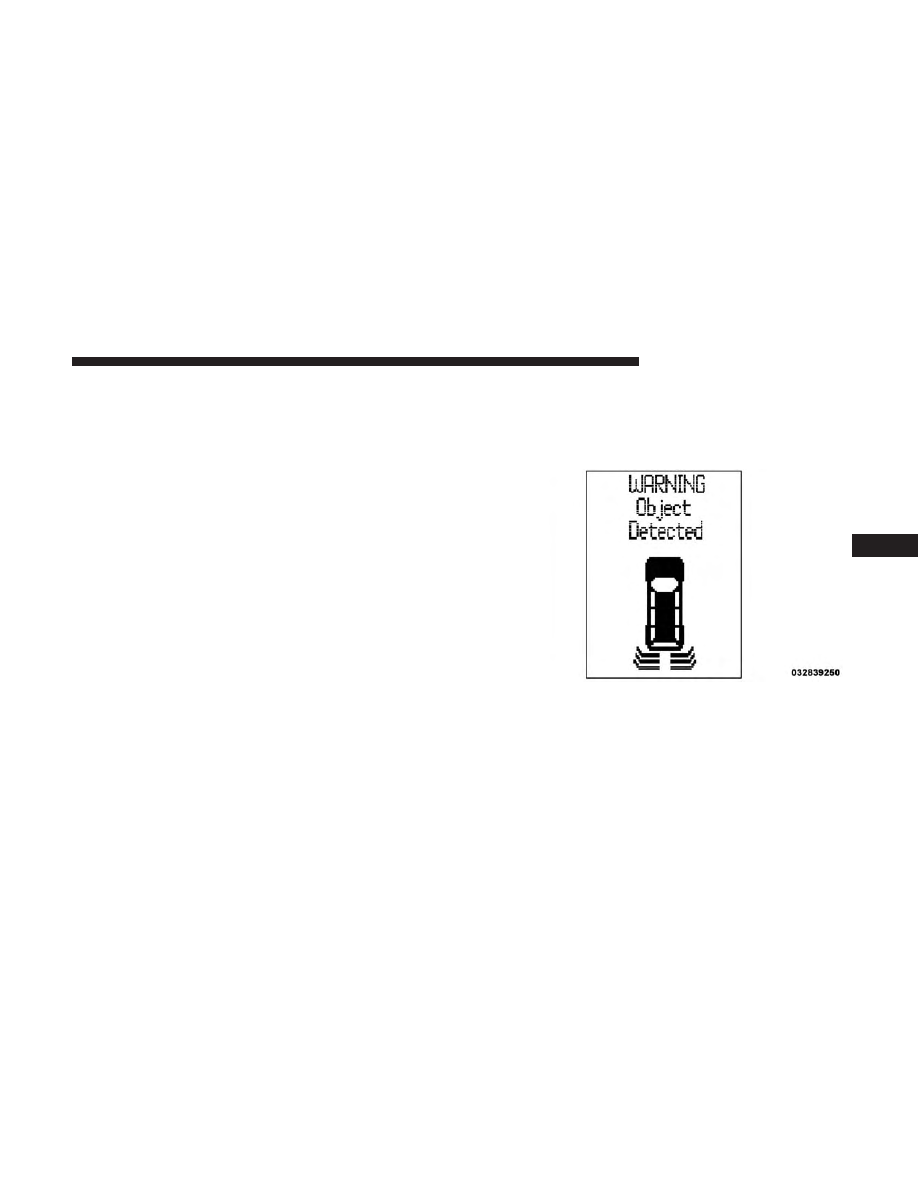

The vehicle is close to the obstacle when the instrument
cluster display shows one flashing arc and sounds a
continuous tone. The following chart shows the warning
alert operation when the system is detecting an obstacle:

WARNING ALERTS

Rear Distance

(inches/cm)

Greater than

79 inches (200 cm)

79-39 inches

(200-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than

12 inches (30 cm)

Audible Alert

Chime

None

Single 1/2

Second Tone

Slow

Fast

Continuous

Arcs

None

3 Solid

(Continuous)

3 Slow

Flashing

2 Slow

Flashing

1 Slow

Flashing

Radio Volume

Reduced

Yes

Continuous Tone

262

STARTING AND OPERATING

NOTE:

ParkSense will reduce the radio volume, if on,

when the system is sounding an audio tone.

Enabling/Disabling ParkSense

ParkSense can be enabled and disabled through the
Customer-Programmable Features section of the instru-
ment cluster display. The available choices are: OFF, Sound
Only, or Sound and Display.

When ParkSense is disabled, the instrument cluster will
display the “PARK ASSIST SYSTEM OFF” message for
approximately five seconds. When the gear selector is
moved to REVERSE and the system is disabled, the instru-
ment cluster display will display the “PARK ASSIST SYS-
TEM OFF” message for as long as the vehicle is in
REVERSE.

Refer to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.

Service The ParkSense Rear Park Assist System

During vehicle start up, when the ParkSense Rear Park
Assist System has detected a faulted condition, the instru-
ment cluster will actuate a single chime, once per ignition
cycle, and it will display the “SERVICE PARK ASSIST
SYSTEM” message. When the gear selector is moved to
REVERSE and the system has detected a faulted condition,

the instrument cluster display will display the “SERVICE
PARK ASSIST SYSTEM” message for as long as the vehicle
is in REVERSE. Under this condition, ParkSense will not
operate.

Refer to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.

If “SERVICE PARK ASSIST SYSTEM” appears in the in-
strument cluster display after making sure the rear fascia/
bumper is free from snow, ice, mud, dirt and debris, see
your authorized dealer.

Cleaning The ParkSense System

Clean the ParkSense sensors with water, car wash soap and
a soft cloth. Do not use rough or hard cloths. Do not scratch
or poke the sensors. Otherwise, you could damage the
sensors.

ParkSense System Usage Precautions

NOTE:
• Ensure that the rear bumper is free of snow, ice, mud,

dirt and debris to keep the ParkSense system operating
properly.

• Jackhammers, large trucks, and other vibrations could

affect the performance of ParkSense.

STARTING AND OPERATING

263

• When you turn ParkSense off, the instrument cluster

will display “PARKSENSE OFF.” Furthermore, once you
turn ParkSense off, it remains off until you turn it on
again, even if you cycle the ignition.

• When you move the gear selector to the REVERSE

position and ParkSense is turned off, the instrument
cluster display will display “PARKSENSE OFF” mes-
sage for as long as the vehicle is in REVERSE.

• ParkSense, when on, will reduce the volume of the radio

when it is sounding a tone.

• Clean the ParkSense sensors regularly, taking care not to

scratch or damage them. The sensors must not be covered
with ice, snow, slush, mud, dirt or debris. Failure to do so
can result in the system not working properly. The
ParkSense system might not detect an obstacle behind the
fascia/bumper, or it could provide a false indication that
an obstacle is behind the fascia/bumper.

• Use the ParkSense switch to turn the ParkSense system

off if objects such as bicycle carriers, trailer hitches, etc.
are placed within 12 inches (30 cm) from the rear
fascia/bumper. Failure to do so can result in the system
misinterpreting a close object as a sensor problem,
causing the “PARKSENSE UNAVAILABLE SERVICE

REQUIRED” message to be displayed in the instrument
cluster display.

WARNING!

• Drivers must be careful when backing up even when

using ParkSense. Always check carefully behind
your vehicle, look behind you, and be sure to check
for pedestrians, animals, other vehicles, obstructions,
and blind spots before backing up. You are respon-
sible for safety and must continue to pay attention to
your surroundings. Failure to do so can result in
serious injury or death.

• Before using ParkSense, it is strongly recommended

that the ball mount and hitch ball assembly is
disconnected from the vehicle when the vehicle is
not used for towing. Failure to do so can result in
injury or damage to vehicles or obstacles because the
hitch ball will be much closer to the obstacle than the
rear fascia when the loudspeaker sounds the con-
tinuous tone. Also, the sensors could detect the ball
mount and hitch ball assembly, depending on its size
and shape, giving a false indication that an obstacle
is behind the vehicle.

264

STARTING AND OPERATING

CAUTION!

• ParkSense is only a parking aid and it is unable to

recognize every obstacle, including small obstacles.
Parking curbs might be temporarily detected or not
detected at all. Obstacles located above or below the
sensors will not be detected when they are in close
proximity.

• The vehicle must be driven slowly when using

ParkSense in order to be able to stop in time when an
obstacle is detected. It is recommended that the
driver looks over his/her shoulder when using
ParkSense.

PARKVIEW REAR BACK UP CAMERA

Your vehicle is equipped with the ParkView Rear Back Up
Camera that allows you to see an on-screen image of the
rear surroundings of your vehicle whenever the gear
selector is put into REVERSE. The image will be displayed
on the touchscreen or if equipped, in the rearview mirror.
If the image is displayed in the Uconnect screen, a caution
note to “check entire surroundings” across the top of the
screen. After five seconds this note will disappear. The
ParkView Rear Back Up Camera is located on the rear of
the vehicle, above the rear license plate.

Manual Activation Of The Rear View Camera:

1. Press the

⬙Controls⬙ button located on the bottom of the

Uconnect display.

2. Press the

⬙Backup Camera⬙ button to turn the Rear View

Camera system on.

When the vehicle is shifted out of REVERSE, the rear
camera mode is exited and the last selected touchscreen
appears again.

When the vehicle is shifted out of REVERSE (with Camera
delay turned on), the rear Camera image will be displayed
for up to 10 seconds after shifting to another gear, unless
the vehicle speed exceeds 8 mph (13 km/h), the transmis-
sion is shifted into PARK, the ignition is switched to the
OFF position, or the touchscreen button “X” to disable
display of the Rear View Camera image is pressed.

NOTE:

The programmable features of the ParkView Rear

Backup Camera can be selected through the touchscreen.
Refer to your Uconnect Owner’s Manual Supplement for
further information.

STARTING AND OPERATING

265

When displayed, static grid lines will illustrate the width of
the vehicle while a dashed center-line will indicate the
center of the vehicle to assist with aligning to a hitch/
receiver. The static grid lines will show separate zones that

will help indicate the distance to the rear of the vehicle. The
following table shows the approximate distances for each
zone:

Zone

Distance To The Rear Of The Vehicle

Red

0 - 1 ft (0 - 30 cm)

Yellow

1 ft - 3 ft (30 cm - 1 m)

Green

3 ft or greater (1 m or greater)

WARNING!

Drivers must be careful when backing up even when
using the ParkView Rear Back Up Camera. Always
check carefully behind your vehicle, and be sure to
check for pedestrians, animals, other vehicles, obstruc-
tions, or blind spots before backing up. You are re-
sponsible for the safety of your surroundings and must
continue to pay attention while backing up. Failure to
do so can result in serious injury or death.

CAUTION!

• To avoid vehicle damage, ParkView should only be

used as a parking aid. The ParkView camera is
unable to view every obstacle or object in your drive
path.

• To avoid vehicle damage, the vehicle must be driven

slowly when using ParkView to be able to stop in
time when an obstacle is seen. It is recommended
that the driver look frequently over his/her shoulder
when using ParkView.

NOTE:

If snow, ice, mud, or any foreign substance builds

up on the camera lens, clean the lens, rinse with water, and
dry with a soft cloth. Do not cover the lens.

266

STARTING AND OPERATING

REFUELING THE VEHICLE

The gas cap is located behind the fuel filler door on the left
side of the vehicle. If the gas cap is lost or damaged, be sure
the replacement cap is for use with this vehicle.

NOTE:

The driver’s side sliding door cannot be opened

while the fuel door is open. This feature operates only
when the sliding door is fully closed prior to opening the
fuel door.

CAUTION!

• Damage to the fuel system or emissions control

system could result from using an improper fuel
tank filler tube cap. A poorly fitting cap could let
impurities into the fuel system and may cause the
“Malfunction Indicator Light (MIL)” to turn on, due
to fuel vapors escaping from the system.

• To avoid fuel spillage and overfilling, do not “top

off” the fuel tank after filling.

WARNING!

• Never have any smoking materials lit in or near the

vehicle when the gas cap is removed or the tank is
being filled.

• Never add fuel when the engine is running. This is

in violation of most state and federal fire regulations
and may cause the MIL to turn on.

• A fire may result if gasoline is pumped into a

portable container that is inside of a vehicle. You
could be burned. Always place gas containers on the
ground while filling.

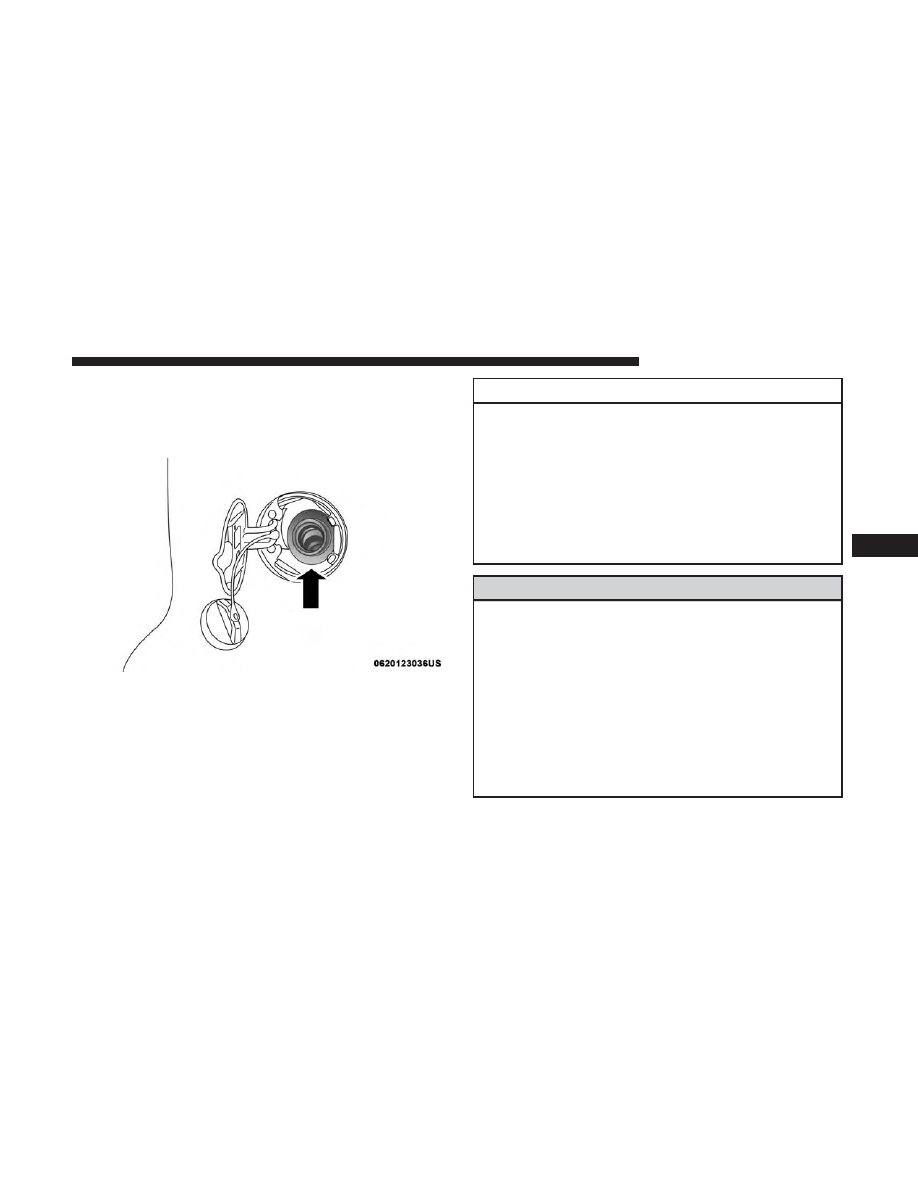

Fuel Filler Cap

STARTING AND OPERATING

267

NOTE:
• When the fuel nozzle “clicks” or shuts off, the fuel tank

is full.

• Tighten the fuel filler cap until you hear a “clicking”

sound. This is an indication that the fuel filler cap is
properly tightened.

• If the gas cap is not tightened properly, the MIL may

come on. Be sure the gas cap is tightened every time the
vehicle is refueled.

Loose Fuel Filler Cap Message

If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
”gASCAP” message will display in the odometer or a
“Check Gascap” message will display in the instrument
cluster. If this occurs, tighten the fuel filler cap properly
and press the Trip Odometer button to turn off the mes-
sage. If the problem continues, the message will appear the
next time the vehicle is started.

A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.

VEHICLE LOADING

Certification Label

As required by National Highway Traffic Safety Adminis-
tration regulations, your vehicle has a certification label
affixed to the driver’s side door or pillar.

This label contains the month and year of manufacture,
Gross Vehicle Weight Rating (GVWR), Gross Axle Weight
Rating (GAWR) front and rear, and Vehicle Identification
Number (VIN). A Month-Day-Hour (MDH) number is
included on this label and indicates the Month, Day and
Hour of manufacture. The bar code that appears on the
bottom of the label is your VIN.

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total permissible weight of your vehicle
including driver, passengers, vehicle, options and cargo.
The label also specifies maximum capacities of front and
rear axle systems (GAWR). Total load must be limited so
GVWR and front and rear GAWR are not exceeded.

Payload

The payload of a vehicle is defined as the allowable load
weight a truck can carry, including the weight of the driver,
all passengers, options and cargo.

268

STARTING AND OPERATING

Dodge Grand Caravan (2019 year). Manual - part 16
