• Oil Life
• Battery Voltage — If Equipped
• Gauge Summary:

– Coolant Temperature
– Transmission Temperature (automatic only)
– Oil Temperature
– Oil Pressure

• Engine Hours

Fuel Economy

Push and release the UP

or DOWN

ar-

row button until the Fuel Economy Menu
icon/title is highlighted.

Submenu item:

• Range
• Current MPG or L/100 km
• Average MPG or L/100 km
• To reset the following features (Range, Current MPG

or L/100 km, or Average MPG / L/100 km), push hold
the RIGHT

arrow button till features are reset.

Trip A

Push and release the UP

or DOWN

ar-

row button until the Trip A icon/title is
highlighted in the DID. The Trip A informa-
tion will display the following:

• Distance MI or km
• Average MPG or L/100 km

364

UNDERSTANDING YOUR INSTRUMENT PANEL

• Average MPH or km/h
• Elapsed Time

Hold the RIGHT

arrow button to reset all the

information.

Trip B

Push and release the UP

or DOWN

ar-

row button until the Trip B icon/title is
highlighted in the DID. The Trip B informa-
tion will display the following:

• Distance MI or km
• Average MPG or L/100 km
• Average MPH or km/h
• Elapsed Time

Hold the RIGHT

arrow button to reset all the

information.

Stop/Start – If Equipped

Push and release the UP

or DOWN

ar-

row button until the Stop/Start icon is high-
lighted in the DID. The DID will display the
Stop/Start status.

Trailer Tow

Push and release the UP

or DOWN

ar-

row button until the Trailer Tow icon is
highlighted. Push and release the RIGHT

arrow button and the next screen will

display the following trailer trip information:
• Trailer Trip
• Trailer Brake

UNDERSTANDING YOUR INSTRUMENT PANEL

365

Audio

Push and release the UP

or DOWN

ar-

row button until the Audio display icon is
highlighted in the DID. Push and release the
RIGHT

arrow button to display the ac-

tive source.

Stored Messages

Push and release the UP

arrow button until

the Messages display icon is highlighted in
the DID. This feature shows the number of
stored warning messages. Pushing the

RIGHT

arrow button will allow you to see what

the stored messages are.

Screen Setup

Push and release the UP

or DOWN

ar-

row button until the Screen Setup display
icon is highlighted in the DID. Push and
release the RIGHT

arrow button to enter

the Screen Setup submenu. The Screen Setup feature
allows you to change what information is displayed in
the instrument cluster as well as the location that
information is displayed.

366

UNDERSTANDING YOUR INSTRUMENT PANEL

Settings

Options

Upper Left

• None

• Compass

• Outside Temp.

• Time

• Range to Empty

• Average MPG (not available for CNG

models)

• Current MPG (not available for CNG

models)

• Trip A

• Trip B

• Trailer Trip

• Trailer Brake Gain

Upper Right

• None

• Compass

• Outside Temp. (Default)

• Time

UNDERSTANDING YOUR INSTRUMENT PANEL

367

Settings

Options

• Range to Empty

• Average MPG (not available for CNG

models)

• Current MPG (not available for CNG

models)

• Trip A

• Trip B

• Trailer Trip

• Trailer Brake Gain

Lower Left

• None (Default)

• Compass

• Outside Temp.

• Time

• Range to Empty

• Average MPG (not available for CNG

models)

368

UNDERSTANDING YOUR INSTRUMENT PANEL

Settings

Options

• Current MPG (not available for CNG

models)

• Trailer Brake Gain

Lower Right

• None (Default)

• Compass

• Outside Temp.

• Time

• Range to Empty

• Average MPG (not available for CNG

models)

• Current MPG (not available for CNG

models)

• Trailer Brake Gain

Upper Gauge

• None (Default)

• Trans Temp.

• Oil Temp.

• Oil Life

UNDERSTANDING YOUR INSTRUMENT PANEL

369

Settings

Options

• Current MPG (not available for CNG

models)

• Trailer Brake Gain

Lower Gauge

• None (Default)

• Trans Temp.

• Oil Temp.

• Oil Life

• Current MPG (not available for CNG

models)

• Trailer Brake Gain

Odometer

• 000

• 000.0

Restore Defaults

• Cancel

• OK

370

UNDERSTANDING YOUR INSTRUMENT PANEL

Vehicles Settings (Customer-Programmable
Features)

NOTE:

This feature is only available on 5.0 and

8.4 Uconnect Radios

Personal Settings allows the driver to set and

recall features when the transmission is in PARK.

Push and release the UP

and DOWN

arrow

button until Personal Settings displays in the DID.

Follow the prompts to display and set any of the follow-
ing Personal Settings.

NOTE:

Your vehicle may or may not be equipped with

all the following settings.

Setting Names

Setting Names Abbreviated

(Left Submenu Layer)

Sub-Menus (Right Submenu

Layer)

Language Select

Language

English, Spanish, French, Italian,

German, Dutch

Units

U.S.; Metric

UNDERSTANDING YOUR INSTRUMENT PANEL

371

Setting Names

Setting Names Abbreviated

(Left Submenu Layer)

Sub-Menus (Right Submenu

Layer)

ParkSense

• Notification — Sound Only;

Sound & Display

• Front Volume — Low; Me-

dium; High

• Rear Volume — Low; Me-

dium; High

Tilt Mirror in Reverse

Tilt Mirror in R

On; Off

Rain Sensing Wipers

Auto Wipers

On; Off

Hill Start Assist

On; Off

Headlights Off Delay

Lights Off Delay

0 seconds; 30 seconds; 60 sec-

onds; 90 seconds

Illuminated Approach

Lights w/ Unlock

0 seconds; 30 seconds; 60 sec-

onds; 90 seconds

Headlights On with Wipers

Lights w/ Wipers

On; Off

Automatic Highbeams

Auto Highbeams

On; Off

372

UNDERSTANDING YOUR INSTRUMENT PANEL

Setting Names

Setting Names Abbreviated

(Left Submenu Layer)

Sub-Menus (Right Submenu

Layer)

Flash Lights with Lock

Lights w/ Lock

On; Off

Auto Lock Doors

On; Off

Auto Unlock Doors

On; Off

Sound Horn with Remote Start

Horn w/ Rmt Start

On; Off

Sound Horn with Remote Lock

Horn w/ Rmt Lock

On; Off

Remote Unlock Sequence

Remote Unlock

Driver Door; All Doors

Key Fob Linked to Memory

Key in Memory

On; Off

Passive Entry

On; Off

Remote Start Comfort System

Rmt Start Comfort

On; Off

Easy Exit Seat

On; Off

Key-off Power Delay

Power Off Delay

Off; 45 seconds; 5 minutes; 10

minutes

UNDERSTANDING YOUR INSTRUMENT PANEL

373

Setting Names

Setting Names Abbreviated

(Left Submenu Layer)

Sub-Menus (Right Submenu

Layer)

Commercial Settings

Commercial

• Aux Switches

• Power Take-Off

• PIN Setup

Air Suspension Display Alerts

Air Susp. Alerts

All; Warnings Only

Aero Ride Height Mode

Aero Mode

On; Off

Tire/Jack Mode

On; Off

Transport Mode

On; Off

Wheel Alignment Mode

Wheel Alignment

On; Off

Horn w/ Remote Lower

Horn w/ Rmt Lwr

On; Off

Lights w/ Remote Lower

Lights w/ Rmt Lwr

On; Off

Trailer Select

Trailer 1; Trailer 2; Trailer 3;

Trailer 4

Brake Type

Light Electric; Heavy Electric;

Light EOH; Heavy EOH

374

UNDERSTANDING YOUR INSTRUMENT PANEL

Setting Names

Setting Names Abbreviated

(Left Submenu Layer)

Sub-Menus (Right Submenu

Layer)

Trailer Name

• Trailer # (# is equal to slot

position)

• Boat

• Car

• Cargo

• Dump

• Equipment

• Flatbed

• Gooseneck

• Horse

• Livestock

• Motorcycle

• Snowmobile

• Travel

• Utility

• 5th Wheel

UNDERSTANDING YOUR INSTRUMENT PANEL

375

Setting Names

Setting Names Abbreviated

(Left Submenu Layer)

Sub-Menus (Right Submenu

Layer)

Compass Variance

Compass Var

1-15 increments of 1

Calibrate Compass

Compass Cal

Cancel; Calibrate

Fuel Saver Display

Fuel Saver

On; Off

Park Assist Front Chime Vol-

ume

Park Assist Front Chime Vol-

ume

On; Off

Park Assist Rear Chime Volume

On; Off

CYBERSECURITY

Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive infor-
mation. This information allows systems and features in
your vehicle to function properly.

Your vehicle may be equipped with certain security
features to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.

Vehicle software technology continues to evolve over
time and FCA US LLC, working with its suppliers,
evaluates and takes appropriate steps as needed. Similar
to a computer or other devices, your vehicle may require
software updates to improve the usability and perfor-
mance of your systems or to reduce the potential risk of
unauthorized and unlawful access to your vehicle sys-
tems.

376

UNDERSTANDING YOUR INSTRUMENT PANEL

The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software) is
installed.

WARNING!

• It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be im-
paired or a loss of vehicle control could occur that
may result in an accident involving serious injury
or death.

• ONLY insert media (e.g., USB, SD card, or CD) into

your vehicle if it came from a trusted source. Media
of unknown origin could possibly contain mali-
cious software, and if installed in your vehicle, it

(Continued)

WARNING! (Continued)

may increase the possibility for vehicle systems to
be breached.

• As always, if you experience unusual vehicle be-

havior, take your vehicle to your nearest authorized
dealer immediately.

NOTE:

• FCA or your dealer may contact you directly regarding

software updates.

• To help further improve vehicle security and minimize

the potential risk of a security breach, vehicle owners
should:

• Routinely check www.driveuconnect.com/software-

update to learn about available Uconnect software
updates.

• Only connect and use trusted media devices (e.g.

personal mobile phones, USBs, CDs).

UNDERSTANDING YOUR INSTRUMENT PANEL

377

Privacy of any wireless and wired communications can-
not be assured. Third parties may unlawfully intercept
information and private communications without your
consent. For further information, refer to “Privacy Prac-
tices – If Equipped with Uconnect 8.4 radio” in “All
About Uconnect Access” in your Uconnect Owner’s
Manual Supplement and “Onboard Diagnostic System
(OBD II) Cybersecurity” in “Maintaining Your Vehicle”.

UCONNECT SETTINGS

The Uconnect system uses a combination of buttons on
the touchscreen and buttons on the faceplate located on
the center of the instrument panel that allows you to
access and change the customer programmable features.
Many features can vary by vehicle.

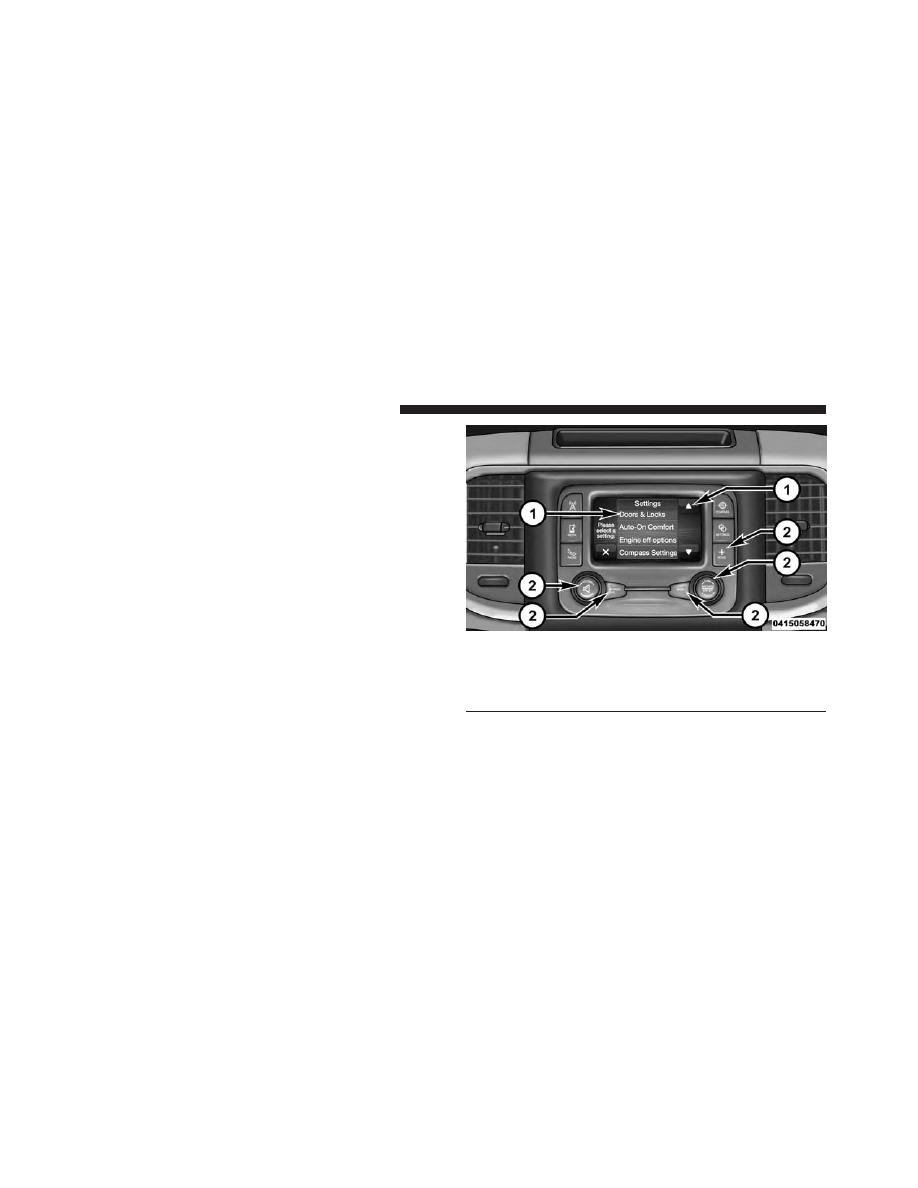

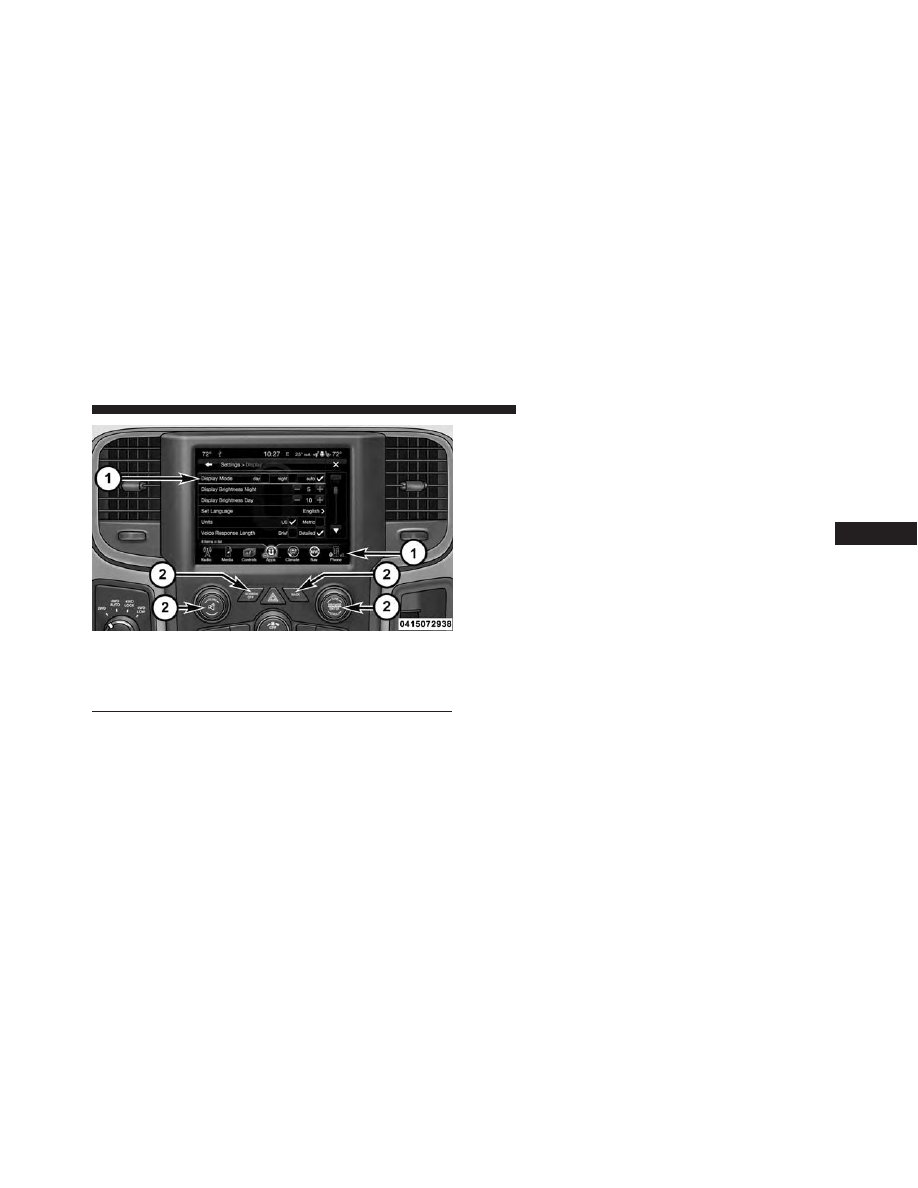

Uconnect 5.0 Buttons On The Touchscreen And Buttons

On The Faceplate

1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate

378

UNDERSTANDING YOUR INSTRUMENT PANEL

Buttons On The Faceplate

Buttons on the faceplate are located below the Uconnect
system in the center of the instrument panel. In addition,
there is a Scroll/Enter control knob located on the right
side of the Climate Controls in the center of the instru-
ment panel. Turn the control knob to scroll through
menus and change settings (i.e., 30, 60, 90), push the
center of the control knob one or more times to select or
change a setting (i.e., ON, OFF).

Your Uconnect system may also have Screen Off and
Back buttons located below the Uconnect system.

Push the Screen Off button to turn off the Uconnect
touchscreen. Push the Screen Off button a second time to
turn the touchscreen on.

Push the Back button to exit out of a Menu or certain
option on the Uconnect system.

Uconnect 8.4A/8.4AN Buttons On The Touchscreen And

Buttons On The Faceplate

1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate

UNDERSTANDING YOUR INSTRUMENT PANEL

379

Dodge Ram 2500 (2016 year). Manual - part 23
