Dodge Ram 2500 (2016 year). Manual

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.

NOTE:

If your vehicle is equipped with illuminated

approach lights under the outside mirrors they can be
turned off through the instrument cluster or the Uconnect
radio. For further information refer to “Electronic Vehicle
Information Center (EVIC)” or “Driver Information Dis-
play (DID)” and “Uconnect Settings” in “Understanding
Your Instrument Panel”.

CAUTION!

Do not use abrasive cleaning components, solvents,
steel wool or other abrasive materials to clean the
lenses.

Headlights

To turn on the headlights, rotate the headlight
switch clockwise to the headlight position.
When the headlight switch is on, the parking
lights, taillights, license plate light and instru-

ment panel lights are also turned on. To turn off the
headlights, rotate the headlight switch back to the O (Off)
position.

Automatic Headlights — If Equipped

This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch to the AUTO position.

172

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

When the system is on, the Headlight Delay feature is
also on. This means the headlights will stay on for up to
90 seconds after you turn the ignition switch to the OFF
position. To turn the automatic headlights off, turn the
headlight switch out of the AUTO position.

NOTE:

The engine must be running before the head-

lights will turn on in the Automatic Mode.

Headlights On With Wipers (Available With
Automatic Headlights Only)

When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the headlight switch is placed in the AUTO position. In
addition, the headlights will turn off when the wipers are
turned off, if they were turned on by this feature.

NOTE:

If your vehicle is equipped with a touchscreen,

this feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information.

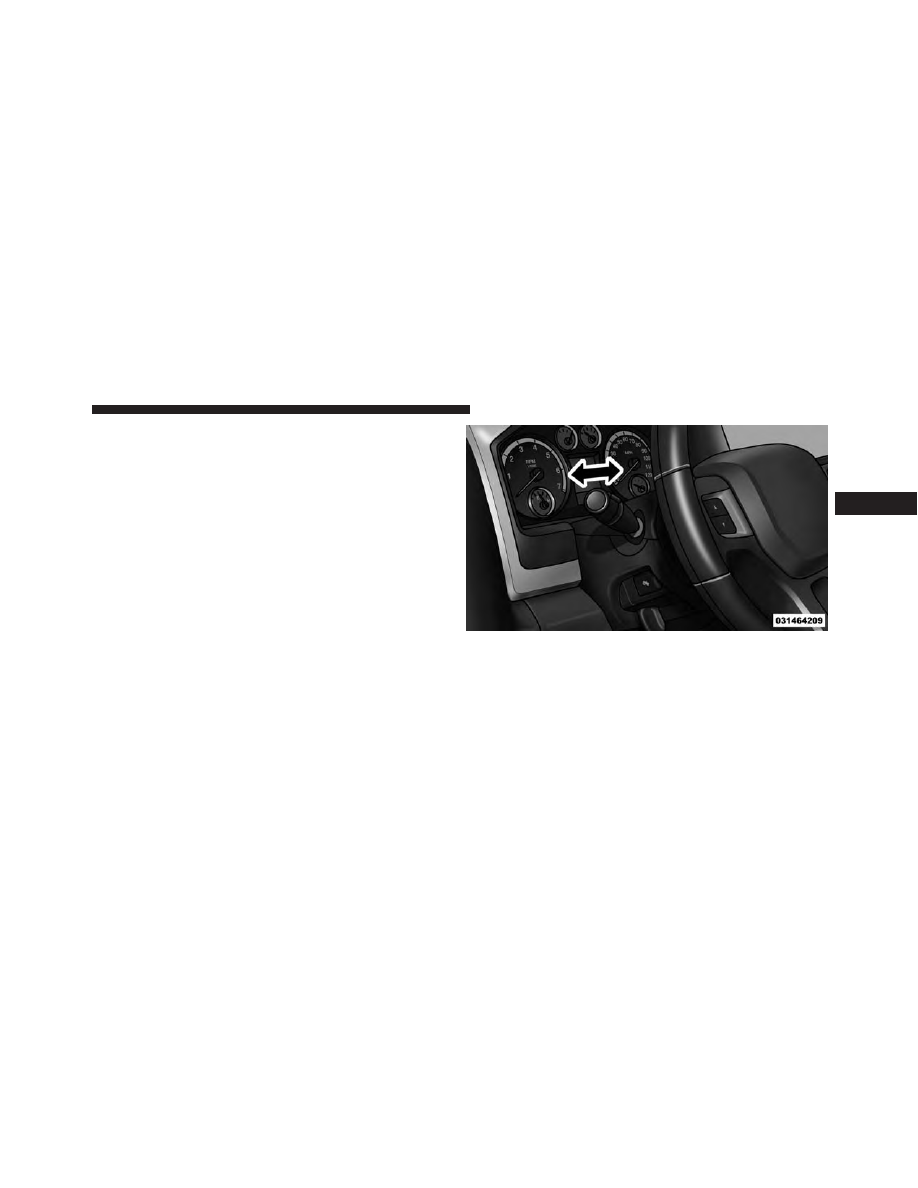

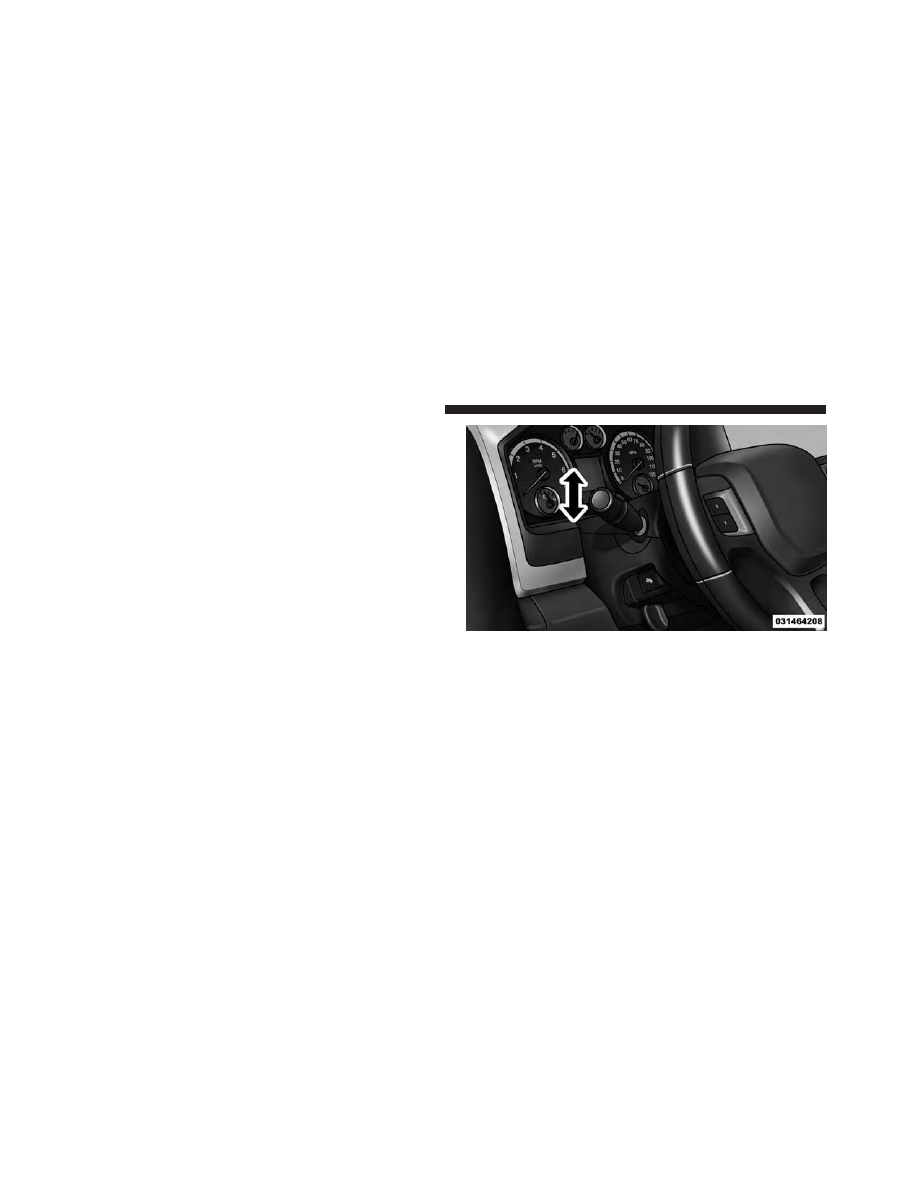

Automatic Headlight Position

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

173

Center (EVIC)” or “Driver Information Display (DID)” in
“Understanding Your Instrument Panel” for further in-
formation.

Daytime Running Lights (DRL) — If Equipped

The headlights on your vehicle will illuminate when the
engine is started and the transmission is in any gear
except PARK. This provides a constant

⬙Lights ON⬙

condition until the ignition is turned OFF. The lights
illuminate at less than 50% of normal intensity. If the
parking brake is applied, the Daytime Running Lights
(DRL) will turn OFF. Also, if a turn signal is activated, the
DRL lamp on the same side of the vehicle may turn off for
the duration of the turn signal activation. Once the turn
signal is no longer active, the DRL lamp will illuminate.

Headlight Delay

To aid in your exit, your vehicle is equipped with a
headlight delay that will leave the headlights on for
approximately up to 90 seconds. This delay is initiated

when the ignition is turned OFF while the headlight
switch is on, and then the headlight switch is cycled off.
Headlight delay can be cancelled by either turning the
headlight switch on then off, or by turning the ignition
ON.

NOTE:

If your vehicle is equipped with a touchscreen,

this feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information.

If your vehicle is not equipped with a touchscreen, this
feature can be programmed through the Electronic Ve-
hicle Information Center (EVIC) or Driver Information
Display (DID). Refer to “Electronic Vehicle Information
Center (EVIC)” or “Driver Information Display (DID)” in
“Understanding Your Instrument Panel” for further in-
formation.

174

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic High Beam Headlamp Control — If
Equipped

The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
mounted on the inside rearview mirror. This camera
detects vehicle specific light and automatically switches
from high beams to low beams until the approaching
vehicle is out of view.

NOTE:

• If your vehicle is equipped with a touchscreen the

Automatic High Beam Headlamp Control can be
turned on or off using the Uconnect System. Refer to
“Uconnect Settings” in “Understanding Your Instru-
ment Panel” for further information.

• If your vehicle is not equipped with a touchscreen the

Automatic High Beam Headlamp Control can be

turned on or off using the Electronic Vehicle Informa-
tion Center (EVIC) or Driver Information Display
(DID). Refer to “Electronic Vehicle Information Center
(EVIC)” or “Driver Information Display (DID)” in
“Understanding Your Instrument Panel” for further
information.

• Broken, muddy, or obstructed headlights and taillights

of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film,
and other obstructions on the windshield or camera
lens will cause the system to function improperly.

• To opt out of the Advanced Auto High-Beam Sensitiv-

ity Control (default) and enter Reduced High-Beam
Sensitivity Control (not recommended), toggle high-
beam lever 6 full on/off cycles within 10 seconds of
ignition ON. System will return to default setting upon
ignition off.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

175

If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed
to ensure proper performance. See your local authorized
dealer.

To Activate

1. If your vehicle is equipped with a touchscreen, the

Automatic High Beams are enabled through the
Uconnect system. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further
information.

If your vehicle is not equipped with a touchscreen, the
Automatic High Beams are enabled through the Elec-
tronic Vehicle Information Center (EVIC) or Driver Infor-
mation Display (DID). Refer to “Electronic Vehicle Infor-
mation Center (EVIC)” or “Driver Information Display
(DID)” in “Understanding Your Instrument Panel” for
further information.

2. Turn the headlight switch to the AUTO headlight

position.

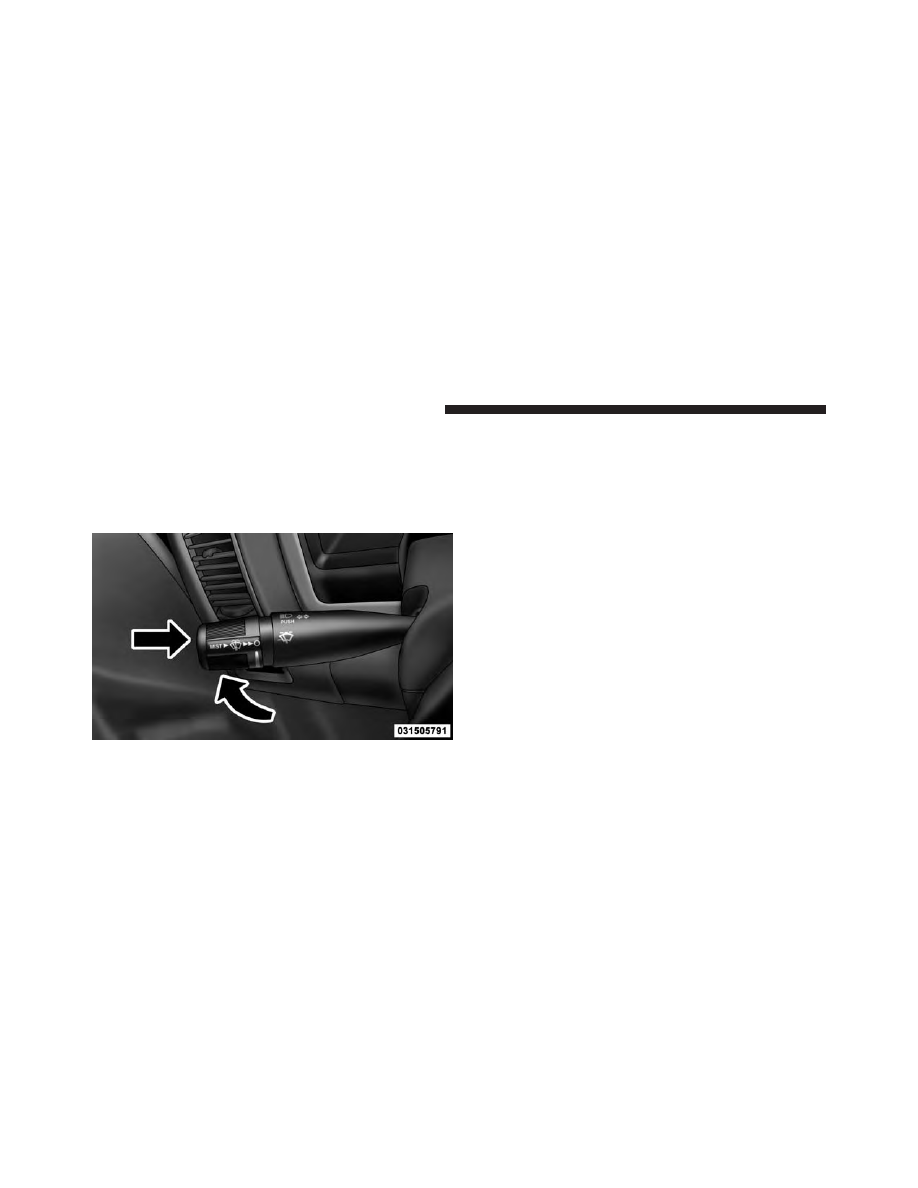

3. Push the multifunction lever away from you (toward

front of vehicle) to engage the high beam mode.

NOTE:

This system will not activate until the vehicle is

at or above 20 mph (32 km/h).

To Deactivate

1. Pull the multifunction lever toward you (or rearward

in vehicle) to manually deactivate the system (normal
operation of low beams).

2. Push back on the multifunction lever to reactivate the

system.

176

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Parking Lights And Panel Lights

To turn on the parking lights and instrument
panel lights, rotate the headlight switch clockwise.

To turn off the parking lights, rotate the headlight switch
back to the O (Off) position.

Fog Lights — If Equipped

The fog lights are turned on by rotating the headlight
switch to the parking light or headlight position and
pushing in the headlight rotary control.

The fog lights will operate only when the parking lights
are on or when the vehicle headlights are on low beam.
An indicator light located in the instrument cluster will
illuminate when the fog lights are on. The fog lights will

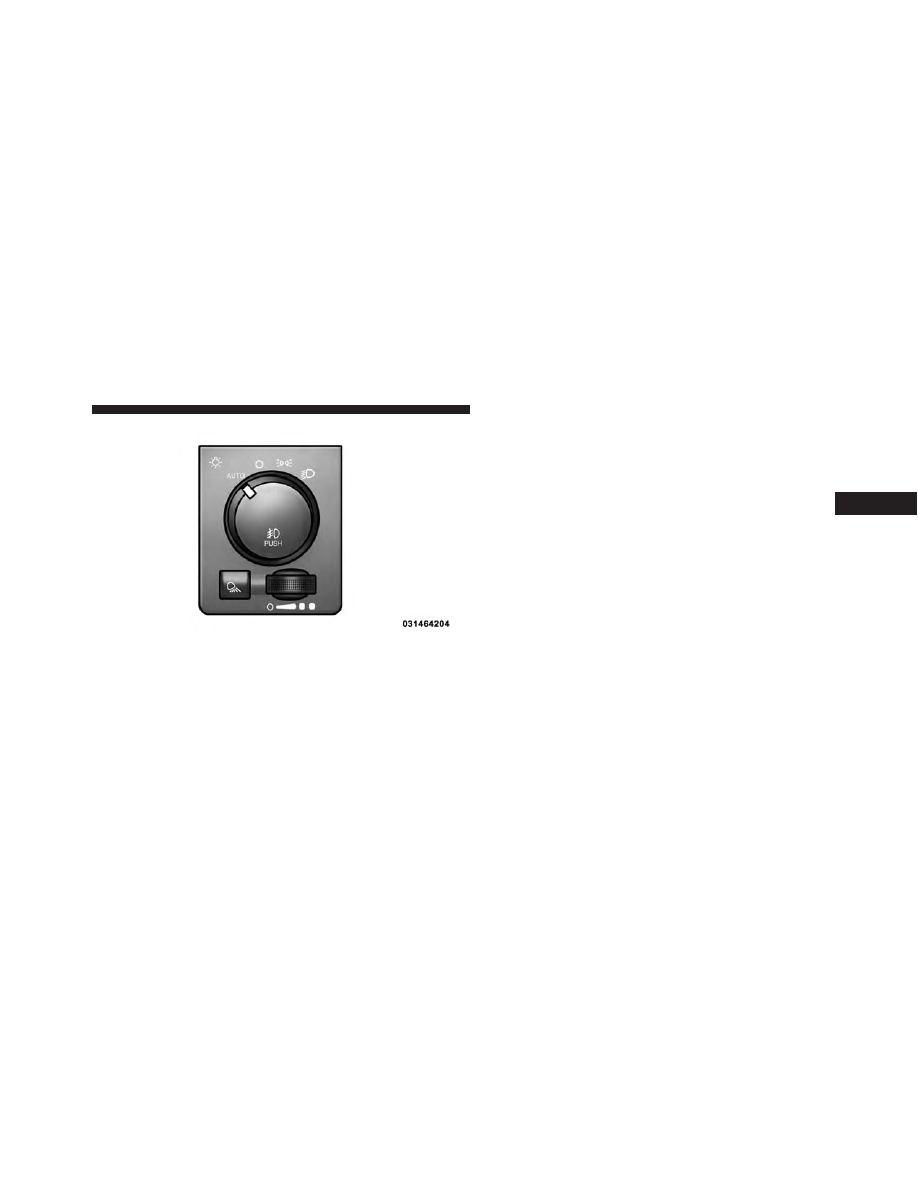

Fog Light Switch

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

177

turn off when the switch is pushed a second time, when
the headlight switch is rotated to the off position, or the
high beam is selected.

Lights-On Reminder

If the headlights, parking lights, or cargo lights are left on
after the ignition is turned OFF, a chime will sound when
the driver’s door is opened.

Battery Saver

To protect the life of your vehicle’s battery, load shedding
is provided for both the interior and exterior lights.

If the ignition is OFF and any door is left ajar for 10
minutes or the dimmer control is rotated all the way up
to the dome ON position for 10 minutes, the interior
lights will automatically turn off.

NOTE:

Battery saver mode is cancelled if the ignition is

ON.

If the headlights remain on while the ignition is cycled
OFF, the exterior lights will automatically turn off after
eight minutes. If the headlights are turned on and left on
for eight minutes while the ignition is OFF, the exterior
lights will automatically turn off.

Interior Lights

Courtesy and dome lights are turned on when the front
doors are opened, when the dimmer control (rotating
wheel on the bottom of the switch) is rotated to the far
right detent position. If your vehicle is equipped with
Remote Keyless Entry (RKE) and the UNLOCK button is
pushed on the RKE Key Fob the courtesy and dome
lights will turn on. When a door is open and the interior
lights are on, rotating the dimmer control all the way left,
to the OFF detent, will cause all the interior lights to go
out. This is also known as the

⬙Party⬙ mode because it

allows the doors to stay open for extended periods of
time without discharging the vehicle’s battery.

178

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The brightness of the instrument panel as well as the
ambient lighting can be regulated by rotating the dimmer
control right (brighter) or left (dimmer). When the head-
lights are on you can supplement the brightness of the
odometer, trip odometer, radio and overhead console by
rotating the control to the right until you hear a click. This
feature is termed the “Parade” mode and is useful when
headlights are required during the day.

NOTE:

If your vehicle is equipped with a touchscreen,

the dimming of the touchscreen is programmable
through the Uconnect system. Refer to “Uconnect Set-
tings ” in “Understanding Your Instrument Panel” for
further details.

Courtesy/Reading Lights

Both lights in the overhead console and rear passenger
compartment will illuminate as courtesy lights when a
door is opened, when the dimmer control is rotated to the
courtesy light position (full right position), or when the
UNLOCK button is pushed on the Remote Keyless Entry

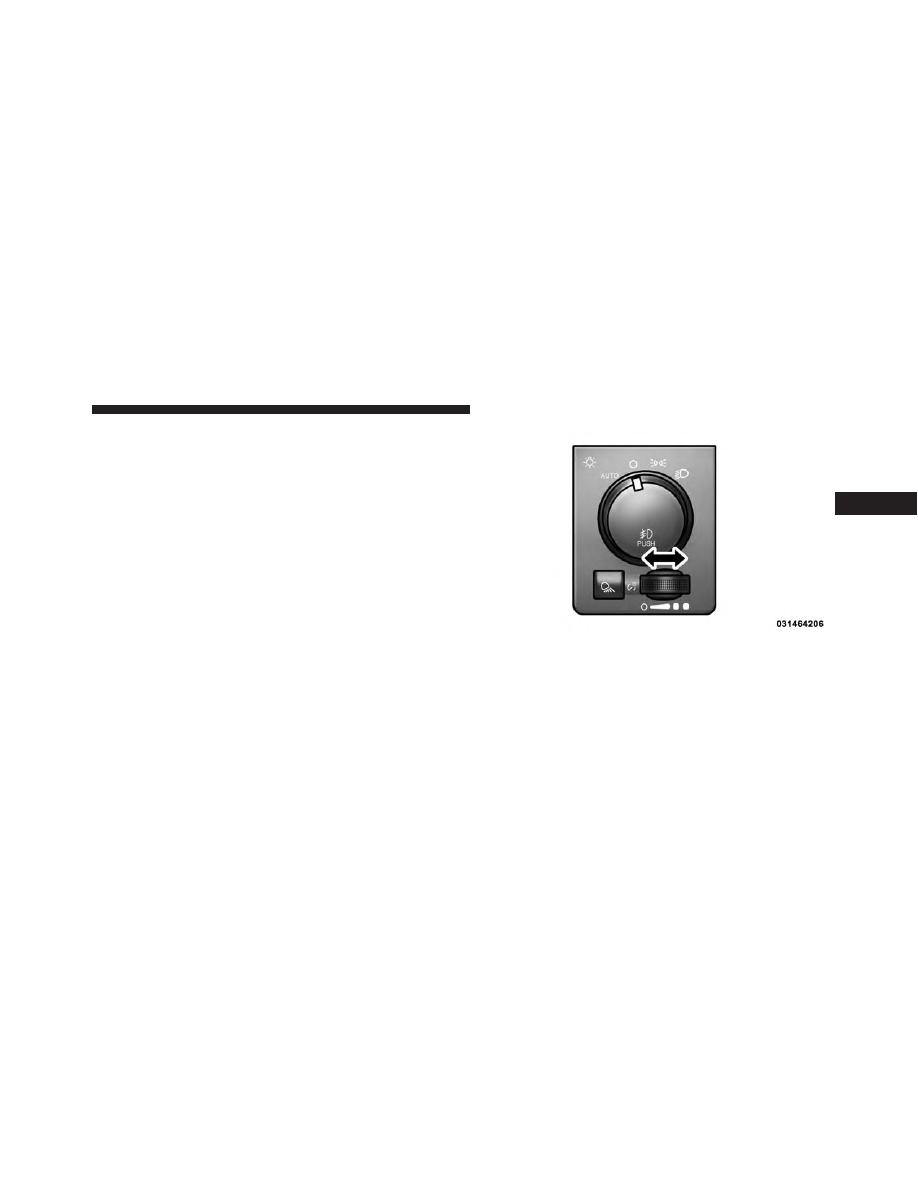

Dimmer Control

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

179

(RKE) Key Fob, if equipped. These lights are also oper-
ated individually as reading lights by pushing on the
corresponding lens.

NOTE:

The courtesy/reading lights will remain on until

the switch is pushed a second time, so be sure they have
been turned off before leaving the vehicle. If the interior
lights are left on after the ignition is turned OFF, they will
automatically turn off after 15 minutes.

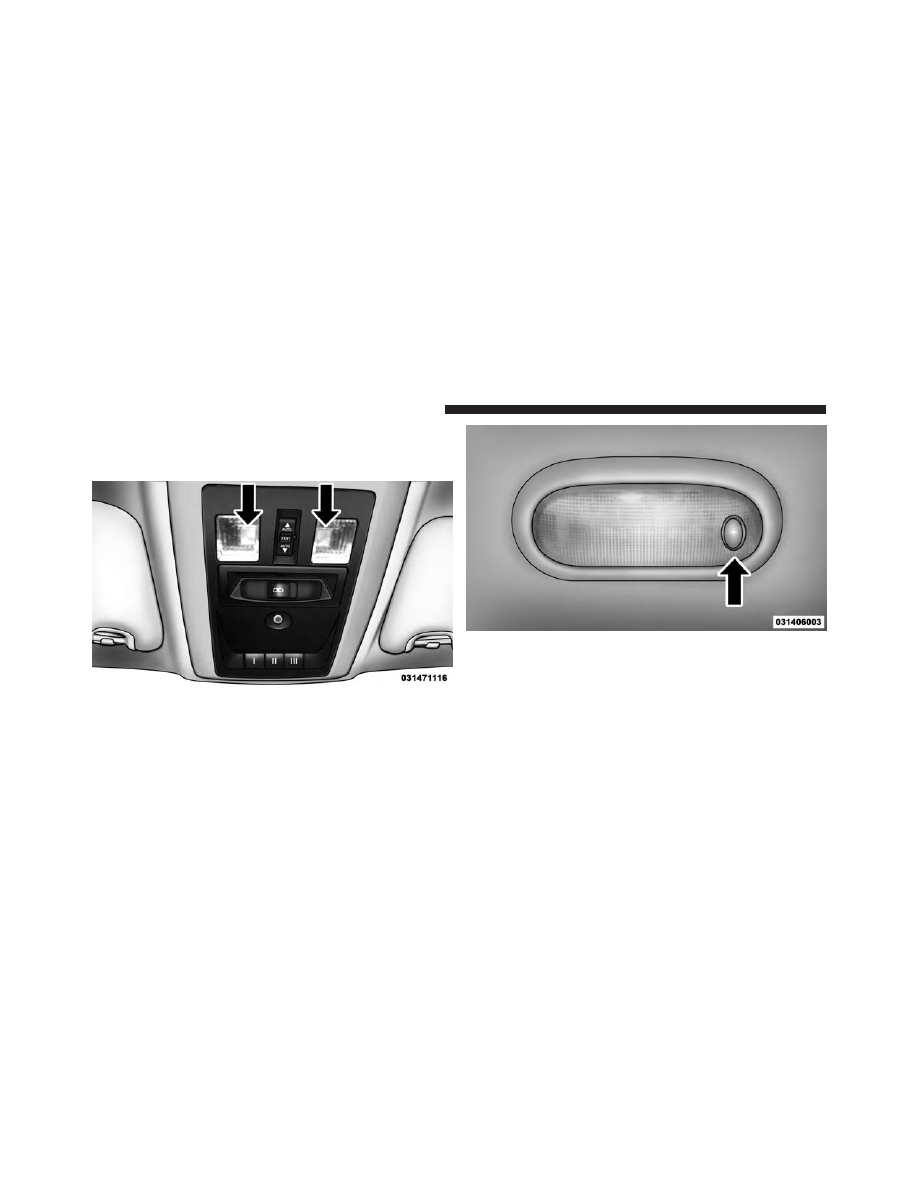

Front Courtesy/Reading Lights

Rear Passenger Courtesy/Reading Light

180

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

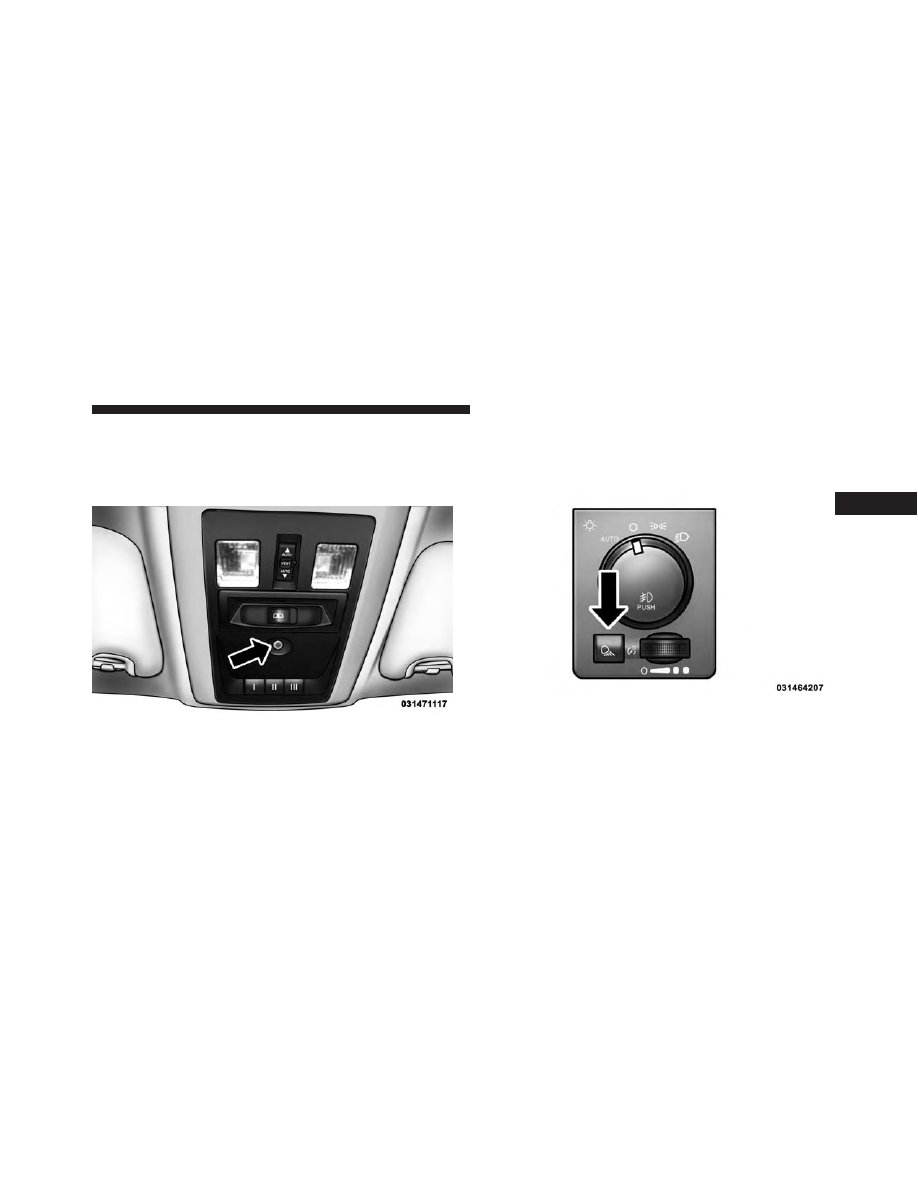

Ambient Light

The overhead console is equipped with an ambient light
feature. This light casts illumination for improved visibil-
ity of the floor console area.

Cargo Light With Bed Lights — If Equipped

The cargo light and bed lights (if equipped) are turned on
by pushing on the cargo lights button.

Ambient Light

Cargo Lights Button

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

181

The cargo light and bed lights (if equipped) will also turn
on for approximately 60 seconds when a RKE Key Fob
UNLOCK button is pushed, as part of the Illuminated
Entry feature.

Multifunction Lever

The multifunction lever is located on the left side of the
steering column.

Turn Signals

Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.

NOTE:

If either light remains on and does not flash, or

there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.

Turn Signal Lever

182

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Lane Change Assist

Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.

Flash-To-Pass

You can signal another vehicle with your headlights by
partially pulling the multifunction lever toward the steer-
ing wheel. This will cause the high beam headlights to
turn on until the lever is released.

High/Low Beam Switch

Push the multifunction lever toward the instrument
panel to switch the headlights to high beam. Pulling the
multifunction lever back toward the steering wheel will
turn the low beams back on, or shut the high beams off.

High/Low Beam Switch

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

183

WINDSHIELD WIPERS AND WASHERS

Windshield Wipers

The wipers and washers are operated by a switch in the
multifunction lever. Turn the end of the handle to select
the desired wiper speed.

Windshield Wiper Operation

Rotate the end of the lever upward, to the first detent past
the intermittent settings for low-speed wiper operation.
Rotate the end of the lever upward to the second detent
past the intermittent settings for high-speed wiper opera-
tion.

Intermittent Wiper System

The intermittent feature of this system was designed for
use when weather conditions make a single wiping cycle,
with a variable pause between cycles, desirable. For
maximum delay between cycles, rotate the control knob
into the upper end of the delay range.

The delay interval decreases as you rotate the knob until
it enters the low continual speed position. The delay can
be regulated from a maximum of about 18 seconds
between cycles, to a cycle every one second. The delay
intervals will double in duration when the vehicle speed
is 10 mph (16 km/h) or less.

Windshield Wiper/Washer Switch

184

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Windshield Washers

To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to
the second detent. Washer fluid will be sprayed and the
wiper will operate for two to three cycles after the washer
knob is released from this position.

If the washer knob is depressed while in the delay range,
the wiper will operate for several seconds after the
washer knob is released. It will then resume the intermit-
tent interval previously selected. If the washer knob is
pushed while in the off position, the wiper will turn on
and cycle approximately three times after the wash knob
is released.

To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This

rating information can be found on most washer fluid
containers.

WARNING!

Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.

Mist Feature

When a single wipe to clear off road mist or spray from
a passing vehicle is needed, push the washer knob,
located on the end of the multifunction lever, inward to
the first detent and release. The wipers will cycle one
time and automatically shut off.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

185

NOTE:

The mist feature does not activate the washer

pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.

Rain Sensing Wipers — If Equipped

This feature senses moisture on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful for road splash or overspray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of five settings
to activate this feature.

NOTE:

If your vehicle is equipped with a touchscreen,

this feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information.

The sensitivity of the system can be adjusted with the
multifunction lever. Wiper delay position 1 is the least
sensitive, and wiper delay position 5 is the most sensi-
tive. Setting 3 should be used for normal rain conditions.
Settings 1 and 2 can be used if the driver desires less
wiper sensitivity. Setting 4 and 5 can be used if the driver
desires more sensitivity. Place the wiper switch in the
OFF position when not using the system.

186

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

• The Rain Sensing feature will not operate when the

wiper switch is in the low or high-speed position.

• The Rain Sensing feature may not function properly

when ice, or dried salt water is present on the wind-
shield.

• Use of Rain-X or products containing wax or silicone

may reduce Rain Sensing performance.

The Rain Sensing system has protection features for the
wiper blades and arms, and will not operate under the
following conditions:

• Low Ambient Temperature — When the ignition is

first turned ON, the Rain Sensing system will not
operate until the wiper switch is moved, vehicle speed
is greater than 0 mph (0 km/h), or the outside tem-
perature is greater than 32°F (0°C).

• Transmission In NEUTRAL Position — When the

ignition is ON, and the transmission is in the NEU-
TRAL position, the Rain Sensing system will not
operate until the wiper switch is moved, vehicle speed
is greater than 5 mph (8 km/h), or the gear selector is
moved out of the NEUTRAL position.

• Remote Start Mode Inhibit — On vehicles equipped

with Remote Starting system, Rain Sensing wipers are
not operational when the vehicle is in the remote start
mode. Once the operator is in the vehicle and has
placed the ignition switch in the RUN position, rain
sensing wiper operation can resume, if it has been
selected, and no other inhibit conditions (mentioned
previously) exist.

TILT STEERING COLUMN

This feature allows you to tilt the steering column
upward or downward. The tilt lever is located on the
steering column, below the multifunction lever.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

187

Dodge Ram 2500 (2016 year). Manual - part 11
