Dodge Ram 2500 (2016 year). Manual

4. Continue to slide the latch plate up until it clears the

folded webbing and the seat belt is no longer twisted.

Adjustable Upper Shoulder Belt Anchorage

In the driver and front passenger seats, the top of the
shoulder belt can be adjusted upward or downward to
position the seat belt away from your neck. Push or
squeeze the anchorage button to release the anchorage,
and move it up or down to the position that serves you
best.

As a guide, if you are shorter than average, you will
prefer the shoulder belt anchorage in a lower position,
and if you are taller than average, you will prefer the
shoulder belt anchorage in a higher position. After you
release the anchorage button, try to move it up or down
to make sure that it is locked in position.

Adjustable Anchorage

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

The adjustable upper shoulder belt anchorage is

equipped with an Easy Up feature. This feature allows
the shoulder belt anchorage to be adjusted in the upward
position without pushing or squeezing the release but-
ton. To verify the shoulder belt anchorage is latched, pull
downward on the shoulder belt anchorage until it is
locked into position.

First Row Center Seat Belt Operating Instructions
(Regular Cab Only)

The first row center seat belt (Regular Cab only) features
a seat belt with a mini-latch plate and buckle, which
allows the seat belt to detach from the lower anchor when
the seat is folded. The latch plate and regular latch plate
can then be stored out of the way in the seat for added
convenience to open up utilization of the storage areas
behind the front seats when the seat is not occupied.

1. Remove the mini-latch plate and regular latch plate

from its stowed position on the seat.

Inserting Latch Plate

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Grasp the mini-latch plate and pull the seat belt over

the seat.

3. Route the shoulder belt to the inside of the right head

restraint.

4. When the seat belt is long enough to fit, insert the

mini-latch plate into the mini-buckle until you hear a
“click.”

5. Sit back in seat. Slide the regular latch plate up the

webbing as far as necessary to allow the seat belt to go
around your lap.

6. When the seat belt is long enough to fit, insert the latch

plate into the buckle until you hear a “click.”

7. Position the lap belt so that it is snug and lies low

across your hips, below your abdomen. To remove
slack in the lap belt portion, pull up on the shoulder
belt. To loosen the lap belt if it is too tight, pull on the
lap belt. A snug seat belt reduces the risk of sliding
under the seat belt in a collision.

8. Position the shoulder belt on your chest so that it is

comfortable and not resting on your neck. The retrac-
tor will withdraw any slack in the seat belt.

In Use Position

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

9. To release the seat belt, push the red button on the

buckle.

10. To disengage the mini-latch plate from the mini-

buckle for storage, insert the regular latch plate into
the center red slot on the mini-buckle. The seat belt
will automatically retract to its stowed position. If
necessary, slide the latch plate down the webbing to
allow the seat belt to retract fully. Insert the mini-
latch plate and regular latch plate into its stowed
position.

WARNING!

• If the mini-latch plate and mini-buckle are not

properly connected when the seat belt is used by an
occupant, the seat belt will not be able to provide

(Continued)

Detaching Buckle With Seat Belt Tongue

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)

proper restraint and will increase the risk of injury
in a collision.

• When reattaching the mini-latch plate and mini-

buckle, ensure the seat belt webbing is not twisted.
If the webbing is twisted, follow the preceding
procedure to detach the mini-latch plate and mini-
buckle, untwist the webbing, and reattach the
mini-latch plate and mini-buckle.

First Row Center Lap Belt Operating Instructions
(If Equipped)

The center seating position for the Quad Cab, Mega Cab
and Crew Cab front seat has a lap belt only. To buckle the
lap belt, slide the latch plate into the buckle until you
hear a

⬙click.⬙ To lengthen the lap belt, tilt the latch plate

and pull.

To remove slack, pull the loose end of the webbing. Wear
the lap belt snug against the hips. Sit back and upright in
the seat, then adjust the seat belt as tightly as is comfort-
able.

Seat Belt Extender

If a seat belt is not long enough to fit properly, even when
the webbing is fully extended and the adjustable upper
shoulder belt anchorage (if equipped) is in its lowest
position, your authorized dealer can provide you with a
Seat Belt Extender. The Seat Belt Extender should be used
only if the existing seat belt is not long enough. When the
Seat Belt Extender is not required for a different occu-
pant, it must be removed.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• ONLY use a Seat Belt Extender if it is physically

required in order to properly fit the original seat
belt system. DO NOT USE the Seat Belt Extender
if, when worn, the distance between the front edge
of the Seat Belt Extender buckle and the center of
the occupant’s body is LESS than 6 inches.

• Using a Seat Belt Extender when not needed can

increase the risk of serious injury or death in a
collision. Only use the Seat Belt Extender when the
lap belt is not long enough and only use in the
recommended seating positions. Remove and store
the Seat Belt Extender when not needed.

Seat Belts And Pregnant Women

Seat belts must be worn by all occupants including
pregnant women: the risk of injury in the event of an
accident is reduced for the mother and the unborn child
if they are wearing a seat belt.

Pregnant Women And Seat Belts

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Position the lap belt snug and low below the abdomen
and across the strong bones of the hips. Place the
shoulder belt across the chest and away from the neck.
Never place the shoulder belt behind the back or under
the arm.

Seat Belt Pretensioner

The front seat belt system is equipped with pretensioning
devices that are designed to remove slack from the seat
belt in the event of a collision. These devices may
improve the performance of the seat belt by removing
slack from the seat belt early in a collision. Pretensioners
work for all size occupants, including those in child
restraints.

NOTE:

These devices are not a substitute for proper seat

belt placement by the occupant. The seat belt still must be
worn snugly and positioned properly.

The pretensioners are triggered by the Occupant Re-
straint Controller (ORC). Like the air bags, the preten-
sioners are single use items. A deployed pretensioner or
a deployed air bag must be replaced immediately.

Energy Management Feature — If Equipped

This vehicle has a seat belt system with an Energy
Management feature in the front seating positions that
may help further reduce the risk of injury in the event of
a collision. This seat belt system has a retractor assembly
that is designed to release webbing in a controlled
manner.

Switchable Automatic Locking Retractors (ALR) —
If Equipped

The seat belts in the passenger seating positions may be
equipped with a Switchable Automatic Locking Retractor
(ALR) which is used to secure a child restraint system.
For additional information, refer to “Installing Child
Restraints Using The Vehicle Seat Belt” under the “Child

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Restraints” section of this manual. The table below
defines the type of feature for each seating position.

If the passenger seating position is equipped with an
ALR and is being used for normal usage, only pull the
seat belt webbing out far enough to comfortably wrap
around the occupant’s mid-section so as to not activate
the ALR. If the ALR is activated, you will hear a clicking

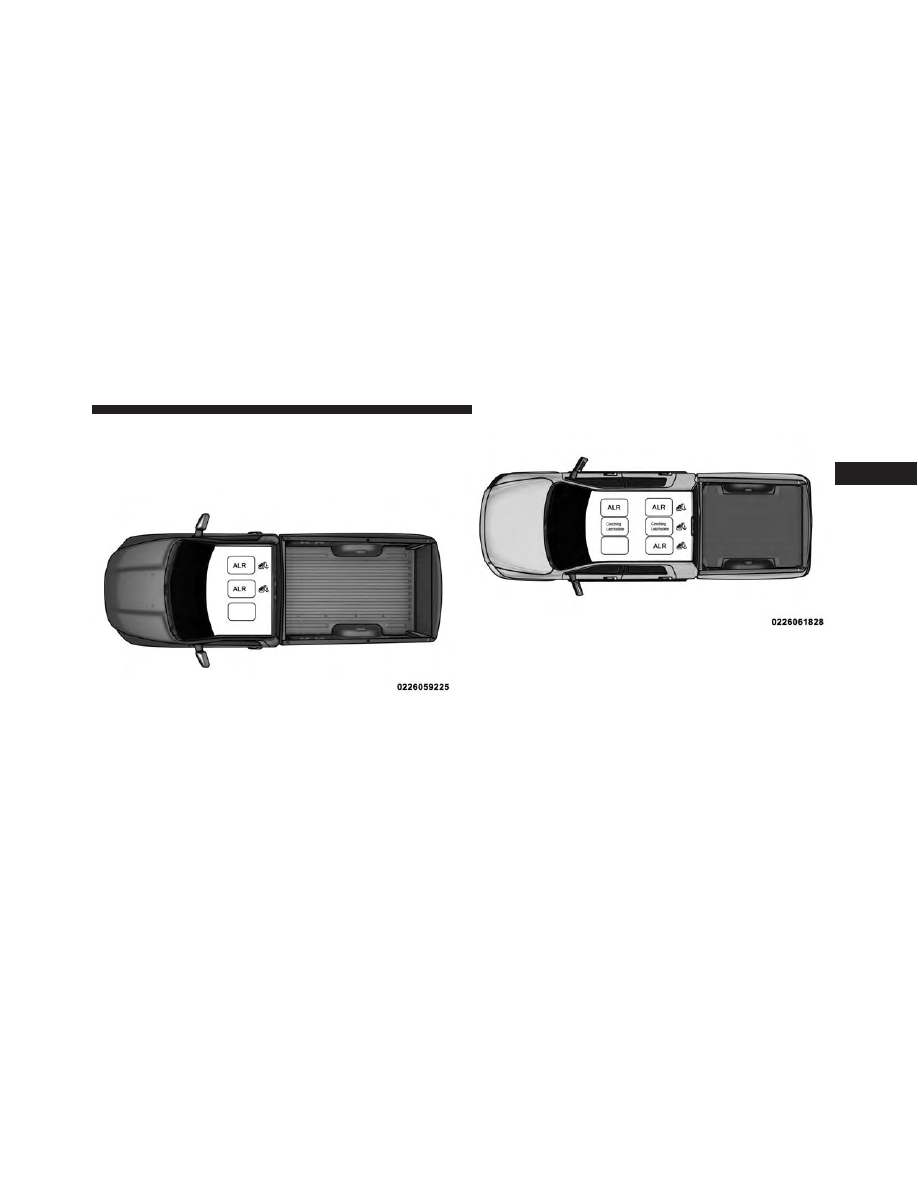

Regular Cab

Quad Cab/Mega Cab/Crew Cab

• ALR = Switchable Automatic Locking Retractor

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

sound as the seat belt retracts. Allow the webbing to
retract completely in this case and then carefully pull out
only the amount of webbing necessary to comfortably
wrap around the occupant’s mid-section. Slide the latch
plate into the buckle until you hear a

⬙click.⬙

In Automatic Locking Mode, the shoulder belt is auto-
matically pre-locked. The seat belt will still retract to
remove any slack in the shoulder belt. Use the Automatic
Locking Mode anytime a child restraint is installed in a
seating position that has a seat belt with this feature.
Children 12 years old and under should always be
properly restrained in a vehicle with a rear seat.

WARNING!

• Never place a rear-facing child restraint in front of

an air bag. A deploying Passenger Advanced Front
Air Bag can cause death or serious injury to a child

(Continued)

WARNING! (Continued)

12 years or younger, including a child in a rear-
facing child restraint.

• Only use a rear-facing child restraint in a vehicle

with a rear seat.

How To Engage The Automatic Locking Mode

1. Buckle the combination lap and shoulder belt.

2. Grasp the shoulder portion and pull downward until

the entire seat belt is extracted.

3. Allow the seat belt to retract. As the seat belt retracts,

you will hear a clicking sound. This indicates the seat
belt is now in the Automatic Locking Mode.

How To Disengage The Automatic Locking Mode

Unbuckle the combination lap/shoulder belt and allow it
to retract completely to disengage the Automatic Locking

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Mode and activate the vehicle sensitive (emergency)
locking mode.

WARNING!

• The seat belt assembly must be replaced if the

switchable Automatic Locking Retractor (ALR) fea-
ture or any other seat belt function is not working
properly when checked according to the proce-
dures in the Service Manual.

• Failure to replace the seat belt assembly could

increase the risk of injury in collisions.

• Do not use the Automatic Locking Mode to restrain

occupants who are wearing the seat belt or children
who are using booster seats. The locked mode is
only used to install rear-facing or forward-facing
child restraints that have a harness for restraining
the child.

Supplemental Restraint System (SRS)

Air Bag System Components

Your vehicle may be equipped with the following air bag
system components:

• Occupant Restraint Controller (ORC)
• Air Bag Warning Light
• Steering Wheel and Column
• Instrument Panel
• Knee Impact Bolsters
• Advanced Front Air Bags
• Supplemental Side Air Bags
• Front and Side Impact Sensors — If Equipped

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• Seat Belt Pretensioners
• Seat Belt Buckle Switch

Advanced Front Air Bags

This vehicle has Advanced Front Air Bags for both the
driver and front passenger as a supplement to the seat
belt restraint systems. The driver’s Advanced Front Air
Bag is mounted in the center of the steering wheel. The
passenger’s Advanced Front Air Bag is mounted in the
instrument panel, above the glove compartment. The
words “SRS AIRBAG” or “AIRBAG” are embossed on
the air bag covers.

Advanced Front Air Bag And Knee Bolster Locations

1 — Driver And Passenger Advanced Front Air Bags
2 — Driver/Passenger Knee Impact Bolsters

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• Being too close to the steering wheel or instrument

panel during Advanced Front Air Bag deployment
could cause serious injury, including death. Air
bags need room to inflate. Sit back, comfortably
extending your arms to reach the steering wheel or
instrument panel.

• Never place a rear-facing child restraint in front of

an air bag. A deploying Passenger Advanced Front
Air Bag can cause death or serious injury to a child
12 years or younger, including a child in a rear-
facing child restraint.

• Only use a rear-facing child restraint in a vehicle

with a rear seat.

Advanced Front Air Bag Features

The Advanced Front Air Bag system has multistage
driver and front passenger air bags. This system provides

output appropriate to the severity and type of collision as
determined by the Occupant Restraint Controller (ORC),
which may receive information from the front impact
sensors (if equipped) or other system components.

The first stage inflator is triggered immediately during an
impact that requires air bag deployment. A low energy
output is used in less severe collisions. A higher energy
output is used for more severe collisions.

This vehicle may be equipped with a driver and/or front
passenger seat belt buckle switch that detects whether
the driver or front passenger seat belt is buckled. The seat
belt buckle switch may adjust the inflation rate of the
Advanced Front Air Bags.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• No objects should be placed over or near the air

bag on the instrument panel or steering wheel
because any such objects could cause harm if the
vehicle is in a collision severe enough to cause the
air bag to inflate.

• Do not put anything on or around the air bag

covers or attempt to open them manually. You may
damage the air bags and you could be injured
because the air bags may no longer be functional.
The protective covers for the air bag cushions are
designed to open only when the air bags are
inflating.

• Relying on the air bags alone could lead to more

severe injuries in a collision. The air bags work
with your seat belt to restrain you properly. In

(Continued)

WARNING! (Continued)

some collisions, air bags won’t deploy at all. Al-
ways wear your seat belts even though you have air
bags.

Advanced Front Air Bag Operation

Advanced Front Air Bags are designed to provide addi-
tional protection by supplementing the seat belts. Ad-
vanced Front Air Bags are not expected to reduce the risk
of injury in rear, side, or rollover collisions. The Ad-
vanced Front Air Bags will not deploy in all frontal
collisions, including some that may produce substantial
vehicle damage — for example, some pole collisions,
truck underrides, and angle offset collisions.

On the other hand, depending on the type and location of
impact, Advanced Front Air Bags may deploy in crashes
with little vehicle front-end damage but that produce a
severe initial deceleration.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Because air bag sensors measure vehicle deceleration
over time, vehicle speed and damage by themselves are
not good indicators of whether or not an air bag should
have deployed.

Seat belts are necessary for your protection in all colli-
sions, and also are needed to help keep you in position,
away from an inflating air bag.

When the ORC detects a collision requiring the Ad-
vanced Front Air Bags, it signals the inflator units. A large
quantity of non-toxic gas is generated to inflate the
Advanced Front Air Bags.

The steering wheel hub trim cover and the upper right
side of the instrument panel separate and fold out of the
way as the air bags inflate to their full size. The Advanced
Front Air Bags fully inflate in less time than it takes to
blink your eyes. The air bags then quickly deflate while
helping to restrain the driver and front passenger.

Knee Impact Bolsters

The Knee Impact Bolsters help protect the knees of the
driver and front passenger, and position the front occu-
pants for improved interaction with the Advanced Front
Air Bags.

WARNING!

• Do not drill, cut, or tamper with the knee impact

bolsters in any way

• Do not mount any accessories to the knee impact

bolsters such as alarm lights, stereos, citizen band
radios, etc.

Supplemental Side Air Bags

Your vehicle is equipped with two types of side air bags:

1. Supplemental Seat-Mounted Side Air Bags (SABs):

Located in the outboard side of the front seats. The

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

SABs are marked with a “SRS AIRBAG” or “AIR-
BAG” label sewn into the outboard side of the seats.

The SABs may help to reduce the risk of occupant injury
during certain side impacts and/or vehicle rollover
events, in addition to the injury reduction potential
provided by the seat belts and body structure.

When the SAB deploys, it opens the seam on the out-
board side of the seatback’s trim cover. The inflating SAB
deploys through the seat seam into the space between the
occupant and the door. The SAB moves at a very high
speed and with such a high force that it could injure
occupants if they are not seated properly, or if items are
positioned in the area where the SAB inflates. Children
are at an even greater risk of injury from a deploying air
bag.

WARNING!

Do not use accessory seat covers or place objects
between you and the Side Air Bags; the performance
could be adversely affected and/or objects could be
pushed into you, causing serious injury.

Supplemental Seat-Mounted Side Air Bag Label

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Supplemental Side Air Bag Inflatable Curtains

(SABICs): Located above the side windows. The trim
covering the SABICs is labeled “SRS AIRBAG” or
“AIRBAG.”

SABICs may help reduce the risk of head or other injuries
to front and rear seat outboard occupants in certain side
impacts and/or vehicle rollover events, in addition to the
injury reduction potential provided by the seat belts and
body structure.

The SABICs deploy downward, covering the side win-
dows. An inflating SABIC pushes the outside edge of the
trim out of the way and covers the window. The SABICs
inflate with enough force to injure occupants if they are
not belted and seated properly, or if items are positioned
in the area where the SABICs inflate. Children are at an
even greater risk of injury from a deploying air bag.

The SABICs may help reduce the risk of partial or
complete ejection of vehicle occupants through side
windows in certain rollover or side impact events.

Supplemental Side Air Bag Inflatable Curtain (SABIC)

Label Location

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Dodge Ram 2500 (2016 year). Manual - part 4
