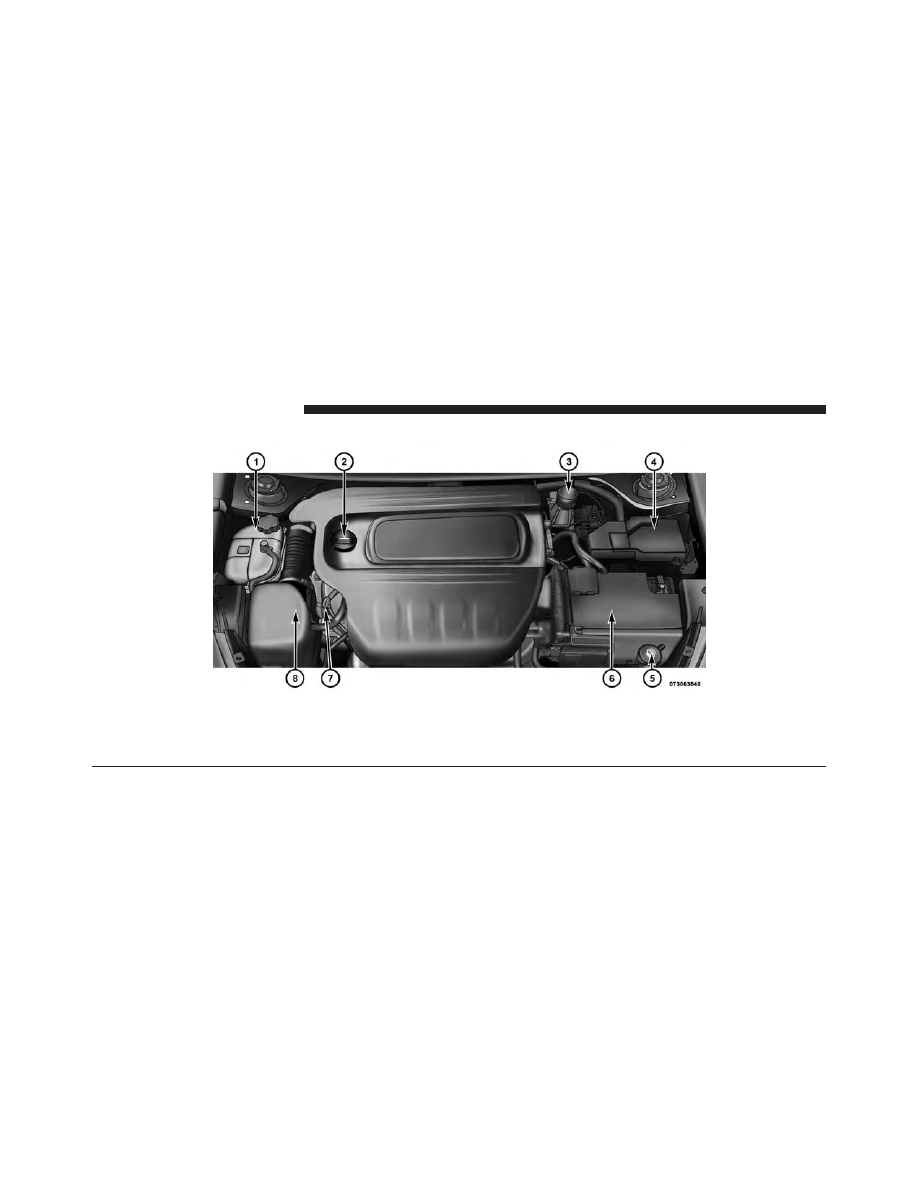

ENGINE COMPARTMENT — 2.0L

1 — Engine Coolant Reservoir

5 — Washer Fluid Reservoir

2 — Engine Oil Fill

6 — Battery

3 — Brake Fluid Reservoir

7 — Engine Oil Level Indicator

4 — Power Distribution Center (Fuses)

8 — Air Cleaner Filter

572

MAINTAINING YOUR VEHICLE

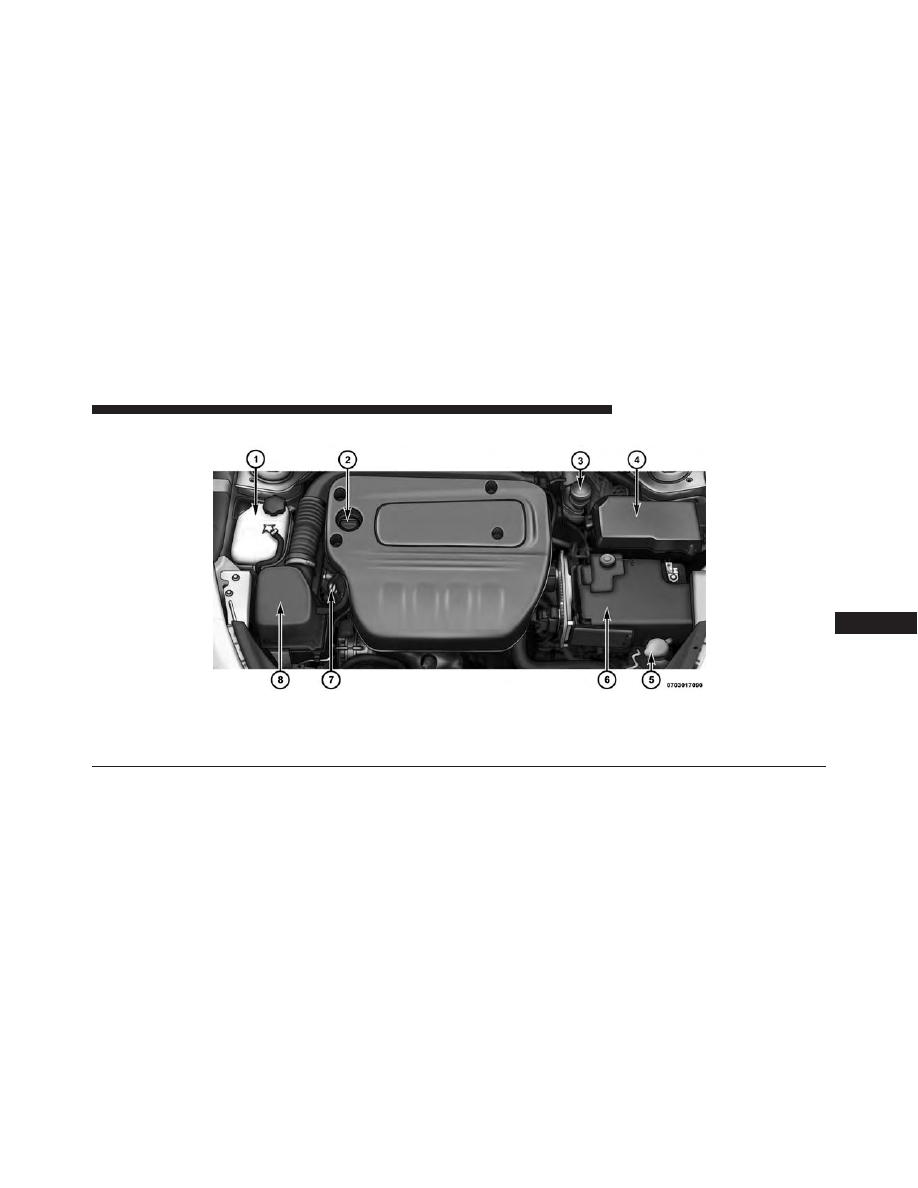

ENGINE COMPARTMENT — 2.4L

1 — Engine Coolant Reservoir

5 — Washer Fluid Reservoir

2 — Engine Oil Fill

6 — Battery

3 — Brake Fluid Reservoir

7 — Engine Oil Level Indicator

4 — Power Distribution Center (Fuses)

8 — Air Cleaner Filter

MAINTAINING YOUR VEHICLE

573

ONBOARD DIAGNOSTIC SYSTEM — OBD II

Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.

If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.

CAUTION!

• Prolonged driving with the MIL on could cause

further damage to the emission control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emissions
tests can be performed.

• If the MIL is flashing while the engine is running,

severe catalytic converter damage and power loss
will soon occur. Immediate service is required.

Loose Fuel Filler Cap Message

After fuel is added, the vehicle diagnostic system can
determine if the fuel filler cap is possibly loose or
improperly installed. A “gASCAP” message will be dis-
played in the instrument cluster. Tighten the gas cap until
a “clicking” sound is heard. This is an indication that the
gas cap is properly tightened. Push the trip odometer
RESET button to turn off the message. If the problem

574

MAINTAINING YOUR VEHICLE

persists, the message will appear the next time the
vehicle is started. This might indicate a damaged cap. If
the problem is detected twice in a row, the system will
turn on the MIL. Resolving the problem will turn the MIL
light off.

EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS

In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.

For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not

on when the engine is running, and that the OBD II
system is ready for testing.

Normally, the OBD II system will be ready. The OBD II
system may not be ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.

Your vehicle has a simple ignition actuated test, which
you can use prior to going to the test station. To check if
your vehicle’s OBD II system is ready, you must do the
following:

1. Cycle the ignition switch to the ON position, but do

not crank or start the engine.

NOTE:

If you crank or start the engine, you will have to

start this test over.

2. As soon as you cycle the ignition switch to the ON

position, you will see the Malfunction Indicator Light
(MIL) symbol come on as part of a normal bulb check.

MAINTAINING YOUR VEHICLE

575

3. Approximately 15 seconds later, one of two things will

happen:

• The MIL will flash for about 10 seconds and then

return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not ready and you should
not

proceed to the I/M station.

• The MIL will not flash at all and will remain fully

illuminated until you place the ignition in the off
position or start the engine. This means that your
vehicle’s OBD II system is ready and you can proceed
to the I/M station.

If your OBD II system is not ready, you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II

system to update. A recheck with the above test routine
may then indicate that the system is now ready.

Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.

REPLACEMENT PARTS

Use of genuine MOPAR parts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR parts for maintenance
and repairs will not be covered by the New Vehicle
Limited Warranty.

576

MAINTAINING YOUR VEHICLE

DEALER SERVICE

Your authorized dealer has the qualified service person-
nel, special tools, and equipment to perform all service
operations in an expert manner. Service Manuals are
available which include detailed service information for
your vehicle. Refer to these Service Manuals before
attempting any procedure yourself.

NOTE:

Intentional tampering with emissions control

systems may void your warranty and could result in civil
penalties being assessed against you.

WARNING!

You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the proper equipment. If you
have any doubt about your ability to perform a service
job, take your vehicle to a competent mechanic.

MAINTENANCE PROCEDURES

The pages that follow contain the required maintenance
services determined by the engineers who designed your
vehicle.

Besides those maintenance items specified in the fixed
“Maintenance Schedule”, there are other components
which may require servicing or replacement in the future.

CAUTION!

• Failure to properly maintain your vehicle or per-

form repairs and service when necessary could
result in more costly repairs, damage to other
components or negatively impact vehicle perfor-
mance. Immediately have potential malfunctions
examined by an authorized dealer or qualified
repair center.

(Continued)

MAINTAINING YOUR VEHICLE

577

CAUTION! (Continued)

• Your vehicle has been built with improved fluids

that protect the performance and durability of your
vehicle and also allow extended maintenance inter-
vals. Do not use chemical flushes in these compo-
nents as the chemicals can damage your engine,
transmission, or air conditioning. Such damage is
not covered by the New Vehicle Limited Warranty.
If a flush is needed because of component malfunc-
tion, use only the specified fluid for the flushing
procedure.

Engine Oil

Checking Oil Level

To assure proper engine lubrication, the engine oil must
be maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop. The best time to
check the engine oil level is about five minutes after a

fully warmed engine is shut off. Do not check oil level
before starting the engine after it has sat overnight.
Checking engine oil level when the engine is cold will
give you an incorrect reading.

Checking the oil while the vehicle is on level ground and
only when the engine is hot, will improve the accuracy of
the oil level readings. Maintain the oil level between the
range markings on the dipstick. The range markings will
consist of a crosshatch zone which depicts the MIN at the
low end of the range and MAX at the high end of the
range. Adding 1 quart (1 liter) of oil when the reading is
at the low end of the indicated range will result in the oil
level at the full end of the indicator range.

CAUTION!

Do not overfill the engine. Overfilling the engine
will cause oil aeration, which can lead to loss of oil

(Continued)

578

MAINTAINING YOUR VEHICLE

CAUTION! (Continued)

pressure and an increase in oil temperature. This
could damage your engine. Also, be sure the oil fill
cap is replaced and tightened after adding oil.

Change Engine Oil

The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
Refer to the “Maintenance Schedule” for further informa-
tion.

NOTE:

Under no circumstances should oil change inter-

vals exceed 10,000 miles (16,000 km), twelve months or
350 hours of engine run time, whichever comes first. The
350 hours of engine run or idle time is generally only a
concern for fleet customers.

Engine Oil Selection — 1.4L Turbo Engine

For best performance and maximum protection for all
engines under all types of operating conditions, the
manufacturer recommends engine oils that are API Cer-
tified Grade SN or better and meet the requirements of
FCA US Material Standard MS-12991.

Engine Oil Selection — 2.0L And 2.4L Engine

MAINTAINING YOUR VEHICLE

579

American Petroleum Institute (API) Engine Oil
Identification Symbol

This symbol means that the oil has
been certified by the American
Petroleum Institute (API). The
manufacturer only recommends
API Certified engine oils.

This symbol certifies 0W-20, 5W-
20, 0W-30, 5W-30 and 10W-30 en-
gine oils.

CAUTION!

Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is
not covered by the New Vehicle Limited Warranty.

Engine Oil Viscosity (SAE Grade) — 1.4L Turbo
Engine

MOPAR SAE 5W-40 synthetic engine oil approved to
FCA US Material Standard MS-12991 such as Pennzoil,
Shell Helix or equivalent is recommended for all operat-
ing temperatures. This engine oil improves low tempera-
ture starting and vehicle fuel economy.

The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to “Engine Compart-
ment” in this section.

Lubricants which do not have both the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber should not be used.

580

MAINTAINING YOUR VEHICLE

Engine Oil Viscosity (SAE Grade) — 2.0L And 2.4L
Engine

MOPAR SAE 0W-20 engine oil or equivalent Pennzoil or
Shell Helix is recommended for all operating tempera-
tures. This engine oil improves low temperature starting
and vehicle fuel economy. Your engine oil filler cap also
states the recommended engine oil viscosity grade for
your engine.

Lubricants which do not have both the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber should not be used.

Materials Added To Engine Oil

The manufacturer strongly recommends against the addi-
tion of any additives (other than leak detection dyes) to the
engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental additives.

Disposing Of Used Engine Oil And Oil Filters

Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact your authorized dealer, service
station or governmental agency for advice on how and
where used oil and oil filters can be safely discarded in
your area.

Engine Oil Filter

The engine oil filter should be replaced with a new filter
at every engine oil change.

MAINTAINING YOUR VEHICLE

581

Engine Oil Filter Selection

This manufacturer’s engines have a full-flow type oil
filter. Use a filter of this type for replacement. The quality
of replacement filters varies considerably. Only high
quality filters should be used to assure most efficient
service. MOPAR engine oil filters are a high quality oil
filter and are recommended.

Engine Air Cleaner Filter

Refer to the “Maintenance Schedule” in the “Mainte-
nance Schedules” section for the proper maintenance
intervals.

WARNING!

The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air

(Continued)

WARNING! (Continued)

cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.

Engine Air Cleaner Filter Selection

The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPAR engine air
cleaner filters are a high quality filter and are recom-
mended.

582

MAINTAINING YOUR VEHICLE

Tires

Checking For Tire Wear

Once a month, check the tire inflation pressures and look
for unusual wear or damage. Rotate at the first sign of
irregular wear, even if it occurs before the oil indicator
system turns on.

Maintenance-Free Battery

Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.

WARNING!

• Battery fluid is a corrosive acid solution and can

burn or even blind you. Do not allow battery fluid
to contact your eyes, skin, or clothing. Do not lean
over a battery when attaching clamps. If acid

(Continued)

WARNING! (Continued)

splashes in eyes or on skin, flush the area imme-
diately with large amounts of water. Refer to
“Jump-Starting Procedures” in “What To Do In
Emergencies” for further information.

• Battery gas is flammable and explosive. Keep

flame or sparks away from the battery. Do not use
a booster battery or any other booster source with
an output greater than 12 Volts. Do not allow cable
clamps to touch each other.

• Battery posts, terminals, and related accessories

contain lead and lead compounds. Wash hands
after handling.

• The battery in this vehicle has a vent hose that

should not be disconnected and should only be
replaced with a battery of the same type (vented).

MAINTAINING YOUR VEHICLE

583

CAUTION!

• It is essential when replacing the cables on the

battery that the positive cable is attached to the
positive post and the negative cable is attached to
the negative post. Battery posts are marked positive
(+) and negative (-) and are identified on the
battery case. Cable clamps should be tight on the
terminal posts and free of corrosion.

• If a “fast charger” is used while the battery is in the

vehicle, disconnect both vehicle battery cables be-
fore connecting the charger to the battery. Do not
use a “fast charger” to provide starting voltage.

Air Conditioner Maintenance

For best possible performance, your air conditioner should
be checked and serviced by an authorized dealer at the
start of each warm season. This service should include

cleaning of the condenser fins and a performance test.
Drive belt tension should also be checked at this time.

WARNING!

• Use only refrigerants and compressor lubricants

approved by the manufacturer for your air condi-
tioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. Other
unapproved refrigerants or lubricants can cause the
system to fail, requiring costly repairs. Refer to
Warranty Information Book, located on the DVD,
for further warranty information.

• The air conditioning system contains refrigerant

under high pressure. To avoid risk of personal
injury or damage to the system, adding refrigerant
or any repair requiring lines to be disconnected
should be done by an experienced technician.

584

MAINTAINING YOUR VEHICLE

CAUTION!

Do not use chemical flushes in your air conditioning
system as the chemicals can damage your air condi-
tioning components. Such damage is not covered by
the New Vehicle Limited Warranty.

Refrigerant Recovery And Recycling HFO 1234yf

HFO 1234yf Air Conditioning Refrigerant is a hydro-
fluoolefine HFO that is endorsed by the Environmental
Protection Agency and is an ozone-saving product. The
manufacturer recommends that air conditioning service
be performed by authorized dealer using recovery and
recycling equipment.

NOTE:

Use only manufacturer approved A/C system

PAG compressor oil, and refrigerants.

A/C Air Filter

Refer to the “Maintenance Schedule” for the proper
maintenance intervals.

WARNING!

Do not remove the A/C air filter while the blower is
operating or personal injury may result.

The A/C air filter is located in the fresh air inlet on the
lower right of center console. Perform the following
procedure to replace the filter:

1. Remove the passenger side console closeout. (located

on the right side of the center console).

MAINTAINING YOUR VEHICLE

585

2. Disengage the retaining tab that secures the filter

cover to the HVAC housing, and remove the cover.

3. Remove the A/C air filter by pulling it straight out of

the housing. Take note of the air filter position indica-
tors.

Passenger Side Console Closeout

Filter Cover Retaining Tab

586

MAINTAINING YOUR VEHICLE

4. Install the A/C air filter with the air filter position

indicators pointing in the same direction as removal.
When installing the filter cover, make sure the retain-
ing tab fully engages the cover.

CAUTION!

The A/C air filter is identified with an arrow to
indicate airflow direction through the filter. Failure
to properly install the filter will result in the need to
replace it more often.

5. Install the passenger side console closeout.

NOTE:

Use only manufacturer approved A/C system

sealers, stop leak products, seal conditioners, compressor
oil, or refrigerants.

Body Lubrication

Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should
be lubricated periodically with a lithium based grease,
such as MOPAR Spray White Lube to assure quiet, easy
operation and to protect against rust and wear. Prior to

Air Conditioning Filter Removal

MAINTAINING YOUR VEHICLE

587

Dodge Dart (2016 year). Manual - part 36
