Dodge Dart (2016 year). Manual

Children Too Large For Booster Seats

Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against the
seatback, should use the seat belt in a rear seat. Use this
simple 5-step test to decide whether the child can use the
vehicle’s seat belt alone:

1. Can the child sit all the way back against the back of

the vehicle seat?

2. Do the child’s knees bend comfortably over the front

of the vehicle seat – while they are still sitting all the
way back?

3. Does the shoulder belt cross the child’s shoulder

between their neck and arm?

4. Is the lap part of the belt as low as possible, touching

the child’s thighs and not their stomach?

5. Can the child stay seated like this for the whole trip?

If the answer to any of these questions was “no,” then the
child still needs to use a booster seat in this vehicle. If the
child is using the lap/shoulder belt, check seat belt fit
periodically and make sure the seat belt buckle is latched.
A child’s squirming or slouching can move the belt out of
position. If the shoulder belt contacts the face or neck,
move the child closer to the center of the vehicle, or use
a booster seat to position the seat belt on the child
correctly.

WARNING!

Never allow a child to put the shoulder belt under an
arm or behind their back. In a crash, the shoulder belt
will not protect a child properly, which may result in
serious injury or death. A child must always wear
both the lap and shoulder portions of the seat belt
correctly.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Recommendations For Attaching Child Restraints

Restraint Type

Combined

Weight of the

Child + Child

Restraint

Use any attachment method shown with an “X” Below

LATCH –

Lower Anchors

Only

Seat Belt Only

LATCH –

Lower Anchors

+ Top Tether

Anchor

Seat Belt + Top

Tether Anchor

Rear-Facing

Child Restraint

Up to 65 lbs

(29.5 kg)

Rear-Facing

Child Restraint

More than

65 lbs (29.5 kg)

Forward-Facing

Child Restraint

Up to 65 lbs

(29.5 kg)

Forward-Facing

Child Restraint

More than

65 lbs (29.5 kg)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Lower Anchors And Tethers For CHildren
(LATCH) Restraint System

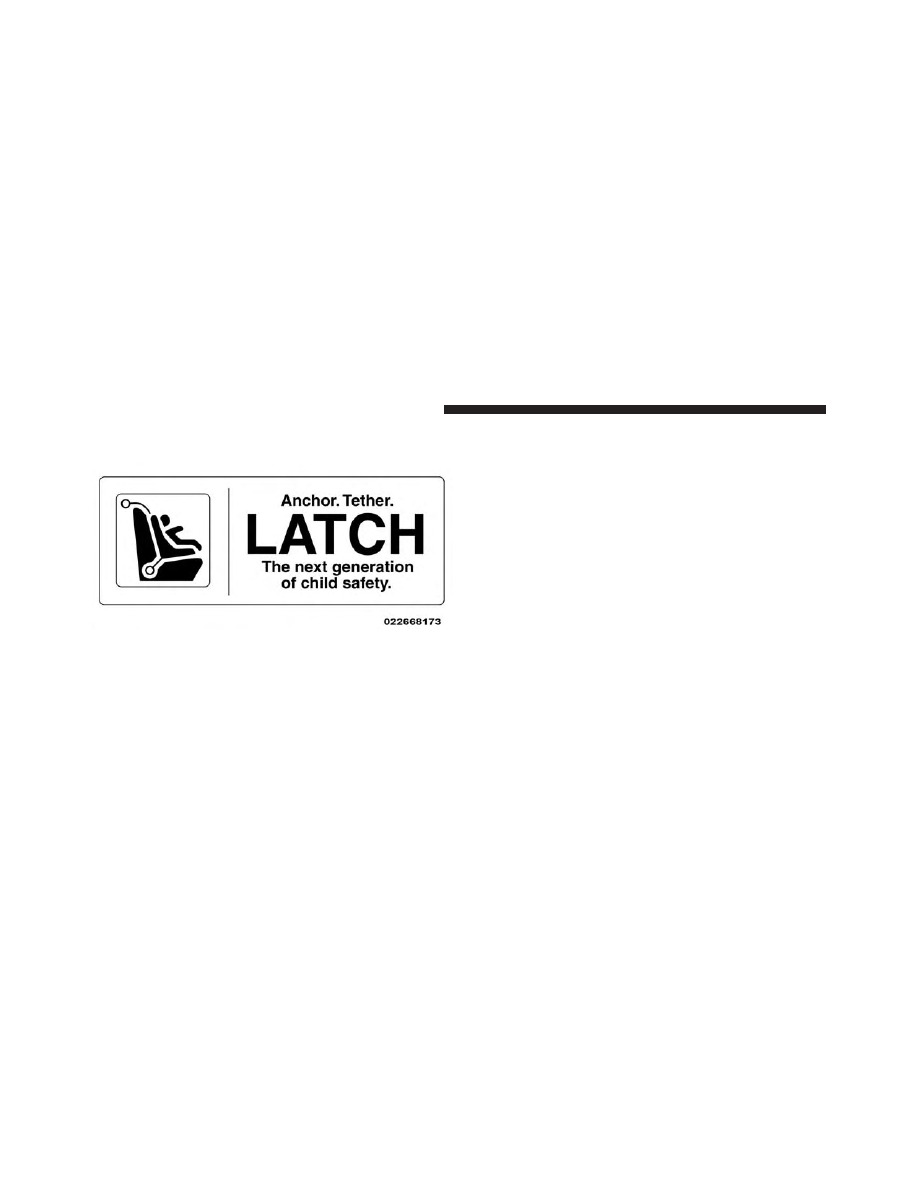

Your vehicle is equipped with the child restraint anchor-
age system called LATCH, which stands for Lower
Anchors and Tethers for CHildren. The LATCH system
has three vehicle anchor points for installing LATCH-
equipped child seats. There are two lower anchorages
located at the back of the seat cushion where it meets the
seatback and one top tether anchorage located behind the
seating position. These anchorages are used to install

LATCH-equipped child seats without using the vehicle’s
seat belts. Some seating positions may have a top tether
anchorage but no lower anchorages. In these seating
positions, the seat belt must be used with the top tether
anchorage to install the child restraint. Please see the
following table for more information.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

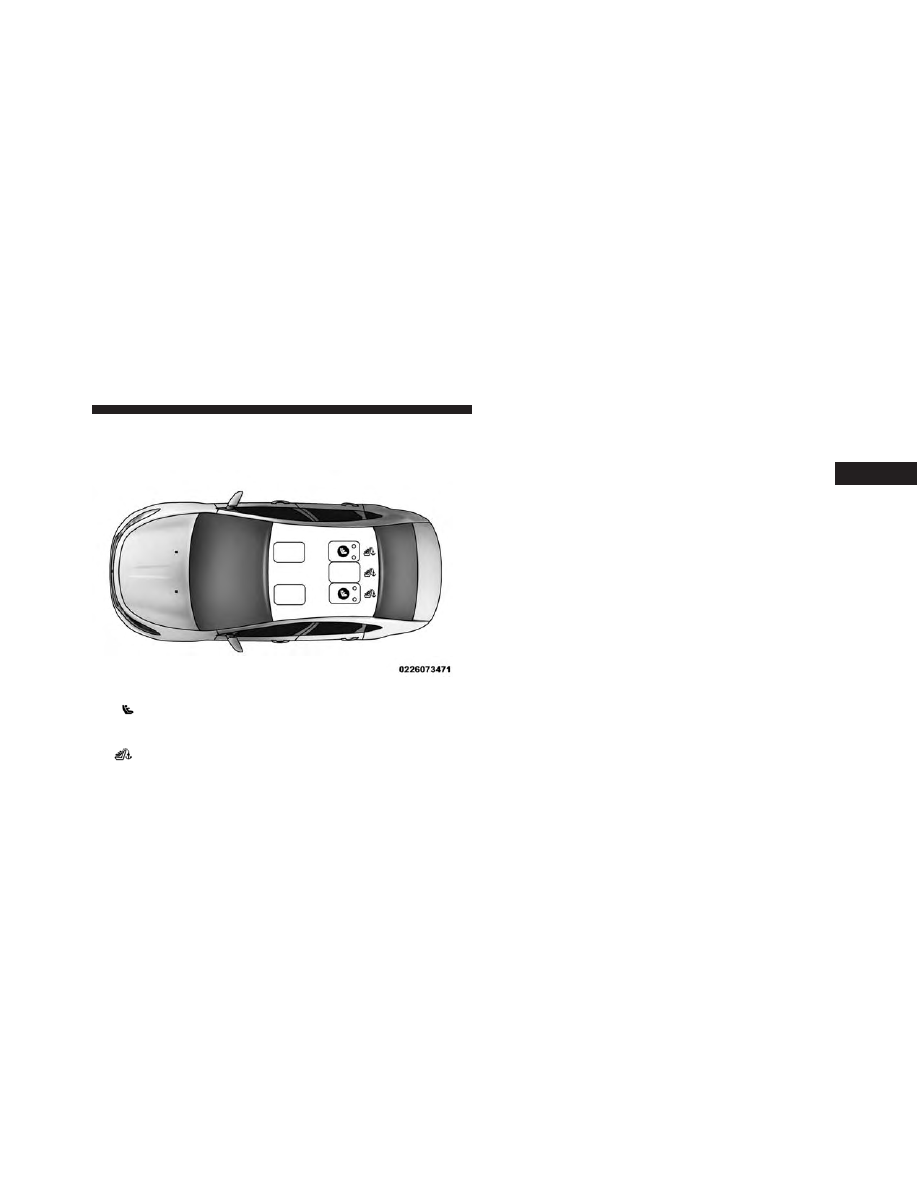

LATCH Positions For Installing Child Restraints In
This Vehicle

•

Lower Anchorage Symbol 2 anchorages per

seating position

•

Top Tether Anchorage Symbol

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

What is the weight limit (child’s weight +
weight of the child restraint) for using the
LATCH anchorage system to attach the child
restraint?

65 lbs (29.5 kg)

Use the LATCH anchorage system until the

combined weight of the child and the child

restraint is 65 lbs (29.5 kg). Use the seat belt

and tether anchor instead of the LATCH sys-

tem once the combined weight is more than

65 lbs (29.5 kg).

Can the LATCH anchorages and the seat belt

be used together to attach a rear-facing or

forward-facing child restraint?

Do not use the seat belt when you use the

LATCH anchorage system to attach a rear-

facing or forward-facing child restraint.

Can a child seat be installed in the center

position using the inner LATCH lower an-

chorages?

Yes

You can install child restraints with flexible

lower anchors in the center position. The

inner anchorages are 17 inches (440 mm)
apart. Do not install child restraints with

rigid lower anchors in the center position.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Can two child restraints be attached using a

common lower LATCH anchorage?

Never “share” a LATCH anchorage with two

or more child restraints. If the center posi-

tion does not have dedicated LATCH lower

anchorages, use the seat belt to install a child

seat in the center position next to a child

seat using the LATCH anchorages in an out-

board position.

Can the rear-facing child restraint touch the

back of the front passenger seat?

Yes

The child seat may touch the back of the

front passenger seat if the child restraint

manufacturer also allows contact. See your

child restraint owner’s manual for more in-

formation.

Can the head restraints be removed?

Yes

All head restraints may be removed.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

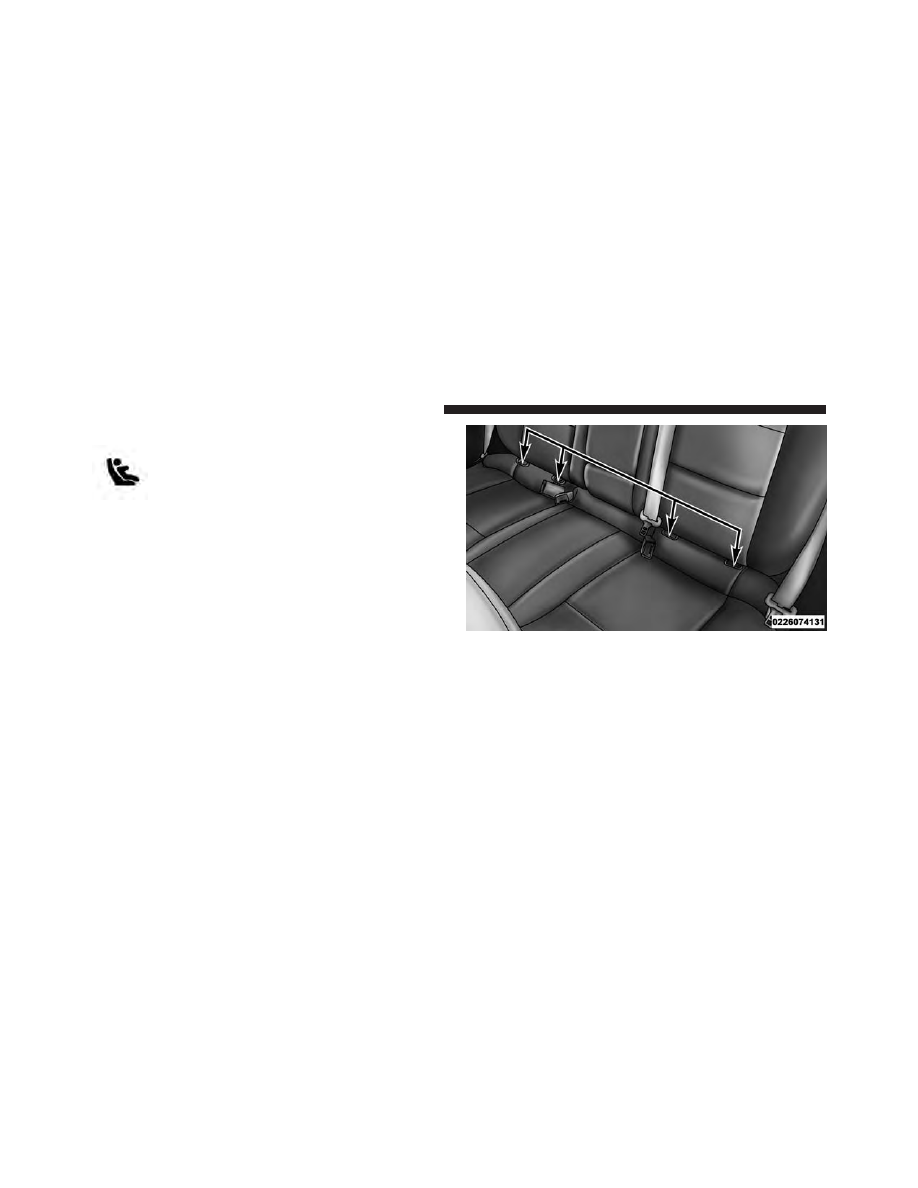

Locating LATCH Anchorages

The lower anchorages are round bars that are
found at the rear of the seat cushion where it
meets the seatback, below the anchorage sym-
bols on the seatback. They are just visible when

you lean into the rear seat to install the child restraint.
You will easily feel them if you run your finger along the
gap between the seatback and seat cushion.

LATCH Anchorage Locations

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

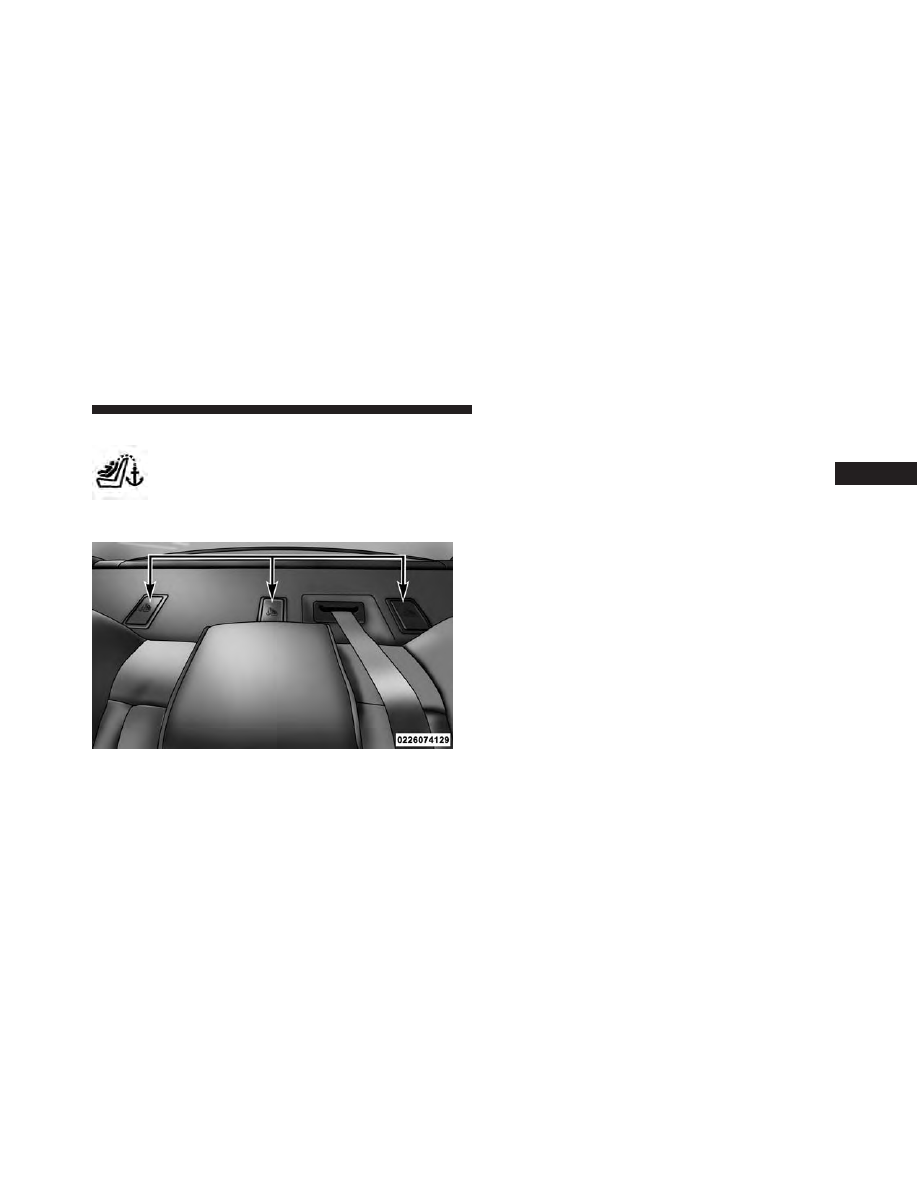

Locating Tether Anchorages

There are tether strap anchorages behind each
rear seating position located in the panel be-
tween the rear seatback and the rear window.
They are found under a plastic cover with the

tether anchorage symbol on it.

LATCH-compatible child restraint systems will be
equipped with a rigid bar or a flexible strap on each side.
Each will have a hook or connector to attach to the lower
anchorage and a way to tighten the connection to the
anchorage. Forward-facing child restraints and some
rear-facing child restraints will also be equipped with a
tether strap. The tether strap will have a hook at the end
to attach to the top tether anchorage and a way to tighten
the strap after it is attached to the anchorage.

Center Seat LATCH

Do not install child restraints with rigid lower attach-
ments in the center seating position. Only install this type
of child restraint in the outboard seating positions. Child
restraints with flexible, webbing mounted lower attach-
ments can be installed in any rear seating position.

Tether Strap Anchorages

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Never use the same lower anchorage to attach more
than one child restraint. If you are installing LATCH-
compatible child restraints next to each other, you
must use the seat belt for the center position. You can
then use either the LATCH anchors or the vehicle’s
seat belt for installing child seats in the outboard
positions. Please refer to “Installing The LATCH-
Compatible Child Restraint System” for typical in-
stallation instructions.

Always follow the directions of the child restraint manu-
facturer when installing your child restraint. Not all child
restraint systems will be installed as described here.

To Install A LATCH - Compatible Child Restraint:

If the selected seating position has a Switchable Auto-
matic Locking Retractor (ALR) seat belt, stow the seat
belt, following the instructions below. See the section

“Installing Child Restraints Using the Vehicle Seat Belt”
to check what type of seat belt each seating position has.

1. Loosen the adjusters on the lower straps and on the

tether strap of the child seat so that you can more
easily attach the hooks or connectors to the vehicle
anchorages.

2. Place the child seat between the lower anchorages for

that seating position. For some second row seats, you
may need to recline the seat and / or raise the head
restraint to get a better fit. If the rear seat can be moved
forward and rearward in the vehicle, you may wish to
move it to its rear-most position to make room for the
child seat. You may also move the front seat forward
to allow more room for the child seat.

3. Attach the lower hooks or connectors of the child

restraint to the lower anchorages in the selected seat-
ing position.

100

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

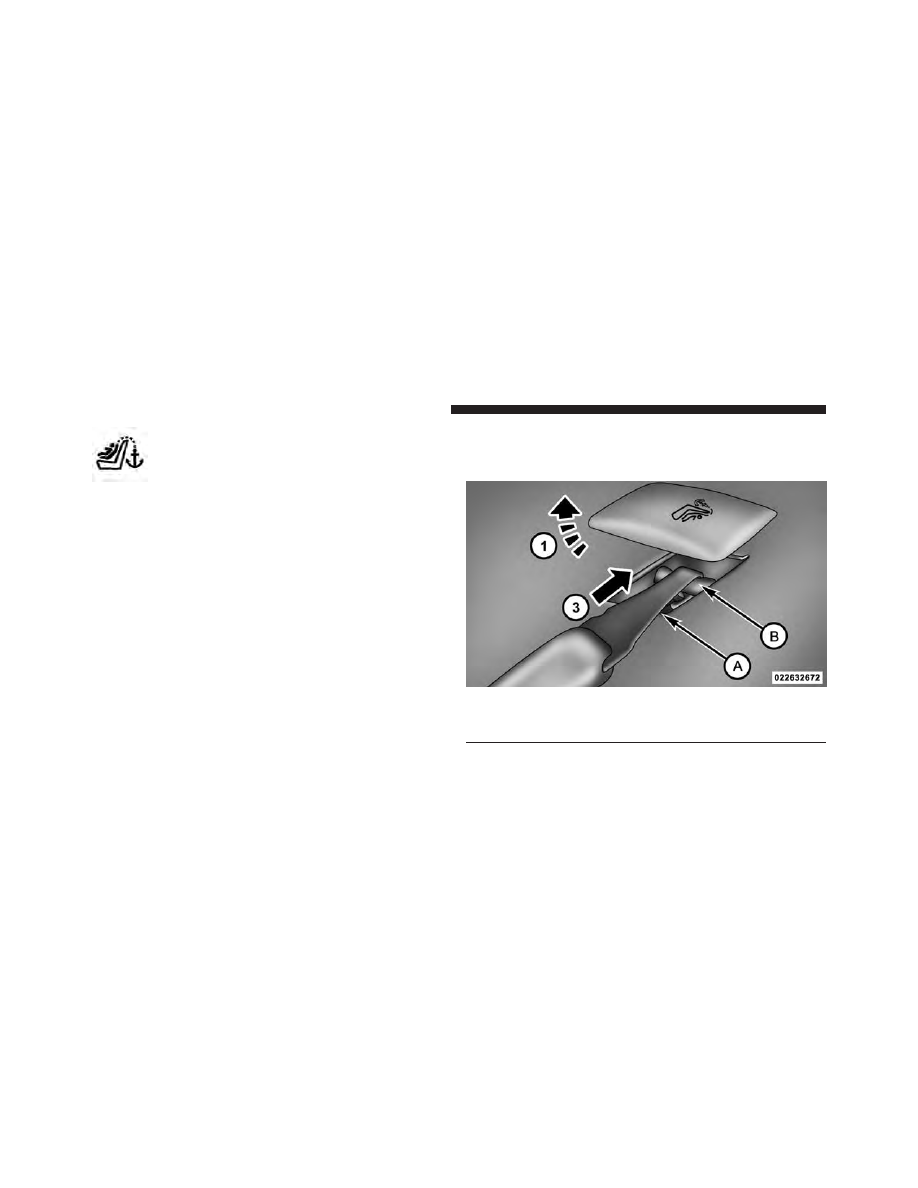

4. If the child restraint has a tether strap, connect it to the

top tether anchorage. See the section “Installing Child
Restraints Using the Top Tether Anchorage” for direc-
tions to attach a tether anchor.

5. Tighten all of the straps as you push the child restraint

rearward and downward into the seat. Remove slack
in the straps according to the child restraint manufac-
turer’s instructions.

6. Test that the child restraint is installed tightly by

pulling back and forth on the child seat at the belt
path. It should not move more than 1 inch (25.4 mm)
in any direction.

How To Stow An Unused ALR Seat Belt:

When using the LATCH attaching system to install a child
restraint, stow all ALR seat belts that are not being used by
other occupants or being used to secure child restraints. An
unused belt could injure a child if they play with it and

accidentally lock the seat belt retractor. Before installing a
child restraint using the LATCH system, buckle the seat
belt behind the child restraint and out of the child’s reach.
If the buckled seat belt interferes with the child restraint
installation, instead of buckling it behind the child re-
straint, route the seat belt through the child restraint belt
path and then buckle it. Do not lock the seat belt. Remind
all children in the vehicle that the seat belts are not toys and
that they should not play with them.

WARNING!

• Improper installation of a child restraint to the

LATCH anchorages can lead to failure of the re-
straint. The child could be badly injured or killed.
Follow the child restraint manufacturer’s directions
exactly when installing an infant or child restraint.

(Continued)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

101

WARNING! (Continued)

• Child restraint anchorages are designed to with-

stand only those loads imposed by correctly-fitted
child restraints. Under no circumstances are they to
be used for adult seat belts, harnesses, or for
attaching other items or equipment to the vehicle.

Installing Child Restraints Using The Vehicle Seat
Belt

The seat belts in the passenger seating positions are
equipped with a Switchable Automatic Locking Retractor
(ALR) that is designed to keep the lap portion of the seat
belt tight around the child restraint so that it is not
necessary to use a locking clip. The ALR retractor can be
“switched” into a locked mode by pulling all of the
webbing out of the retractor and then letting the webbing
retract back into the retractor. If it is locked, the ALR will
make a clicking noise while the webbing is pulled back into

the retractor. Refer to the “Automatic Locking Mode”
description under “Occupant Restraints” for additional
information on ALR.

Lap/Shoulder Belt Systems For Installing Child
Restraints In This Vehicle

• ALR = Switchable Automatic Locking Retractor

102

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

What is the weight limit (child’s
weight + weight of the child re-
straint) for using the Tether Anchor
with the seat belt to attach a forward
facing child restraint?

Weight limit of the Child Restraint

Always use the tether anchor when

using the seat belt to install a for-

ward facing child restraint, up to

the recommended weight limit of

the child restraint.

Can the rear-facing child restraint

touch the back of the front

passenger seat?

Yes

Contact between the front passen-

ger seat and the child restraint is

allowed, if the child restraint

manufacturer also allows contact.

Can the head restraints be re-

moved?

Yes

All head restraints may be

removed.

Can the buckle stalk be twisted to

tighten the seat belt against the belt

path of the child restraint?

Do not twist the buckle stalk in a

seating position with an

ALR retractor.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

103

Installing A Child Restraint With A Switchable
Automatic Locking Retractor (ALR)

1. Place the child seat in the center of the seating

position. For some second row seats, you may need to
recline the seat and/or raise the head restraint to get a
better fit. If the rear seat can be moved forward and
rearward in the vehicle, you may wish to move it to its
rear-most position to make room for the child seat.
You may also move the front seat forward to allow
more room for the child seat.

2. Pull enough of the seat belt webbing from the retractor

to pass it through the belt path of the child restraint.
Do not twist the belt webbing in the belt path.

3. Slide the latch plate into the buckle until you hear a

“click.”

4. Pull on the webbing to make the lap portion tight

against the child seat.

5. To lock the seat belt, pull down on the shoulder part of

the belt until you have pulled all the seat belt webbing
out of the retractor. Then, allow the webbing to retract
back into the retractor. As the webbing retracts, you
will hear a clicking sound. This means the seat belt is
now in the Automatic Locking mode.

6. Try to pull the webbing out of the retractor. If it is

locked, you should not be able to pull out any web-
bing. If the retractor is not locked, repeat step 5.

7. Finally, pull up on any excess webbing to tighten the

lap portion around the child restraint while you push
the child restraint rearward and downward into the
vehicle seat.

8. If the child restraint has a top tether strap and the

seating position has a top tether anchorage, connect
the tether strap to the anchorage and tighten the tether

104

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

strap. See the section “Installing Child Restraints
Using the Top Tether Anchorage” for directions to
attach a tether anchor.

9. Test that the child restraint is installed tightly by

pulling back and forth on the child seat at the belt
path. It should not move more than 1 inch (25.4 mm)
in any direction.

Any seat belt system will loosen with time, so check the
belt occasionally, and pull it tight if necessary.

Installing Child Restraints Using The Top Tether
Anchorage

WARNING!

Do not attach a tether strap for a rear-facing car seat
to any location in front of the car seat, including the
seat frame or a tether anchorage. Only attach the

(Continued)

WARNING! (Continued)

tether strap of a rear-facing car seat to the tether
anchorage that is approved for that seating position,
located behind the top of the vehicle seat. See the
section “Lower Anchors and Tethers for CHildren
(LATCH) Restraint System” for the location of ap-
proved tether anchorages in your vehicle.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

105

1. Look behind the seating position where you

plan to install the child restraint to find the
tether anchorage. You may need to move the
seat forward to provide better access to the
tether anchorage. If there is no top tether
anchorage for that seating position, move
the child restraint to another position in the
vehicle if one is available.

2. Rotate or lift the cover to access the anchor directly

behind the seat where you are placing the child
restraint.

3. Route the tether strap to provide the most direct path

for the strap between the anchor and the child seat. If
your vehicle is equipped with adjustable rear head
restraints, raise the head restraint, and where possible,
route the tether strap under the head restraint and

between the two posts. If not possible, lower the head
restraint and pass the tether strap around the outboard
side of the head restraint.

1 — Cover

A — Tether Strap Hook

3 — Attaching Strap

B — Tether Anchor

Tether Strap Mounting

106

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

4. Attach the tether strap hook of the child restraint to

the top tether anchorage as shown in the diagram.

5. Remove slack in the tether strap according to the child

restraint manufacturer’s instructions.

WARNING!

• An incorrectly anchored tether strap could lead to

increased head motion and possible injury to the
child. Use only the anchorage position directly
behind the child seat to secure a child restraint top
tether strap.

• If your vehicle is equipped with a split rear seat,

make sure the tether strap does not slip into the
opening between the seatbacks as you remove
slack in the strap.

Transporting Pets

Air Bags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision.

Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.

ENGINE BREAK-IN RECOMMENDATIONS

A long break-in period is not required for the engine and
drivetrain (transmission and axle) in your vehicle.

Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or
55 mph (80 or 90 km/h) are desirable.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

107

Dodge Dart (2016 year). Manual - part 6
