2. Separating RKE halves may require screw removal – if

equipped, and gently prying the two halves of the
RKE transmitter apart. Make sure not to damage the
seal during removal.

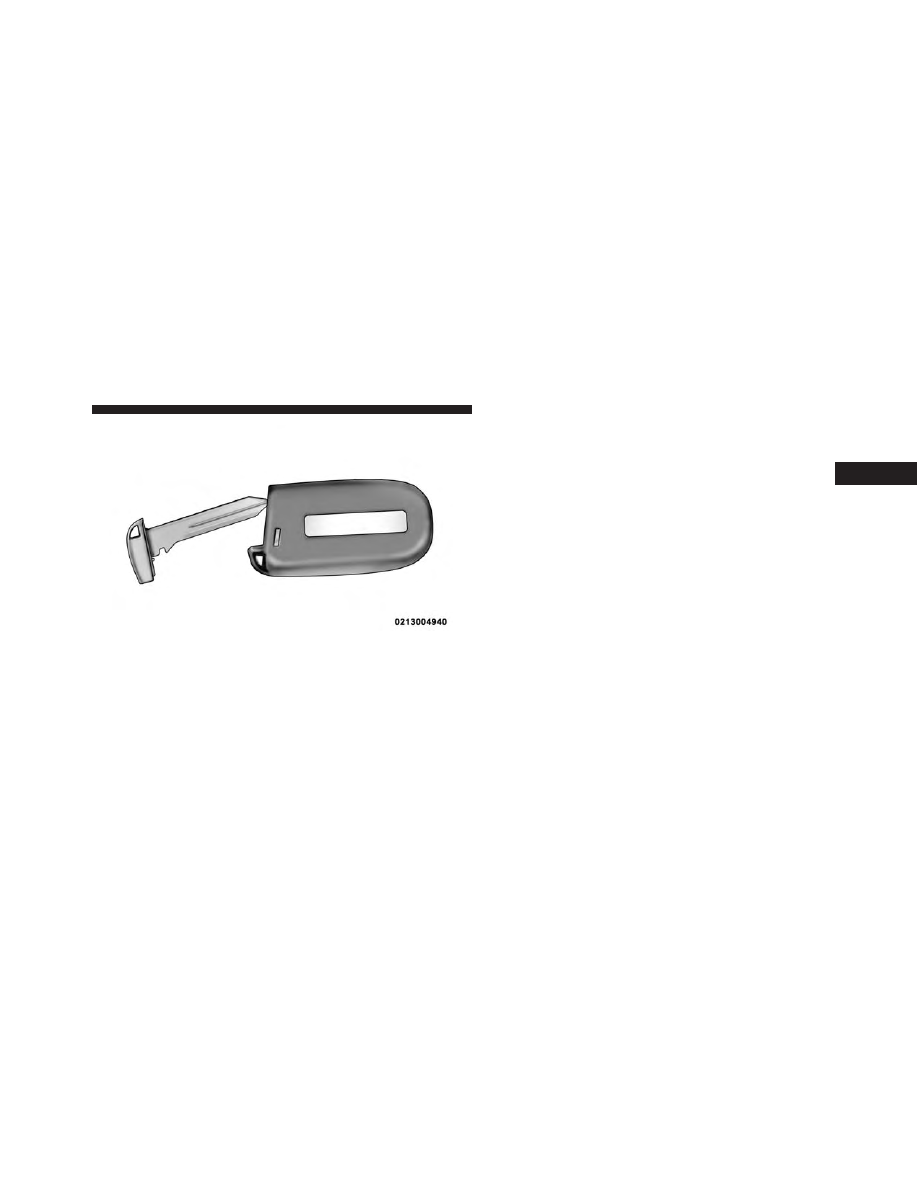

Keyless Push Button Ignition Emergency Key Removal

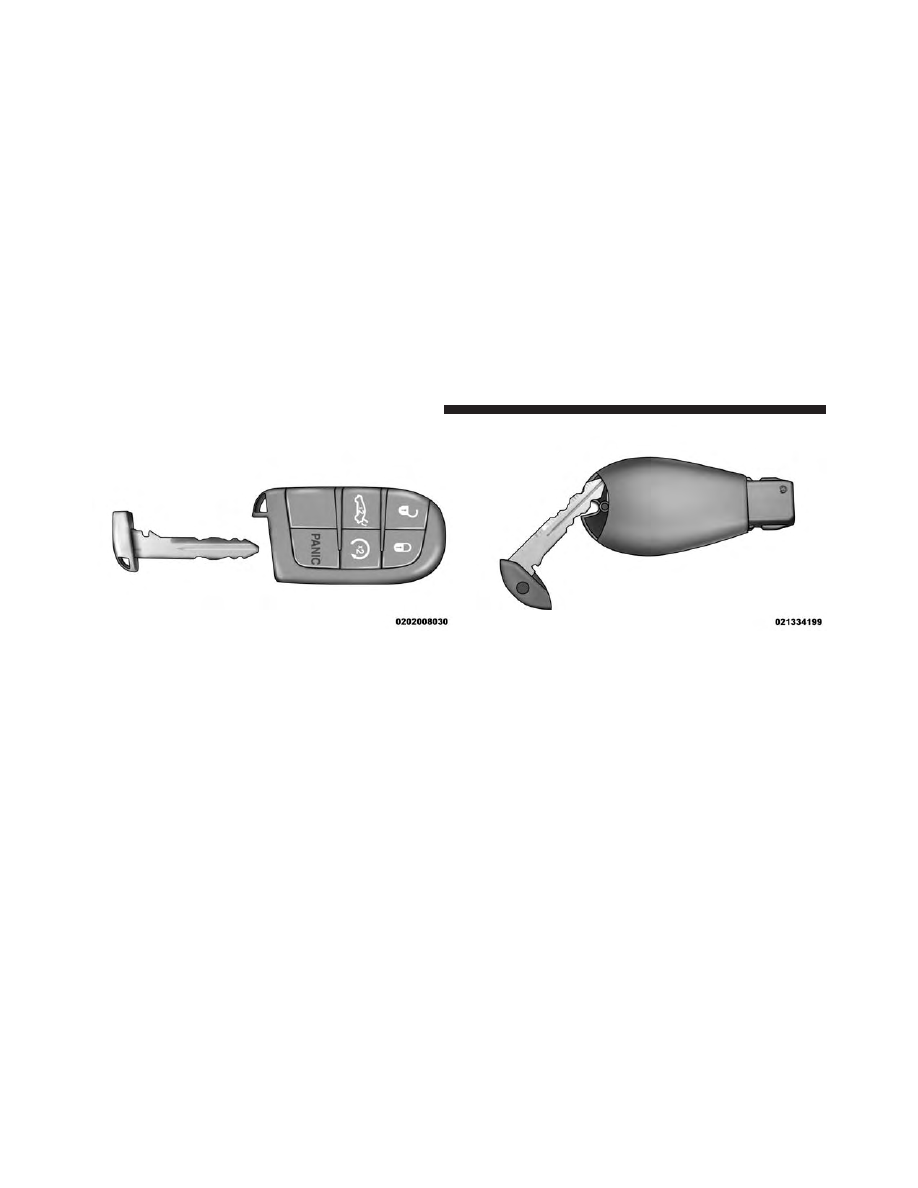

Separating Ignition Node Module (IGNM) Transmitter

Case

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Remove the battery by turning the back cover over

(battery facing downward) and tapping it lightly on a
solid surface such as a table or similar, then replace the
battery. When replacing the battery, match the + sign
on the battery to the + sign on the inside of the battery

clip, located on the back cover. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it
with rubbing alcohol.

4. To assemble the RKE transmitter case, snap the two

halves together, reposition and secure the screw as
shown in step #2 for removal.

General Information

The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired op-
eration.

Separating Keyless Push Button Ignition Transmitter

Case

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

REMOTE STARTING SYSTEM — IF EQUIPPED

This system uses the Key Fob with Remote
Keyless Entry (RKE) transmitter to start the
engine conveniently from outside the vehicle
while still maintaining security. The system has

a range of approximately 300 ft (91 m).

NOTE:

• The vehicle must be equipped with an automatic

transmission to be equipped with Remote Start.

• Low fuel indicator must not be illuminated.
• Obstructions between the vehicle and the Key Fob may

reduce this range.

How To Use Remote Start

All of the following conditions must be met before the
engine will remote start:
• Vehicle in PARK
• Doors closed
• Hood closed
• Trunk closed
• Hazard switch off
• Brake switch inactive (brake pedal not pushed)
• Battery at an acceptable charge level
• RKE panic button not pushed
• System not disabled from previous remote start event
• Vehicle Security Alarm not active
• Ignition in OFF position

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• Do not start or run an engine in a closed garage or

confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious in-
jury or death when inhaled.

• Keep Remote Keyless Entry (RKE) transmitters

away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.

Remote Start Abort Message

The following messages will display in the EVIC/DID (if
equipped) if the vehicle fails to remote start or exits
remote start prematurely:

• Remote Start Aborted — Door Open
• Remote Start Aborted — Hood Open

• Remote Start Aborted — Trunk Open
• Remote Start Aborted — Fuel Low
• Remote Start Disabled — Start To Reset
• Remote Start Aborted — Too Cold
• Remote Start Aborted — Time Expired
The EVIC/DID message stays active until the ignition is
cycled to the ON/RUN position.

To Enter Remote Start Mode

Push and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The vehicle doors will lock, parking
lights will flash, and the horn will chirp twice

(if programmed). Then, the engine will start and the
vehicle will remain in the Remote Start mode for a
15-minute cycle.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

• If an engine fault is present or fuel level is low, the

vehicle will start and then shut down in 10 seconds.

• The park lamps will turn on and remain on during

Remote Start mode.

• For security, power window and power sunroof op-

eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.

• The engine can be started two consecutive times (two

15-minute cycles) with the RKE transmitter. However,
the ignition must be cycled to the RUN position before
you can repeat the start sequence for a third cycle.

To Exit Remote Start Mode Without Driving The
Vehicle

Push and release the REMOTE START button one time or
allow the engine to run for the entire 15-minute cycle.

NOTE:

To avoid unintentional shutdowns, the system

will disable the one time push of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.

To Exit Remote Start Mode And Drive The Vehicle

Before the end of 15-minute cycle, push and release the
UNLOCK button on the RKE transmitter to unlock the
doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
push and release the START/STOP button (vehicles
equipped with Keyless Enter-N-Go) or insert the key and
turn it to the RUN position (vehicles not equipped with
Keyless Enter-N-Go).

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

The message

⬙Remote Start Active Push Start

Button

⬙ (vehicles equipped with Keyless Enter-N-Go) or

⬙Remote Start Active Key to Run⬙ (vehicles not equipped
with Keyless Enter-N-Go) will display in the EVIC/DID
until you push the START button or turn the key to the
RUN position.

General Information

The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired op-
eration.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

DOOR LOCKS

Manual Door Locks

To lock each door, rotate the door lock knob on each door
trim panel forward. To unlock the front doors, pull the
inside door handle to the first detent or rotate the door
lock button until the red indicator is visible. To unlock the
rear doors, rotate the door lock button until the red
indicator is visible.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If the door lock button is locked (no red indicator visible)
when you shut the door, the door will lock. Therefore,
make sure the Key Fob is not inside the vehicle before
closing the door.

WARNING!

• For personal security and safety in the event of an

collision, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the gear selector.

• Do not leave the Key Fob in or near the vehicle, or

in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN mode.
A child could operate power windows, other con-
trols, or move the vehicle.

Door Lock Knob

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Power Door Locks

A power door lock switch is on each front door trim
panel. Use this switch to lock or unlock the doors.

The doors can also be locked and unlocked with the
Keyless Enter-N-Go (Passive Entry) system. For further
information, refer to “Keyless Enter-N-Go” in “Things To
Know Before Starting Your Vehicle.”

If you push the power door lock switch while the key is
in the ignition, and any front door is open, the power
locks will not operate. This prevents you from acciden-
tally locking the Key Fob in the vehicle. Removing the
key from the ignition or closing the door will allow the
locks to operate. If a door is open, and the ignition is in
the OFF or ACC position, a chime will sound as a
reminder to remove the Key Fob.

Automatic Door Locks — If Equipped

The auto door lock feature default condition is enabled.
When enabled, the door locks will lock automatically
when the vehicle’s speed exceeds 15 mph (24 km/h). The
auto door lock feature can be enabled or disabled by your

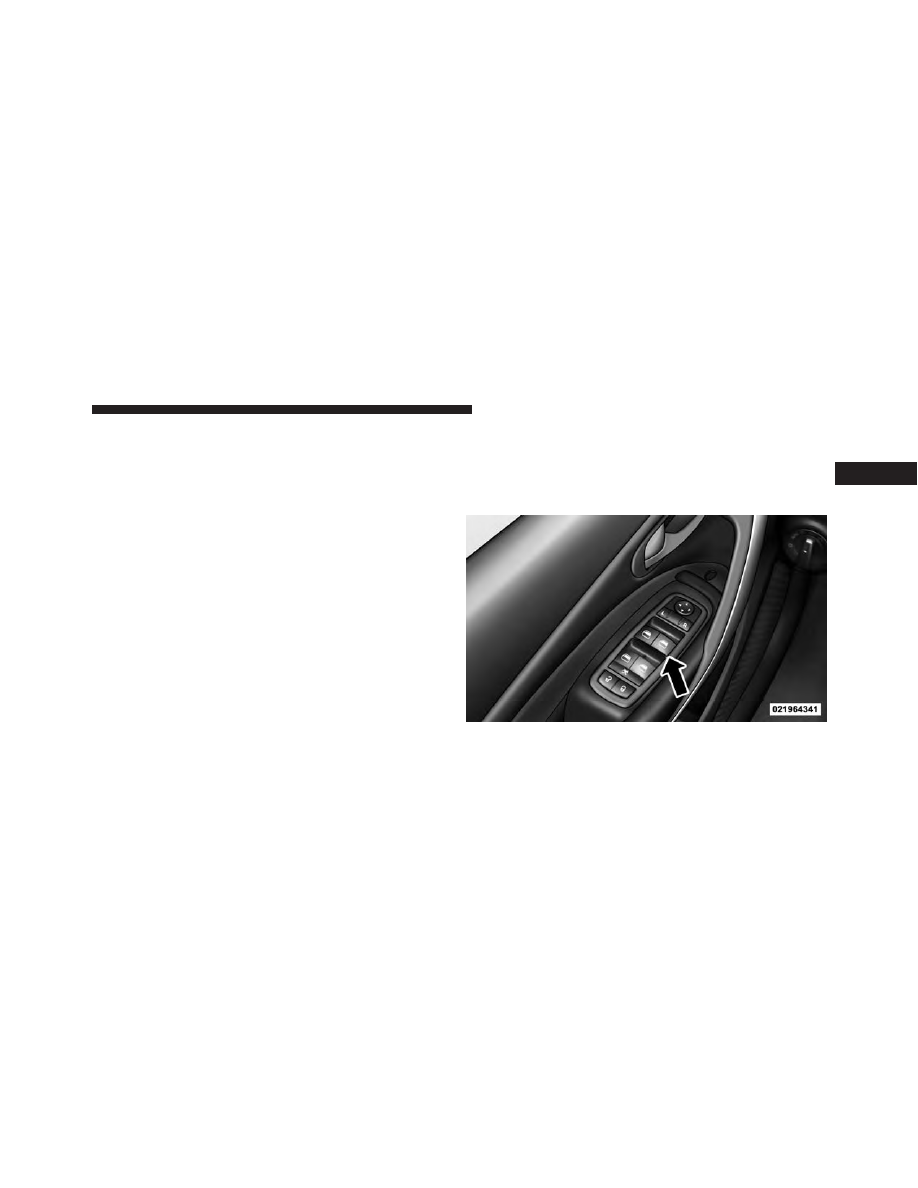

Power Door Lock Switch

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

authorized dealer per written request of the customer.
Please see your authorized dealer for service.

Automatic Unlock Doors On Exit

The doors will unlock automatically on vehicles with
power door locks if:

1. The Automatic Unlock Doors On Exit feature is en-

abled.

2. The transmission was in gear and the vehicle speed

returned to 0 mph (0 km/h).

3. The transmission is in PARK when the door is opened

(automatic transmission vehicles).

4. The clutch pedal is not pushed when the door is

opened (manual transmission vehicles).

5. Any door is opened.

6. The doors were not previously unlocked.

Automatic Unlock Doors On Exit Programming

To change the current setting, refer to “Uconnect Set-
tings” in “Understanding Your Instrument Panel” for
further information.

NOTE:

Use the Automatic Unlock Doors On Exit feature

in accordance with local laws.

Child-Protection Door Lock System — Rear
Doors

To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with
Child-Protection Door Lock system.

To Engage Or Disengage The Child-Protection
Door Lock System

1. Open the rear door.

2. Insert the tip of the emergency key or a small coin into

the lock and rotate to the LOCK or UNLOCK position.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Repeat steps 1 and 2 for the opposite rear door.

WARNING!

Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child-Protection locks are
engaged (locked).

NOTE:

For emergency exit from the rear seats when the

Child-Protection Door Lock System is engaged, manually
rotate the door lock button to the unlocked position, roll
down the window, and open the door using the outside
door handle.

KEYLESS ENTER-N-GO

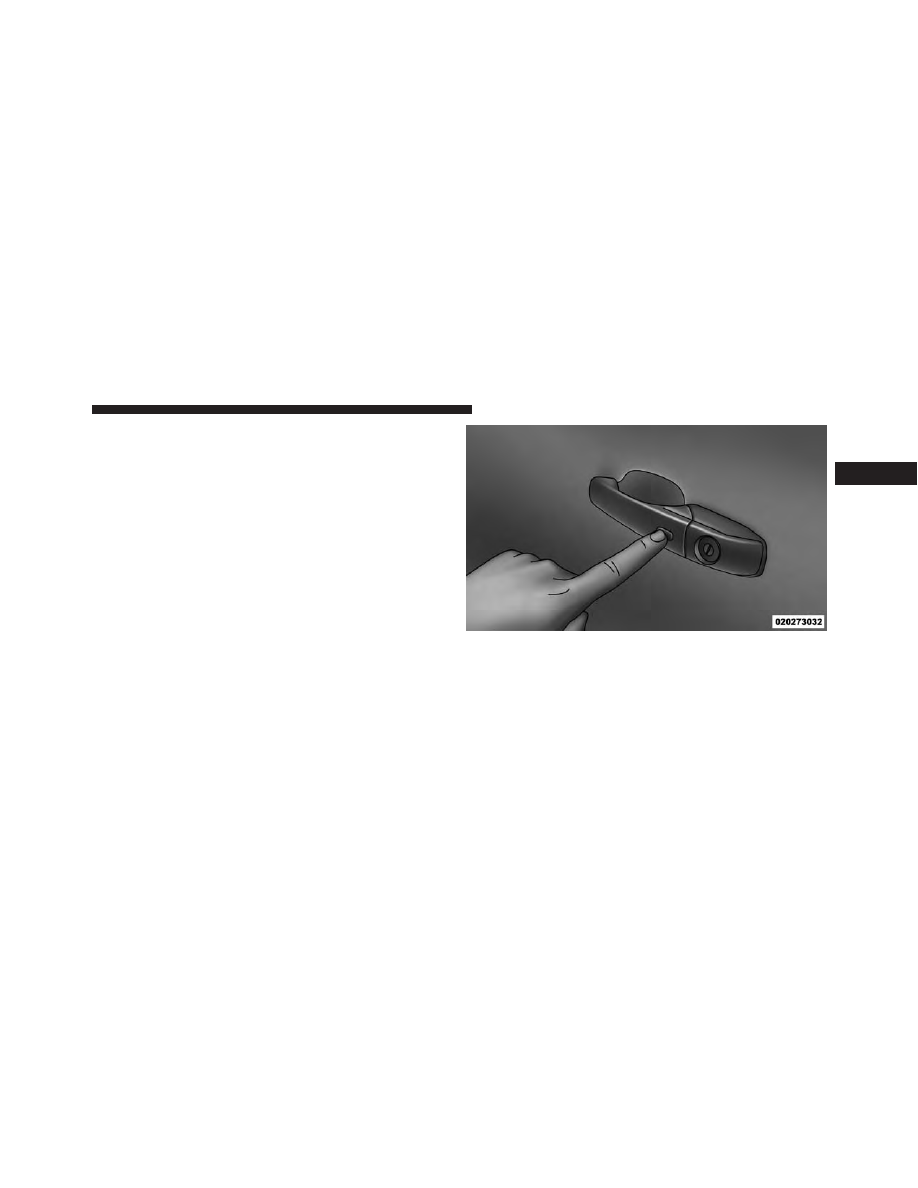

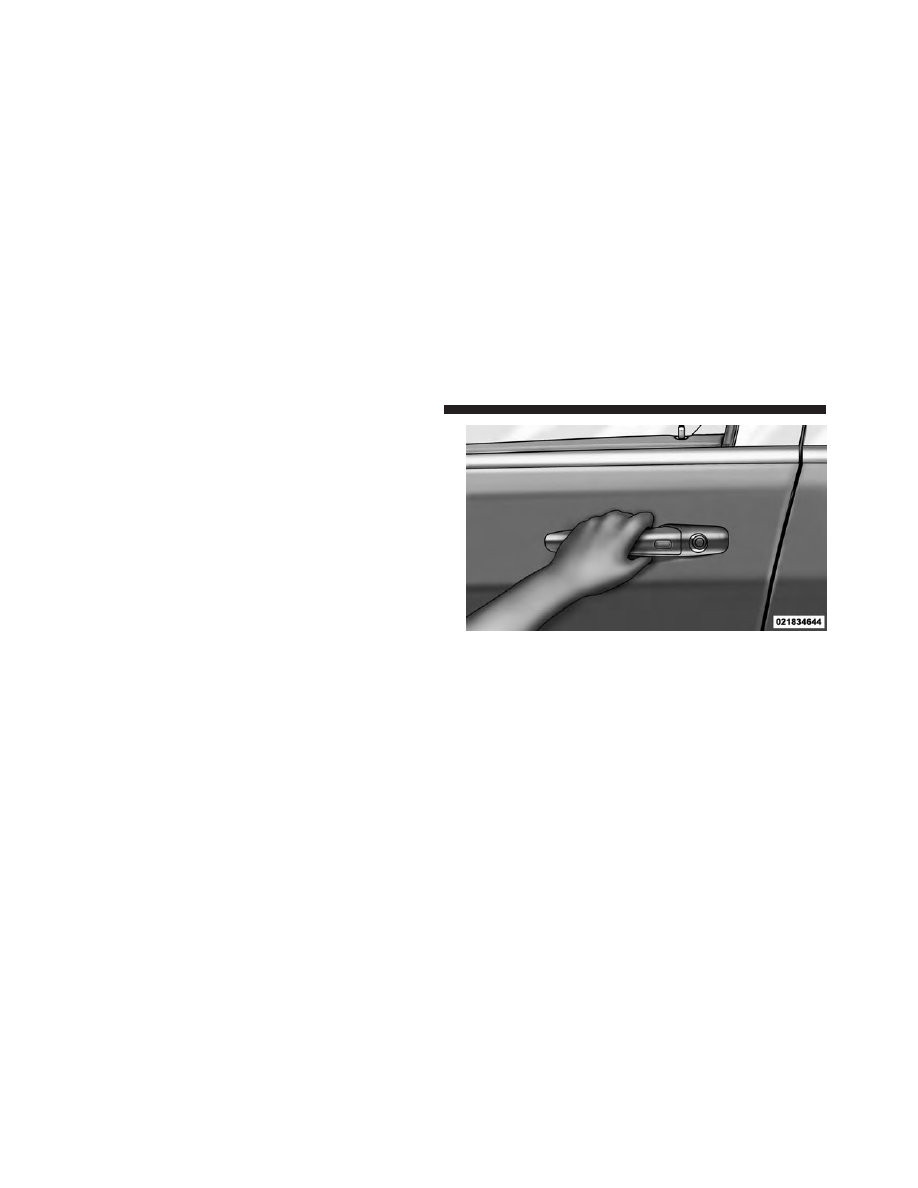

The Passive Entry system is an enhancement to the
vehicle’s Remote Keyless Entry (RKE) system and a
feature of Keyless Enter-N-Go. This feature allows you to
lock and unlock the vehicle’s door(s) without having to
push the RKE transmitter lock or unlock buttons.

Child-Protection Door Lock Function

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

• Passive Entry may be programmed ON/OFF; refer to

“Uconnect Settings” in “Understanding Your Instru-
ment Panel” for further information.

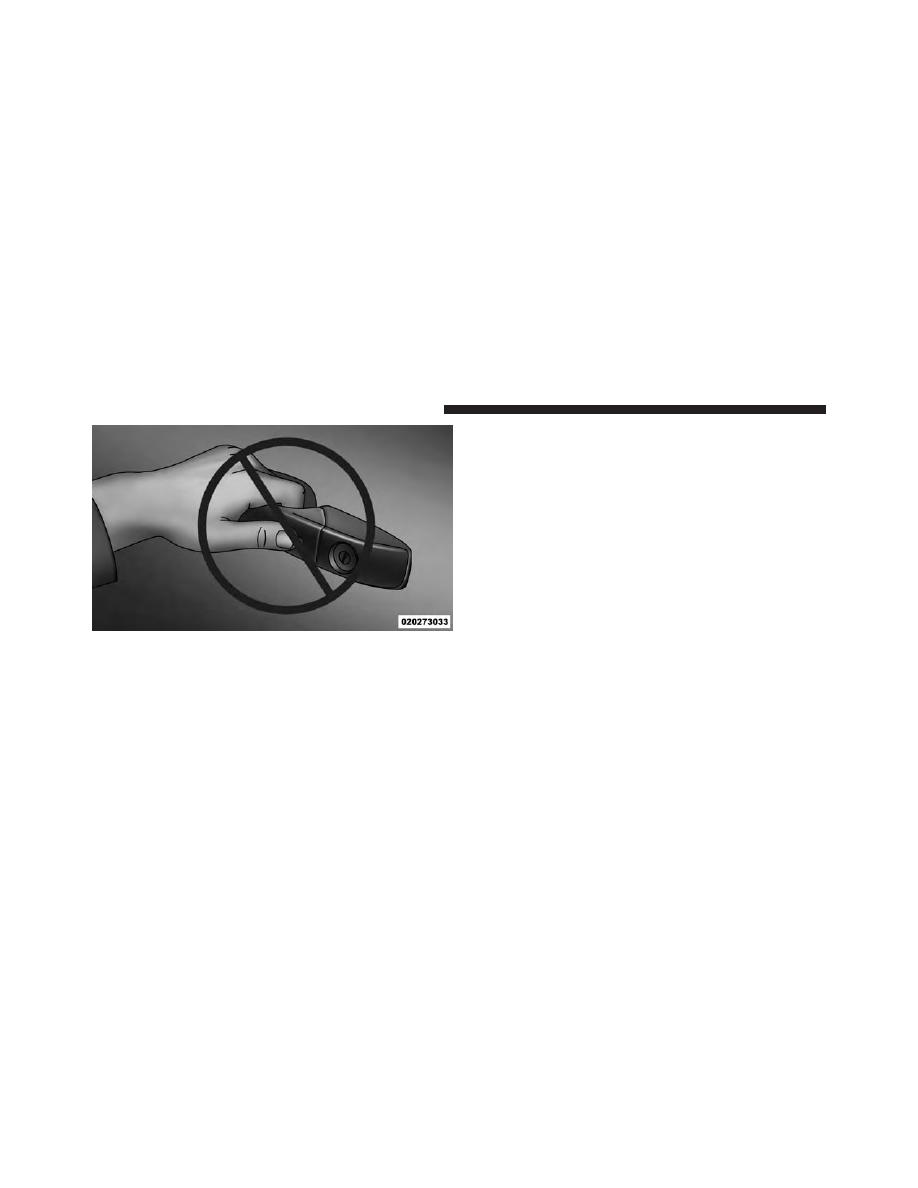

• If wearing gloves on your hands, or if it has been

raining on the Passive Entry door handle, the unlock
sensitivity can be affected, resulting in a slower re-
sponse time.

• If the vehicle is unlocked by Passive Entry and no door

is opened within 60 seconds, the vehicle will re-lock
and if equipped will arm the security alarm.

To Unlock From The Driver’s Side:

With a valid Passive Entry RKE transmitter within 5 ft
(1.5 m) of the driver’s door handle, grab the front driver
door handle to unlock the driver’s door automatically.
The interior door panel lock knob will raise when the
door is unlocked.

NOTE:

If “Unlock All Doors 1st Press” is programmed

all doors will unlock when you grab hold of the front
driver’s door handle. To select between “Unlock Driver
Door 1st Press” and “Unlock All Doors 1st Press”, refer to
“Uconnect Settings” in “Understanding Your Instrument
Panel” for further information.

Grab The Door Handle To Unlock

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Unlock From The Passenger Side:

With a valid Passive Entry RKE transmitter within 5 ft
(1.5 m) of the passenger door handle, grab the front
passenger door handle to unlock all four doors automati-
cally. The interior door panel lock knob will raise when
the door is unlocked.

NOTE:

All doors will unlock when the front passenger

door handle is grabbed regardless of the driver’s door
unlock preference setting (“Unlock Driver Door 1st
Press” or “Unlock All Doors 1st Press”).

Preventing Inadvertent Locking Of Passive Entry RKE
Transmitter In Vehicle

To minimize the possibility of unintentionally locking a
Passive Entry RKE transmitter inside your vehicle, the
Passive Entry system is equipped with an automatic door
unlock feature which will function if the ignition switch
is in the OFF position.

If one of the vehicle doors is open and the door panel
switch is used to lock the vehicle, once all open doors
have been closed the vehicle checks the inside and
outside of the vehicle for any valid Passive Entry RKE
transmitters. If one of the vehicle’s Passive Entry RKE
transmitters is detected inside the vehicle, and no other
valid Passive Entry RKE transmitters are detected out-
side the vehicle, the Passive Entry System automatically
unlocks all vehicle doors and chirps the horn three times
(on the third attempt ALL doors will lock and the Passive
Entry RKE transmitter can be locked in the vehicle).

NOTE:

The vehicle will only unlock the doors when the

doors are locked using the door panel switch, a valid
Passive Entry RKE transmitter is detected inside the
vehicle, and no valid Passive Entry RKE transmitter is
detected outside the vehicle. The vehicle will not unlock
the doors when any of the following conditions are true:

• The doors are locked using the RKE transmitter.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• The doors are locked using the LOCK button on the

Passive Entry door handles.

• The doors are manually locked using the door lock

knobs.

• There is a valid Passive Entry RKE transmitter outside

the vehicle and within 5 ft (1.5 m) of either Passive
Entry door handle.

• Three attempts are made to lock the doors using the

door panel switch and then close the doors.

To Enter The Trunk

With a valid Passive Entry RKE transmitter within 3 ft
(1.0 m) of the deck lid, push the button on the right side
of CHMSL, (Center High Mounted Stop Light) which is
located on the deck lid.

NOTE:

If you inadvertently leave your vehicle’s Passive

Entry RKE transmitter in the trunk and try to close the
trunk lid, the trunk lid will automatically unlatch, unless
another one of the vehicle’s Passive Entry RKE transmit-
ters is outside the vehicle and within 3 ft (1.0 m) of the
deck lid.

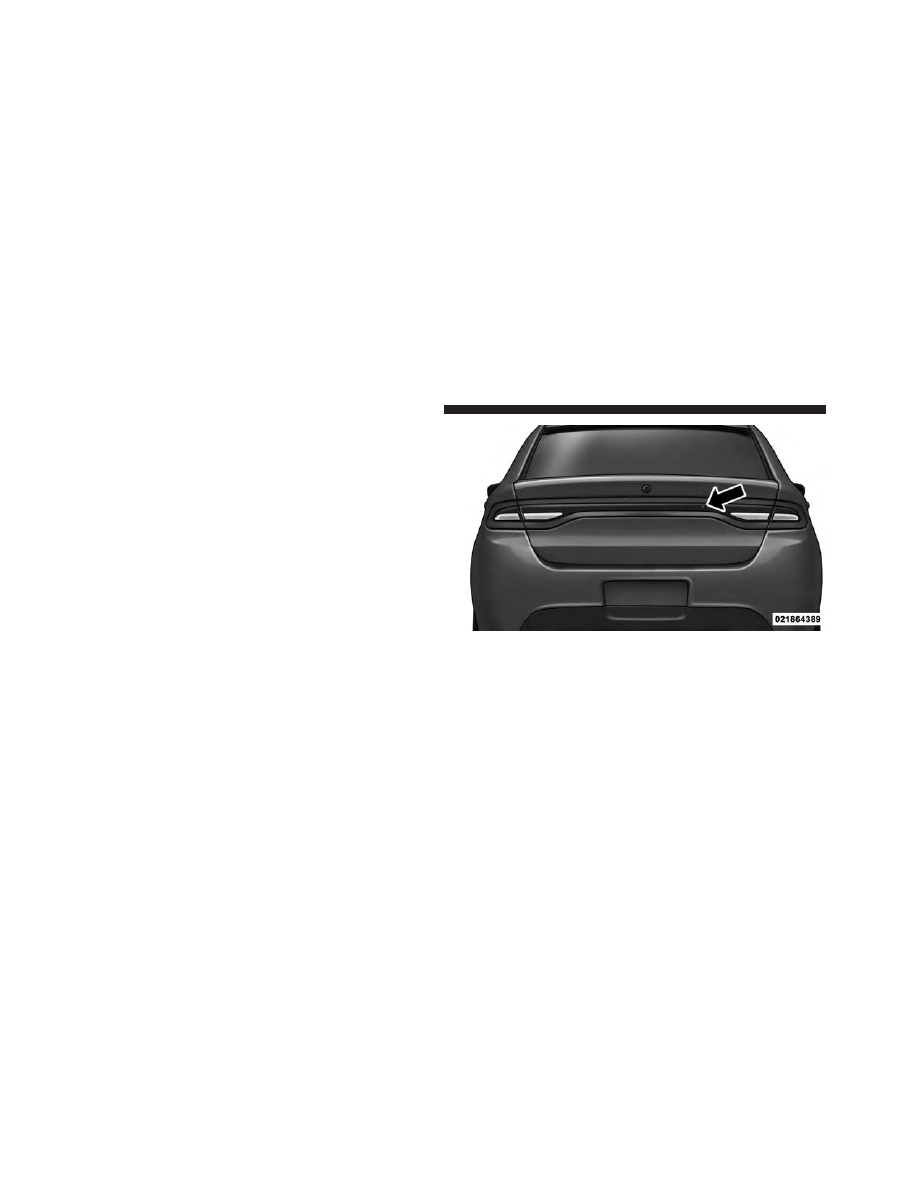

Trunk Unlock Button

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Lock The Vehicle’s Doors

With one of the vehicle’s Passive Entry RKE transmitters
within 5 ft (1.5 m) of the driver or passenger front door
handles, push the door handle LOCK button to lock all
four doors.

Do NOT grab the door handle, when pushing the door
handle button. This could unlock the door(s).

Push The Door Handle Button To Lock

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

• After pushing the door handle button, you must wait

two seconds before you can lock or unlock the doors,
using either Passive Entry door handle. This is done to
allow you to check if the vehicle is locked by pulling
the door handle, without the vehicle reacting and
unlocking.

• The Passive Entry system will not operate if the RKE

transmitter battery is dead.

The vehicle doors can also be locked by using the RKE
transmitter lock button or the lock button located on the
vehicle’s interior door panel.

Do NOT Grab The Handle When Locking

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

General Information

The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired op-
eration.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

WINDOWS

Power Windows

The window controls on the driver’s door control all the
door windows.

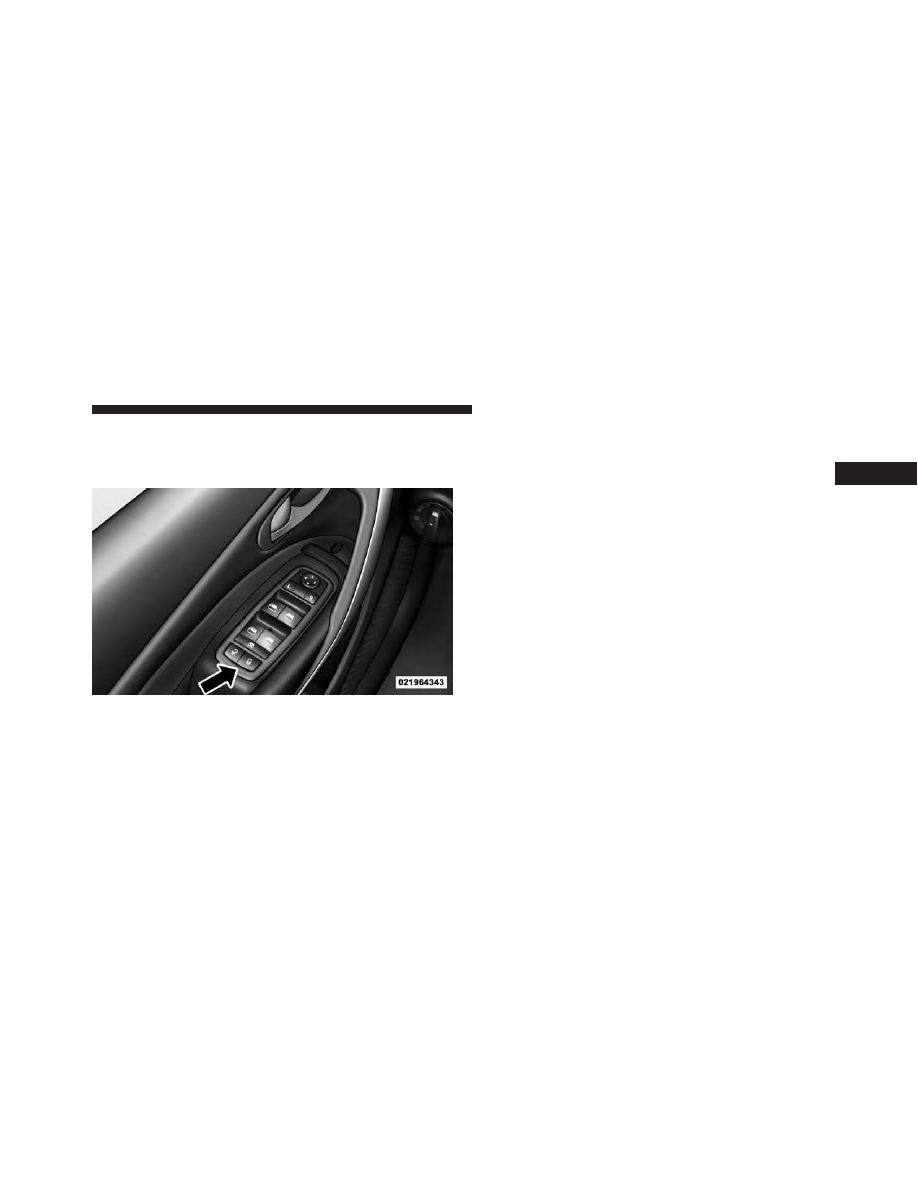

Power Window Switches

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Content .. 1 2 3 ..
