Dodge Chassis Cab (2012 year). Manual

“Slide-On-Rod” Features Of Sun Visor — If
Equipped

The sun visor “Slide-On-Rod” feature allows for addi-
tional flexibility in positioning the visor to block out the
sun.

To use the “Slide-On-Rod” feature, rotate the sun visor
downward and unclip it. Pull the sun visor along the
“Slide-On-Rod” until the sun visor is in the desired
position.

Trailer Towing Mirrors — If Equipped

These mirrors are designed with an adjustable mirror
head to provide a greater vision range when towing
extra-wide loads. To change position inboard or out-
board, the mirror head should be rotated (flipped in or
out).

Slide-On-Rod Extender

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

Fold the trailer towing mirrors rearward prior to

entering an automated car wash.

A small blindspot mirror is located next to main mirror
and can be adjusted separately.

Uconnect™ Phone — IF EQUIPPED

Uconnect™ Phone is a voice-activated, hands-free, in-
vehicle communications system. Uconnect™ Phone al-
lows you to dial a phone number with your mobile
phone using simple voice commands (e.g., “Call”

“Mike”

ѧ “Work” or “Dial” ѧ “248-555-1212”). Your

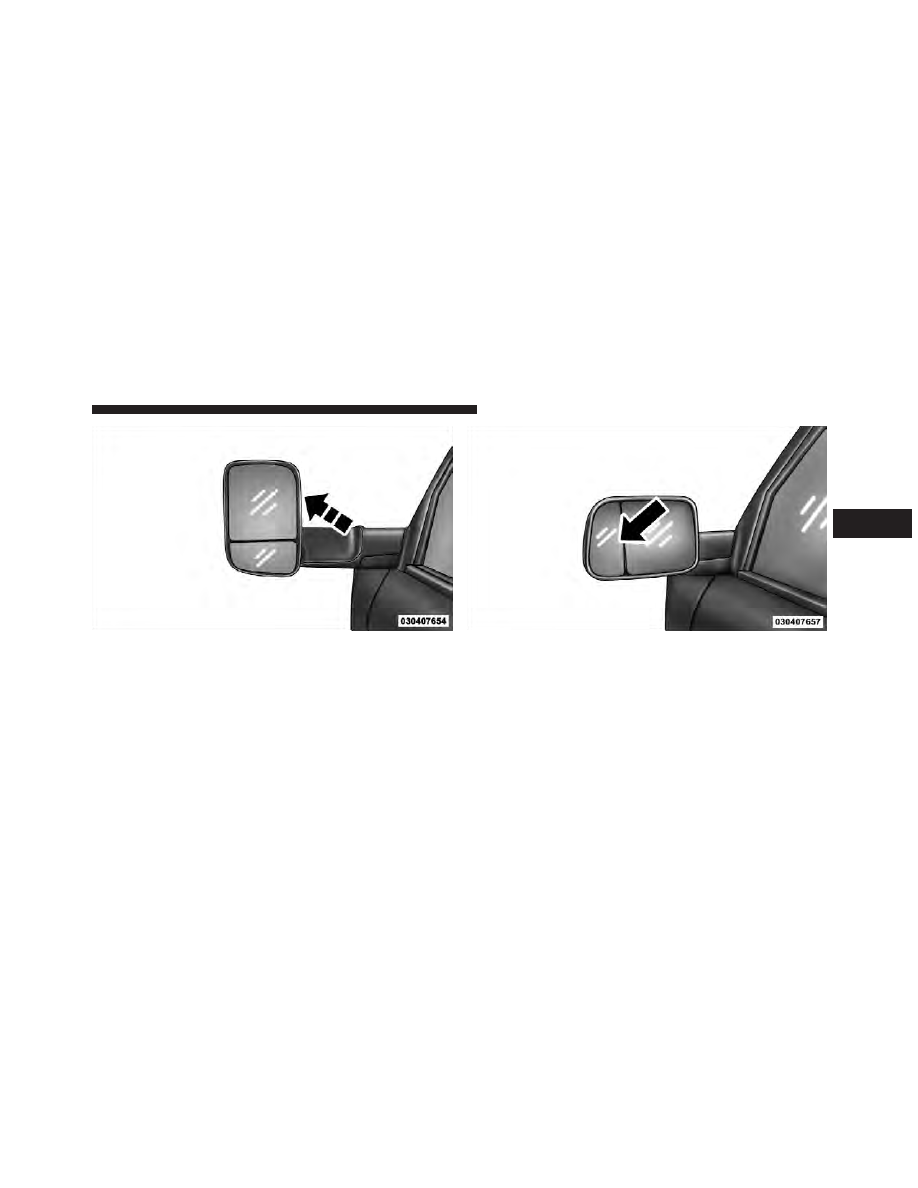

Trailer Towing Position

Blindspot Mirror

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

mobile phone’s audio is transmitted through your vehi-
cle’s audio system; the system will automatically mute
your radio when using the Uconnect™ Phone.

NOTE:

The Uconnect™ Phone requires a mobile phone

equipped with the Bluetooth

威 “Hands-Free Profile”, Ver-

sion 0.96 or higher. See the Uconnect™ website for
supported phones.

For Uconnect™ customer support, visit the following
websites:

• www.chrysler.com/uconnect
• www.dodge.com/uconnect
• www.jeep.com/uconnect
• or call 1–877–855–8400

Uconnect™ Phone allows you to transfer calls between
the system and your mobile phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.

The Uconnect™ Phone is driven through your
Bluetooth

威 “Hands-Free Profile” mobile phone.

Uconnect™ features Bluetooth

威 technology - the global

standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
Uconnect™ Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or briefcase), as
long as your phone is turned on and has been paired to
the vehicle’s Uconnect™ Phone. The Uconnect™ Phone
allows up to seven mobile phones to be linked to the
system. Only one linked (or paired) mobile phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in a
collision causing serious injury or death.

Uconnect™ Phone Button

The radio or steering wheel controls (if
equipped) will contain the two control buttons
(Uconnect™ Phone

button and Voice Com-

mand

button) that will enable you to

access the system. When you press the button you will
hear the word Uconnect™ followed by a BEEP. The beep
is your signal to give a command.

Voice Command Button

Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.

The Uconnect™ Phone can be used with any Hands-Free
Profile certified Bluetooth

威 mobile phone. See the

Uconnect™ website for supported phones. Refer to your
mobile service provider or the phone manufacturer for
details.

The Uconnect™ Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect™ Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.

The radio display will be used for visual prompts from
the Uconnect™ Phone such as “CELL” or caller ID on
certain radios.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Operation

Voice commands can be used to operate the Uconnect™
Phone and to navigate through the Uconnect™ Phone
menu structure. Voice commands are required after most
Uconnect™ Phone prompts. You will be prompted for a
specific command and then guided through the available
options.

• Prior to giving a voice command, one must wait for

the beep, which follows the “Ready” prompt or an-
other prompt.

• For certain operations, compound commands can be

used. For example, instead of saying “Setup” and then
“Pair a Device”, the following compound command
can be said: “Pair a Bluetooth

威 Device”.

• For each feature explanation in this section, only the

compound form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For

example, you can use the compound form voice
command “Phonebook New Entry”, or you can break
the compound form command into two voice com-
mands: “Phonebook” and “New Entry”. Please re-
member, the Uconnect™ Phone works best when you
talk in a normal conversational tone, as if speaking to
someone sitting a few feet/meters away from you.

Voice Command Tree
Refer to “Voice Tree” in this section.

Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say “Help” following
the beep. The Uconnect™ Phone will play some of the
options at any prompt if you ask for help.

To activate the Uconnect™ Phone, simply press the
button and follow the audible prompts for directions.
Uconnect™ Phone sessions begin with a press of the
button on the radio control head.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Cancel Command
At any prompt, after the beep, you can say “Cancel” and
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.

Pair (Link) Uconnect™ Phone To A Mobile Phone
To begin using your Uconnect™ Phone, you must pair
your compatible Bluetooth

威 enabled mobile phone.

To complete the pairing process, you will need to refer-
ence your mobile phone Owner’s Manual. The
Uconnect™ website may also provide detailed instruc-
tions for pairing.

The following are general phone to Uconnect™ Phone
pairing instructions:

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Device Pairing”.

• When prompted, after the beep, say “Pair a Device”

and follow the audible prompts.

• You will be asked to say a four-digit Personal Identi-

fication Number (PIN), which you will later need to
enter into your mobile phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.

• For identification purposes, you will be prompted to

give the Uconnect™ Phone a name for your mobile
phone. Each mobile phone that is paired should be
given a unique phone name.

• You will then be asked to give your mobile phone a

priority level between one and seven, with one being
the highest priority. You can pair up to seven mobile
phones to your Uconnect™ Phone. However, at any
given time, only one mobile phone can be in use,
connected to your Uconnect™ System. The priority
allows the Uconnect™ Phone to know which mobile

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

phone to use if multiple mobile phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
Uconnect™ Phone will use the priority three mobile
phone when you make a call. You can select to use a
lower priority mobile phone at any time (refer to
“Advanced Phone Connectivity” in this section).

Dial By Saying A Number

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Dial”.

• The system will prompt you to say the number you

want to call.

• For example, you can say “234-567-8901”.
• The Uconnect™ Phone will confirm the phone number

and then dial. The number will appear in the display
of certain radios.

Call By Saying A Name

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Call”.

• The system will prompt you to say the name of the

person you want to call.

• After the “Ready” prompt and the following beep, say

the name of the person you want to call. For example,
you can say “John Doe”, where John Doe is a previ-
ously stored name entry in the Uconnect™ phonebook
or downloaded phonebook. To learn how to store a
name in the phonebook, refer to “Add Names to Your
Uconnect™ Phonebook”, in the phonebook.

• The Uconnect™ system will confirm the name and

then dial the corresponding phone number, which
may appear in the display of certain radios.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Add Names To Your Uconnect™ Phonebook

NOTE:

Adding names to the Uconnect™ Phonebook is

recommended when the vehicle is not in motion.

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Phonebook New Entry”.

• When prompted, say the name of the new entry. Use of

long names helps the Voice Command and it is recom-
mended. For example, say “Robert Smith” or “Robert”
instead of “Bob”.

• When prompted, enter the number designation (e.g.,

“Home”, “Work”, “Mobile”, or “Other”). This will
allow you to store multiple numbers for each phone-
book entry, if desired.

• When prompted, recite the phone number for the

phonebook entry that you are adding.

After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.

The Uconnect™ Phone will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language. In addition, if equipped and
supported by your phone, Uconnect™ Phone automati-
cally downloads your mobile phone’s phonebook.

Phonebook Download – Automatic Phonebook
Transfer From Mobile Phone
If equipped and specifically supported by your phone,
Uconnect™ Phone automatically downloads names (text
names) and number entries from your mobile phone’s
phonebook. Specific Bluetooth

威 Phones with Phone Book

Access Profile may support this feature. See Uconnect™
website for supported phones.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• To call a name from the Uconnect™ Phonebook or

downloaded Phonebook, follow the procedure in
“Call by Saying a Name” section.

• Automatic download and update, if supported, begins

as soon as the Bluetooth

威 wireless phone connection is

made to the Uconnect™ Phone, for example, after you
start the vehicle.

• A maximum of 1000 entries per phone will be down-

loaded and updated every time a phone is connected
to the Uconnect™ Phone.

• Depending on the maximum number of entries down-

loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if avail-
able, the previously downloaded phonebook is avail-
able for use.

• Only the phonebook of the currently connected mobile

phone is accessible.

• Only the mobile phone’s phonebook is downloaded.

SIM card phonebook is not part of the Mobile phone-
book.

• This downloaded phonebook cannot be edited or

deleted on the Uconnect™ Phone. These can only be
edited on the mobile phone. The changes are trans-
ferred and updated to Uconnect™ Phone on the next
phone connection.

Edit Uconnect™ Phonebook Entries

NOTE:

• Editing names in the phonebook is recommended

when the vehicle is not in motion.

• Automatic downloaded phonebook entries cannot be

deleted or edited.

• Press the

button to begin.

100

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• After the “Ready” prompt and the following beep, say

“Phonebook Edit Entry”.

• You will then be asked for the name of the phonebook

entry that you wish to edit.

• Next, choose the number designation (home, work,

mobile, or other) that you wish to edit.

• When prompted, recite the new phone number for the

phonebook entry that you are editing.

After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.

“Phonebook Edit Entry” can be used to add another
phone number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a

mobile and a home number, but you can add “John
Doe’s” work number later using the “Phonebook Edit
Entry” feature.

Delete Uconnect™ Phonebook Entry

NOTE:

Editing phonebook entries is recommended

when the vehicle is not in motion.

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Phonebook Delete”.

• After you enter the Phonebook Delete menu, you will

then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can say “List
Names” to hear a list of the entries in the phonebook
from which you choose. To select one of the entries

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

101

from the list, press the

button while the

Uconnect™ Phone is playing the desired entry and say
“Delete”.

• After you enter the name, the Uconnect™ Phone will

ask you which designation you wish to delete: home,
work, mobile, other, or all. Say the designation you
wish to delete.

• Note that only the phonebook entry in the current

language is deleted.

• Automatic downloaded phonebook entries cannot be

deleted or edited.

Delete/Erase “All” Uconnect™ Phonebook Entries

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Phonebook Erase All”.

• The Uconnect™ Phone will ask you to verify that you

wish to delete all the entries from the phonebook.

• After confirmation, the phonebook entries will be

deleted.

• Note that only the phonebook in the current language

is deleted.

• Automatic downloaded phonebook entries cannot be

deleted or edited.

List All Names In The Uconnect™ Phonebook

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Phonebook List Names”.

• The Uconnect™ Phone will play the names of all the

phonebook entries, including the downloaded phone-
book entries, if available.

102

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• To call one of the names in the list, press the

button during the playing of the desired name, and
say “Call”.

NOTE:

The user can also exercise “Edit” or “Delete”

operations at this point.

• The Uconnect™ Phone will then prompt you as to the

number designation you wish to call.

• The selected number will be dialed.

Phone Call Features

The following features can be accessed through the
Uconnect™ Phone if the feature(s) are available on your
mobile service plan. For example, if your mobile service
plan provides three-way calling, this feature can be
accessed through the Uconnect™ Phone. Check with
your mobile service provider for the features that you
have.

Answer Or Reject An Incoming Call — No Call
Currently In Progress
When you receive a call on your mobile phone, the
Uconnect™ Phone will interrupt the vehicle audio sys-
tem, if on, and will ask if you would like to answer the
call. Press the

button to accept the call. To reject the

call, press and hold the

button until you hear a single

beep, indicating that the incoming call was rejected.

Answer Or Reject An Incoming Call — Call
Currently In Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your
mobile phone. Press the

button to place the current

call on hold and answer the incoming call.

NOTE:

The Uconnect™ Phone compatible phones in the

market today do not support rejecting an incoming call

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

103

when another call is in progress. Therefore, the user can
only answer an incoming call or ignore it.

Making A Second Call While Current Call Is In
Progress
To make a second call while you are currently on a call,
press the

button and say “Dial” or “Call” followed

by the phone number or phonebook entry you wish to
call. The first call will be on hold while the second call is
in progress. To go back to the first call, refer to “Toggling
Between Calls” in this section. To combine two calls, refer
to “Conference Call” in this section.

Place/Retrieve A Call From Hold
To put a call on hold, press the

button until you hear

a single beep. This indicates that the call is on hold. To
bring the call back from hold, press and hold the
button until you hear a single beep.

Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the

button until you hear a single beep,

indicating that the active and hold status of the two calls
have switched. Only one call can be placed on hold at a
time.

Conference Call
When two calls are in progress (one active and one on
hold), press and hold the

button until you hear a

double beep indicating that the two calls have been
joined into one conference call.

Three-Way Calling
To initiate three-way calling, press the

button while

a call is in progress, and make a second phone call, as
described under “Making a Second Call While Current
Call is in Progress”. After the second call has established,

104

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

press and hold the

button until you hear a double

beep, indicating that the two calls have been joined into
one conference call.

Call Termination
To end a call in progress, momentarily press the
button. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active call.
If the active call is terminated by the phone far end, a call
on hold may not become active automatically. This is cell
phone-dependent. To bring the call back from hold, press
and hold the

button until you hear a single beep.

Redial

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Redial”.

• The Uconnect™ Phone will call the last number that

was dialed from your mobile phone.

NOTE:

This may not be the last number dialed from the

Uconnect™ Phone.

Call Continuation
Call continuation is the progression of a phone call on the
Uconnect™ Phone after the vehicle ignition key has been
switched to OFF. Call continuation functionality avail-
able on the vehicle can be any one of three types:

• After the ignition key is switched to OFF, a call can

continue on the Uconnect™ Phone either until the call
ends, or until the vehicle battery condition dictates
cessation of the call on the Uconnect™ Phone and
transfer of the call to the mobile phone.

• After the ignition key is switched to OFF, a call can

continue on the Uconnect™ Phone for a certain dura-
tion, after which the call is automatically transferred
from the Uconnect™ Phone to the mobile phone.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

105

• An active call is automatically transferred to the

mobile phone after the ignition key is switched to OFF.

Uconnect™ Phone Features

Language Selection
To change the language that the Uconnect™ Phone is
using:

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

the name of the language you wish to switch to
English, Espanol, or Francais.

• Continue to follow the system prompts to complete

the language selection.

After selecting one of the languages, all prompts and
voice commands will be in that language.

NOTE:

After every Uconnect™ Phone language change

operation, only the language-specific 32-name phone-
book is usable. The paired phone name is not language-
specific and is usable across all languages.

Emergency Assistance
If you are in an emergency and the mobile phone is
reachable:

• Pick up the phone and manually dial the emergency

number for your area.

If the phone is not reachable and the Uconnect™ Phone is
operational, you may reach the emergency number as
follows:

• Press the

button to begin.

106

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• After the “Ready” prompt and the following beep, say

“Emergency” and the Uconnect™ Phone will instruct
the paired mobile phone to call the emergency num-
ber. This feature is supported in the U.S., Canada, and
Mexico.

NOTE:

• The emergency number dialed is based on the country

where the vehicle is purchased (911 for the U.S. and
Canada and 060 for Mexico). The number dialed may
not be applicable with the available mobile service and
area.

• If supported, this number may be programmable on

some systems. To do this, press the

button and say

“Setup”, followed by “Emergency”.

• The Uconnect™ Phone does slightly lower your

chances of successfully making a phone call as to that
for the mobile phone directly.

WARNING!

To use your Uconnect™ Phone System in an emer-
gency, your mobile phone must be:
• turned on,

• paired to the Uconnect™ System,
• and have network coverage.

Towing Assistance
If you need towing assistance:

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Towing Assistance”.

NOTE:

• The towing assistance number dialed is based on the

country where the vehicle is purchased (1-800-528-
2069 for the U.S., 1-877-213-4525 for Canada, 55-14-
3454 for Mexico City and 1-800-712-3040 for outside

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

107

Dodge Chassis Cab (2012 year). Manual - part 6
