Dodge Challenger SRT8 (2009 year). Manual

A WORD ABOUT YOUR KEYS

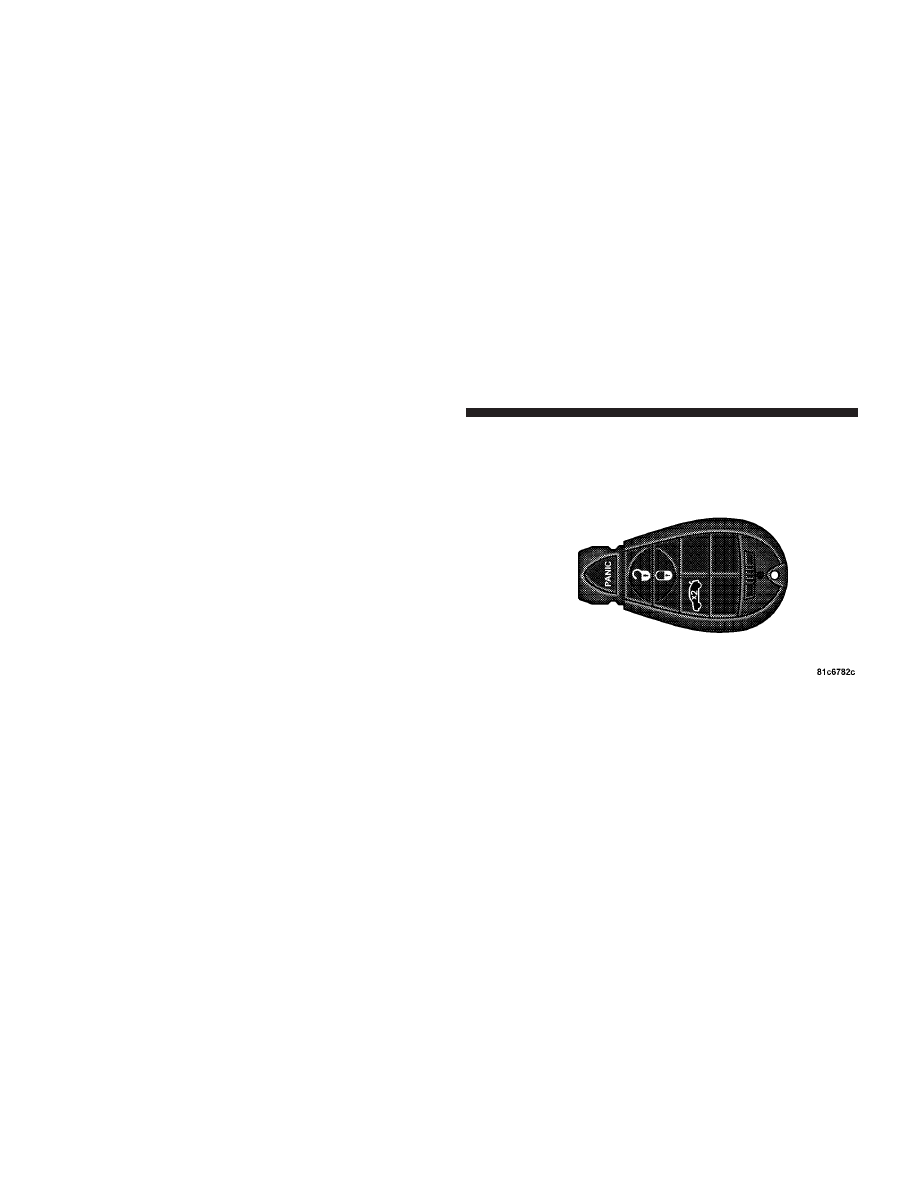

Your vehicle uses a keyless ignition system. This system
consists of a Fob with Integrated Key and a Wireless
Ignition Node (WIN) with an integral ignition switch.
You can insert the double-sided integrated key into the
ignition switch with either side up.

Keyless Go Feature
This vehicle may be equipped with the Keyless Go
feature, for more information, refer to “Keyless Go — If
Equipped” under “Starting Procedure” in Section 5 of
this manual.

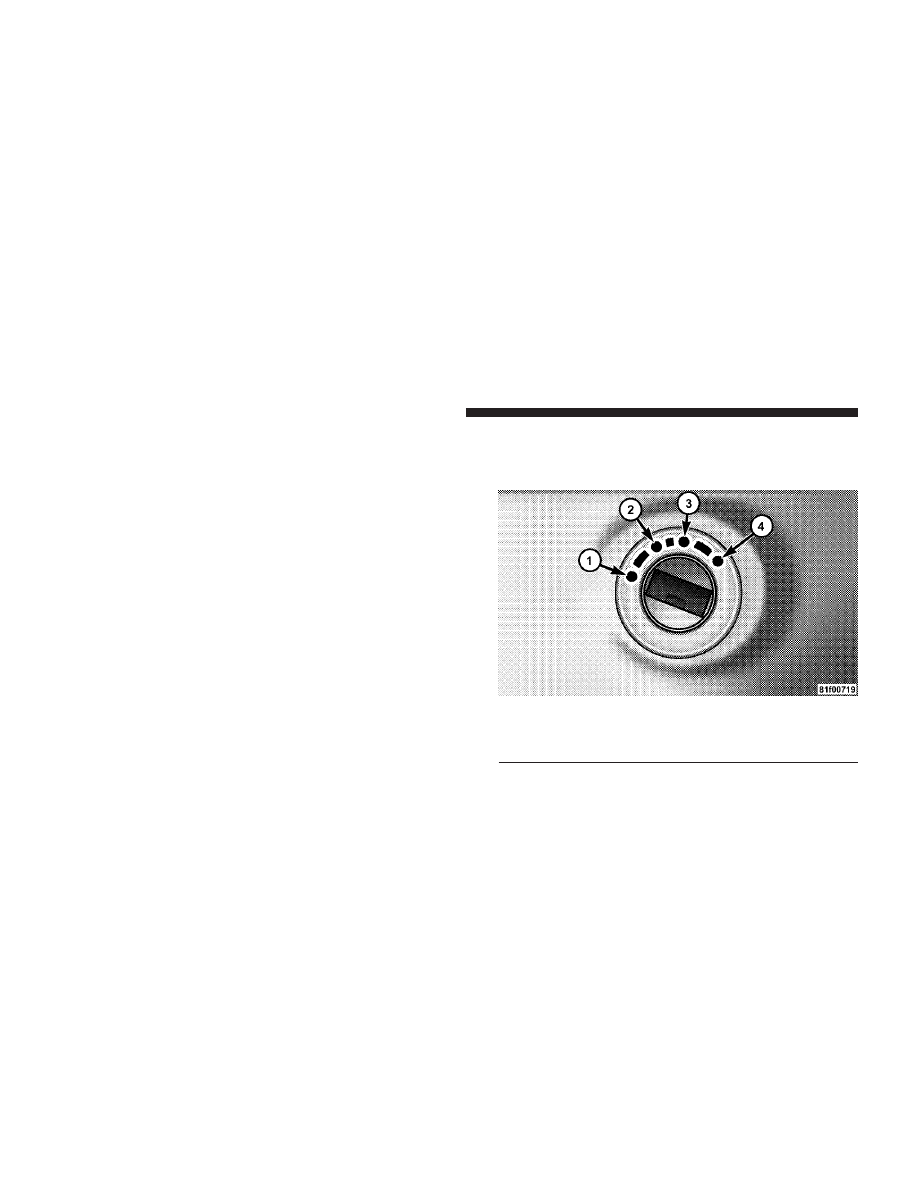

Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are LOCK, ACC, and ON. The START position is a

spring-loaded momentary contact position. When re-
leased from the START position, the switch automatically
returns to the ON position.

1 — LOCK
2 — ACCESSORY
3 — ON
4 — START

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Fob With Integrated Key
The Fob with Integrated Key operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a valet key, which stores in the rear of the Fob.

The valet key allows for entry into the vehicle should the
battery in the vehicle or the Fob go dead. The valet key is
also for locking the glove box. You can keep the valet key
with you when valet parking.

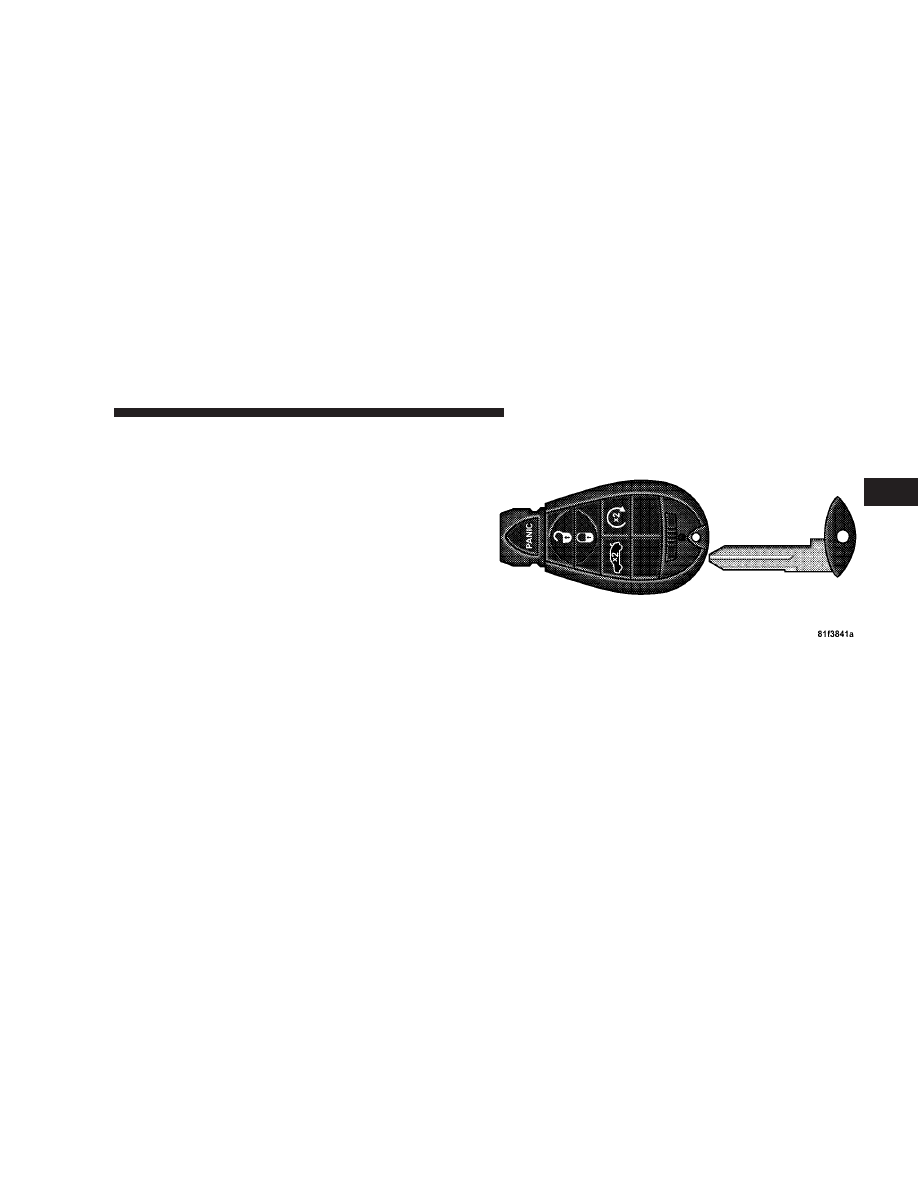

To remove the valet key from the Fob, slide the mechani-
cal latch at the top of the Fob sideways with your thumb
and then pull the key out of the Fob with your other
hand.

NOTE:

You can insert the double-sided valet key into

the lock cylinders with either side up.

Ignition Key Removal
Place the shift lever in PARK. Turn the key to the LOCK
position and then remove the key.

Valet Key Removal

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

The power window switches, radio, power

sunroof (if equipped), and ignition-powered power out-
lets will remain active for up to 60 minutes after the
ignition switch is turned to the LOCK position. Opening
either door will cancel this feature. The time for this
feature is programmable. Refer to “Delay Power Off to
Accessories Until Exit,” under “Personal Settings (Cus-
tomer Programmable Features),” under “Electronic Ve-
hicle Information Center (EVIC)” in Section 4.

WARNING!

Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.

CAUTION!

An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.

Key-In-Ignition Reminder
If you open the driver’s door and the key is in the
ignition, a chime will sound to remind you to remove the
key.

NOTE:

The Key-In-Ignition reminder only sounds

when the ignition key is placed in the LOCK or ACC
position.

SENTRY KEY

姞

The Sentry Key

威 Immobilizer System prevents unautho-

rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

is automatic, regardless of whether the vehicle is locked
or unlocked.

The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will not allow the engine to crank
if an invalid RKE transmitter is used to operate the
ignition switch.

After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. This
condition will result in the engine being shut off after two
seconds.

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.

NOTE:

• The Sentry Key威 Immobilizer System is not compat-

ible with aftermarket remote starting systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.

• Exxon/Mobil Speedpass™, additional RKE transmit-

ters, or any other transponder-equipped components
on the same key chain will not cause a fault unless the
additional part is physically held against the trans-
mitter

being used to start the vehicle. Cell phones,

pagers, or other RF electronics will not cause interfer-
ence with this system.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.

Replacement Keys

NOTE:

Only RKE transmitters that are programmed to

the vehicle electronics can be used to start and operate
the vehicle. Once a transmitter is programmed to a
vehicle, it cannot be programmed to any other vehicle.

CAUTION!

Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.

At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer or by using the Customer

Key Programming procedure. This procedure consists of
programming a blank transmitter to the vehicle electron-
ics. A blank transmitter is one that has never been
programmed.

NOTE:

When having the Sentry Key

威 Immobilizer

System serviced, bring all vehicle RKE transmitters with
you to the authorized dealer.

Customer Key Programming
If you have two valid RKE transmitters with integrated
keys, you can program new transmitters to the system by
performing the following steps:

1. Insert the first valid integrated key into the ignition
switch and turn the ignition switch to the ON position for
at least three seconds, but no longer than 15 seconds.
Turn the ignition switch to the LOCK position and
remove the first key.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Insert the second valid integrated key and turn the
ignition switch to the ON position within 15 seconds.
After 10 seconds, a chime will sound and the Vehicle
Security Light will begin to flash. Turn the ignition switch
to the LOCK position and remove the second key.

3. Insert a blank integrated key into the ignition switch
and turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound
and the Vehicle Security Light will stop flashing, turn on
again for three seconds, and then turn off.

The new integrated key is programmed. The RKE trans-
mitter will also be programmed during this procedure.

Repeat this procedure to program up to eight keys. If you
do not have a programmed RKE transmitter with inte-
grated key, contact your authorized dealer for details.

NOTE:

If a programmed key is lost, see your authorized

dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.

General Information
The Sentry Key

威 system complies with FCC rules Part 15

and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:

• This device may not cause harmful interference.
• This device must accept any interference that may be

received, including interference that may cause undes-
ired operation.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

VEHICLE SECURITY ALARM
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch for unau-
thorized operation. If something triggers the alarm, the
Vehicle Security Alarm will prevent the vehicle from
starting and provide the following audible and visible
signals: the horn will pulse, the headlights will flash, the
park lights will flash, and the Vehicle Security Light in
the instrument cluster will flash.

Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after three minutes, turn all of the visual signals off
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.

To Arm The System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if both doors are closed, the Vehicle Security
Alarm will arm itself in about 16 seconds. During that
time, the Vehicle Security Light will flash. If it does not
illuminate, the Vehicle Security Alarm is not arming. In
addition, if you open a door during the arming period,
the Vehicle Security Alarm will cancel the arming pro-
cess. If you wish to rearm the Vehicle Security Alarm after
closing the door, you must repeat one of the previously-
described arming sequences.

To Disarm The System
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition switch and
turn the key to the ON position.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

• The driver’s door key cylinder and the trunk button on

the RKE transmitter cannot arm or disarm the Vehicle
Security Alarm.

• The Vehicle Security Alarm remains armed during

trunk entry. Pressing the TRUNK button will not
disarm the Vehicle Security Alarm. If someone enters
the vehicle through the trunk, and opens any door, the
alarm will sound.

• When the Vehicle Security Alarm is armed, the interior

power door lock switches will not unlock the doors.

The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If one
of the previously-described arming sequences has oc-
curred, the Vehicle Security Alarm will arm regardless of
whether you are in the vehicle or not. If you remain in the

vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.

If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected. The
exterior lights will flash, the horn will sound, and the
ignition will not start the vehicle. If this occurs, disarm
the Vehicle Security Alarm.

Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times when you
disarm the Vehicle Security Alarm. Check the vehicle for
tampering.

ILLUMINATED ENTRY SYSTEM
The courtesy lights will turn on when you press the
UNLOCK button on the Remote Keyless Entry (RKE)
transmitter or open any door.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned ON from the LOCK position.

NOTE:

• None of the courtesy lights will operate if the dimmer

control is in the “defeat” position (extreme downward
position), unless the overhead map/reading lights are
turned on manually.

REMOTE KEYLESS ENTRY (RKE)
The Remote Keyless Entry (RKE) allows you to lock or
unlock the doors, open the trunk, or activate the Panic
Alarm from distances up to approximately 66 ft (20 m)
using a hand-held radio transmitter. The transmitter does
not need to be pointed at the vehicle to activate the
system.

NOTE:

Inserting the Fob with Integrated Key into the

ignition switch disables all buttons on that transmitter;
however, the buttons on the remaining transmitters will

continue to work. Driving at speeds 5 mph (8 km/h) and
above disables all transmitter buttons for all fobs.

To Unlock The Doors
Press and release the UNLOCK button on the transmitter
once to unlock the driver’s door or twice within five

RKE Transmitter

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

seconds, to unlock both doors. The turn signal lights will
flash to acknowledge the unlock signal. The illuminated
entry system will also turn on.

Remote Key Unlock, Driver Door/All Doors First
This feature lets you program the system to unlock either
the driver’s door or both doors on the first press of the
UNLOCK button on the transmitter. Refer to “Remote
Key Unlock,” under “Personal Settings (Customer-
Programmable Features),” under “Electronic Vehicle In-
formation Center (EVIC)” in Section 4.

• When not using the EVIC, perform the following

steps:

1. Press and hold the LOCK button on a programmed
transmitter for at least 4 seconds, but no longer than
10 seconds. Then, press and hold the UNLOCK button
while still holding the LOCK button.

2. Release both buttons at the same time.

3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the transmitter with
the ignition switch in the LOCK position and the key
removed.

4. Repeat these steps if you want to return this feature to
its previous setting.

NOTE:

Pressing the LOCK button on the transmitter

while you are inside the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.

Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the transmitter.
This feature can be turned on or turned off. Refer to
“Flash Lights with Remote Key Lock,” under

⬙Personal

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Settings (Customer-Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.

• When not using the EVIC, perform the following

steps:

1. Press and hold the UNLOCK button on a programmed
transmitter for at least 4 seconds, but no longer than
10 seconds. Then, press and hold the LOCK button while
still holding the UNLOCK button.

2. Release both buttons at the same time.

3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the transmitter with
the ignition switch in the LOCK position and the key
removed.

4. Repeat these steps if you want to return this feature to
its previous setting.

NOTE:

Pressing the LOCK button on the transmitter

while you are in the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.

Turn Headlights On with Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the transmitter. The
time for this feature is programmable. Refer to “Turn
Headlights On with Remote Key Unlock,” under “Per-
sonal Settings (Customer-Programmable Features),” un-
der “Electronic Vehicle Information Center (EVIC)” in
Section 4.

To Lock The Doors
Press and release the LOCK button on the transmitter to
lock both doors. The turn signal lights will flash and the
horn will chirp to acknowledge the signal.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the transmitter. This feature can be
turned on or turned off. Refer to “Sound Horn with
Remote Key Lock,” under “Personal Settings (Customer-
Programmable Features),” under “Electronic Vehicle In-
formation Center (EVIC)” in Section 4.

• When not using the EVIC, perform the following

steps:

1. Press the LOCK button on a programmed transmitter
for at least 4 seconds, but no longer than 10 seconds.
Then, press the PANIC button while still holding the
LOCK button.

2. Release both buttons at the same time.

3. Test the feature while outside of the vehicle by press-
ing the LOCK button on the transmitter with the ignition
switch in the LOCK position and the key removed.

4. Repeat these steps if you want to return this feature to
its previous setting.

NOTE:

Pressing the LOCK button on the transmitter

Express Down Window Feature
This feature allows you to remotely lower both door
windows at the same time. To use this feature, press and
release the UNLOCK button on the transmitter and then
immediately press and hold the UNLOCK button until
the windows lower to the level desired or until they
lower completely.

To Open The Trunk
Press the TRUNK button on the transmitter two times
within five seconds to open the trunk.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Using The Panic Alarm
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the interior lights will turn on.

The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.

NOTE:

• The interior lights will turn off if you turn the ignition

switch to the ACC or ON position while the Panic
Alarm is activated. However, the exterior lights and
horn will remain on.

• You may need to be less than 35 ft (11 m) from the

vehicle when using the transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.

Programming Additional Transmitters
Refer to Sentry Key

威 “Customer Key Programming.”

If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.

Transmitter Battery Service
The recommended replacement battery is CR2032.

NOTE:

Perchlorate Material – special handling may ap-

ply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

1. If the RKE transmitter is equipped with a screw,
remove the screw. With the RKE ransmitter buttons
facing down, use a flat blade to pry the two halves of the
RKE transmitter apart. Make sure not to damage the
elastomer seal during removal.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Remove and replace the battery. When replacing the
battery, match the + sign on the battery to the + sign on
the inside of the battery clip, located on the back cover.
Avoid touching the new battery with your fingers. Skin
oils may cause battery deterioration. If you touch a
battery, clean it with rubbing alcohol.

3. To reassemble the RKE transmitter case, snap the two
halves of the case together. Make sure there is an even
“gap” between the two halves. If equipped, install and
tighten the screw until snug. Test RKE transmitter
operation.

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received,

including interference that may cause undesired
operation.

NOTE:

Changes or modifications not expressly ap-

proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:

1. A weak battery in the transmitter. The expected life of
the battery is a minimum of three years.

2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

REMOTE STARTING SYSTEM

This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
328 ft (100 m).

NOTE:

The vehicle must be equipped with an auto-

matic transmission to be equipped with Remote Start.

How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:

• Shift lever in PARK
• Doors closed
• Hood closed
• Hazard switch off

• Brake switch inactive (brake pedal not pressed)
• Ignition key removed from ignition switch
• Battery at an acceptable charge level, and
• RKE PANIC button not pressed.

To Enter Remote Start Mode

Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the

engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.

NOTE:

• If an engine fault is present the vehicle will start and

then shut down 10 seconds later.

• The park lamps will turn on and remain on during

Remote Start mode.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• For security, power window and power sunroof op-

eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.

• The engine can be started two consecutive times with

the RKE transmitter. However, the ignition switch
must be cycled to the ON position before you can
repeat the start sequence for a third cycle.

To Exit Remote Start Mode without Driving the
Vehicle

• Press and release the REMOTE START button one time

or allow the engine to run for the entire 15-minute
cycle.

NOTE:

To avoid unintentional shut downs, the system

will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.

To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
insert the key into the ignition switch and turn the switch
to the ON position.

NOTE:

• The ignition switch must be in the ON position in

order to drive the vehicle.

• For vehicles equipped with the Electronic Vehicle

Information Center (EVIC), the message “Insert Key/
Turn To Run” will flash in the EVIC until you insert
the key. Once inserted, the message “Turn To Run”
will flash in the EVIC until you turn the key to run.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Dodge Challenger SRT8 (2009 year). Manual - part 1
