WARNING! (Continued)

• When leaving the vehicle, always remove the key

from the ignition lock and lock your vehicle. Do
not leave unattended children in the vehicle or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause severe per-
sonal injuries and death.

CAUTION!

An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
of the doors when leaving the vehicle unattended.

Power Door Locks
A power door lock switch is located on the drivers door
panel. Press this switch to lock or unlock the doors.

Automatic Door Locks — If Equipped
The doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:

1. The Auto Lock feature is enabled.

2. The transmission is in gear.

Power Door Lock Switch Location

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. All doors are closed.

4. The throttle is pressed.

5. The vehicle speed is above 15 mph (24 km/h).

6. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE)
transmitter.

The Automatic Door Lock feature can be enabled or
disabled. Refer to “Personal Settings” under “Electronic
Vehicle Information Center (EVIC) — (if equipped)” in
Section 4.

For vehicles not equipped with the EVIC, the Automatic
Door Locks can be enabled or disabled by performing the
following procedure:

1. Close all doors and place the key in the ignition.

2. Cycle the ignition switch between LOCK and ON and
back to LOCK four times, ending up in the LOCK
position.

3. Depress the power door LOCK switch to lock the
doors.

4. A single chime will indicate the completion of the
programming.

5. Verify reprogramming by driving the vehicle.

Auto Unlock
The doors will unlock automatically on vehicles with
power door locks if:

1. The Auto Unlock feature is enabled.

2. The transmission was in gear and the vehicle speed
returned to 0 mph (0 km/h).

3. The transmission is in NEUTRAL or PARK.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

4. The drivers door is opened.

5. The doors were not previously unlocked.

The Auto Unlock feature can be enabled or disabled.
Refer to “Personal Settings” under “Electronic Vehicle
Information Center (EVIC) — (if equipped)” in Section 4.

For vehicles not equipped with the EVIC, the Auto
Unlock Feature can be enabled or disabled by performing
the following procedure:

1. Close all doors and place the key in the ignition.

2. Cycle the ignition switch between LOCK and ON and
back to LOCK four times, ending up in the LOCK
position.

3. Depress the power door UNLOCK switch to unlock
the doors.

4. A single chime will indicate the completion of the
programming.

NOTE:

Use the Auto Door Locks and Auto Unlock

features in accordance with local laws.

Child-Protection Door Lock System (Rear Doors)
— If Equipped
Insert the tip of the ignition key into the lock and rotate
to the LOCK or UNLOCK position.

Child Protection Door Lock Location

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.

NOTE:

For emergency exit with the system engaged,

move the lock plunger up (unlocked position), roll down
the window and open the door with the outside door
handle.

Inserting Ignition Key

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

POWER WINDOWS — IF EQUIPPED

Power Window Switches

The window controls on the driver’s door trim panel
control all the door windows. There are single window

controls on each passenger door trim panel, which oper-
ate the passenger door windows. The window controls
will operate when the ignition switch is in the ON or
ACC position.

NOTE:

• For vehicles not equipped with the Electronic Vehicle

Information Center (EVIC), the power window
switches will remain active for 45 seconds after the
ignition switch is turned to the LOCK position. Open-
ing either front door will cancel this feature.

• For vehicles equipped with the EVIC, the power

window switches will remain active for up to 10 min-
utes after the ignition switch is turned to the LOCK
position. Opening either front door will cancel this
feature. The time for this feature is programmable.
Refer to “Key-Off Power Delay,” under “Personal

Power Window Switch Location

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Settings (Customer Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in
Section 4.

WARNING!

Never leave children in a vehicle with the key in the
ignition switch. Occupants, particularly unattended
children, can become entrapped by the windows
while operating the power WINDOW switches. Such
entrapment may result in serious injury or death.

Auto Down
The driver’s door window switch has an Auto Down
feature. Push the window switch past the first detent,
release, and the window will go down automatically. To
cancel the Auto Down movement, operate the switch in
either the up or down direction and release the switch.

Window Lockout Switch
The window lockout switch on the driver’s door allows
you to disable the window control on the other doors. To
disable the window controls on the other doors, press the
window LOCKOUT switch. To enable the window con-
trols, press the window LOCKOUT switch a second time.

Window Lockout Switch

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

LIFTGATE

NOTE:

The key that is used to start your vehicle is also

used to lock or unlock the doors and open the liftgate.

To unlock the liftgate, insert the key into the lock and
turn it to the right (manual lock models only). The liftgate
can also be unlocked using the Remote Keyless Entry
(RKE) transmitter or by activating the power door lock
switches located on the front doors. The central locking/
unlocking feature (if equipped) can also be activated
from the liftgate key cylinder.

Once unlocked, the liftgate can be opened or closed
without using the key. To open the liftgate, squeeze the
liftgate release and pull the liftgate open with one fluid
motion.

NOTE:

• In the event of a power malfunction, or the RKE

transmitter is inoperative, insert the key into the
liftgate lock cylinder and turn it to the right (manual
lock models only). Using the liftgate handle, pull the
liftgate open with one fluid motion.

Liftgate Handle

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• Although the liftgate has no inside release mechanism,

the liftgate trim panel includes an opening with a
snap-in cap that provides access to release the latch in
the event of an electrical system malfunction.

WARNING!

• Driving with the liftgate open can allow poison-

ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.

• If you are required to drive with the liftgate open,

make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.

Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.

OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers, front
airbags for both the driver and front passenger and if
equipped, side airbags for both the driver and front
passenger. If you will be carrying children too small for
adult-size seat belts, your seat belts or the LATCH feature
also, can be used to hold infant and child restraint
systems.

Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly to keep you and your passengers as safe as
possible.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

In a collision, you and your passengers can suffer
much greater injuries if you are not properly buckled
up. You can strike the interior of your vehicle or other
passengers, or you can be thrown out of the vehicle.
Always be sure you and others in your vehicle are
buckled up properly.

Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause a collision that includes you. This can happen
far away from home or on your own street.

Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in a collision. Some
of the worst injuries happen when people are thrown
from the vehicle. Seat belts reduce the possibility of

ejection and the risk of injury caused by striking the
inside of the vehicle. Everyone in a motor vehicle should
be belted at all times.

Lap/Shoulder Belts
All the seats in your vehicle are equipped with Lap/
Shoulder Belts.

The belt webbing retractor is designed to lock during
very sudden stops or collisions. This feature allows the
shoulder part of the belt to move freely with you under
normal conditions. But in a collision, the belt will lock
and reduce the risk of your striking the inside of the
vehicle or being thrown out.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• It is extremely dangerous to ride in a cargo area,

inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.

• Do not allow people to ride in any area of your

vehicle that is not equipped with seats and seat
belts.

• Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

• Wearing a seat belt incorrectly is dangerous. Seat

belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of a collision the best.

(Continued)

WARNING! (Continued)

• Wearing your belt in the wrong place could make

your injuries in a collision much worse. You might
suffer internal injuries, or you could even slide out
of part of the belt. Follow these instructions to
wear your seat belt safely and to keep your pas-
sengers safe, too.

• Two people should never be belted into a single

seat belt. People belted together can crash into one
another in an accident, hurting one another badly.
Never use a lap/shoulder belt or lap belt for more
than one person, no matter what their size.

Lap/Shoulder Belt Operating Instructions

1. Enter the vehicle and close the door. Sit back and
adjust the seat.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. The seat belt latch plate is above the back of the front
seat, next to your arm. Grasp the latch plate and pull out
the belt. Slide the latch plate up the webbing as far as
necessary to allow the belt to go around your lap.

3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click.”

Pulling Out The Latch Plate

Inserting Latch Plate Into Buckle

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• A belt that is buckled into the wrong buckle will

not protect you properly. The lap portion could
ride too high on your body, possibly causing
internal injuries. Always buckle your belt into the
buckle nearest you.

• A belt that is too loose will not protect you as well.

In a sudden stop you could move too far forward,
increasing the possibility of injury. Wear your seat
belt snugly.

(Continued)

WARNING! (Continued)

• A belt that is worn under your arm is very danger-

ous. Your body could strike the inside surfaces of
the vehicle in a collision, increasing head and neck
injury. A belt worn under the arm can cause
internal injuries. Ribs aren’t as strong as shoulder
bones. Wear the belt over your shoulder so that
your strongest bones will take the force in a
collision.

• A shoulder belt placed behind you will not protect

you from injury during a collision. You are more
likely to hit your head in a collision if you do not
wear your shoulder belt. The lap and shoulder belt
are meant to be used together.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

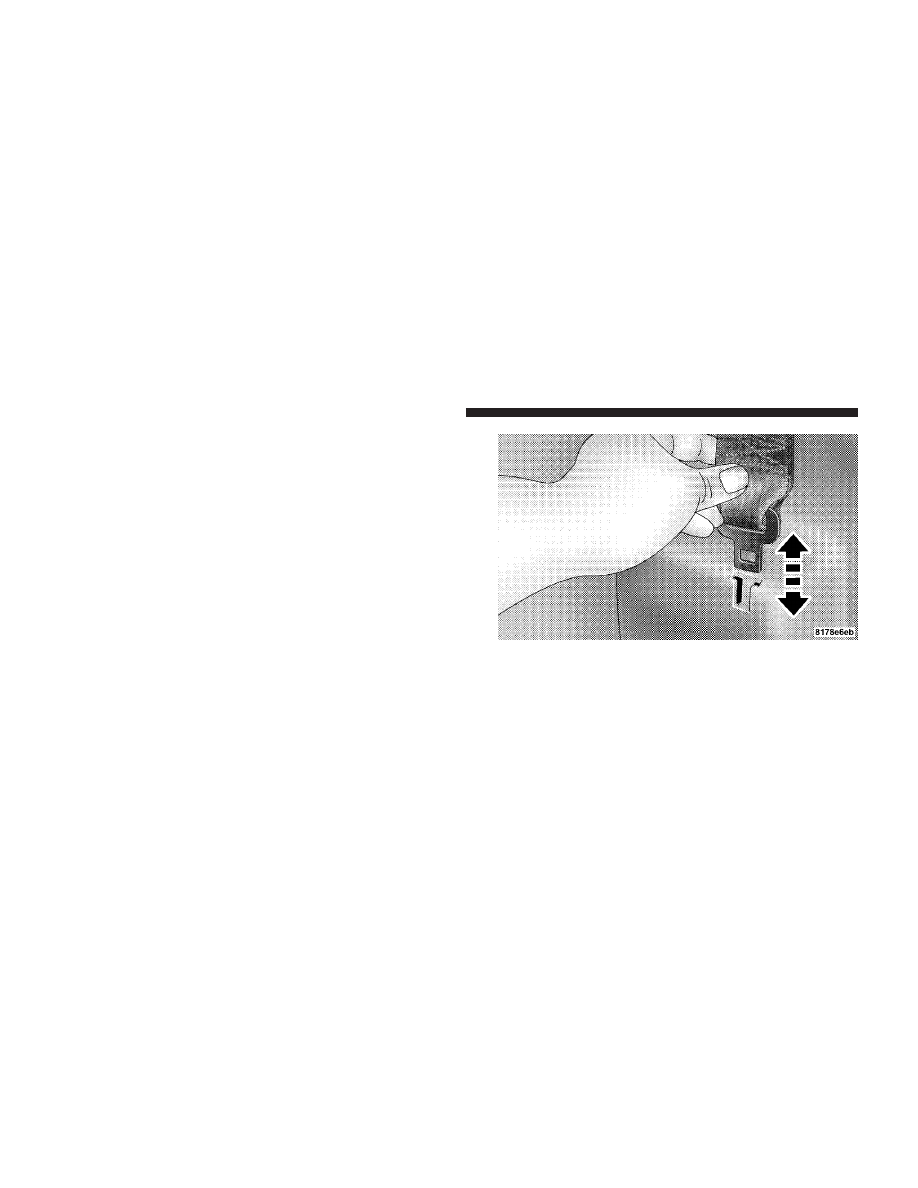

4. Position the lap belt across your thighs, below your
abdomen. To remove slack in the lap belt portion, pull up
on the shoulder belt. To loosen the lap belt if it is too tight,
tilt the latch plate and pull on the lap belt. A snug belt
reduces the risk of sliding under the belt in a collision.

WARNING!

• A lap belt worn too high can increase the risk of

internal injury in a collision. The belt forces won’t
be at the strong hip and pelvic bones, but across
your abdomen. Always wear the lap belt as low as
possible and keep it snug.

• A twisted belt can’t do its job as well. In a collision

it could even cut into you. Be sure the belt is
straight. If you can’t straighten a belt in your
vehicle, take it to your authorized dealer and have
it fixed.

5. Position the shoulder belt on your chest so that it is
comfortable and not resting on your neck. The retractor
will withdraw any slack in the belt.

Positioning Lap Belt

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

6. To release the belt, push the red button on the buckle.
The belt will automatically retract to its stowed position.
If necessary, slide the latch plate down the webbing to
allow the belt to retract fully.

WARNING!

A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (bent retractor, torn webbing,
etc.).

Adjustable Upper Shoulder Belt Anchorage
In the front seat, the shoulder belt can be adjusted
upward or downward to position the belt away from
your neck. Push anchorage button to release the anchor-
age, and move it up or down to the position that fits you
best.

Adjustable Anchorage

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

As a guide, if you are shorter than average you will
prefer a lower position, and if you are taller than average
you’ll prefer a higher position. When you release the
anchorage, try to move it up or down to make sure that
it is locked in position.

Second Row Center Lap/Shoulder Belt Operating
Instructions
The second row center lap/shoulder belt features a
three-point seat belt with a mini-latch and buckle, which
allows the shoulder belt to detach from the lower anchor
when the seat is folded. The mini-buckle and shoulder
belt can then be stored out of the way in the right side
trim panel for added convenience.

1. Remove the mini-latch and regular latch from its
stowed position in the right rear side trim panel.

2. Grasp the mini-latch plate and pull the belt over the
seat.

Mini-Latch Stowage

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Route the shoulder belt to the inside of the right head
restraint.

4. When the belt is long enough to fit, insert the mini-
latch plate into the mini-buckle until you hear a “click.”

5. Sit back in seat. Slide the regular latch plate up the
webbing as far as necessary to allow the belt to go around
your lap.

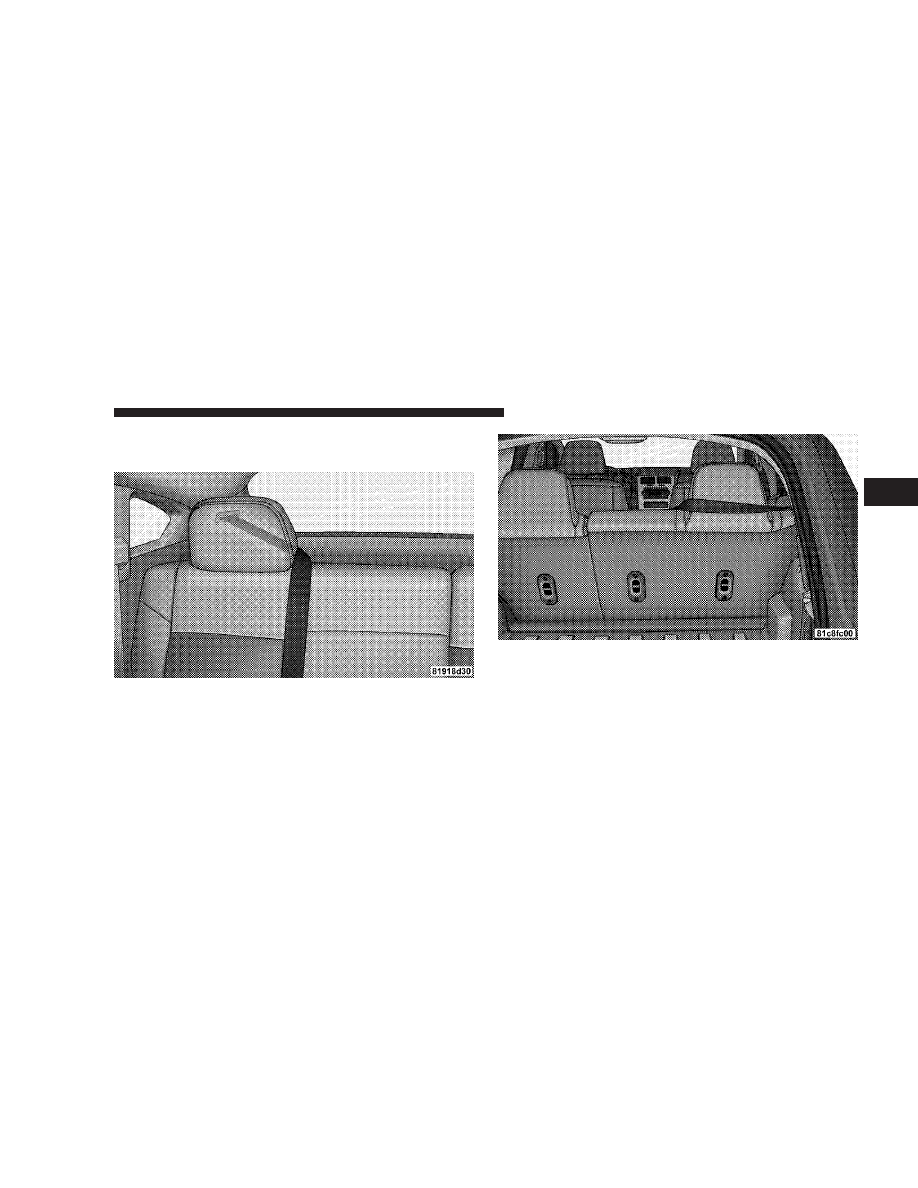

Routing The Rear Center Shoulder Belt

Routing Rear Center Shoulder Belt

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Dodge Caliber Srt4 (2009 year). Manual - part 2
