Courtesy/Reading Lights

At the forward end of the console are two courtesy/
reading lights.

Press the lens to turn on the light. Press it a second time
to turn off the light.

These lights also turn on when a door is opened, or when
the liftgate is opened, or when the unlock button on the
remote keyless entry transmitter is pressed, or when the
dimmer control is turned fully upward, past the second
detent.

Sunglasses Storage

At the rear of the console, a compartment is provided for
the storage of a pair of sunglasses.

The storage compartment access is a

9push/push9 design.

Push the raised bar on the compartment door to open.
Push the raised bar to close.

GARAGE DOOR OPENER — IF EQUIPPED

HomeLink

t replaces up to three remote controls (hand

held transmitters) that operate devices such as garage
door openers, motorized gates, lighting, or home security
systems. The HomeLink

t unit operates off of your vehi-

cle’s battery.

NOTE:

HomeLink

t is disabled when the Vehicle Secu-

rity Alarm is active.

140

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

Your motorized door or gate will open and close
while you are training the Universal Transceiver. Do
not train the transceiver if people or pets are in the
path of the door or gate. Only use this transceiver
with a garage door opener that has a “stop and
reverse” feature as required by federal safety stan-
dards. This includes most garage door opener models
manufactured after 1982. Do not use a garage door
opener without these safety features. Call toll-free
1–800–355–3515

or,

the

Internet

www.HomeLink.com for safety information or
assistance.

WARNING!

Vehicle exhaust contains carbon monoxide, a danger-
ous gas. Do not run your vehicle in the garage while
training the transceiver. Exhaust gas can cause seri-
ous injury or death.

Programming HomeLink

Before You Begin
If you have not trained any of the HomeLink

t buttons,

erase all channels before you begin training.

To do this, press and hold the two outside buttons for 20
seconds. The EVIC will display “CLEARING CHAN-
NELS.” Release the buttons when the EVIC message
states “CHANNELS CLEARED.”

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

141

It is recommended that a new battery be placed in the
hand-held transmitter of the device being programmed
to HomeLink

t for more efficient training and accurate

transmission of the radio-frequency signal.

Your vehicle should be parked outside of the garage
while training.

1. Turn the ignition switch to the ON/RUN position.

2. Place the hand-held transmitter 1–3 inches (3–8 cm)
from the HomeLink

t buttons while keeping the EVIC

display in view.

For optimal training, point the battery end of the hand-
held transmitter away from the HomeLink

3. Simultaneously press and hold both the chosen
HomeLink

t button and the hand-held transmitter button

until the EVIC display changes from “CHANNEL #
TRAINING” to “CHANNEL # TRAINED.”

Then release both the HomeLink

t and hand-held trans-

mitter buttons.

If the EVIC display states “DID NOT TRAIN” repeat Step
3. If the signal is too weak, replace the battery in the
original hand-held transmitter.

It may take up to 30 seconds, or longer in rare cases. The
garage door may open & close while you train.

NOTE:

Some gate operators and garage door openers

may require you to replace Step #3 with procedures
noted in the “Gate Operator/Canadian Programming”
section.

4. Press and hold the just-trained HomeLink

t button. If

the channel has been trained, the EVIC display will now
state “CHANNEL # TRANSMIT.”

If the EVIC display still states “CHANNEL # TRAIN-
ING” repeat Step 3.

142

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

After training a HomeLink

t channel, if the

garage door does not operate with HomeLink

t and the

garage door opener was manufactured after 1995, the
garage door opener may have rolling code. If so, proceed
to the heading “Programming A Rolling Code System.”

5. PROGRAMMING A ROLLING CODE SYSTEM
At the garage door opener motor (in the garage), locate
the “learn” or “training” button.

This can usually be found where the hanging antenna
wire is attached to the garage door opener motor (it is
NOT the button normally used to open & close the door).

6. Firmly press and release the “learn” or “training”
button. The name and color of the button may vary by
manufacturer.

NOTE:

There are 30 seconds in which to initiate the next

step after the “Learn” button has been pressed.

1 — Garage Door Opener
2 — Training Button

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

143

7. Return to the vehicle and press the programmed
HomeLink

t button twice (holding the button for 2 sec-

onds each time). If the device is plugged in and activates,
programming is complete.

If the device does not activate, press the button a third
time (for 2 seconds) to complete the training.

If you are have any problems, or require assistance,
please call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.

To program the remaining two HomeLink

t buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

Gate Operator/Canadian Programming

Canadian radio-frequency laws require transmitter sig-
nals to “time-out” (or quit) after several seconds of
transmission – which may not be long enough for
HomeLink

t to pick up the signal during programming.

Similar to this Canadian law, some U.S. gate operators are
designed to “time-out” in the same manner.

It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage
door or gate motor.

If you are having difficulties programming a garage door
opener or a gate operator, replace “Programming
HomeLink” Step 3 with the following:

3. Continue to press and hold the HomeLink

t button

while you press and release - every two seconds
(“cycle”) your hand-held transmitter until HomeLink

has successfully accepted the frequency signal. The
EVIC display will change from “CHANNEL # TRAIN-
ING” to “CHANNEL # TRAINED.”

If you unplugged the device for training, plug it back in
at this time.

144

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Then proceed with Step 4 under “Programming
HomeLink.” earlier in this section.

Using HomeLink

To operate, simply press and release the programmed
HomeLink

t button. Activation will now occur for the

trained device (i.e. garage door opener, gate operator,
security system, entry door lock, home/office lighting,
etc. The hand-held transmitter of the device may also be
used at any time.

Reprogramming a Single HomeLink

Button

To re-program a channel that has been previously
trained, follow these steps:

1. Turn the ignition switch to the ON/RUN position.

2. Press and hold the desired HomeLink

t button for 20

seconds until the EVIC display states “CHANNEL #
TRAINING.” Do not release the button.

3. Without releasing the button, proceed with PRO-
GRAMMING HOMELINK Step #2 and follow all remain-
ing steps.

Security

It is advised to erase all channels before you sell or turn
in your vehicle.

To do this, press and hold the two outside buttons for 20
seconds until the EVIC message states “CHANNELS
CLEARED.” Note that all channels will be erased. Indi-
vidual channels cannot be erased.

The HomeLink

t Universal Transceiver is disabled when

the Vehicle Security Alarm is active.

Troubleshooting Tips

If you are having trouble programming HomeLink

t, here

are some of the most common solutions:

• Replace the battery in the original transmitter.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

145

• Press the Learn Button on the Garage Door Opener to

complete the training for Rolling Code.

• Did you unplug the device for training, and remember

to plug it back in?

If you are have any problems, or require assistance,
please call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.

General Information

This device complies with FCC rules part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:

1. This device may not cause harmful interference

2. This device must accept any interference that may be
received including interference that may cause undesired
operation

NOTE:

The transmitter has been tested and it complies

with FCC and IC rules. Changes or modifications not
expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the
device.

The term “IC:” before the certification/registration num-
ber only signifies that Industry Canada technical specifi-
cations were met.

146

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

POWER SUNROOF — IF EQUIPPED

The power sunroof switch is located between the sun
visors on the overhead console.

WARNING!

• Never leave children in a vehicle, with the keys in

the ignition switch. Occupants, particularly unat-
tended children, can become entrapped by the
power sunroof while operating the power sunroof
switch. Such entrapment may result in serious
injury or death.

• In an accident, there is a greater risk of being

thrown from a vehicle with an open sunroof. You
could also be seriously injured or killed. Always
fasten your seat belt properly and make sure all
passengers are properly secured too.

• Do not allow small children to operate the sun-

roof. Never allow fingers or other body parts, or
any object to project through the sunroof opening.
Injury may result.

Power Sunroof Controls

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

147

Opening Sunroof - Express

Press the switch rearward and release, and the sunroof
will open automatically from any position. The sunroof
will open fully and then stop automatically. This is called
Express Open. During Express Open operation, any
movement of the sunroof switch will stop the sunroof.

Closing Sunroof - Express

Press the switch forward and release, and the sunroof
will close automatically from any position. The sunroof
will close fully and stop automatically. This is called
Express Close. During Express Close operation, any
movement of the switch will stop the sunroof.

Pinch Protect Feature

This feature will detect an obstruction in the opening of
the sunroof during Express Close operation. If an ob-
struction in the path of the sunroof is detected, the

sunroof will automatically retract. Remove the obstruc-
tion if this occurs. Next, press the switch forward and
release to Express Close.

Pinch Protect Override

If a known obstruction (ice, debris, etc.) prevents closing,
press the switch forward and hold for two seconds after
the reversal occurs. This allows the sunroof to move
towards the closed position.

NOTE:

Pinch protection is disabled while the switch is

pressed.

Venting Sunroof - Express

Press and release the

9V9 button in the center of the

switch, and the sunroof will open to the vent position.
This is called Express Vent, which operates regardless of
sunroof position. During Express Vent operation, any
movement of the switch will stop the sunroof.

148

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Sunshade Operation

The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.

NOTE:

The sunshade cannot be closed if the sunroof is

open.

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, then open the front and rear
windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open, then adjust the
sunroof opening to minimize the buffeting or open any
window.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.

Ignition Off Operation

For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power sunroof switch
will remain active for 10 minutes after the ignition switch
is turned off. Opening either front door will cancel this
feature.

For vehicles equipped with the EVIC, the power sunroof
switch will remain active for up to 60 minutes after the
ignition switch is turned off. Opening either front door
will cancel this feature. The time is programmable. For
details, refer to “Delay Power Off to Accessories Until
Exit,” under “Personal Settings (Customer Program-
mable Features),” under “Electronic Vehicle Information
Center (EVIC)” in Section 4 of this manual.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

149

Sunroof Fully Closed

Press the switch forward and release to ensure that the
sunroof is fully closed.

ELECTRICAL POWER OUTLETS

There are three 12-volt electrical outlets on this vehicle.
All of the outlets are protected by fuses.

The 12-volt power outlet next to the ash receiver tray (if
equipped with an optional Smoker’s Package) has power
available only when the ignition is on. This outlet will
also operate a conventional cigar lighter unit.

WARNING!

Do not place ashes inside the cubby bin located on
the center console on vehicles not equipped with the
ash receiver tray. A fire leading to bodily injury could
result.

NOTE:

If desired, the power outlet next to the ash

receiver tray (if equipped) can be converted by your
authorized dealer to provide power with the ignition
switch in the LOCK position.

Front Power Outlet

150

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The center console outlet is powered directly from the
battery (power available at all times). Items plugged into
this outlet may discharge the battery and/or prevent
engine starting.

The auxiliary outlet is also powered directly from the
battery (power available at all times). Items plugged into
this outlet may discharge the battery and/or prevent
engine starting.

Center Console Power Outlet

Auxiliary Power Outlet

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

151

Electrical Outlet Use With Engine Off

CAUTION!

• Many accessories that can be plugged in draw power from

the vehicle’s battery, even when not in use (i.e. cellular
phones, etc.). Eventually, if plugged in long enough, the
vehicle’s battery will discharge sufficiently to degrade
battery life and/or prevent engine starting.

• Accessories that draw higher power (i.e. coolers, vacuum

cleaners, lights, etc.); will degrade the battery even more
quickly. Only use these intermittently and with greater
caution.

• After the use of high power draw accessories, or long

periods of the vehicle not being started (with accessories
still plugged in), the vehicle must be driven a sufficient
length of time to allow the alternator to recharge the
vehicle’s battery.

• Power outlets are designed for accessory plugs only. Do

not hang any type of accessory or accessory bracket from
the plug. Improper use of the power outlet can cause
damage.

CUP HOLDERS

Front Seat Cup Holders

The cup holders are located in the forward edge of the
center console.

Front Seat Cup Holders

152

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Seat Cup Holders

The rear seat cup holders are located in the center armrest
between the rear seats. The cup holders are positioned
forward in the armrest and side-by-side to provide
convenient access to beverage cans or bottles while
maintaining a resting place for the rear occupants’ el-
bows.

Rear Seat Cup Holders

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

153

STORAGE

Console Features

The center console contains two shift bezel cubby bins
with rubber mats for holding small items. For vehicles
not equipped with navigation radio, the console also
contains an extra storage bin located below the climate
control, which holds up to four CD jewel cases.

Without Vehicle Entertainment System (VES)
Two separate storage compartments are also located
underneath the armrest.

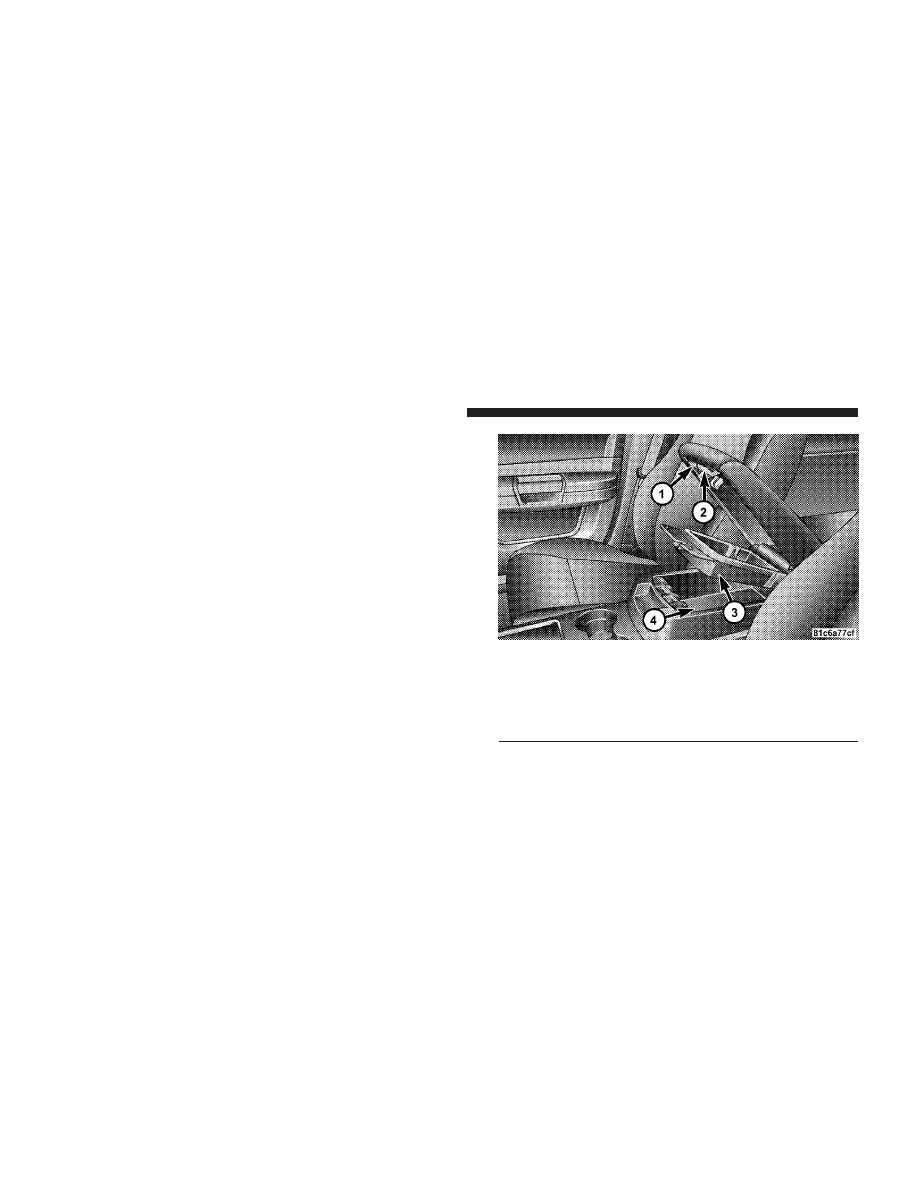

1 — Release button for bottom compartment
2 — Release button for top compartment
3 — Top Compartment
4 — Bottom Compartment. You can access this compartment

directly, without first exposing the upper compartment, by oper-

ating the Release Button for the bottom compartment with the

armrest down.

154

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The top compartment holds small items, such as a pen
and note pad, while the larger bottom compartment will
hold CDs and alike. The bottom compartment also con-
tains a 12-volt power outlet and a molded-in coin holder
(designed to hold various size coins). A slot in the left and
right side of the top compartment provides clearance for
power cords to pass conveniently out of the bin with the
lid closed. This feature is ideal for games, laptops, cell
phones, or other electrical equipment. The console’s front
opening lid allows for easy access to these compartments.

With Vehicle Entertainment System (VES)
The center console contains a large storage compartment.
The storage compartment contains a 12-volt power outlet
and a molded-in coin holder (designed to hold various
size coins). A slot in the top left and right side of the
storage compartment provides clearance for power cords
to pass conveniently out of the compartment with the lid
closed. This feature is ideal for games, laptops, cell
phones, or other electrical equipment. The console’s

front-opening lid allows for easy access to the storage
compartment for the both the driver and the front
passenger.

Cargo Management System — If Equipped

The cargo area has an upper and lower load floor.
Additional innovative features in the cargo area are the
two molded-in bins in the quarter trim panels. Each bin
will hold a gallon of milk and a 2-liter bottle of pop.

A cargo management system that stores on the lower
load floor below the bi-level cargo floor is optional. It
includes the following equipment:

• Waterproof cargo floor liner.
• Folding cargo management container with net separa-

tors.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

155

Dodge Magnum (2008 year). Manual - part 9
