Dodge Caravan (2008 year). Manual - part 31

Rear Tail, Stop, Turn Signal, Side Marker and
Backup Lights

1. Raise the liftgate.

2. Remove the tail light assembly by removing the two
screws from the inboard side. Use a fiber stick or similar
tool to gently pry the light on the outboard side to
disengage the two ball studs.

NOTE:

• If a screwdriver is used, make sure a soft material is

placed between the vehicle body and tool so not to
scratch the paint.

• The PRY location is best closest to the studs while

dislodging them separately.

Removing Tail Light Assembly

484

MAINTAINING YOUR VEHICLE

3. Twist the socket and remove form the light assembly.

4. Pull the bulb to remove it from the socket.

5. Replace the bulb, reinstall the socket, and reattach the
light assembly.

Center High-Mounted Stop Light (CHMSL)

The CHMSL uses LED lights that are not serviceable
separately. The CHMSL must be replaced as an assembly,
see your authorized Dealer.

License Light

The light for the license plate light is located under the
tailgate light bar and above the license plate.

1. Using a small screwdriver, press inward the locking
tab on the outboard side of the light assembly and pull
down on the light assembly for removal.

2. Twist and remove the socket from the light assembly
and pull the bulb out to remove.

3. Push the bulb into the socket, twist the socket into the
light assembly and reinstall the light assembly into place
ensuring the locking tab is secure.

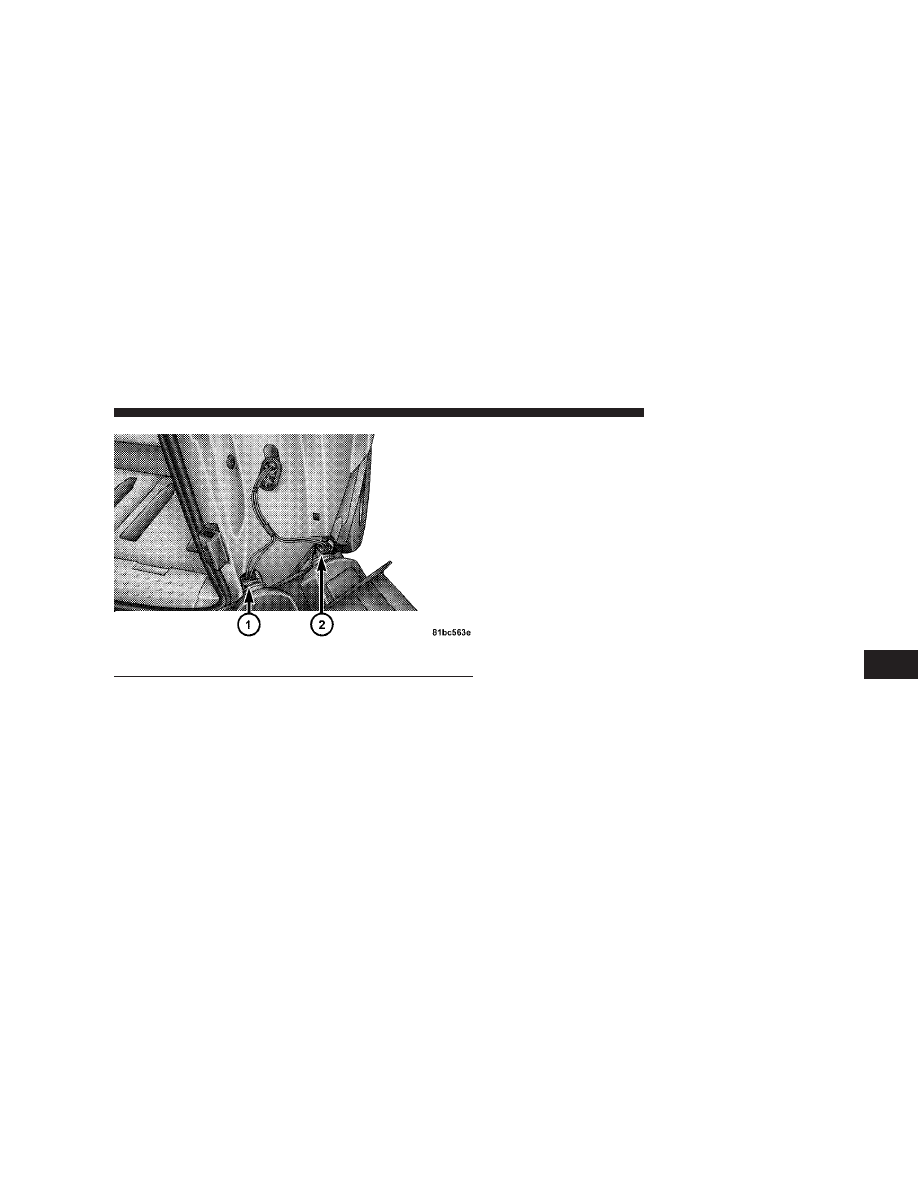

1 — Stop, Tail, Turn Signal

bulb combo

2 — Backup Bulb

MAINTAINING YOUR VEHICLE

485

FLUIDS AND CAPACITIES

U.S.

Metric

Fuel (approximate)
All Engines

20 Gals

76 L

Engine Oil with Filter
3.3L and 3.8L (SAE 5W-20 API Certified)

5.0 Qts

4.7 L

4.0L (SAE 10W-30 API Certified)

5.5 Qts

5.2 L

Cooling System

3.3L, 3.8L and 4.0L (Use Mopar

t Antifreeze/Coolant Five Year/

100,000 Mile Formula or equivalent.)

13.4 Qts

12.6 L

Includes heater and coolant recovery bottle filled to MAX level. Add 2.9 Qts (2.8 L) if equipped with a rear

heater

486

MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine

FLUIDS, LUBRICANTS AND GENUINE PARTS — ENGINE

Component

Fluids, Lubricants and Genuine Parts

Coolant

Mopar

t Antifreeze/Coolant Five Year/100,000 Mile Formula HOAT (Hybrid Organic

Additive Technology) or equivalent

Oil – 3.3L, 3.8L

Use API Certified SAE 5W-20 engine oil. Refer to your oil filler cap for correct SAE
grade, meeting DaimlerChrysler Material Standard MS-6395.

Oil – 4.0L

Use API Certified SAE 10W-30 engine oil. Refer to your oil filler cap for correct SAE
grade, meeting DaimlerChrysler Material Standard MS-6395.

Oil Filter – 3.3L, 3.8L

Mopar

t 4105409 or equivalent

Oil Filter – 4.0L

Mopar 5281090 or equivalent. Refer to your oil filler cap for correct SAE grade.

Spark Plugs – 3.3L, 3.8L,
4.0L

ZFR5LP-13G (Gap.050 in / 1.27 mm)

Fuel – 3.3L, 3.8L

87 Octane

Fuel – 4.0L

87 Octane Acceptable — 89 Recommended

MAINTAINING YOUR VEHICLE

487

Chassis

FLUIDS, LUBRICANTS AND GENUINE PARTS — CHASSIS

Component

Fluids, Lubricants and Genuine Parts

Automatic Transmission

Mopar

t ATF+4 Automatic Transmission Fluid

Brake Master Cylinder

Mopar

t DOT 3 and SAE J1703 should be used or

equivalent. If DOT 3 brake fluid is not available, then
DOT 4 is acceptable. Use only recommended brake flu-
ids.

Power Steering Reservoir

Mopar

t Power Steering Fluid +4 or Mopart ATF+4 Au-

tomatic Transmission Fluid

488

MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULES

CONTENTS

m Emissions Control System Maintenance . . . . . . . 490
m Maintenance Schedule . . . . . . . . . . . . . . . . . . . 490

▫ Required Maintenance Intervals . . . . . . . . . . . 493

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

EMISSIONS CONTROL SYSTEM MAINTENANCE

The Scheduled Maintenance services listed in bold type,
must be done at the times or mileages specified to ensure
the continued proper functioning of the Emissions Con-
trol System. These, and all other maintenance services
included in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.

Inspection and service should also be done anytime a
malfunction is suspected.

NOTE:

Maintenance, replacement, or repair of the emis-

sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.

MAINTENANCE SCHEDULE

The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.

On Non-EVIC equipped vehicles CHAngE OIL will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.

On Electronic Vehicle Information Center (EVIC)
equipped vehicles Oil Change Required will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.

Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 mi (805 km).

490

MAINTENANCE SCHEDULES

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

NOTE:

• The oil change indicator message will not monitor the

time since the last oil change. Change your vehicle’s
oil if it has been six months since your last oil change
even if the oil change indicator message is NOT
illuminated.

• Change your engine oil more often if you drive your

vehicle off-road for an extended period of time.

• Under no circumstances should oil change intervals

exceed 6,000 mi (10 000 km) or six months, whichever
comes first.

Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If this
scheduled oil change is performed by someone other
than your dealer, the message can be reset by referring to
the steps described under “Oil Change Required” in “Use
Factory Settings” of the EVIC section in this manual or

under “Odometer/Trip Odometer” in the “Instrument
Cluster Descriptions section of this manual.

At Each Stop For Fuel

• Check the engine oil level about five minutes after a

fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD, SAFE or MIN mark.

• Check the windshield washer solvent and add if

required.

Once A Month

• Check tire pressure and look for unusual wear or

damage.

• Inspect the battery and clean and tighten the terminals

as required.

MAINTENANCE SCHEDULES

491

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

• Check the fluid levels of coolant reservoir, brake

master cylinder, power steering and transmission and
add as needed.

• Check all lights and other electrical items for correct

operation.

At Each Oil Change

• Change the engine oil filter.
• Inspect the brake hoses and lines.

CAUTION!

Failure to perform the required maintenance items
may result in damage to the vehicle.

492

MAINTENANCE SCHEDULES

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

Required Maintenance Intervals

Perform Maintenance Every

(Where time and mileage

are listed, follow the interval that occurs first.)

Maintenance Items

Miles

Kilometers

or Months

Change the engine oil and engine oil filter.

6,000

10 000

Rotate Tires.

6,000

10 000

If using your vehicle for any of the following: Dusty
or off-road conditions. Inspect the engine air cleaner
filter, replace if necessary.

12,000

20 000

Inspect the brake linings, replace if necessary.

12,000

20 000

Replace the air conditioning filter.

12,000

20 000

Inspect the CV Joints. Perform the first inspection at
12,000 mi (20 000 km) or 12 months.

24,000

40 000

Inspect Exhaust System. Perform the first inspection at
12,000 mi (20 000 km) or 12 months.

24,000

40 000

Inspect the front suspension, tie rod ends and boot
seals, replace if necessary.

24,000

40 000

Replace the engine air cleaner filter.

30,000

50 000

MAINTENANCE SCHEDULES

493

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

Perform Maintenance Every

(Where time and mileage

are listed, follow the interval that occurs first.)

Maintenance Items

Miles

Kilometers

or Months

Change the automatic transmission fluid & filter if
using your vehicle for any of the following: police,
taxi, fleet or frequent trailer towing.

60,000

100 000

Inspect and replace PCV valve if necessary. †

90,000

150 000

Flush and replace the engine coolant.

102,000

170 000

Replace the ignition cables on 3.3L, 3.8L engines.

102,000

170 000

102

Replace the spark plugs on 3.3L, 3.8L, 4.0L engines.

102,000

170 000

102

Replace the timing belt on 4.0L engines.

102,000

170 000

102

Change the automatic transmission fluid & filter.

120,000

200 000

120

Replace Accessory Drive Belt(s).

120,000

200 000

120

† This maintenance is recommended by the manufacturer to the owner, but is not required to maintain emissions
warranty.

494

MAINTENANCE SCHEDULES

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S
