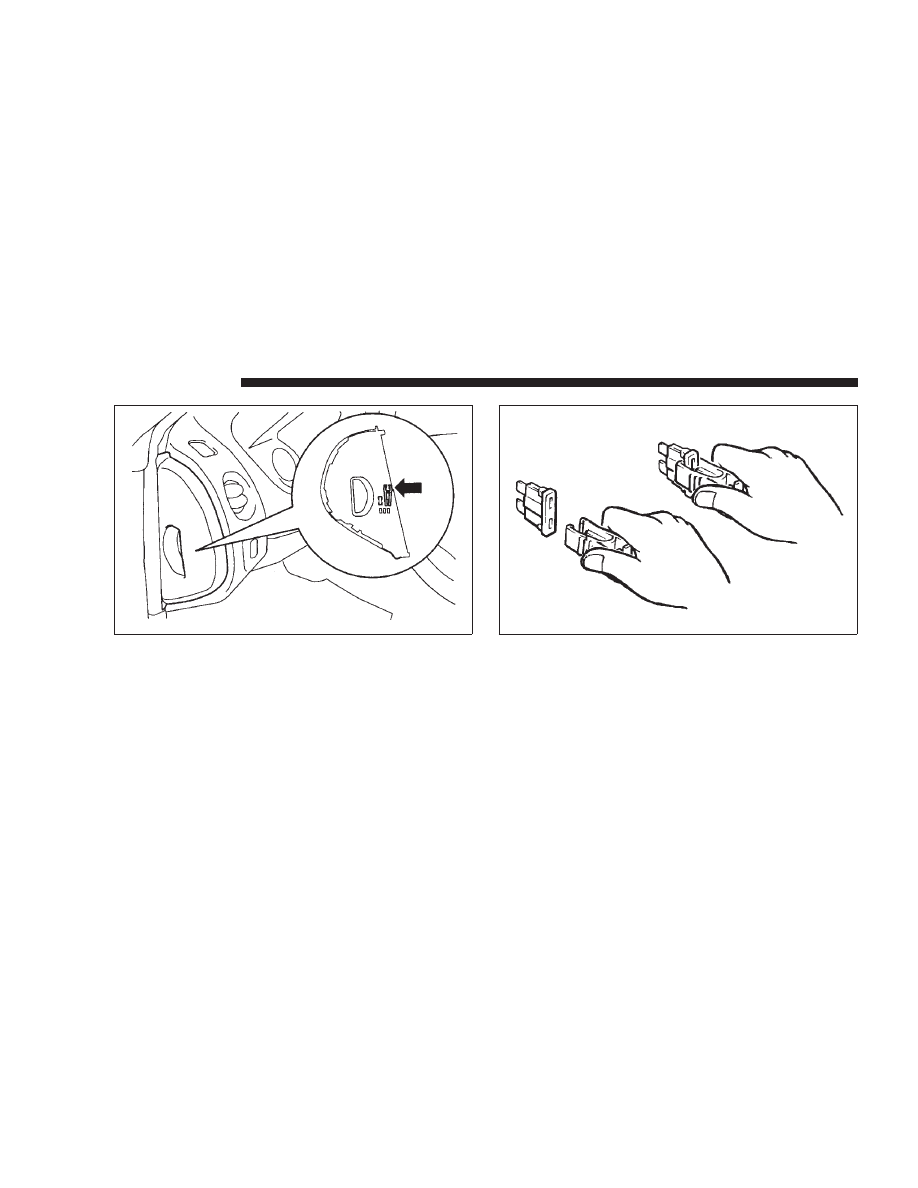

4. There is a fuse puller in the cover of the instrument
panel (driver’s side). Remove the fuse puller, clamp it on
the fuse you wish to remove, and pull the fuse straight
out from the fuse block. If the fuse is not blown, some-
thing else must be causing the problem; contact an
authorized dealer to have the problem checked.

5. Insert a new fuse of the same capacity securely into the
fuse block location.

N29C0200

N29C0010

292

EMERGENCIES

CAUTION!

• Never use a fuse with a capacity larger than that

specified or any substitute, such as wire, foil, etc.
Doing so will cause the circuit wiring to heat up
and could cause a fire.

• If the newly inserted fuse blows again after a

short time, have the electrical system checked by
an authorized dealer to find and correct the cause.

REPLACEMENT OF LIGHT BULBS

Before replacing a bulb, be sure the light is off. Do not
touch the glass part of the new bulb with your bare
fingers; the skin oil left on the glass will evaporate when
the bulb gets hot and the vapor will condense on the
reflector and dim the surface.

Bulb capacity

A bulb should only be replaced with a new bulb of the
same rating and type. The designation can be found on
the base of the bulb.

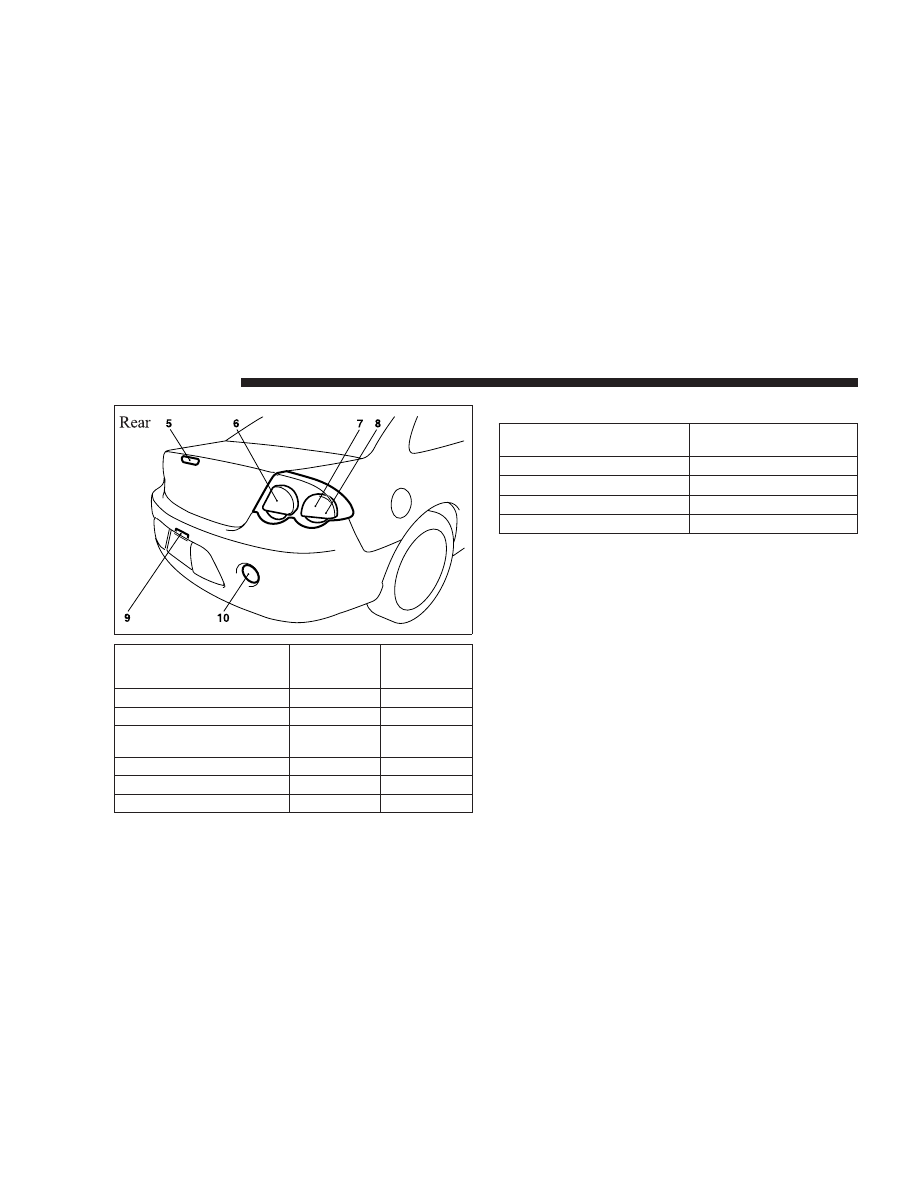

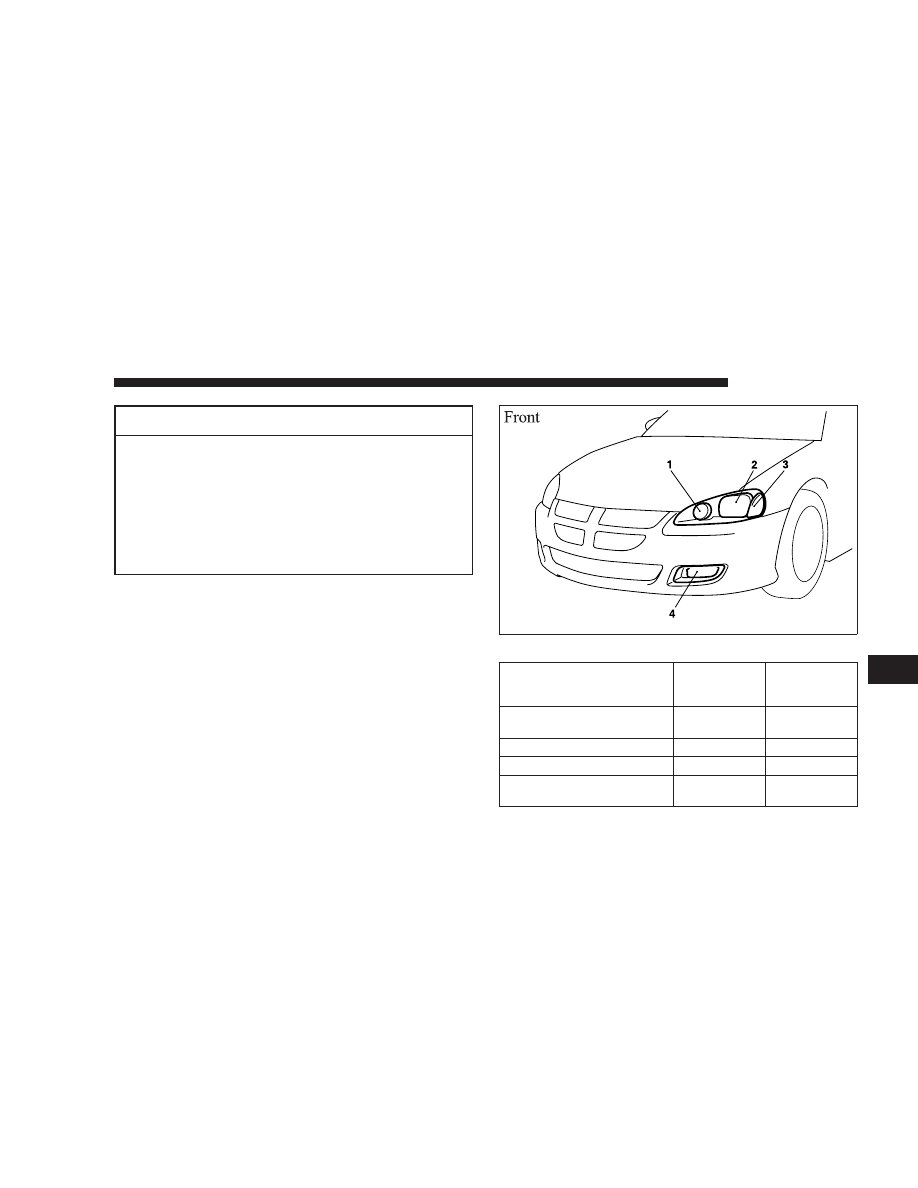

Outside

Description

Wattage or

Candela

Power

ANSI Trade

No. or

Bulb type

1 - Front turn signal and

parking light

2.2cp

3157NAK

2 - Headlight

65/55W

9007(HB5)

3 - Front side marker light

1.5cp

194NA

4 - Front fog light (if so

equipped)

37.5W

896

N10B2820

EMERGENCIES

293

8

Description

Wattage or

Candela

Power

ANSI Trade

No. or

Bulb type

5 - High-mounted stop light

18w

921

6 - Stop and tail light

32/2cp

2057

7 - Rear turn signal and tail

light

32/2cp

2057

8 - Rear side marker light

5W

W5W

9 - License plate light

3cp

168

10 - Back up light

32cp

1156

Inside

Description

Wattage or

Candela Power

Dome Light

10W

Reading light

4W

Rear personal light

8W

Trunk light

5W

N10B2830

294

EMERGENCIES

Headlights

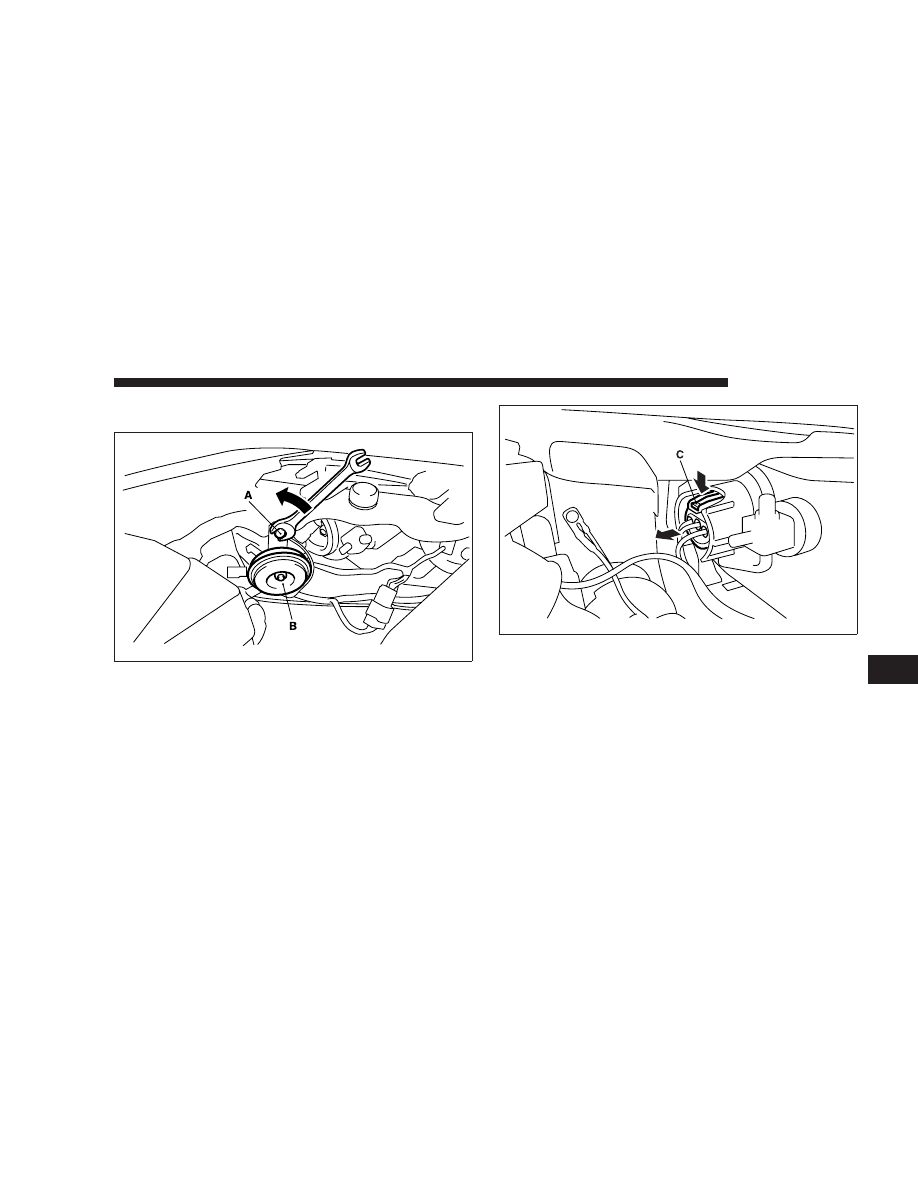

1. Loosen the bolt (A), move the horn (B) (left side only).

2. Push the connector (C) to disconnect and remove the
harness connector.

N10C1760

N10C1880

EMERGENCIES

295

8

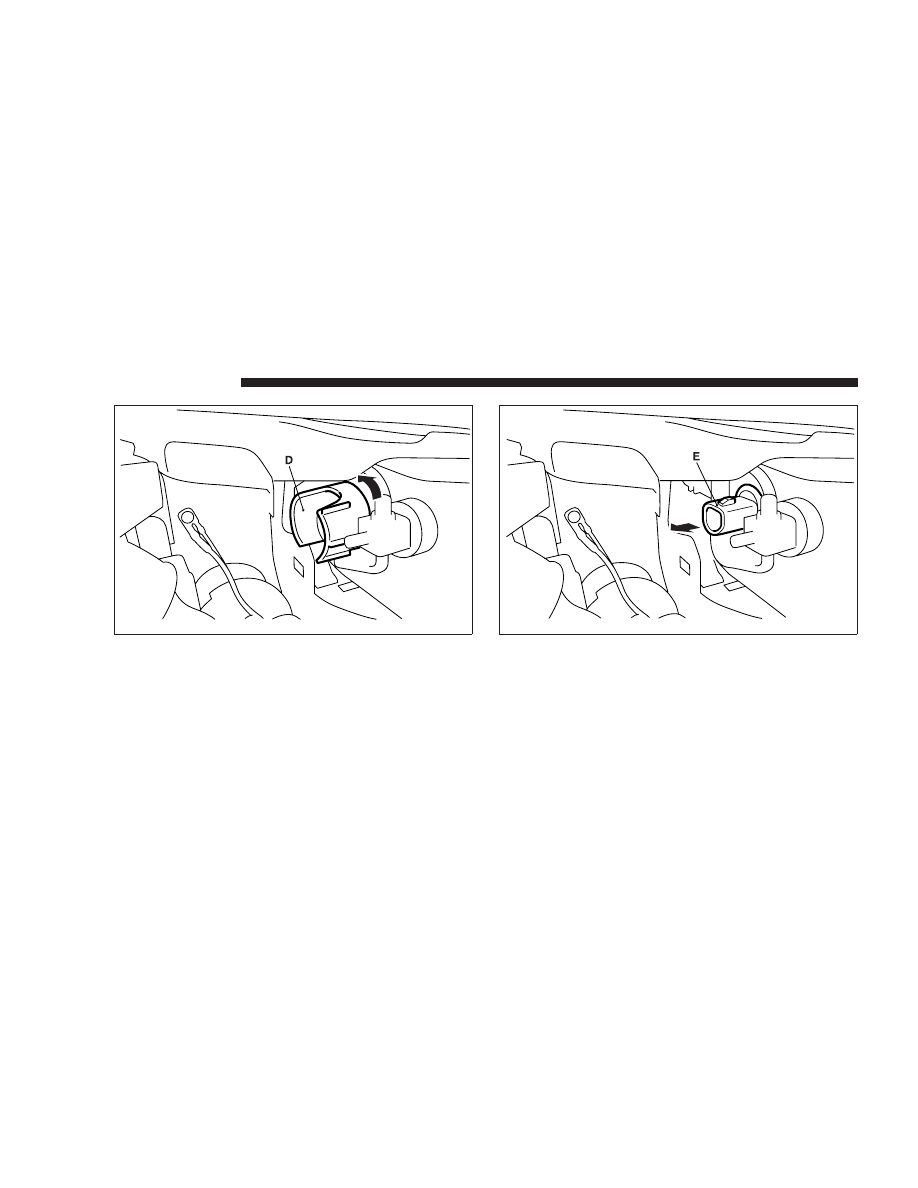

3. Remove the locking cap (D) by turning it counter-
clockwise.

4. Remove the bulb (E).

N10C1890

N10C1900

296

EMERGENCIES

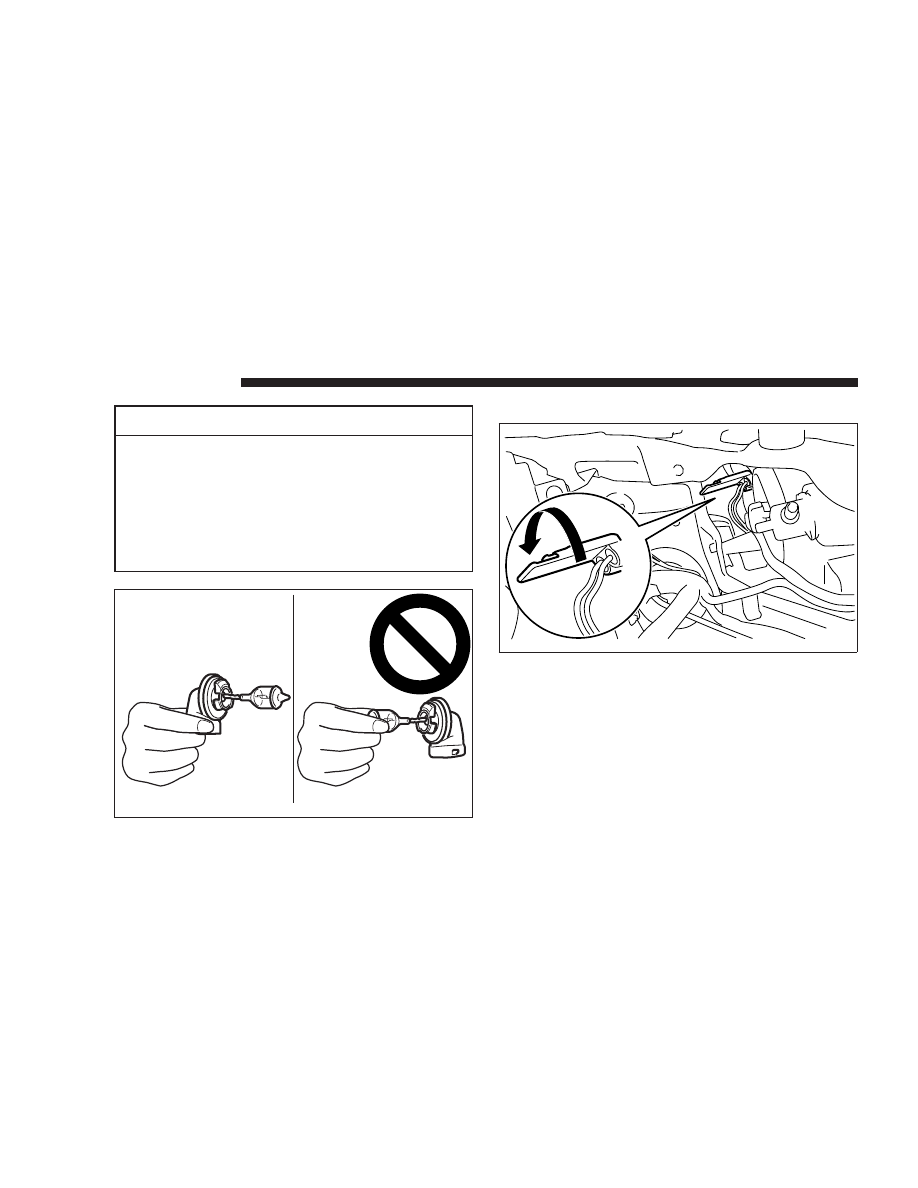

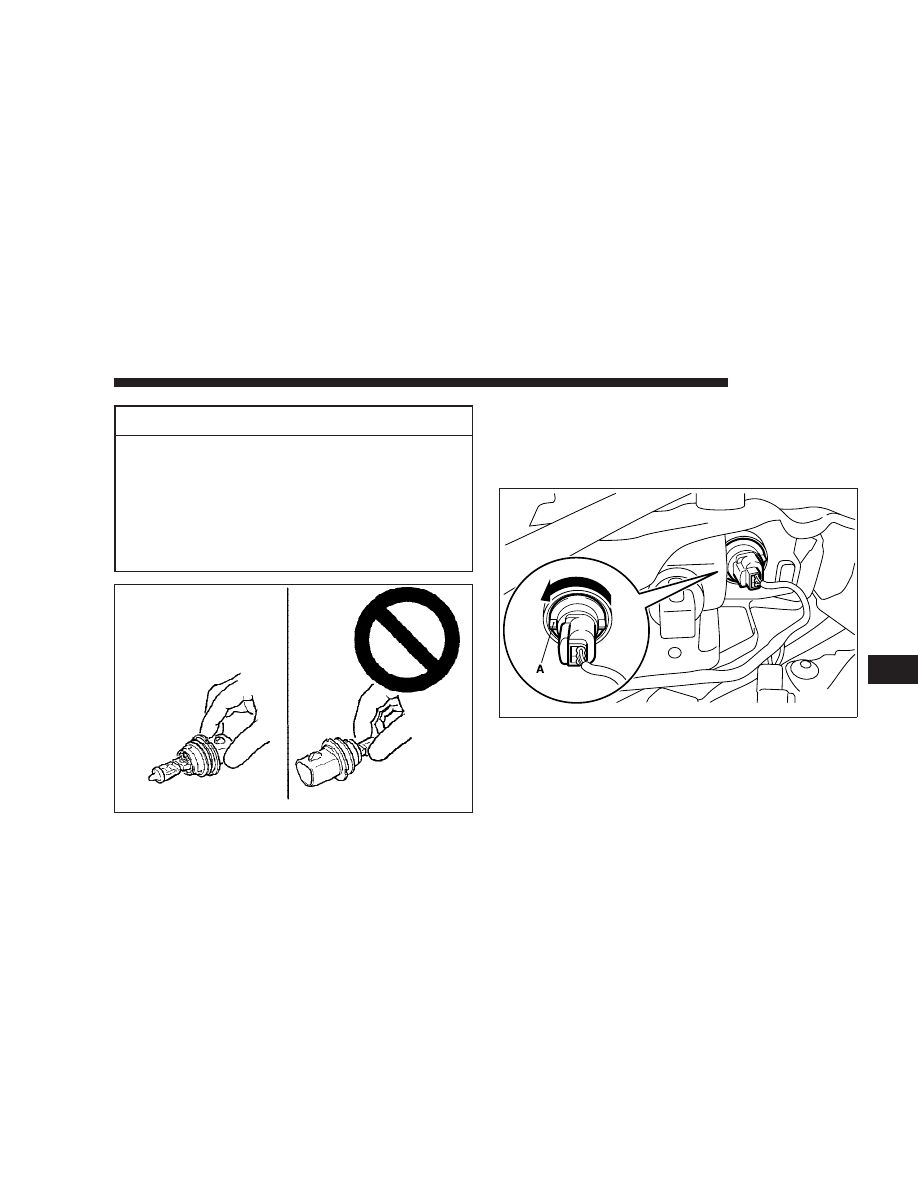

CAUTION!

• Never hold the halogen light bulb with a bare

hand, dirty glove, etc. The oil from your hand
could cause the bulb to break the next time the
headlights are operated.
If the glass surface is dirty, it should be cleaned
with alcohol and installed after drying thor-
oughly.

Adjustment of headlight aim

The alignment of the headlights should be checked by an
authorized dealer.

Front turn signal and parking lights

Turn the light socket (A) counterclockwise and pull it out
and remove the light bulb.

N10C1160

N10F0820

EMERGENCIES

297

8

Front fog lights (if so equipped)

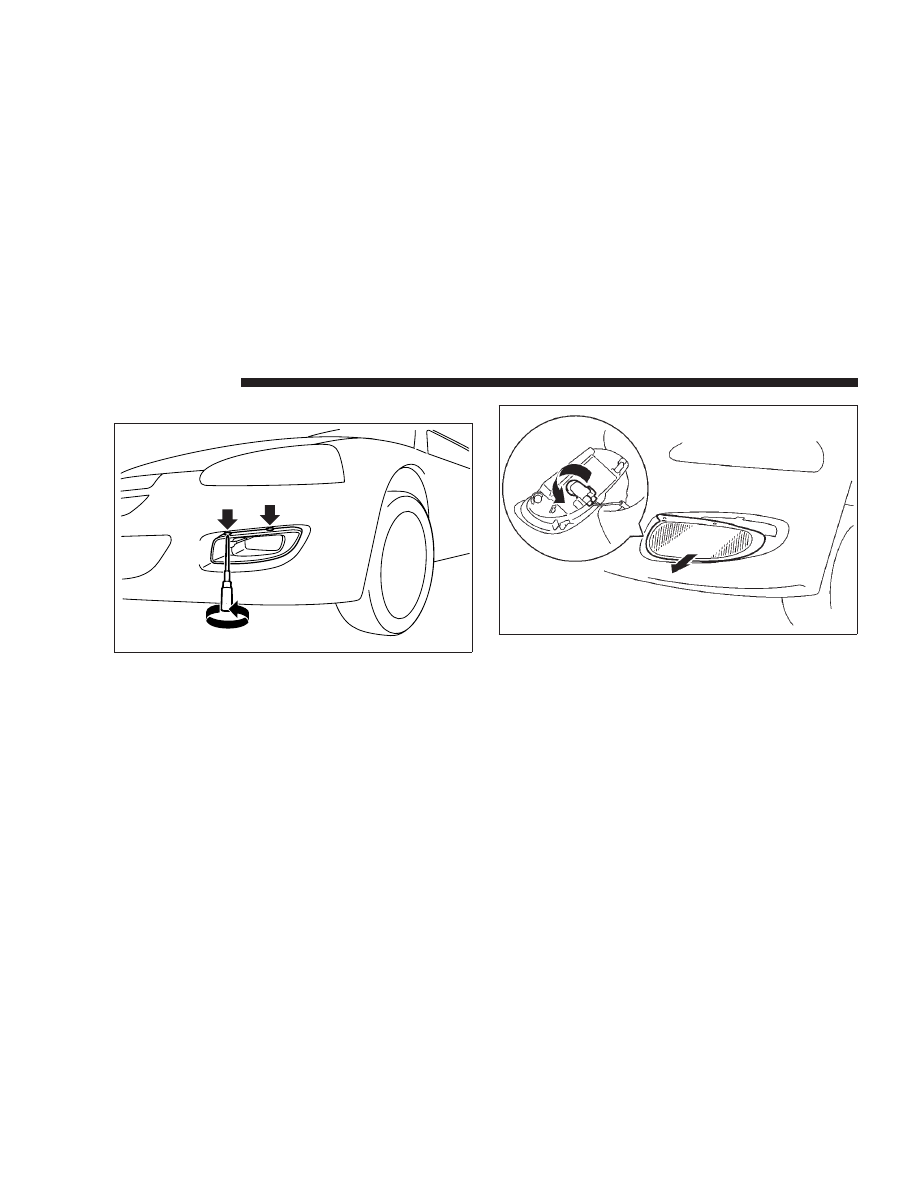

1. Insert a screwdriver as shown in the illustration and
remove the screws.

2. Slide the light unit outward to remove it. Turn the
light socket counterclockwise and pull it out.

N10X1630

N10X1460

298

EMERGENCIES

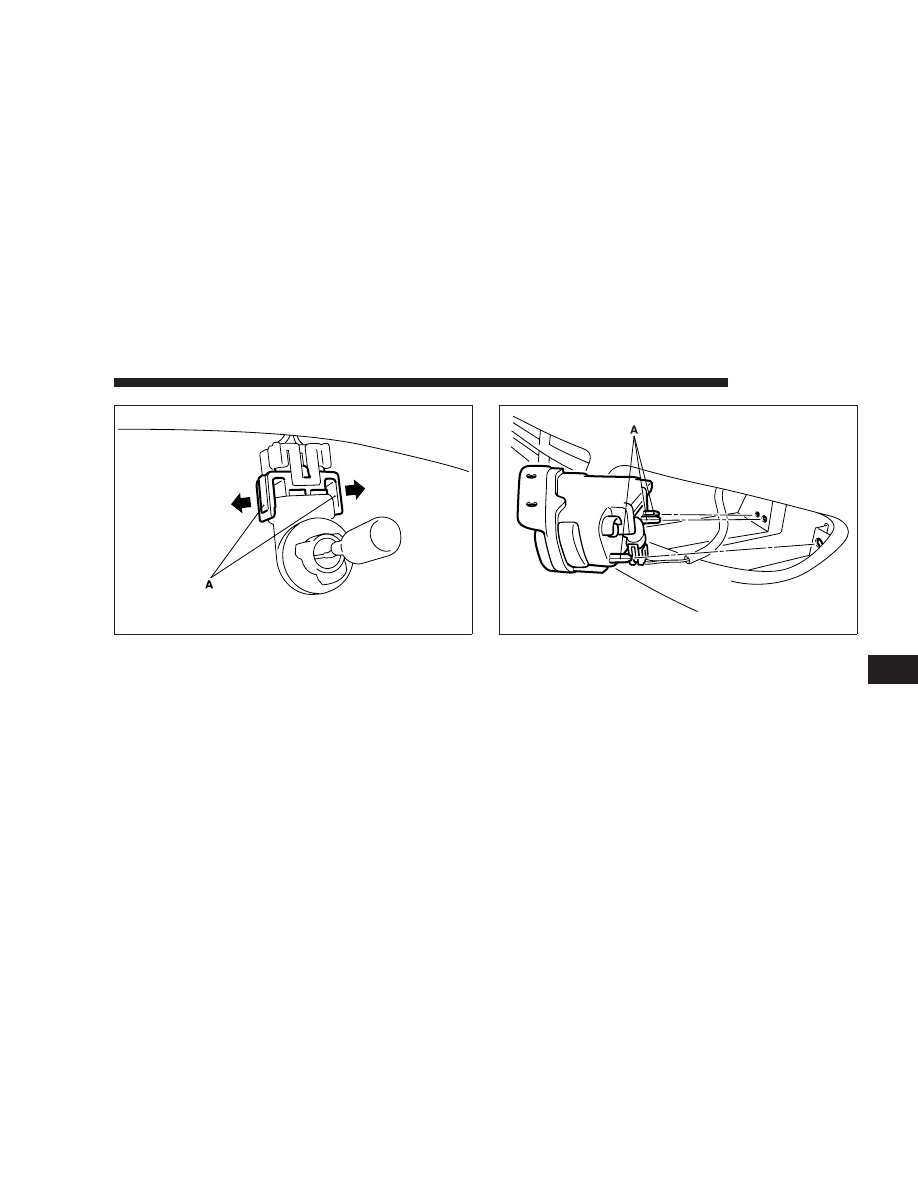

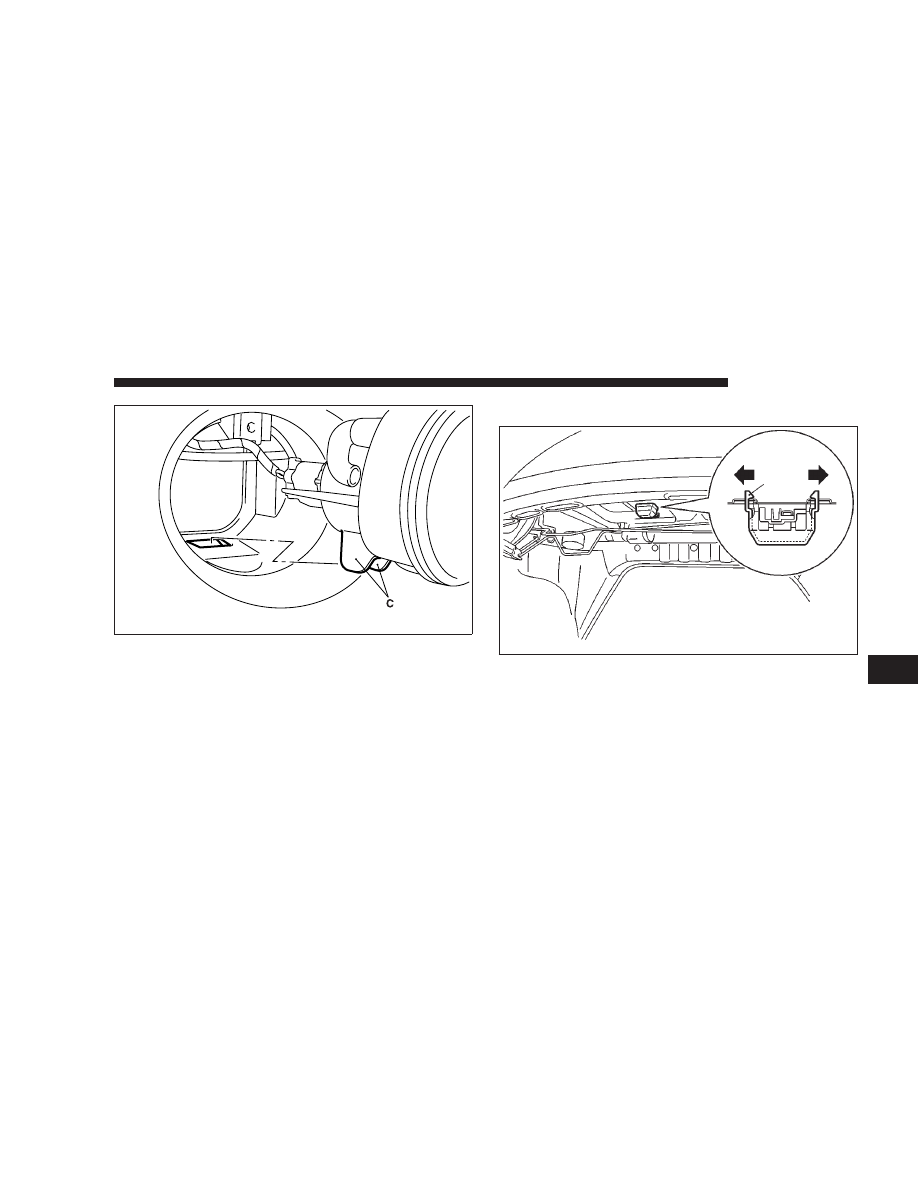

3. Pull both clips (A) away from the center as shown and
remove the bulb from the socket by pulling out.

4. When mounting the light unit, align the pins (A) on
the light unit with the holes in the body.

N10X1700

N10X1740

EMERGENCIES

299

8

CAUTION!

• Never hold the halogen light bulb with a bare

hand, dirty glove, etc. The oil from your hand
could cause the bulb to break the next time the fog
lights are operated.
If the glass surface is dirty, it should be cleaned
with alcohol and installed after drying thor-
oughly.

Front side marker lights

Turn the light socket counterclockwise and pull it out and
remove the light bulb.

N10X1770

N10D0170

300

EMERGENCIES

Rear combination lights

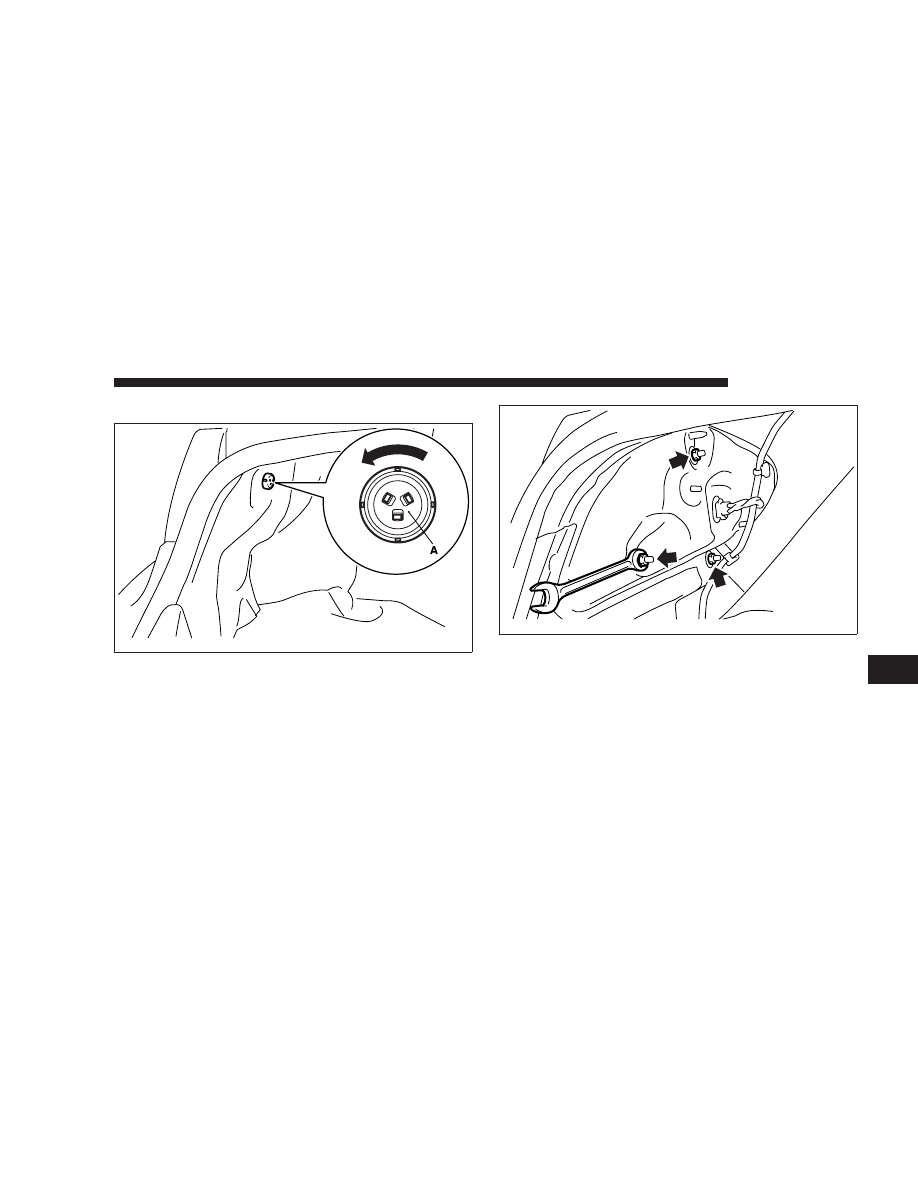

1. Turn the trim cover clip (A) counterclockwise and
remove the trim cover clip. Partially remove the trim
cover in the trunk.

2. Remove the light case mounting nuts. Disconnect the
connector.

N20I0170

N20I0160

EMERGENCIES

301

8

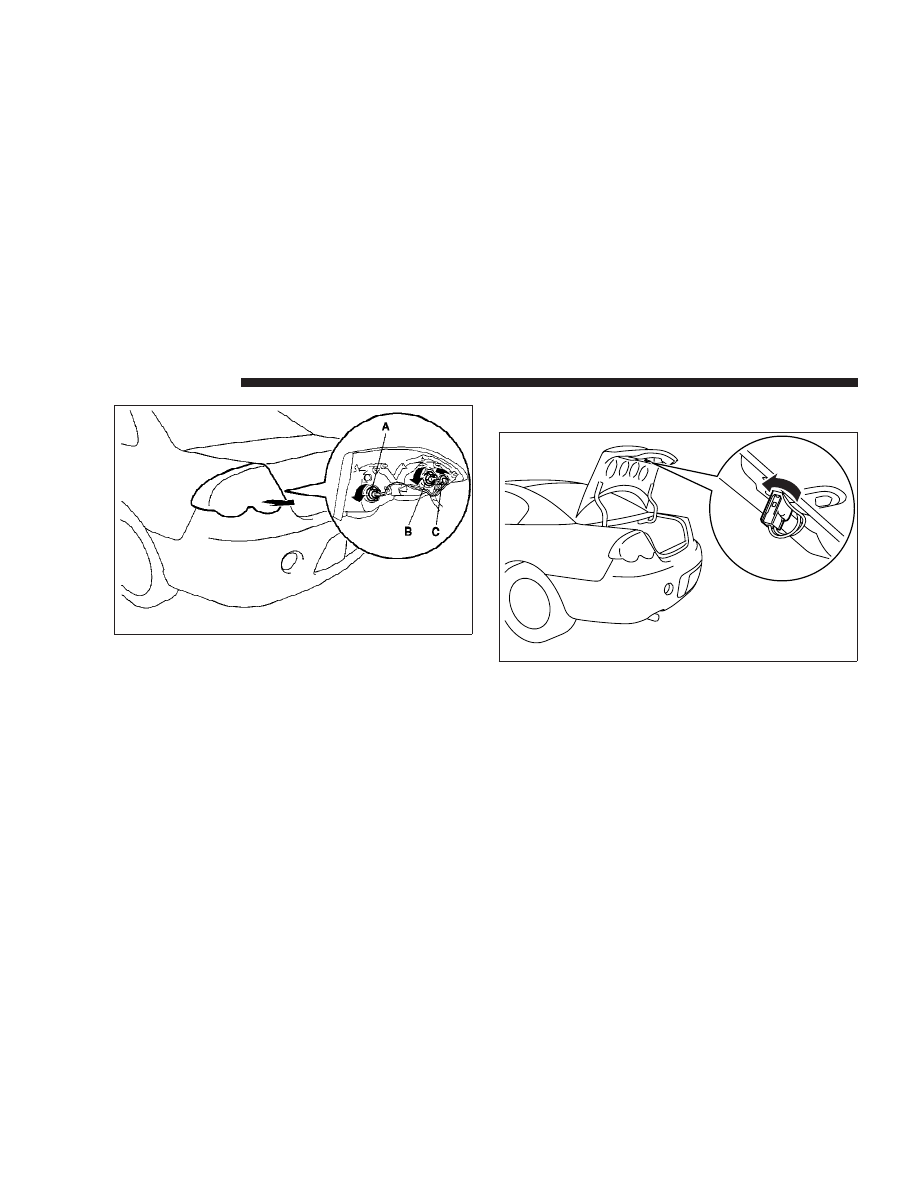

3. Slide the light unit outward to remove it. Remove each
bulb socket assembly by turning it counterclockwise.
Remove the bulb from the socket by turning it counter-
clockwise while pressing it inward.

High-mounted stop light

Remove the socket assembly and bulb together by turn-
ing it counterclockwise.
Remove the bulb from the socket by pulling out.

N20I0290

A - Stop and tail light
B - Rear turn signal and tail

light

C - Rear side marker light

N10V0710

302

EMERGENCIES

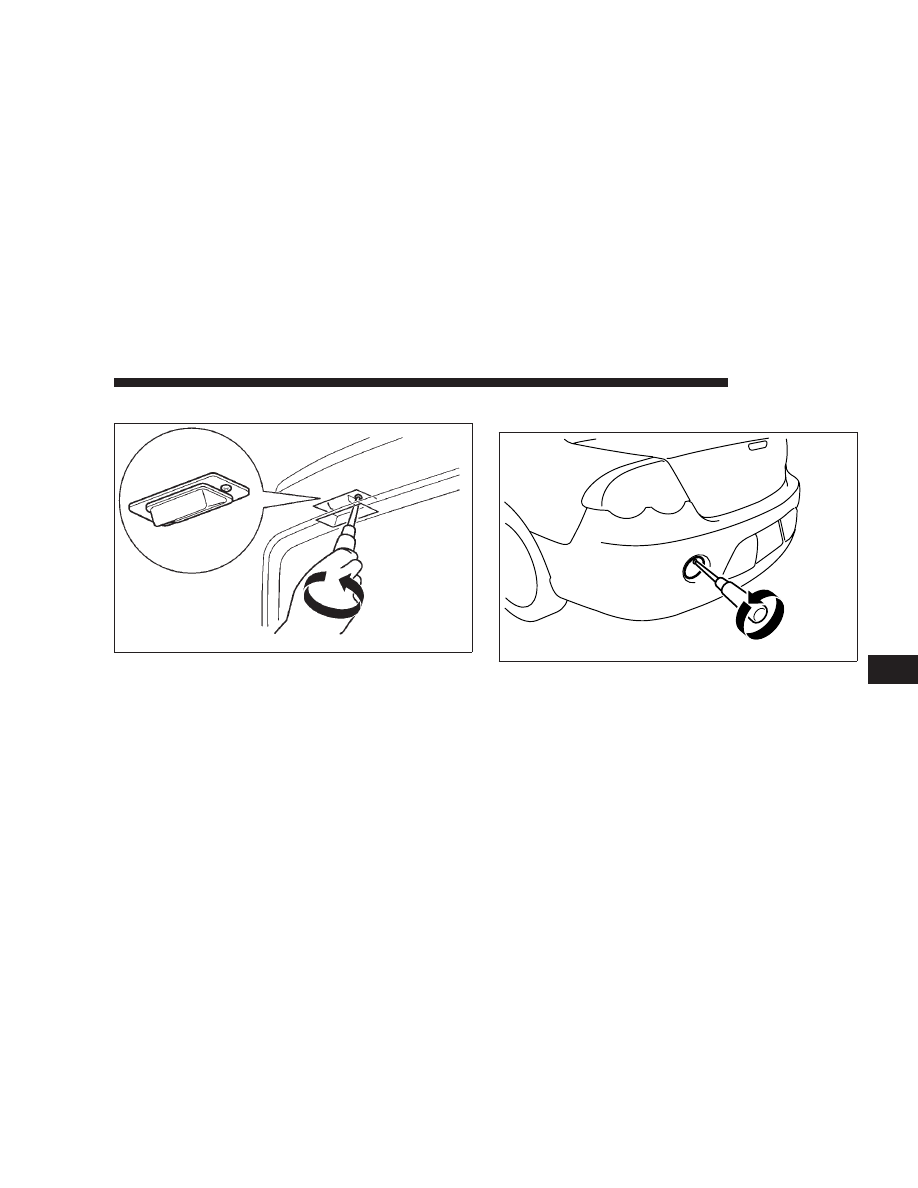

License plate light

Remove the lens mounting screws, remove the socket
assembly and the bulb together by turning it counter-
clockwise. And remove the bulb by pulling out.

Back up lights

1. Remove the light mounting screw and pull the entire
light bracket out.

N10J0310

N11H0140

EMERGENCIES

303

8

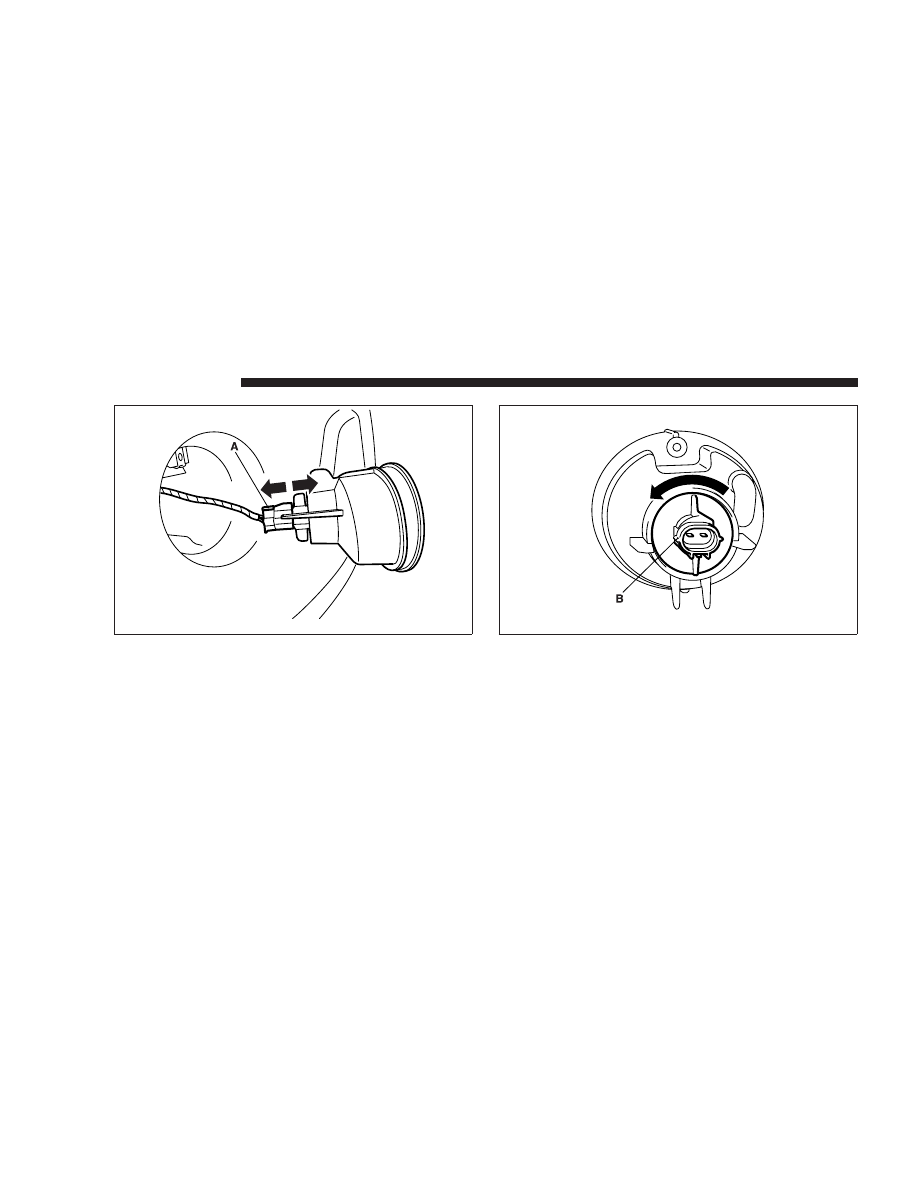

2. Push the connector (A) to disconnect and remove the
light bulb.

3. Remove the entire socket and bulb assembly (B) by
turning it counterclockwise.

N11H0150

N11H0160

304

EMERGENCIES

4. When mounting the light unit, align the pin (C) on the
light unit with the hole in the body.

Trunk light

Pull both clips away from the center as shown and
remove the light unit. Then remove the bulb by pulling
out.

N11H0170

N10O0230

Clips

EMERGENCIES

305

8

Dome light

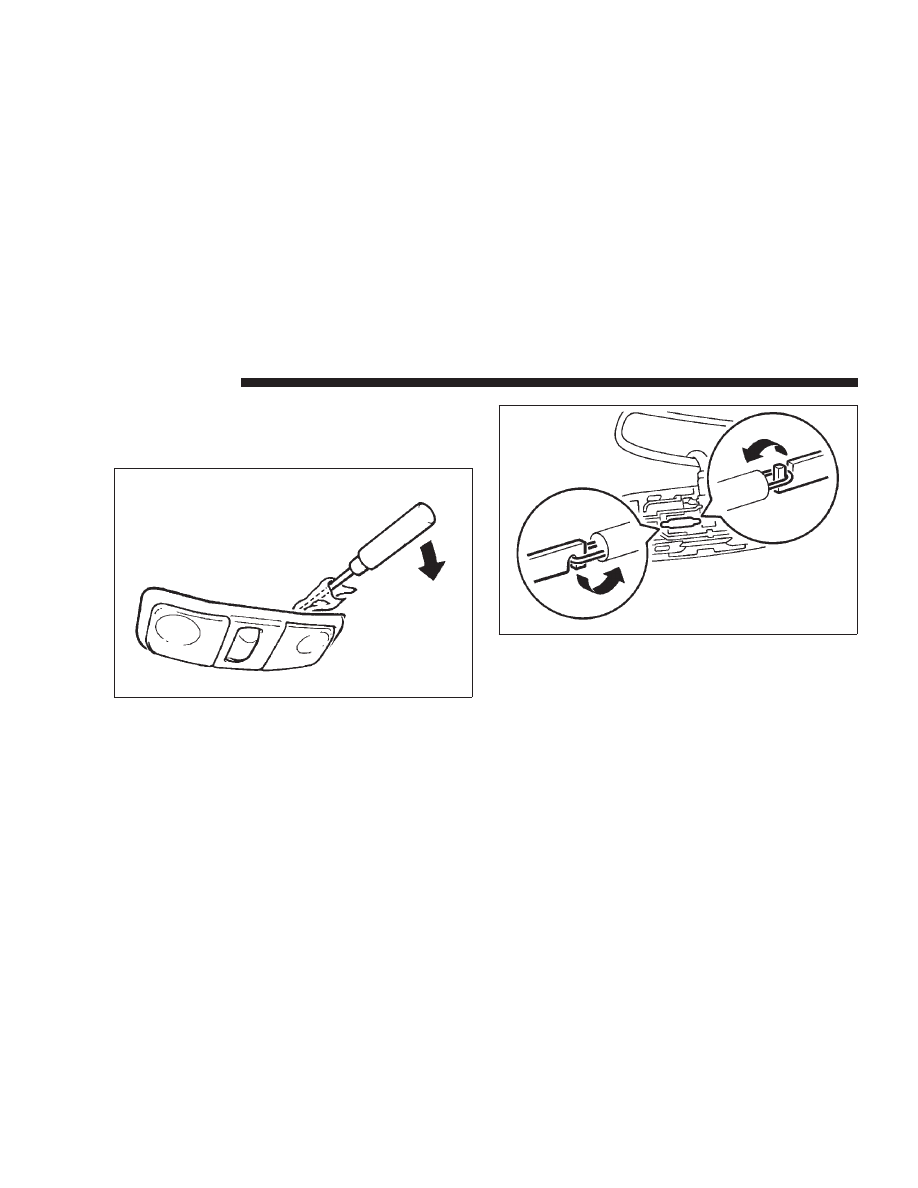

1. Insert a flat blade screwdriver into the notch of the
light assembly and pry gently downward to remove it.

NOTE

: Wrap a cloth around the tip of the screwdriver to

avoid scratching the light assembly.

2. Remove the light bulb from the light holder.

N10M0380

N10M0410

306

EMERGENCIES

Reading lights

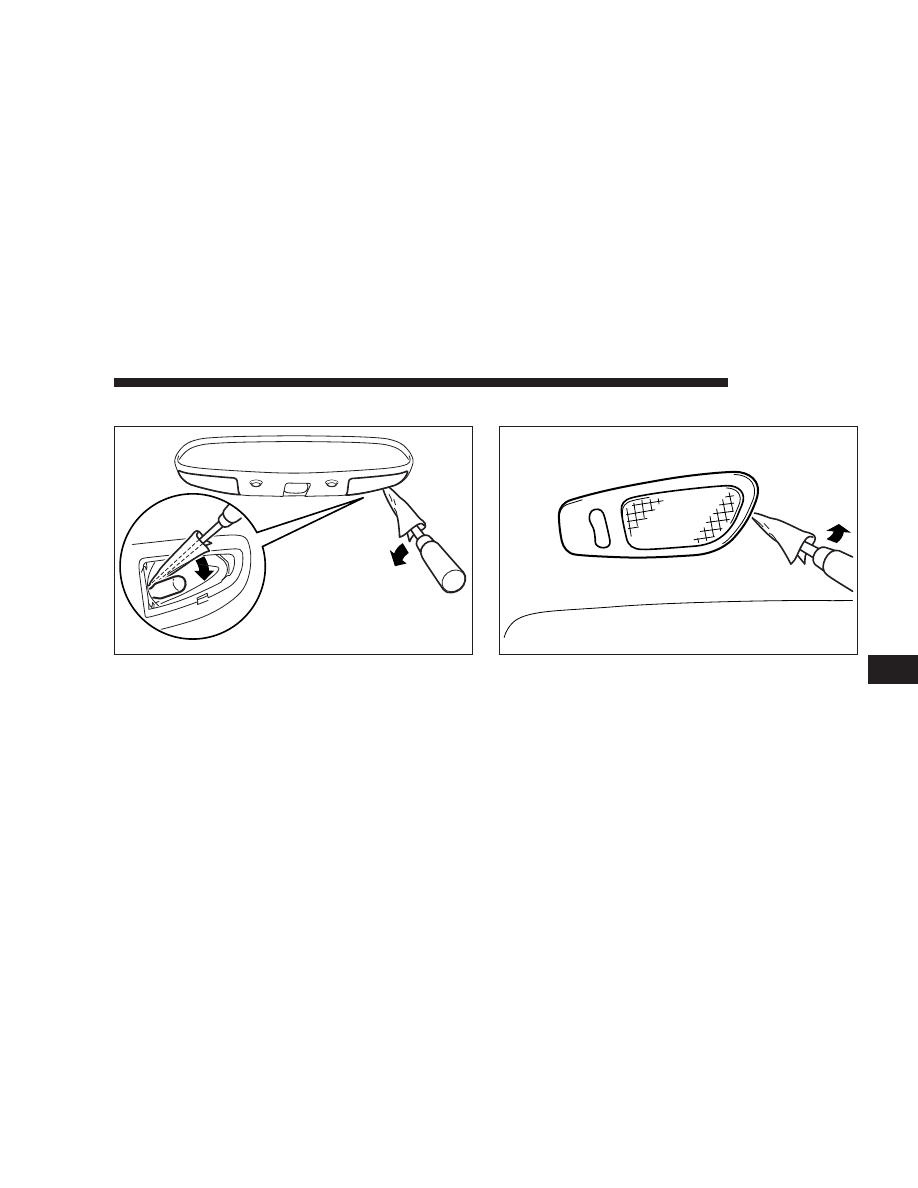

Insert a straight blade screwdriver into the notch of the
light assembly and pry gently to remove the lens.
Remove the light bulb from the light holder.

NOTE

: Wrap a cloth around the tip of the straight blade

screwdriver in order to avoid scratching the lens.

Rear personal light

Insert the tip of a flat blade screwdriver at the edge of the
lens, pry gently to remove the lens, and then remove the
bulb from the light holder.

NOTE

: Wrap a cloth around the tip of the screwdriver in

order to avoid scratching the lens.

N11I0040

N10Q0090

EMERGENCIES
