Dodge 2500 Diesel (2005 year). Manual

Miles

82,500

90,000

97,500

100,000

105,000

(Kilometers)

(132 000)

(144 000)

(156 000)

(160 000)

(168 000)

[Months]

[66]

[72]

[78]

[84]

Inspect front wheel bearings.

Inspect brake linings.

Inspect and adjust parking brake if necessary.

Drain and refill automatic transmission fluid. Re-
place filter and adjust bands (48 RE only).

420

SCHEDULE “A”

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

Miles

112,500

120,000

127,500

135,000

142,500

150,000

(Kilometers)

(181 000)

(193 000)

(205 000) (217 000) (229 000) (241 000)

[Months]

[90]

[96]

[102]

[108]

[114]

[120]

Change engine oil and engine oil filter.

Lubricate Front Drive Shaft Fitting (2500/
3500, 4X4).

Rotate tires.

Lubricate outer tie rod ends 2500/3500 (4X4)
models only.

Flush and replace engine coolant at 120
months, if not replaced at 100,000 miles (160
000 km).

Inspect drive belt, replace as required.

Drain and refill transfer case fluid (4X4).

Check tranfer case fluid level (4X4).

Inspect fan hub.

Inspect damper.

Inspect water pump weep hole for blockage.

SCHEDULE “A”

421

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

Miles

112,500

120,000

127,500

135,000

142,500

150,000

(Kilometers)

(181 000)

(193 000)

(205 000) (217 000) (229 000) (241 000)

[Months]

[90]

[96]

[102]

[108]

[114]

[120]

Replace fuel filter element. Clean the water in
fuel sensor.

Inspect front wheel bearings.

Inspect brake linings.

Inspect and adjust parking brake if necessary.

Adjust valve lash clearance.

Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all re-
ceipts.

WARNING!

You can be badly injured working on or around a
motor vehicle. Do only that service work for which
you have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.

422

SCHEDULE “A”

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

IF YOU NEED CONSUMER ASSISTANCE

CONTENTS

䡵 Suggestions For Obtaining Service For Your

Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424

▫ Prepare For The Appointment . . . . . . . . . . . . 424
▫ Prepare A List . . . . . . . . . . . . . . . . . . . . . . . . 424
▫ Be Reasonable With Requests . . . . . . . . . . . . . 424

䡵 If You Need Assistance . . . . . . . . . . . . . . . . . . . 424

䡵 Warranty Information . . . . . . . . . . . . . . . . . . . . 426
䡵 Mopar威 Parts . . . . . . . . . . . . . . . . . . . . . . . . . 428
䡵 Reporting Safety Defects . . . . . . . . . . . . . . . . . . 428

▫ In Canada . . . . . . . . . . . . . . . . . . . . . . . . . . 428

䡵 Publication Order Forms . . . . . . . . . . . . . . . . . . 429

SUGGESTIONS FOR OBTAINING SERVICE FOR
YOUR VEHICLE

Prepare For The Appointment
If you’re having warranty work done, be sure to have the
right papers with you. Take your warranty folder. All
work to be performed may not be covered by the
warranty, discuss additional charges with the service
manager. Keep a maintenance log of your vehicle’s
service history. This can often provide a clue to the
current problem.

Prepare A List
Make a written list of your vehicle’s problems or the
specific work you want done. If you’ve had an accident,
or work done that is not on your maintenance log, let the
service advisor know.

Be Reasonable With Requests
If you list a number of items, and you must have your
vehicle by the end of the day, discuss the situation with the
service advisor and list the items in order of priority. At
many dealers you may obtain a rental vehicle at a minimal
daily charge. If you need a rental, it is advisable to make
these arrangements when you call for an appointment.

IF YOU NEED ASSISTANCE
The manufacturer and its dealers are vitally interested in
your satisfaction. We want you to be happy with our
products and services.

Warranty service must be done by an authorized Chrysler,
Dodge, or Jeep dealer. We strongly recommend that you
take your vehicle to you selling dealer. They know you
and your vehicle best, and are most concerned that you
get prompt and high quality service. The manufacturer’s
dealers have the facilities, factory-trained technicians,
special tools, and the latest information to assure your
vehicle is fixed correctly and in a timely manner.

424

IF YOU NEED CONSUMER ASSISTANCE

This is why you should always talk to your dealer’s
service manager first. Most matters can be resolved with
this process.

• If for some reason you are still not satisfied, talk to the

general manager or owner of the dealership. They
want to know if you need assistance.

• If your dealership is unable to resolve the concern, you

may contact the Manufacturer’s Customer Center.

Any communication to the Manufacturer’s Customer
Center should include the following information:

• Owner’s name and address
• Owner’s telephone number (home and office)
• Dealership name
• Vehicle identification number
• Vehicle delivery date and mileage

DaimlerChrysler Motors Corporation Customer Center
P.O. Box 21–8004
Auburn Hills, MI 48321–8004
Phone: (800) 992-1997
DaimlerChrysler Canada Inc. Customer Center
P.O. Box 1621
Windsor, Ontario N9A 4H6
Phone —(800) 465–2001
In Mexico contact:
Av. Prolongacion Paseo de la Reforma, 1240
Sante Fe C.P. 05109
Mexico, D. F.
In Mexico (915) 729–1248 or 729–1240
Outside Mexico (525) 729–1248 or 729–1240

Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommuni-
cation Devices for the Deaf) equipment at its Customer

IF YOU NEED CONSUMER ASSISTANCE

425

Center. Any hearing or speech impaired customer who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States can communicate with the
manufacturer by dialing 1–800–380–CHRY.

Service Contract
You may have purchased a service contract for your
vehicle to help protect you from the high cost of unex-
pected repairs after your manufacturer’s new vehicle
limited warranty expires. The manufacturer stands be-
hind only the manufacturer’s Service Contracts. If you
purchased a manufacturer’s Service Contract, you will
receive Plan Provisions and an Owner Identification Card
in the mail within three weeks of your vehicle delivery
date. If you have any questions about your service
contract, call the manufacturer’s Service Contract Na-
tional Customer Hotline at 1-800-521-9922.

The manufacturer will not stand behind any service
contract that is not the manufacturer’s Service Contract. It
is not responsible for any service contract other than the
manufacturer’s Service Contract. If you purchased a

service contract that is not a manufacturer’s Service
Contract, and you require service after your manufactur-
er’s new vehicle limited warranty expires, please refer to
your contract documents, and contact the person listed in
those documents.

We appreciate that you have made a major investment
when you purchased your new vehicle. Your dealer has
also made a major investment in facilities, tools, and
training to assure that you are absolutely delighted with
your ownership experience. You’ll be pleased with their
sincere efforts to resolve any warranty issues or related
concerns.

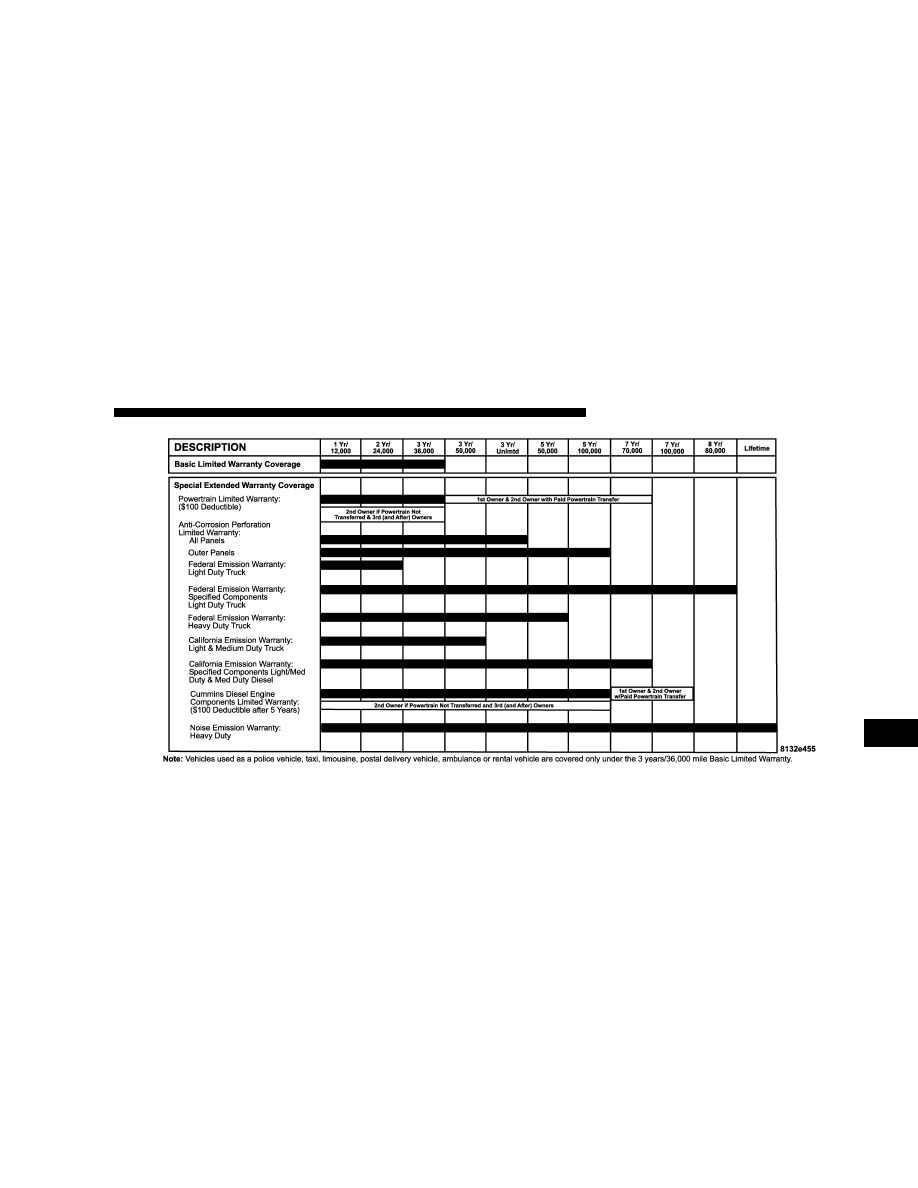

WARRANTY INFORMATION
See your manufacturer’s Warranty Information Booklet
for information on warranty coverage and transfer of
warranty.

426

IF YOU NEED CONSUMER ASSISTANCE

MOPAR

姞 PARTS

Mopar

威 fluids, lubricants, parts, and accessories are

available from your dealer. They will help you keep your
vehicle operating at its best.

REPORTING SAFETY DEFECTS
In the 50 United States and Washington D.C.: If you
believe that your vehicle has a defect which could cause
a crash or cause injury or death, you should immediately
inform the National Highway Traffic Safety Administra-
tion (NHTSA) in addition to notifying the manufacturer.

If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in
individual problems between you, your dealer, and the
manufacturer.

To contact NHTSA, you may either call the Auto Safety
Hotline toll free at 1-800-424-9393 (or 366-0123 in Wash-
ington DC area) or write to: NHTSA, U.S. Dept. of
Transportation, Washington DC 20590. You can also
obtain other information about motor vehicle safety from
the Hotline.

In Canada:
If you believe that your vehicle has a safety defect, you
should contact the Customer Service Department imme-
diately. Canadian customers who wish to report a safety
defect to the Canadian government should write to
Transport Canada, Motor Vehicle Defect Investigations
and Recalls, 2780 Sheffield Road, Ottawa, Ontario K1B
3V9.

428

IF YOU NEED CONSUMER ASSISTANCE

PUBLICATION ORDER FORMS
To order the following manuals, you may use either the
website or the phone numbers listed below. Visa, Mas-
tercard, American Express, and Discover orders are ac-
cepted. If you prefer mailing your payment, please call
for an order form.

NOTE:

A street address is required when ordering

manuals. (No P.O. Boxes).

• Service Manuals.

These comprehensive service manuals provide the
information that students and professional technicians
need in diagnosing/troubleshooting, problem solving,
maintaining, servicing and repairing DaimlerChrysler
Corporation vehicles. A complete working knowledge
of the vehicle, system and/or components is written in
straightforward language with illustrations, diagrams
and charts.

• Diagnostic Procedure Manuals.

Filled with diagrams, charts and detailed illustrations,
these practical manuals make it easy for students and
technicians to find and fix problems on computer-
controlled vehicle systems and features. They show
exactly how to find and correct problems the first time,
using step-by-step troubleshooting and driveability
procedures, proven diagnostic tests and a complete list
of all tools and equipment.

• Owner’s Manuals.

These manuals have been prepared with the assistance
of service and engineering specialists to acquaint you
with specific Chrysler group vehicles. Included are
starting, operating, emergency and maintenance pro-
cedures as well as specifications, capabilities and
safety tips.

IF YOU NEED CONSUMER ASSISTANCE

429
