To Turn On the Passenger Airbag (Standard Cab Ve-
hicles Only)

Place the ignition key in the Passenger Airbag On/Off
Switch, push the key in and turn counterclockwise, and
remove the key from the switch. This will turn on the
passenger airbag. The “Off” light near the switch will be
off when the ignition switch is turned to the ON position.

If A Deployment Occurs
The airbag system is designed to deploy when the air bag
control module detects a moderate-to-severe frontal col-
lision, and then immediately to deflate.

NOTE:

A frontal collision that is not severe enough to

need airbag protection will not activate the system. This
does not mean something is wrong with the airbag
system.

If you do have a collision which deploys the airbags, any
or all of the following may occur:

• The nylon airbag material may sometimes cause abra-

sions and/or skin reddening to the driver and front
passenger as the airbags deploy and unfold. The
abrasions are similar to friction rope burns or those
you might get sliding along a carpet or gymnasium
floor. They are not caused by contact with chemicals.
They are not permanent and normally heal quickly.
However, if you haven’t healed significantly within a
few days, or if you have any blistering, see your doctor
immediately.

• As the airbags deflate you may see some smoke-like

particles. The particles are a normal by-product of the
process that generates the nontoxic gas used for airbag
inflation. These airborne particles may irritate the skin,
eyes, nose, or throat. If you have skin or eye irritation,
rinse the area with cool water. For nose or throat

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

irritation, move to fresh air. If the irritation continues,
see your doctor. If these particles settle on your
clothing, follow the garment manufacturer’s instruc-
tions for cleaning.

• It is not advisable to drive your vehicle after the

airbags have deployed. If you are involved in another
collision, the airbags will not be in place to protect you.

WARNING!

Deployed airbags can’t protect you in another colli-
sion. Have the airbags replaced by an authorized
dealer as soon as possible.

Window Airbags Supplemental Restraint System
(SRS)—If Equipped
The window airbag control module determines if a side
collision is severe enough to require the side airbags to
inflate. The window airbag control module will not
detect roll over, front or rear collisions.

The airbag control module monitors the readiness of the
electronic parts of the system whenever the ignition
switch is in the

9START9 or 9RUN9 positions. These

include all of the items listed above. The airbag control
module also turns on the AIRBAG light in the instrument
panel for 6 to 8 seconds when the ignition is first turned
on as a diagnostic or system check, then turns the light
off. If it detects a malfunction in any part of the system,
it turns on the light either momentarily or continuously.

The side (window) impact SRS Airbags are designed to
activate only in certain side collisions. When the airbag
control module detects a collision requiring the window

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

bags to inflate, it signals the inflators on the crash side of
the vehicle. A quantity of nontoxic gas is generated to
inflate the window bag. The inflating window bag
pushes the side pillar molding out of the way and covers
the window. The airbag inflates in about 30 milliseconds
(about one-quarter of the time it takes to blink your eyes)
with enough force to injure you if you are not belted and
seated properly, or if items are positioned in the area
where the window bag inflates. This especially applies to
children. The window bag is only about 3

⁄

inches (8.9

cm) thick when it is inflated.

Enhanced Accident Response System
If the airbags deploy after an impact and the electrical
system remains functional, vehicles equipped with
power door locks will unlock automatically. In addition,
approximately 10 seconds after the vehicle has stopped
moving, the interior lights will light until the ignition
switch is turned off.

Maintaining Your Airbag Systems

WARNING!

• Modifications to any part of the airbag system

could cause it to fail when you need it. You could
be injured because the airbags are not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or
the upper right side of the instrument panel. Do
not modify the front bumper, vehicle body struc-
ture, or frame.

• You need proper knee impact protection in a

collision. Do not mount or locate any aftermarket
equipment on or behind the knee bolster.

• It is dangerous to try to repair any part of the

airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has airbags.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Airbag Light
You will want to have the airbags ready to inflate for your
protection in an impact. While the airbag system is
designed to be maintenance free, if any of the following
occurs, have an authorized dealer service the system
promptly:

• The airbag light does not come on or flickers during

the 6 to 8 seconds when the ignition switch is first
turned on.

• The light remains on or flickers after the 6 to 8 second

interval.

• The light flickers or comes on and remains on while

driving.

NOTE:

If the speedometer, tachometer or any engine

related gauges are not working, the airbag control mod-
ule may also be disabled. The airbags may not be ready
to inflate for your protection. Promptly check fuse num-
bers 52 and 53 in the fuse and relay center. See your
dealer if the fuse is good.

Child Restraint

Everyone in your vehicle needs to be buckled up all the
time — babies and children, too. Every state in the United
States and all Canadian provinces require that small
children ride in proper restraint systems. This is the law,
and you can be prosecuted for ignoring it.

Children 12 years and under should ride properly buck-
led up in a rear seat, if available. According to crash
statistics, children are safer when properly restrained in
the rear seats rather than in the front.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

In a collision, an unrestrained child, even a tiny
baby, can become a missile inside the vehicle. The
force required to hold even an infant on your lap can
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child’s
size.

Infants and Small Children
There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Use the restraint that is
correct for your child:

• Safety experts recommend that children ride

rearward-facing in the vehicle until they are at least

one year old and weigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing: infant
carriers and

9convertible9 child seats. Both types of

child restraints are held in the vehicle by the lap/
shoulder belt.

• The infant carrier is only used rearward-facing in the

vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg).

9Convertible9 child seats can be

used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than
infant carriers do, so they can be used rearward-facing
by children who weigh more than 20 lbs (9 kg) but are
less than one year old.

• Rearward-facing child seats must NEVER be used in

the front seat of a vehicle with a front passenger airbag

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

unless the airbag is turned off. An airbag deployment
could cause severe injury or death to infants in this
position.

• Children who weigh more than 20 lbs (9 kg) and who

are older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible
child seats used in the forward-facing direction are for
children who weigh 20 to 40 lbs (9 to 18 kg) and who
are older than one year. These child seats are also held
in the vehicle by the lap/shoulder belt.

• The belt-positioning booster seat is for children weigh-

ing more than 40 lbs (18 kg), but who are still too small
to fit the vehicle’s seat belts properly. If the child
cannot sit with knees bent over the vehicle’s seat
cushion while the child’s back is against the seat back,
they should use a belt-positioning-booster seat. The
child and booster seat are held in the vehicle by the
lap/shoulder belt. (Some booster seats are equipped

with a front shield and are held in the vehicle by the
lap portion.) For further information refer to
www.seatcheck.org.

WARNING!

• Improper installation can lead to failure of an

infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions ex-
actly when installing an infant or child restraint.

• A rearward facing child restraint should only be

used in a rear seat, or in the front seat if the
passenger’s front airbag is Off. If the airbag is left
On, a rearward facing child restraint in the front
seat may be struck by a deploying passenger
airbag which may cause severe or fatal injury to
the infant.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Here are some tips for getting the most out of your child
restraint:

• Before buying any restraint system, make sure that it

has a label certifying that it meets all applicable Safety
Standards. We also recommend that you make sure
that you can install the child restraint in the vehicle
where you will use it before you buy it.

• The restraint must be appropriate for your child’s

weight and height. Check the label on the restraint for
weight and height limits.

• Carefully follow the instructions that come with the

restraint. If you install the restraint improperly, it may
not work when you need it.

• The passenger seat belts are equipped with either

cinching latch plates or switchable seat belt retractors,

which are designed to keep the lap portion tight
around the child restraint so that it is not necessary to
use a locking clip.

If the seat belt has a cinching latch plate, pulling up on
the shoulder portion of the lap/shoulder belt will
tighten the belt. The cinching latch plate will keep the
belt tight, however, any seat belt system will loosen
with time, so check the belt occasionally and pull it
tight if necessary.

If the seat belt has a switchable retractor, it will have a
distinctive label: Pull the belt from the retractor until
there is enough to allow you to pass through the child
restraint and slide the latch plate into the buckle. Then
pull on the belt until it is all removed from the retractor.
Allow the belt to return to the retractor, pulling on the
excess webbing to tighten the lap portion about the child
restraint. Refer to the

9Automatic Locking Mode9 earlier

in this section.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• In the rear seat, you may have trouble tightening the

lap/shoulder belt on the child restraint because the
buckle or latch plate is too close to the belt path
opening on the restraint. Disconnect the latch plate
from the buckle and twist the short buckle-end belt
several times to shorten it. Insert the latch plate into
the buckle with the release button facing out.

• If the belt still can’t be tightened, or if pulling and

pushing on the restraint loosens the belt, disconnect
the latch plate from the buckle, turn the buckle
around, and insert the latch plate into the buckle
again. If you still can’t make the child restraint secure,
try a different seating position.

• Buckle the child into the seat according to the child

restraint manufacturer’s directions.

• When your child restraint is not in use, secure it in the

vehicle with the seat belt or remove it from the vehicle.

Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants or seat backs
and cause serious personal injury.

WARNING!

Improper installation can lead to failure of an infant
or child restraint. It could come loose in a collision.
The child could be badly injured or killed. Follow
the manufacturer’s directions exactly when install-
ing an infant or child restraint.

Lower Anchors and Tether for CHildren (LATCH)
Each vehicle is equipped with the child restraint anchor-
age system called LATCH, which stands for Lower
Anchors and Tether for CHildren. LATCH child restraint
anchorage systems are installed in the Standard Cab
passenger seat position and the Quad Cab rear seat

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

outboard positions and also feature tether strap anchor-
ages, which must be used, located behind the seatback
(refer to Child Restraint Tether Anchor later in this
section).

Identification dots are located above the standard cab
front seat lower anchorages as a guide for locating lower
anchors.

NOTE:

For children riding in the front seat of a Stan-

dard Cab model refer to the “Passenger Airbag On/Off
Switch” located in this section.

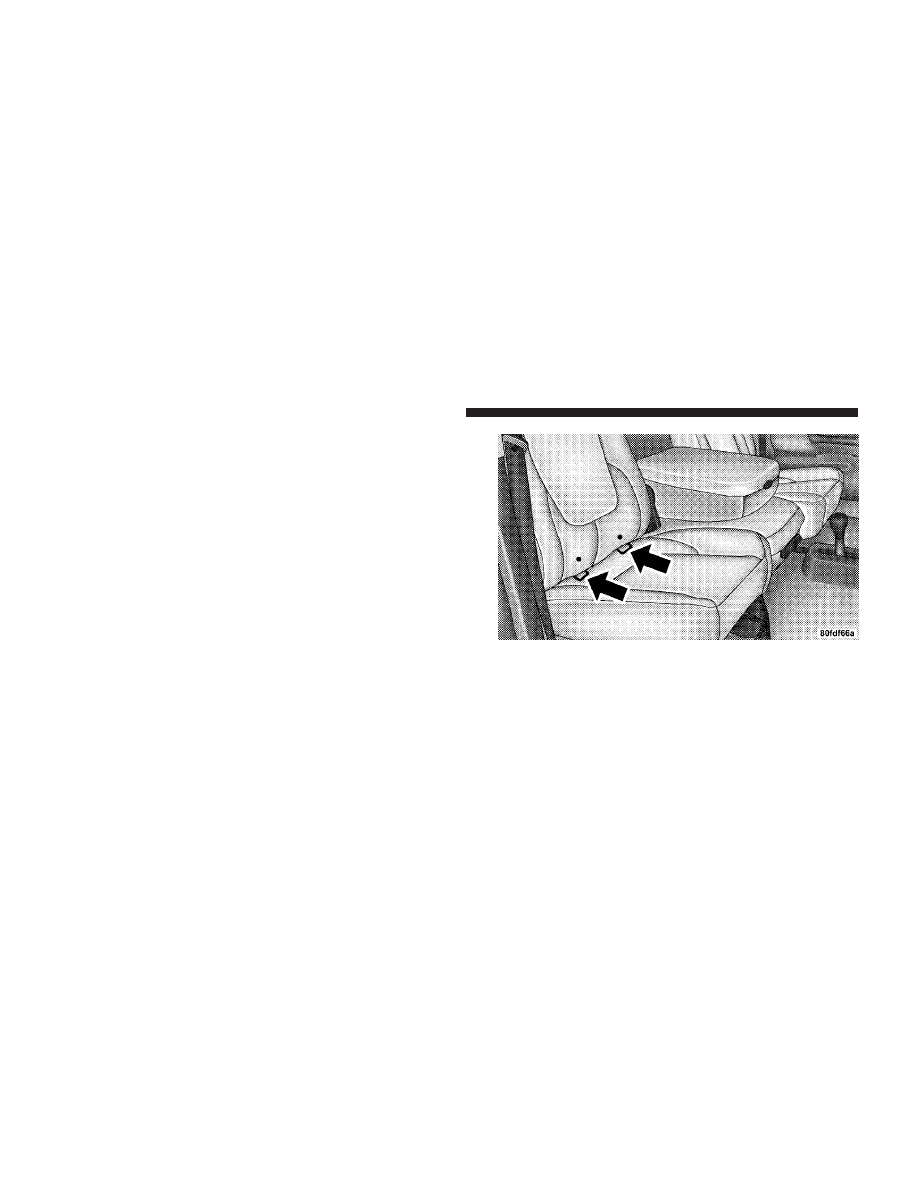

Standard Cab Passenger Seat

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Child restraint systems having attachments designed to
connect to the lower anchorages are now available. Child
restraints having tether straps and hooks for connection
to the seatback tether anchorage have been available for
some time. In fact, many child restraint manufacturers
will provide add-on tether strap kits for some of their
older products.

Because the lower anchorages are to be introduced to
passenger carrying vehicles over a period of years, child
restraint systems having attachments for those anchor-
ages will continue to have features for installation in
vehicles using the lap or lap/shoulder belt. They will also
have tether straps, and you are urged to take advantage
of all of the available attachments provided with your
child restraint in any vehicle.

NOTE:

If your child restraint seat is not LATCH com-

patible, install the restraint using the vehicle seat belting.

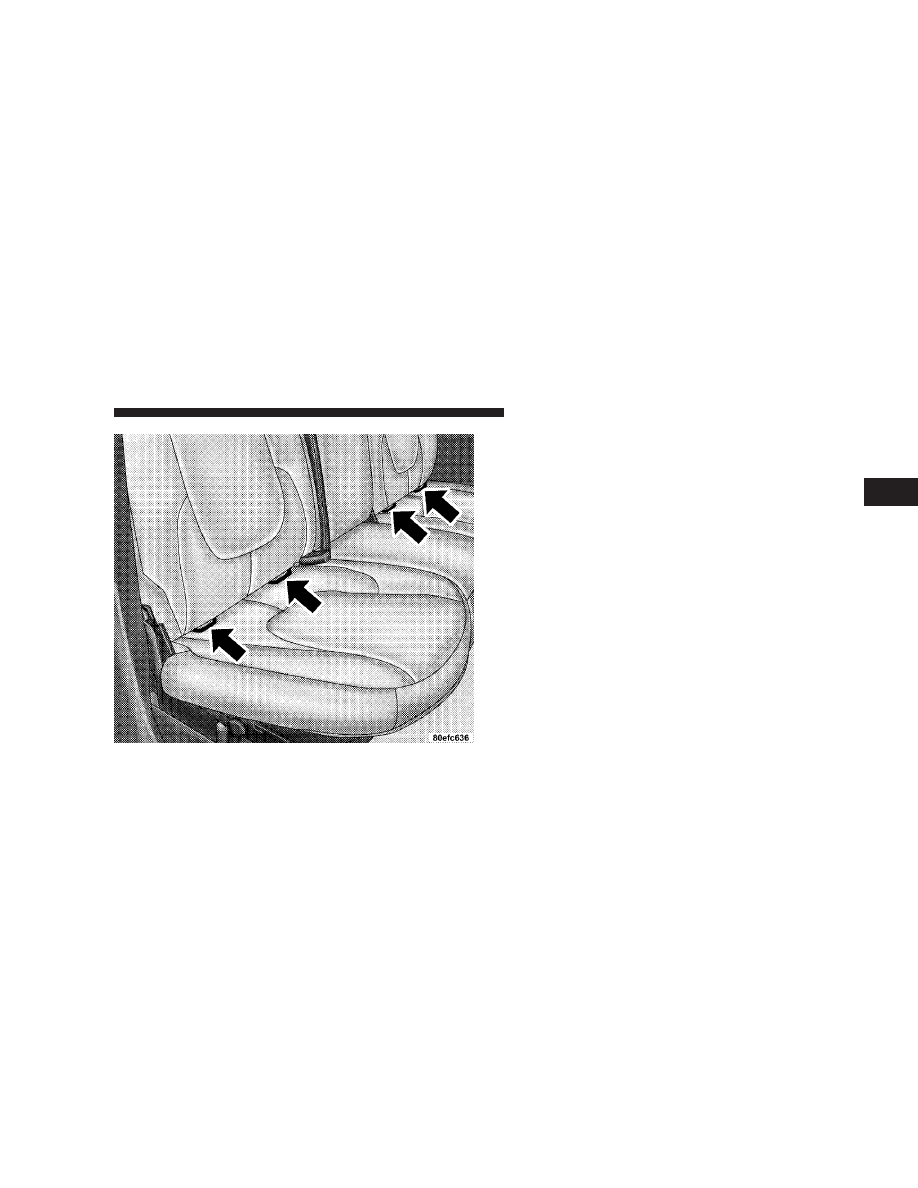

Quad Cab Outboard Seat

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Installing the Child Restraint System

WARNING!

Do not install child restraint systems equipped with
LATCH attachments in the center position of a Quad
Cab model rear seat. The LATCH anchorages in this
seat are designed for the two outboard seating posi-
tions only. A child may be placed in the rear center
seating position of a Quad Cab model using the seat
belt and child tether anchorage. Failure to follow this
may result in serious or fatal injury.

We urge that you carefully follow the directions of the
manufacturer when installing your child restraint. Many,
but not all, restraint systems will be equipped with

separate straps on each side, with each having a hook or
connector and a means for adjusting the tension in the
strap. Forward-facing toddler restraints and some
rearward-facing infant restraints will also be equipped
with a tether strap, a hook and means for adjusting the
tension in the strap.

In general, you will first loosen the adjusters on the lower
straps and tether straps so that you can more easily attach
the hook or connector to the lower anchorages and tether
anchorages. Then tighten all three straps as you push the
child restraint rearward and downward into the seat.

Not all child restraint systems will be installed as we
have described here. Again, carefully follow the instruc-
tions that come with the child restraint system.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.

Child Restraint Tether Anchor
Child restraints having tether straps and hooks for con-
nection to tether anchors have been available for some
time. In fact, many child restraint manufacturers will
provide add-on tether strap kits for their older products.
Regular Cab models of Ram Pickups have two tether
anchorages, one each behind the front center and right
seats. Quad Cab models have three anchorages, one
behind each of the rear seats.

WARNING!

An incorrectly anchored tether strap could lead to
seat failure and injury to the child. In a collision, the
seat could come loose and allow the child to crash
into the inside of the vehicle or other passengers, or
even be thrown from the vehicle. Use only the
anchor positions directly behind the child seat to
secure a child restraint top tether strap. Follow the
instructions below. See your dealer for help if nec-
essary.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

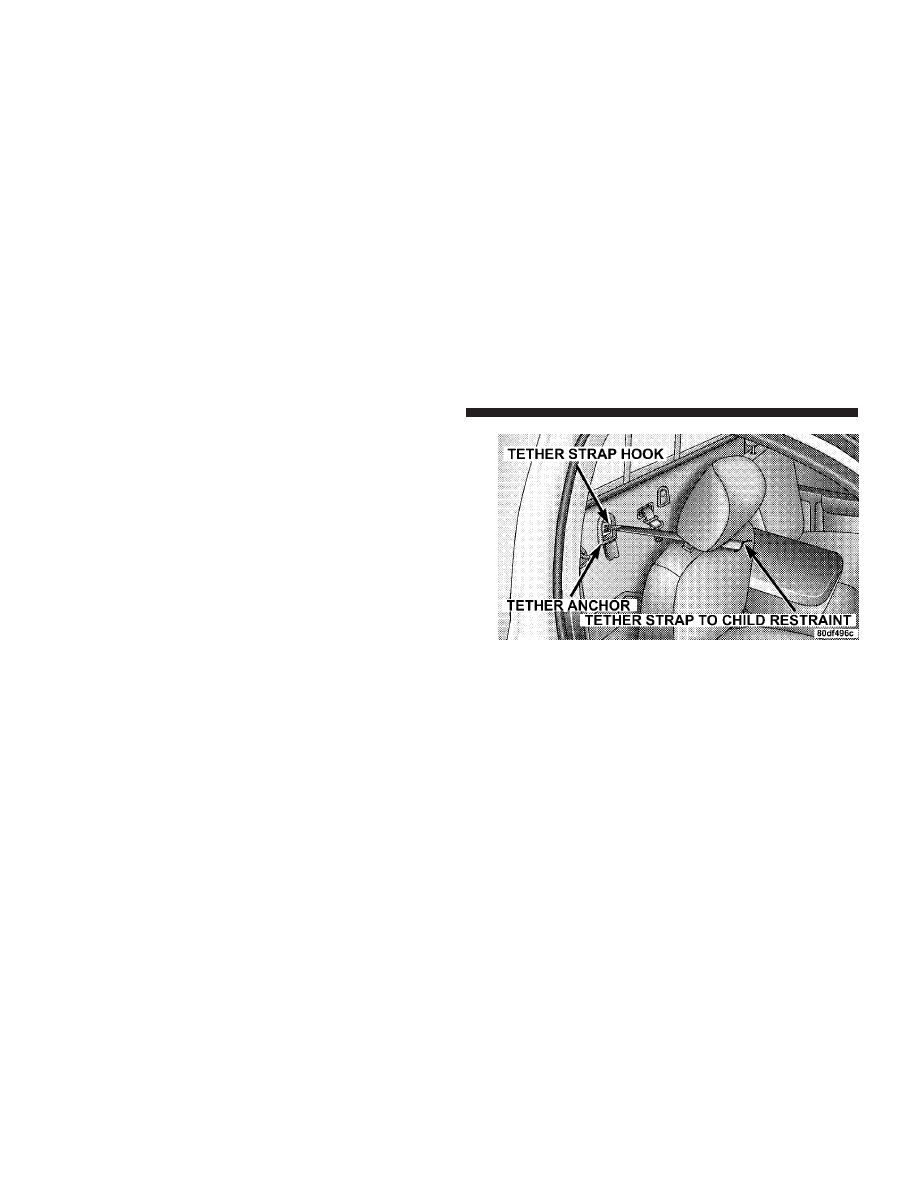

Tether Anchorage Points at the Right and Center
Front Seat (Regular Cab - All Seats)

1. Place the child restraint on the seat and adjust the
tether strap so that it will reach over the seat back under
the head restraint to the tether anchor directly behind the
seat.

2. Lift the cover (if so equipped), and attach the hook to
the square opening in the sheet metal.

3. Install the child restraint and remove the slack in the
tether strap according to the manufacturer’s instructions.

Regular Cab With Any Bench Seat

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

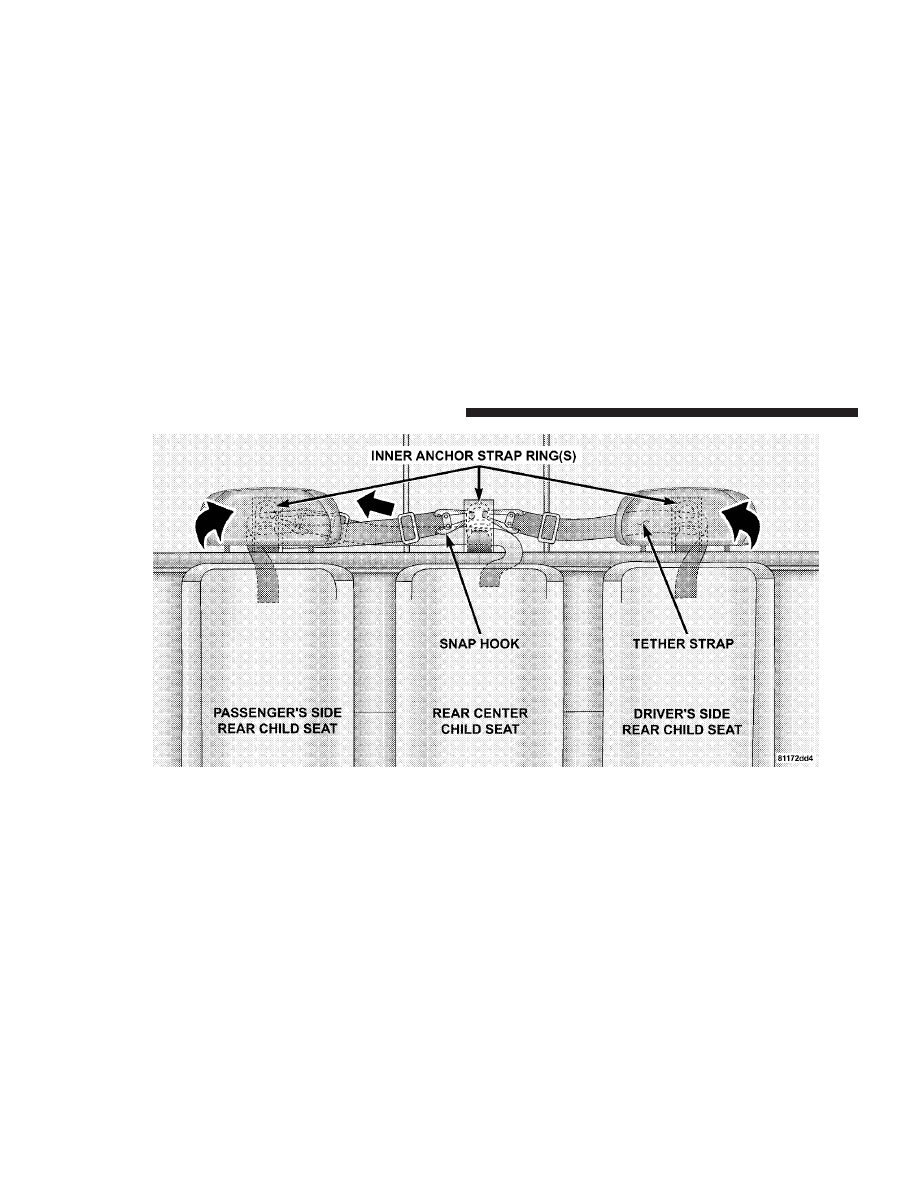

Multiple Child Restraint Installation Sequence -
(Quad Cab Rear Seats)

1. Obtain tether straps by raising the head restraints and
reaching between the rear glass and rear seat. The tether
strap may be retained with an elastic band. Accessibility
to the tether strap is greatly improved by raising the seat
cushion to the “up” position. Remove the elastic before
use.

2. Place a child restraint on each outboard rear seat and
adjust the tether strap so that it will reach under the head
restraint to the tether anchor directly behind the seat and
then to the anchor directly behind the center rear seat.

3. Pass each tether strap hook under the head restraint
and through the loop of webbing behind the child seat.

4. Route each tether strap to the anchor behind the center
seat, and attach the hooks to the metal ring.

5. Place a child restraint on the center rear seat and
adjust the tether strap so that it will reach under the head
restraint to the tether anchor directly behind the seat and
to the anchor directly behind the right seat.

6. Install each child restraint and remove the slack in the
tether strap according to the child restraint manufactur-
er’s instructions.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Children Too Large for Booster Seats
Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against the
seat back should use the lap/shoulder belt in a rear seat.

• Make sure that the child is upright in the seat.
• The lap portion should be low on the hips and as snug

as possible.

• Check belt fit periodically. A child’s squirming or

slouching can move the belt out of position.

If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle. Never allow a
child to put the shoulder belt under an arm or behind
their back.

NEW ENGINE BREAK-IN

Your Cummins 24 Valve Turbo Diesel engine does not
require a normal break-in period due to its construction.
Normal operation is allowed, provided the following
recommendations are followed:

NOTE:

Light duty operation such as light trailer towing

or no load operation, will extend the time before the
engine is at full efficiency. Reduced fuel economy and
power may be seen at this time.

• Warm up the engine before placing it under load.
• Do not operate the engine at idle for prolonged

periods.

• Use the appropriate transmission gear to prevent

engine lugging.

• Observe vehicle oil pressure and temperature indica-

tors.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Dodge Diesel (2004 year). Manual - part 4
