Splice No.

Location

Fig.

S305

Center Chassis Behind Seats

29

S307

Near T/O for C302

29

S309

Near T/O for License Lamp - Right

32

S310

Near T/O for Decklid Release Motor/Ajar Switch

32

S311

Near T/O for Tail Lamp - Left

31

S312

Near T/O for Back-Up Lamp - Left

31

S313

Near T/O for G205

25

S314

Passenger Door

27

S315

Near T/O for Door Lock Switch - Passenger

27

S316

Near T/O for Speaker - Right Door

27

S317

Near T/O for Power Window Motor - Driver

26

S318

Near T/O for Power Window Motor - Driver

26

S319

Near T/O for Power Mirror Switch

26

S320

Near T/O for Power Mirror Switch

26

S321

Near T/O for Tail Lamp - Right

31

S322

Near T/O for Back-Up Lamp - Right

31

8W - 91 - 10

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

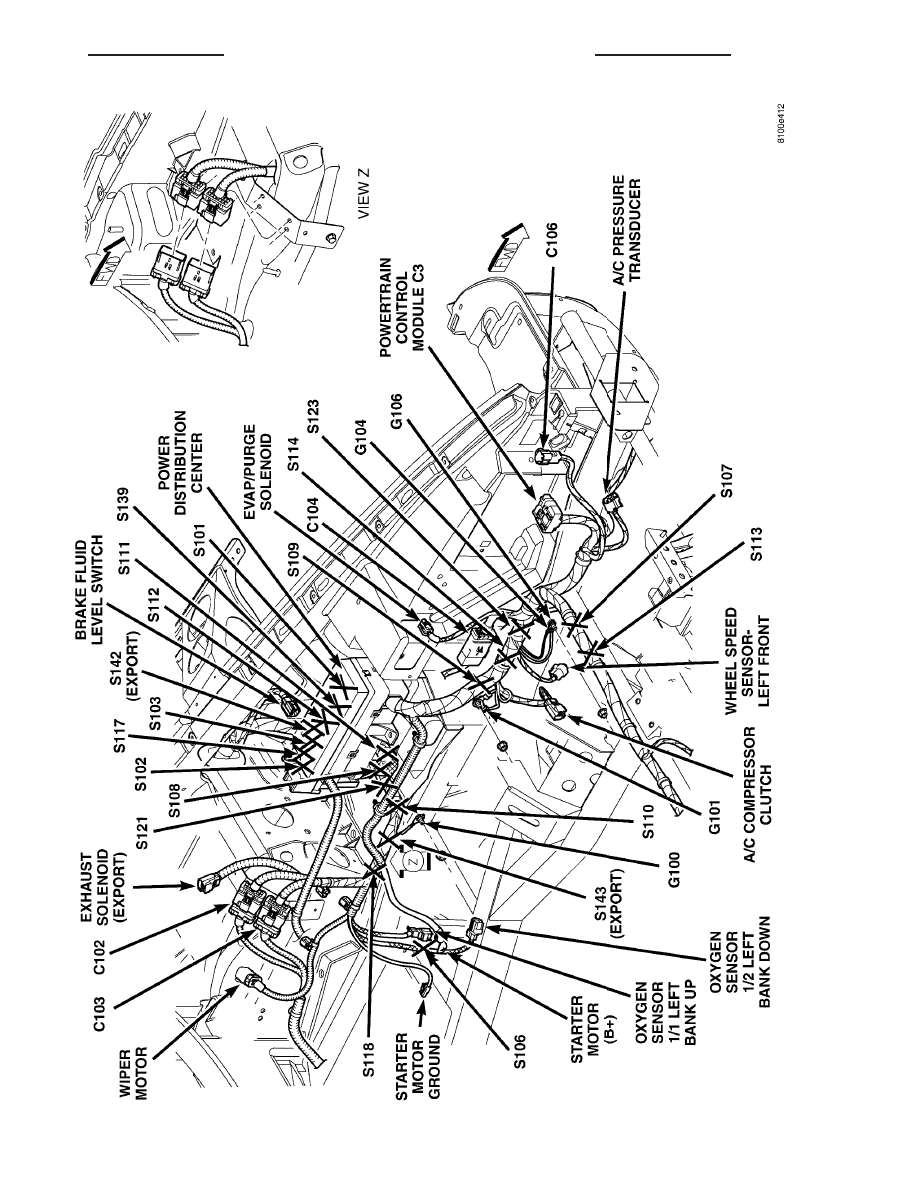

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

1

LEFT

ENGINE

COMP

AR

TMENT

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 11

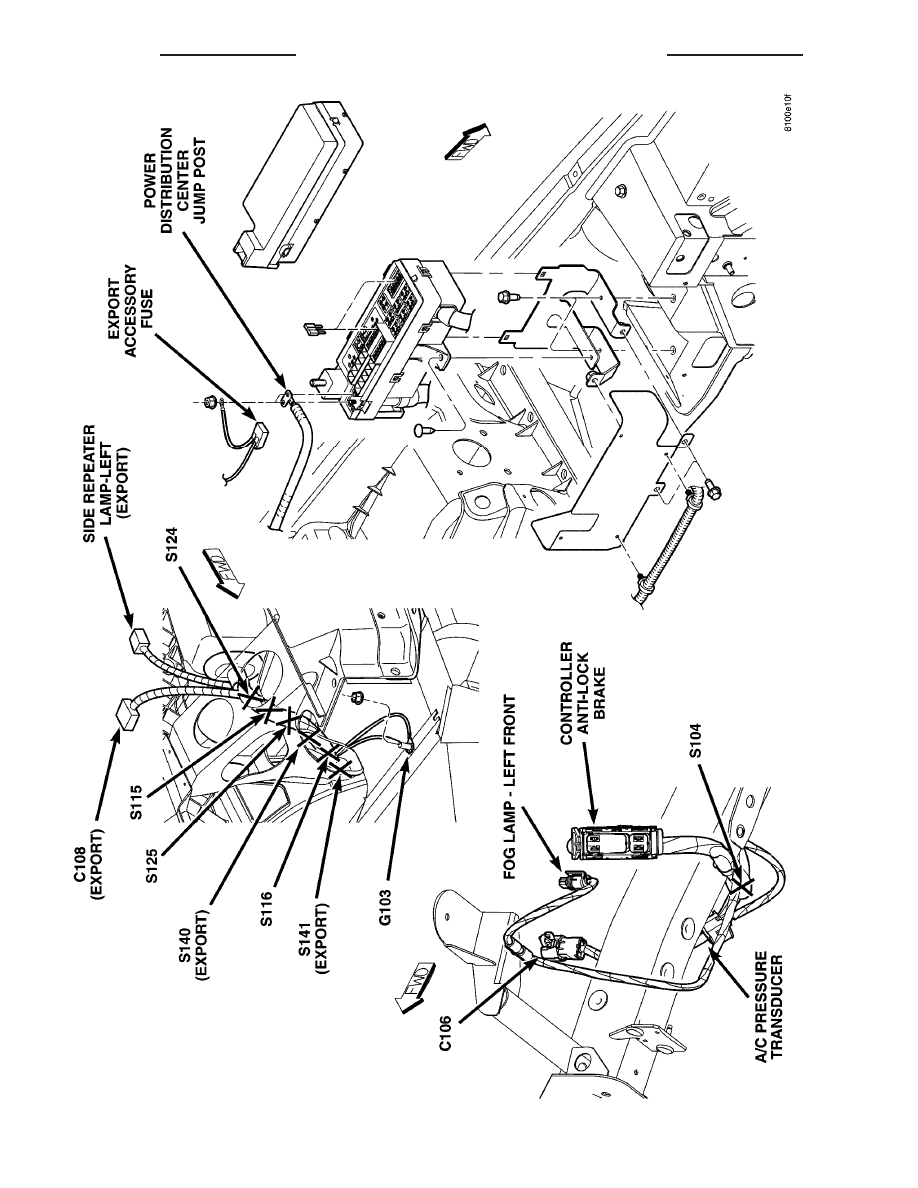

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

2

LEFT

FRONT

ENGINE

COMP

AR

TMENT

8W - 91 - 12

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

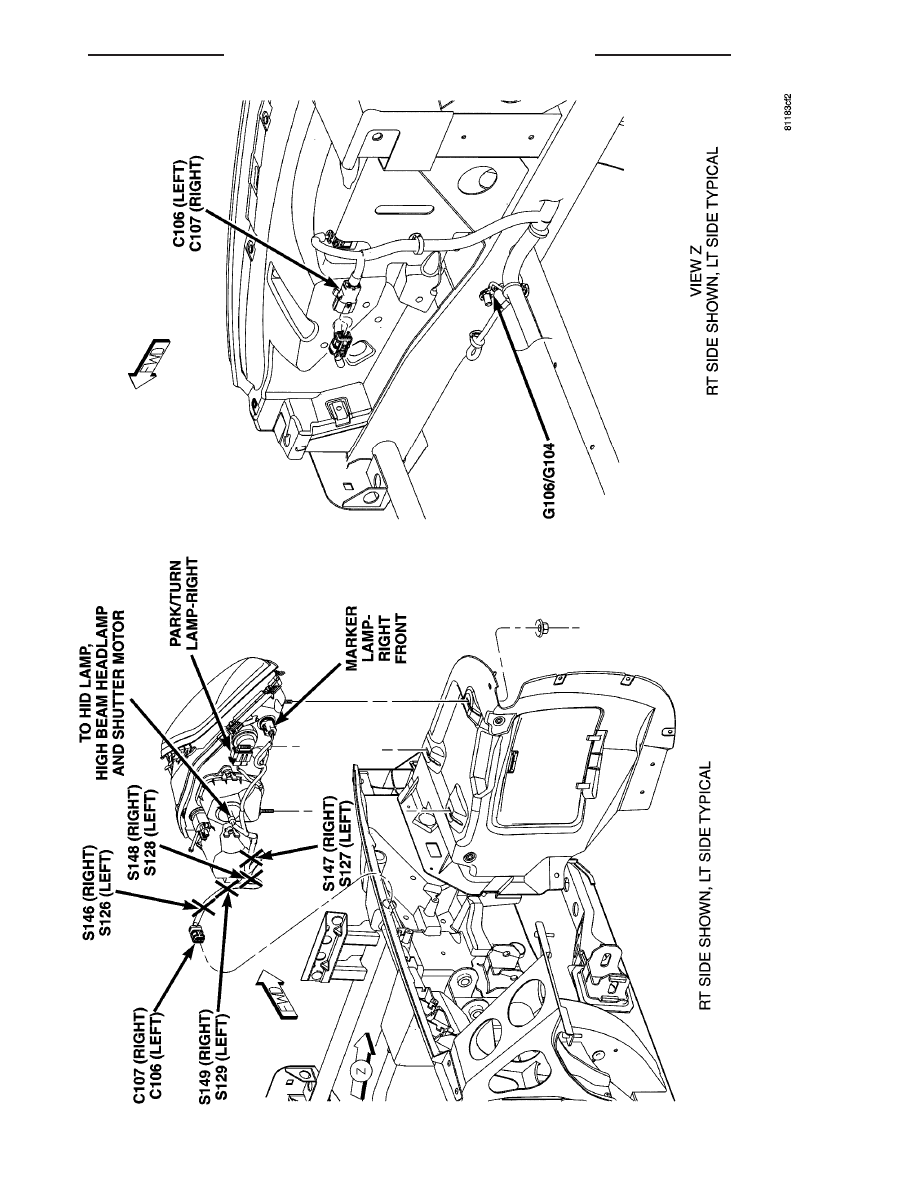

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

3

FRONT

LIGHTING

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 13

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
