(4) Slowly turn the steering wheel lock-to-lock 20

times with the engine off while checking the fluid
level.

NOTE: For vehicles with long return lines or oil
coolers turn wheel 40 times.

(5) Start the engine. With the engine idling main-

tain the fluid level.

(6) Lower the front wheels and let the engine idle

for two minutes.

(7) Turn the steering wheel in both direction and

verify power assist and quiet operation of the pump.

If the fluid is extremely foamy or milky looking,

allow the vehicle to stand a few minutes and repeat
the procedure.

CAUTION: Do not run a vehicle with foamy fluid for
an extended period. This may cause pump damage.

STANDARD PROCEDURE - FLUSHING POWER
STEERING SYSTEM

Flushing is required when the power steering/hy-

draulic booster system fluid has become contami-
nated. Contaminated fluid in the steering/booster
system can cause seal deterioration and affect steer-
ing gear/booster spool valve operation.

(1) Raise the front end of the vehicle off the

ground until the wheels are free to turn.

(2) Remove the return line from the pump.

NOTE: If vehicle is equipped with a hydraulic
booster remove both return lines from the pump.

(3) Plug the return line port/ports at the pump.
(4) Position the return line/lines into a large con-

tainer to catch the fluid.

(5) While an assistant is filling the pump reservoir

start the engine.

(6) With the engine running at idle turn the wheel

back and forth.

NOTE: Do not contact or hold the wheel against the
steering stops.

(7) Run a quart of fluid through the system then

stop the engine and install the return line/lines.

(8) Fill the system with fluid and perform Steering

Pump Initial Operation, (Refer to 19 - STEERING/
PUMP - STANDARD PROCEDURE).

(9) Start the engine and run it for fifteen minutes

then stop the engine.

(10) Remove the return line/lines from the pump

and plug the pump port/ports.

(11) Pour fresh fluid into the reservoir and check

the draining fluid for contamination. If the fluid is
still contaminated, then flush the system again.

(12) Install the return line/lines and perform

Steering Pump Initial Operation, (Refer to 19 -
STEERING/PUMP - STANDARD PROCEDURE).

REMOVAL

(1) Remove the belt from the power steering pump.
(2) Siphon as much power steering fluid as possi-

ble out of the reservoir.

(3) Remove the high pressure power steering hose

at the pump (Fig. 1).

(4) Remove the return hose from the pump (Fig.

1).

(5) Remove the bolts securing the power steering

pump to the engine (Fig. 1).

INSTALLATION

(1) Install the power steering pump to the engine

and tighten the bolts (Fig. 1). Tighten to 21 N·m (15
ft. lbs.).

(2) Replace all o-rings and hose clamps (Fig. 1).
(3) Install the return hose to the pump and tighten

the clamp (Fig. 1).

(4) Install the high pressure hose to the pump

(Fig. 1). Tighten to 38 N·m (28 ft. lbs.).

(5) Fill the power steering fluid (Refer to 19 -

STEERING/PUMP/FLUID - STANDARD PROCE-
DURE).

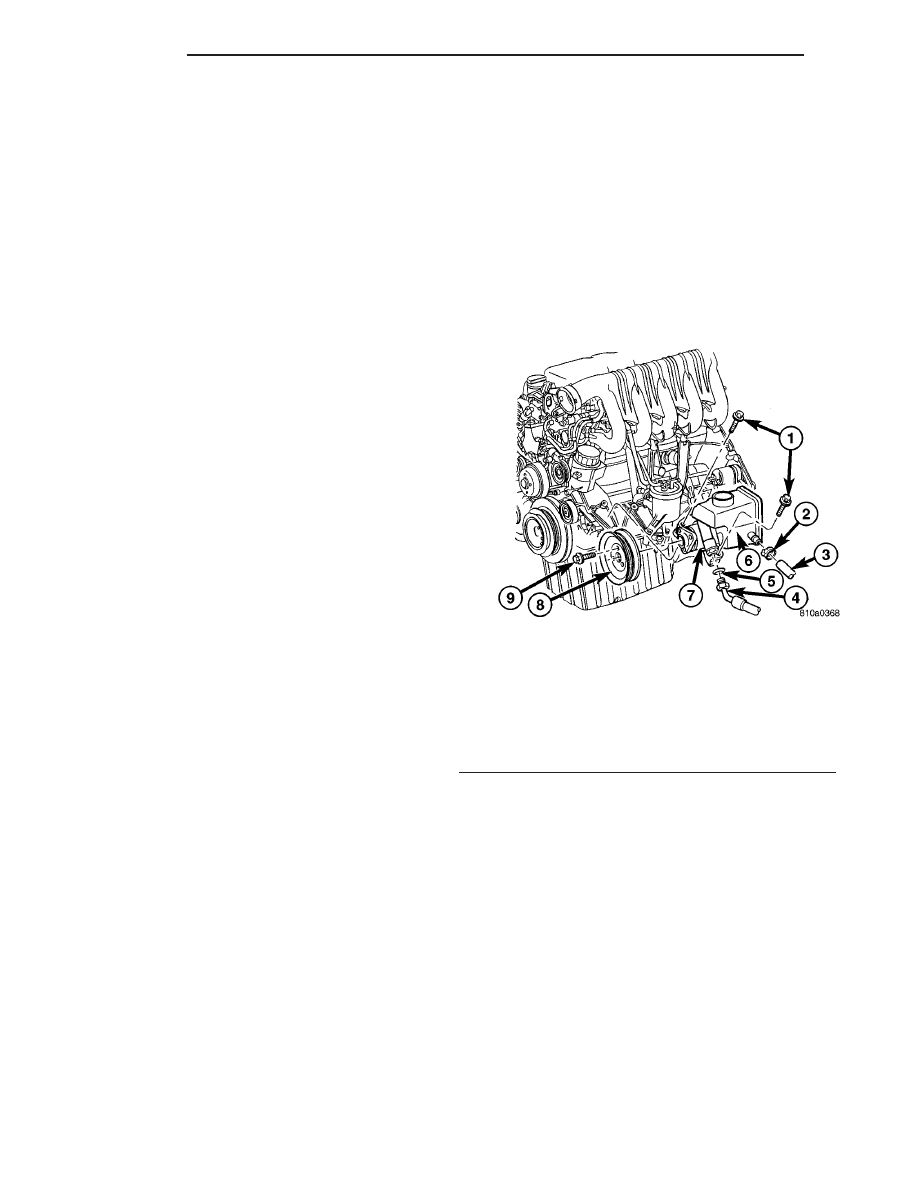

Fig. 1 POWER STEERING PUMP

1 - PUMP MOUNTING BOLT
2 - CLAMP
3 - RETURN HOSE
4 - HIGH PRESSURE HOSE
5 - O-RING
6 - PUMP RESERVOIR
7 - PUMP
8 - PULLEY
9 - PULLEY BOLT

19 - 12

PUMP

VA

SPECIFICATIONS - TORQUE CHART

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Power Steering Pump To

Timing Case Cover/Sup-

port

21

15

185

High Pressure Flexible

Hose To Power Steering

Pump

38

28

336

Power Steering Pulley To

Pump

30

22

265

FLUID

STANDARD PROCEDURE

POWER STEERING PUMP FILL AND BLEED
PROCEDURE

(1) Remove the cap from the fluid reservoir.

Check cap seal for damage and replace if
needed.

(2) Fill the power steering pump with approved

fluid (Refer to LUBRICATION & MAINTENANCE/
FLUID TYPES - DESCRIPTION). Do not fill fluid
beyond the MAX mark.

(3) Raise the vehicles front wheels off the ground.
(4) With the engine off turn the steering wheel

from right to left. Perform this step until all the
bubble formations can no longer be seen in the
power steering reservoir.

(5) Start the engine and turn the steering wheel

with the engine at idle speed then shut the engine off
and check for correct oil level and no bubble in the
system.

(6) Reinstall power steering cap tightly.
(7) Test the system for leaks and proper operation.

FLUID COOLER TUBE

REMOVAL

(1) Siphon as much power steering fluid as possi-

ble out of the reservoir.

(2) Remove the grille (Refer to 23 - BODY/EXTE-

RIOR/GRILLE - REMOVAL).

(3) Remove the left headlight assembly.
(4) Disconnect the return lines from the cooler

tube.

(5) Remove the radiator clips (2).
(6) Remove the heat shield bolt for the turbo at

the core support.

(7) Remove the right headlight assembly.

(8) Remove the core support bolts (4) and discon-

nect the hood latch cable.

(9) Remove the fan bracket bolts (4) to the radiator

(Fig. 2).

(10) Remove the two upper screws for the con-

denser (Fig. 2).

(11) Remove the condenser air dam shield.
(12) Remove the mounting screws for the cooler

tube (Fig. 2).

(13) Remove the cooler tube from the vehicle.

INSTALLATION

(1) Install the cooler tube to the vehicle.
(2) Install the cooler tube mounting screws (Fig.

2).

(3) Install the condenser air dam shield.
(4) Install the condenser upper mounting screws

(Fig. 2).

(5) Install the fan bracket bolts to the radiator

(Fig. 2).

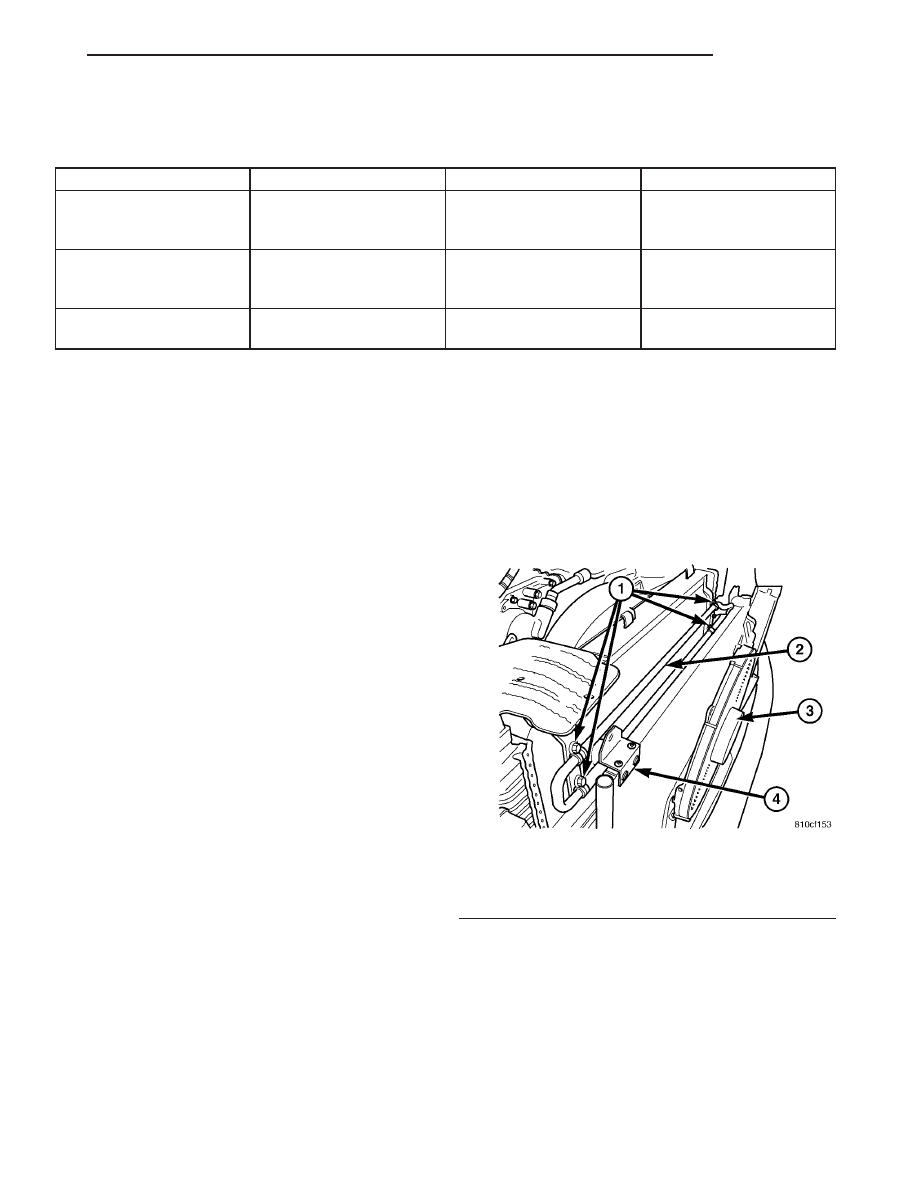

Fig. 2 FLUID COOLER TUBE

1 - MOUNTING SCREWS (4)
2 - FLUID COOLER
3 - ELECTRIC COOLING FAN
4 - A/C CONDENSOR

VA

PUMP

19 - 13

(6) Install the core support bolts and reconnect the

hood latch cable.

(7) Install the right headlight assembly.
(8) Install the bolt for the turbo shield at the core

support.

(9) Install the radiator clips.
(10) Install the return lines to the cooler tube.
(11) Install the left headlight assembly.
(12) Install the grille assembly (Refer to 23 -

BODY/EXTERIOR/GRILLE - INSTALLATION).

(13) Fill the power steering fluid (Refer to 19 -

STEERING/PUMP/FLUID - STANDARD PROCE-
DURE).

HOSES

REMOVAL

REMOVAL - PRESSURE HOSE

(1) Siphon as much power steering fluid as possi-

ble out of the reservoir.

(2) Disconnect the pressure hose at the pump.
(3) Disconnect the pressure hose at the steering

gear.

(4) Remove the pressure hose mounting bracket

from the gear.

(5) Remove the pressure hose from the vehicle.

REMOVAL - RETURN LINE FROM PUMP TO
COOLER TUBE

(1) Siphon as much power steering fluid as possi-

ble out of the reservoir.

(2) Disconnect the return line at the pump.
(3) Remove the grille (Refer to 23 - BODY/EXTE-

RIOR/GRILLE - REMOVAL).

(4) Remove the left headlight assembly.
(5) Disconnect the return line at the cooler tube.
(6) Remove the return line from the vehicle.

REMOVAL - RETURN HOSE FROM GEAR TO
COOLER TUBE

(1) Siphon as much power steering fluid as possi-

ble out of the reservoir.

(2) Disconnect the return hose from the gear.
(3) Remove the grille (Refer to 23 - BODY/EXTE-

RIOR/GRILLE - REMOVAL).

(4) Remove the left headlight assembly.
(5) Disconnect the return line at the cooler tube.
(6) Remove the return line from the vehicle.

INSTALLATION

INSTALLATION - PRESSURE HOSE

(1) Install the pressure hose to the vehicle.

(2) Reconnect the pressure hose at the steering

gear. Tighten to 37 N·m (27 ft.lbs.).

(3) Install the pressure hose mounting bracket to

the steering gear.

(4) Reconnect the pressure hose at the power

steering pump. Tighten to 38 N·m (28 ft.lbs.).

(5) Fill the power steering fluid (Refer to 19 -

STEERING/PUMP/FLUID - STANDARD PROCE-
DURE).

INSTALLATION - RETURN LINE FROM PUMP
TO COOLER TUBE

(1) Install the return line to the vehicle.
(2) Reconnect the return line at the cooler tube.
(3) Install the left headlight assembly.
(4) Install the grille assembly (Refer to 23 - BODY/

EXTERIOR/GRILLE - INSTALLATION).

(5) Reconnect the return line at the power steering

pump.

(6) Fill the power steering fluid (Refer to 19 -

STEERING/PUMP/FLUID - STANDARD PROCE-
DURE).

INSTALLATION - RETURN HOSE FROM GEAR
TO COOLER TUBE

(1) Install the return line to the vehicle.
(2) Reconnect the return line at the cooler tube.
(3) Install the left headlight assembly.
(4) Install the grille assembly (Refer to 23 - BODY/

EXTERIOR/GRILLE - INSTALLATION).

(5) Reconnect the return line at the power steering

gear.

(6) Fill the power steering fluid (Refer to 19 -

STEERING/PUMP/FLUID

-

STANDARD

PROCEDURE).

19 - 14

PUMP

VA
