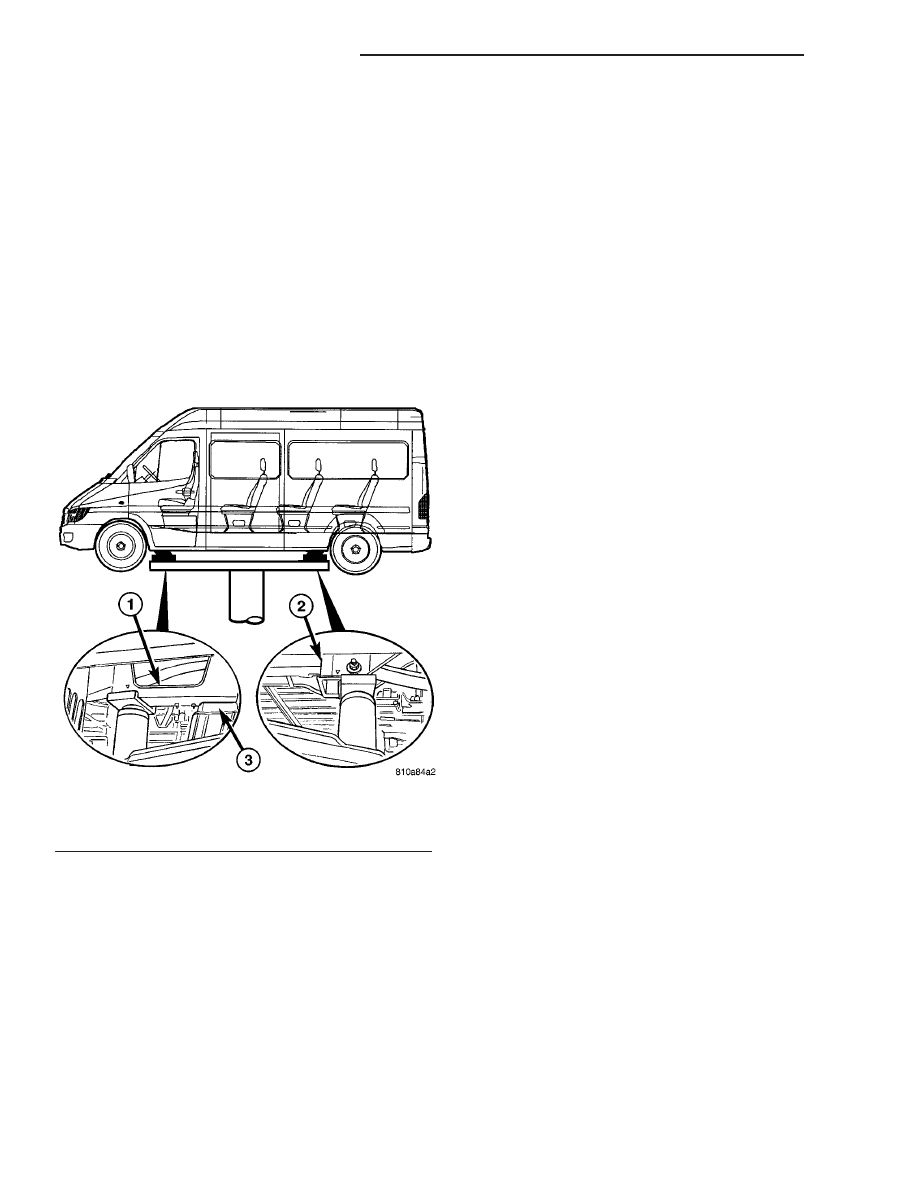

HOIST A vehicle can be lifted with: NOTE: When a frame-contact type hoist is used, The real lifting pads should be wedged between the forward flange of the leaf spring JUMP STARTING STANDARD PROCEDURE - JUMP STARTING WARNING: REVIEW ALL SAFETY PRECAUTIONS • DO NOT JUMP START A FROZEN BATTERY, PERSONAL INJURY CAN RESULT. • IF EQUIPPED, DO NOT JUMP START WHEN MAINTENANCE FREE BATTERY INDICATOR DOT IS • DO NOT JUMP START A VEHICLE WHEN THE BATTERY FLUID IS BELOW THE TOP OF LEAD • DO NOT ALLOW JUMPER CABLE CLAMPS TO TOUCH EACH OTHER WHEN CONNECTED TO A • DO NOT USE OPEN FLAME NEAR BATTERY. • REMOVE METALLIC JEWELRY WORN ON HANDS OR WRISTS TO AVOID INJURY BY ACCI- • WHEN USING A HIGH OUTPUT BOOSTING DEVICE, DO NOT ALLOW BATTERY VOLTAGE TO CAUTION: When using another vehicle as a booster, do not allow vehicles to touch. Electrical TO JUMP START A DISABLED VEHICLE: (1) Raise hood on disabled vehicle and visually inspect engine compartment for: • Battery cable clamp condition, clean if necessary. • Frozen battery. • Yellow or bright color test indicator, if equipped. • Low battery fluid level. • Generator drive belt condition and tension. • Fuel fumes or leakage, correct if necessary. CAUTION: If the cause of starting problem on dis- (2) When using another vehicle as a booster source, park the booster vehicle within cable reach. (3) On disabled vehicle, place gear selector in park or neutral and set park brake. Turn off all accesso- (4) Connect jumper cables to booster battery. RED clamp to positive terminal (+). BLACK clamp to neg- (5) On disabled vehicle, connect RED jumper cable clamp to positive (+) terminal. Connect BLACK Fig. 2 HOIST LOCATIONS 1 - TRANSMISSION CROSSMEMBER SUPPORT 0 - 6 LUBRICATION & MAINTENANCE VA |
