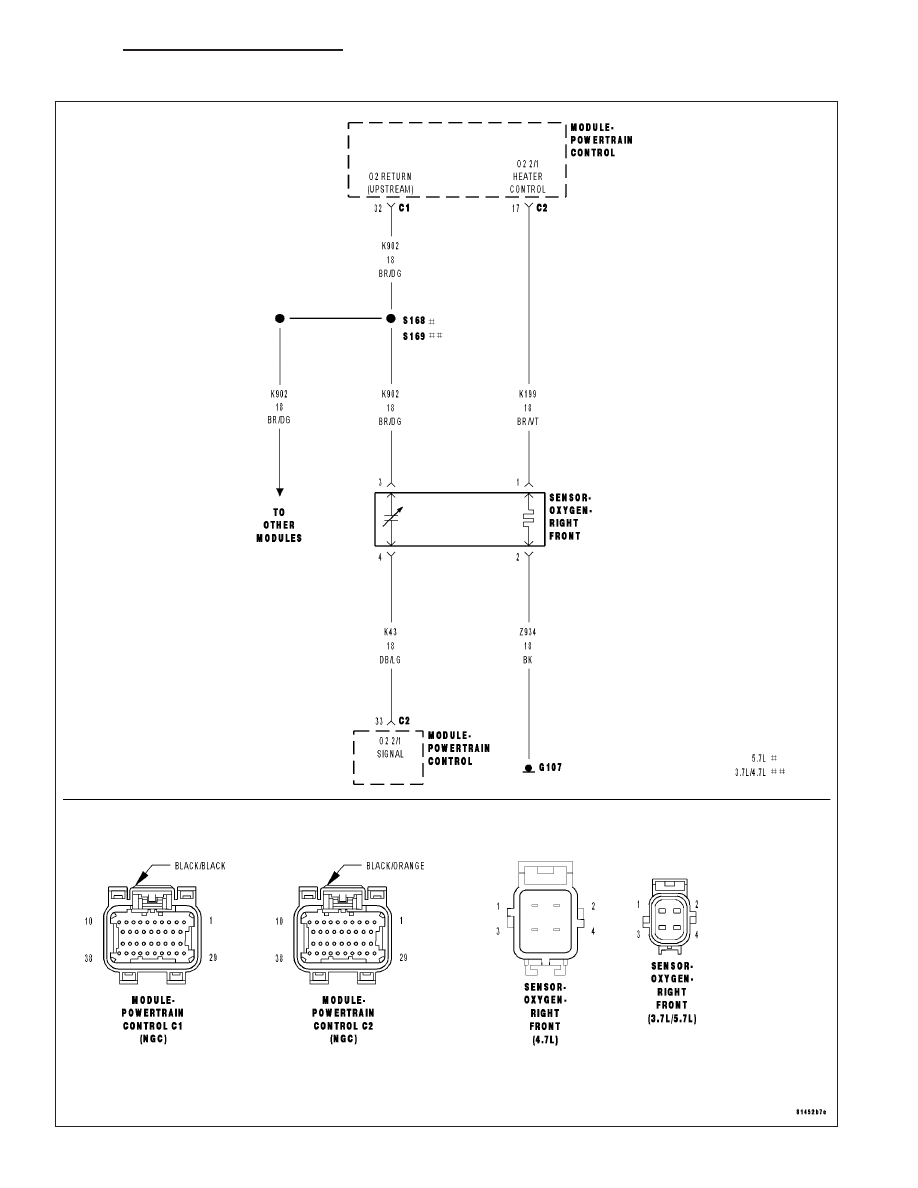

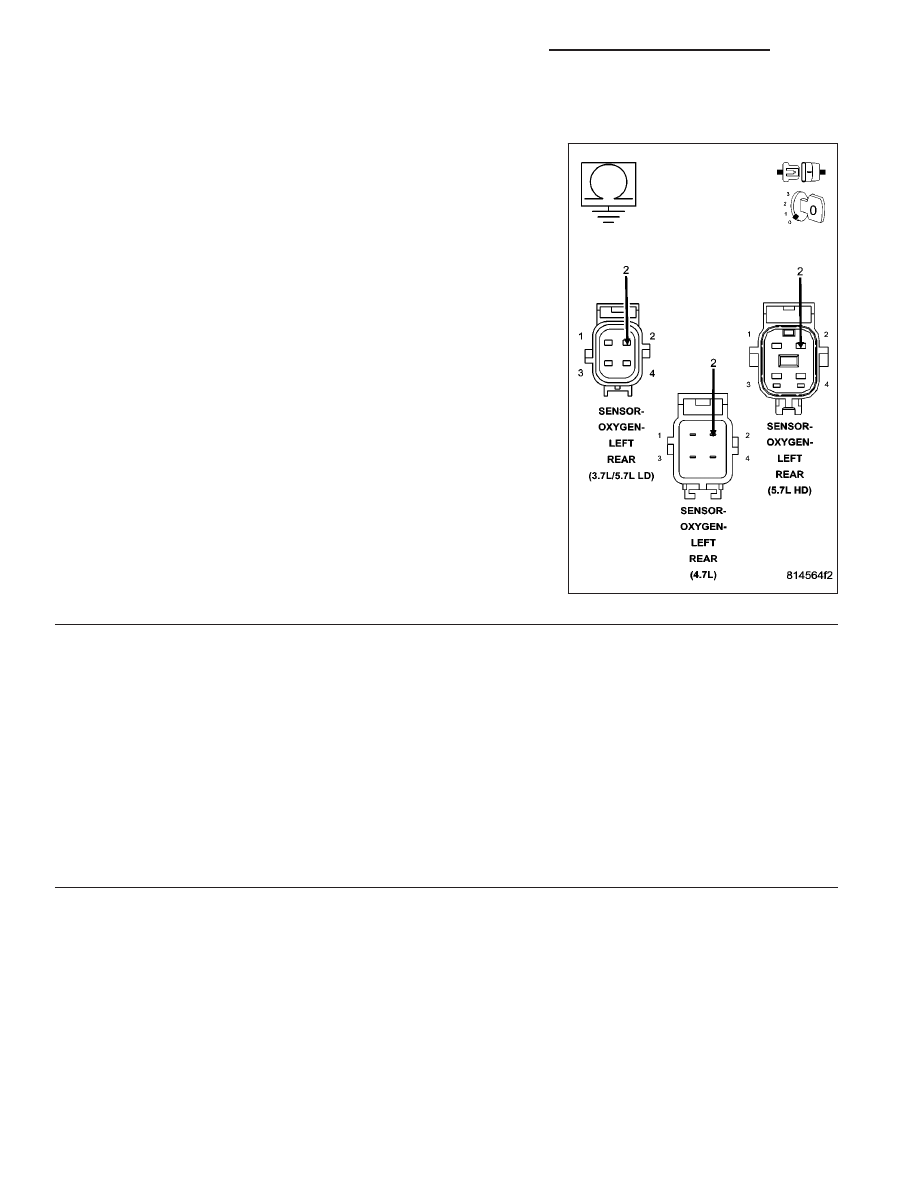

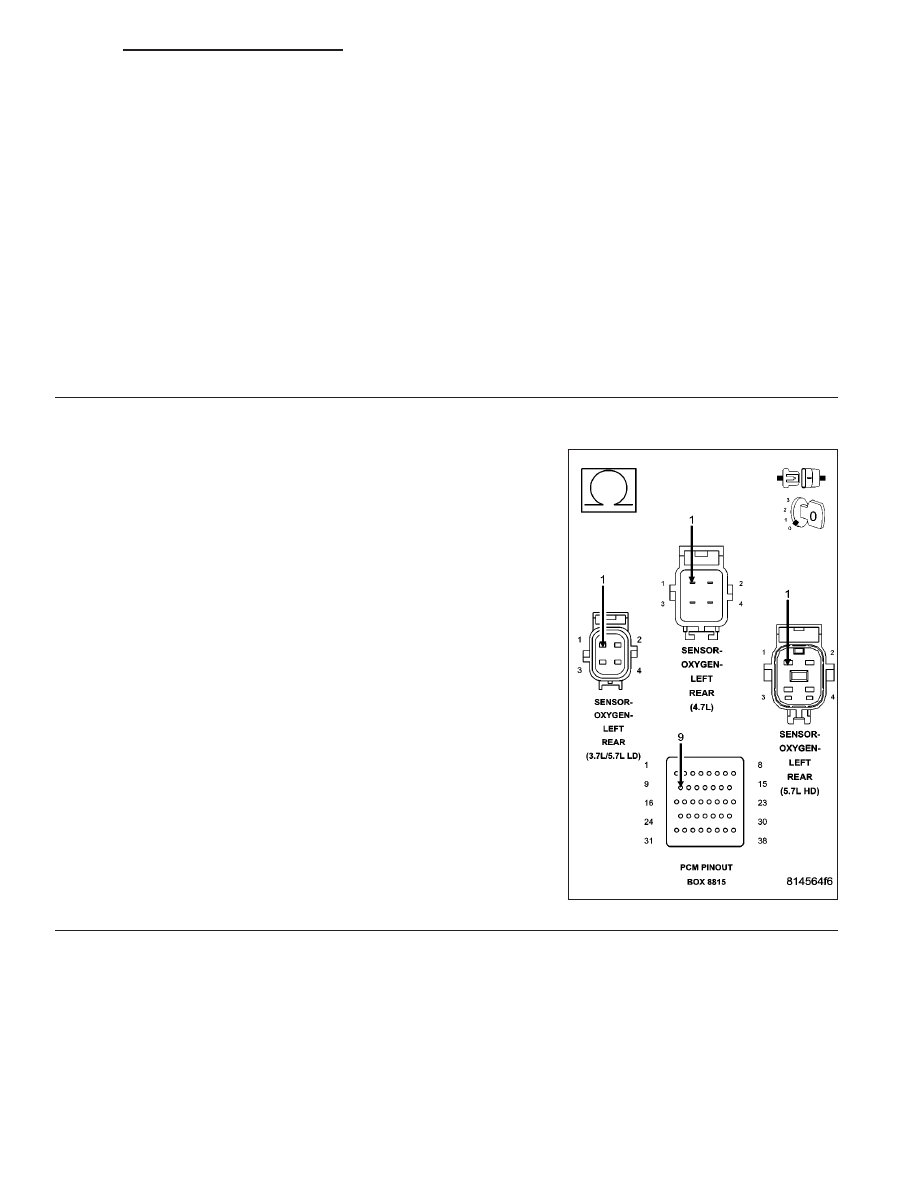

P0141-O2 SENSOR 1/2 HEATER PERFORMANCE (CONTINUED) For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS). For a complete wiring diagram Refer to Section 8W. Theory of Operation This diagnostic provides a continuous check of the O2 heater circuit during operation. The heater circuit is momen- • When Monitored: • Set Condition: Possible Causes (K299) O2 1/2 HEATER CONTROL CIRCUIT OPEN (Z43) O2 HEATER GROUND CIRCUIT OPEN O2 SENSOR HEATER ELEMENT PCM Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - Diagnostic Test 1. O2 SENSOR HEATER OPERATION Turn the ignition off. NOTE: Wait a minimum of 8 minutes to allow the O2 Sensor to cool down before continuing the test. Allow With a scan tool, actuate the O2 Heater Test. With the scan tool, monitor 1/2 O2 Sensor voltage for at least 2 minutes. Does the voltage stay above 4.5 volts? Yes >> Go To 2 No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) 9 - 190 ENGINE - ELECTRICAL DIAGNOSTICS - 3.7L/4.7L/5.7L DR/DH |
