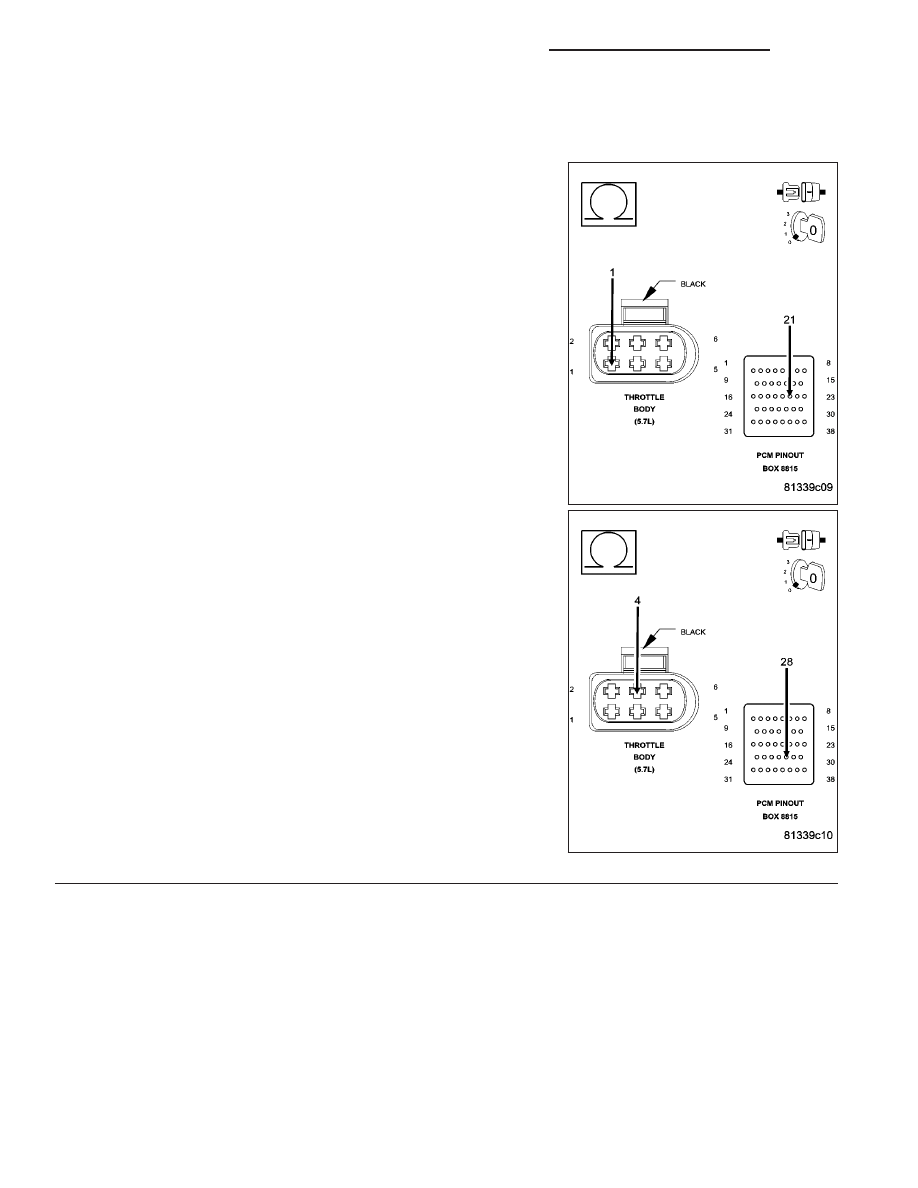

P0121-THROTTLE POSITION SENSOR 1 PERFORMANCE (CONTINUED) 4. EXCESSIVE RESISTANCE IN THE (K22) TP SENSOR NO.1 SIGNAL CIRCUIT AND (K122) TP SENSOR Turn the ignition off. Disconnect the C2 PCM harness connector. CAUTION: Do not probe the PCM harness connectors. Probing Measure the resistance of the (K122) TP Sensor No.2 Signal circuit Is the resistance below 5.0 ohms for each circuit? Yes >> Go To 5 No >> Repair the excessive resistance in the (K22) TP Sensor No.1 Signal circuit or the (K122) TP Sensor No.2 Signal Perform the POWERTRAIN VERIFICATION TEST. (Refer 9 - 114 ENGINE - ELECTRICAL DIAGNOSTICS - 3.7L/4.7L/5.7L DR/DH |
