Fig. 68 REAR BODY

8W - 91 - 76

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

DR/DH

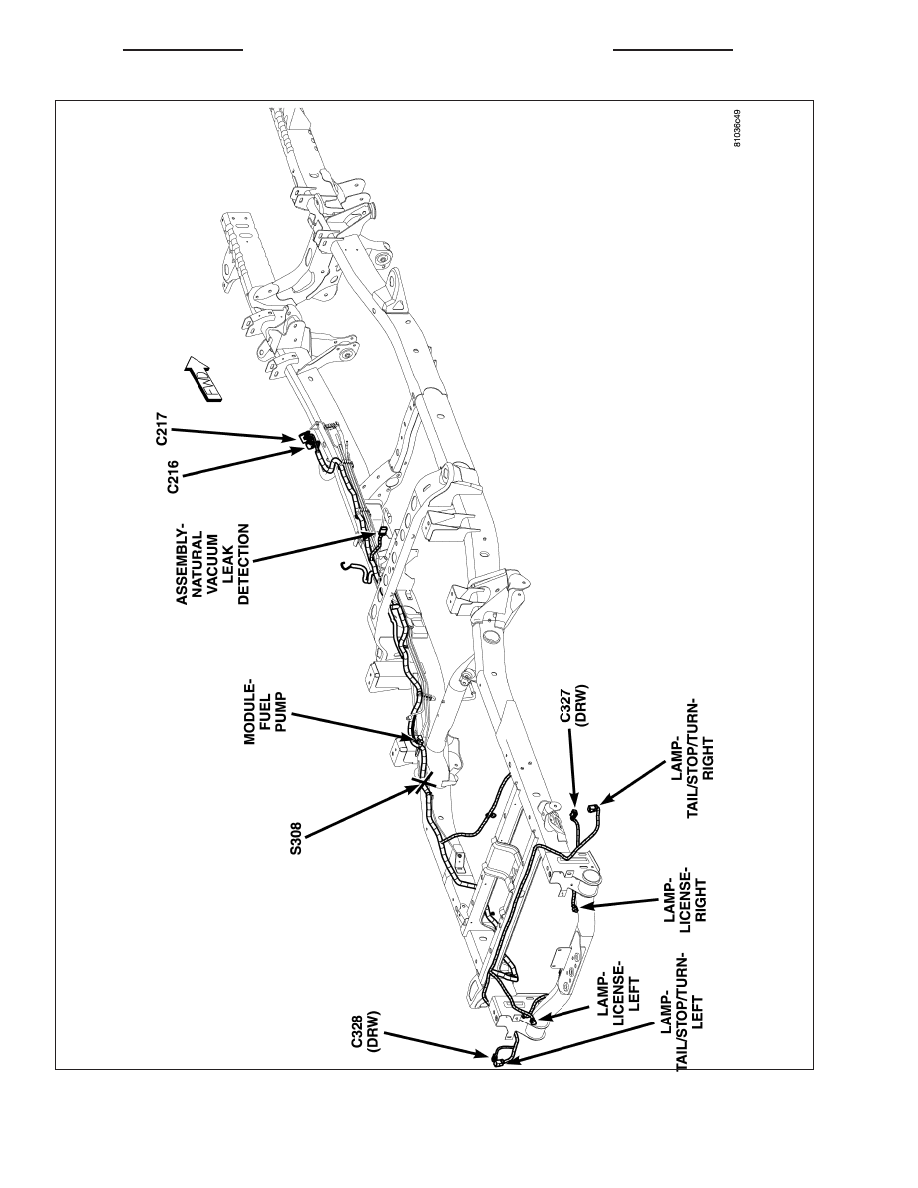

Fig.

69

CHASSIS

DR/DH

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 77

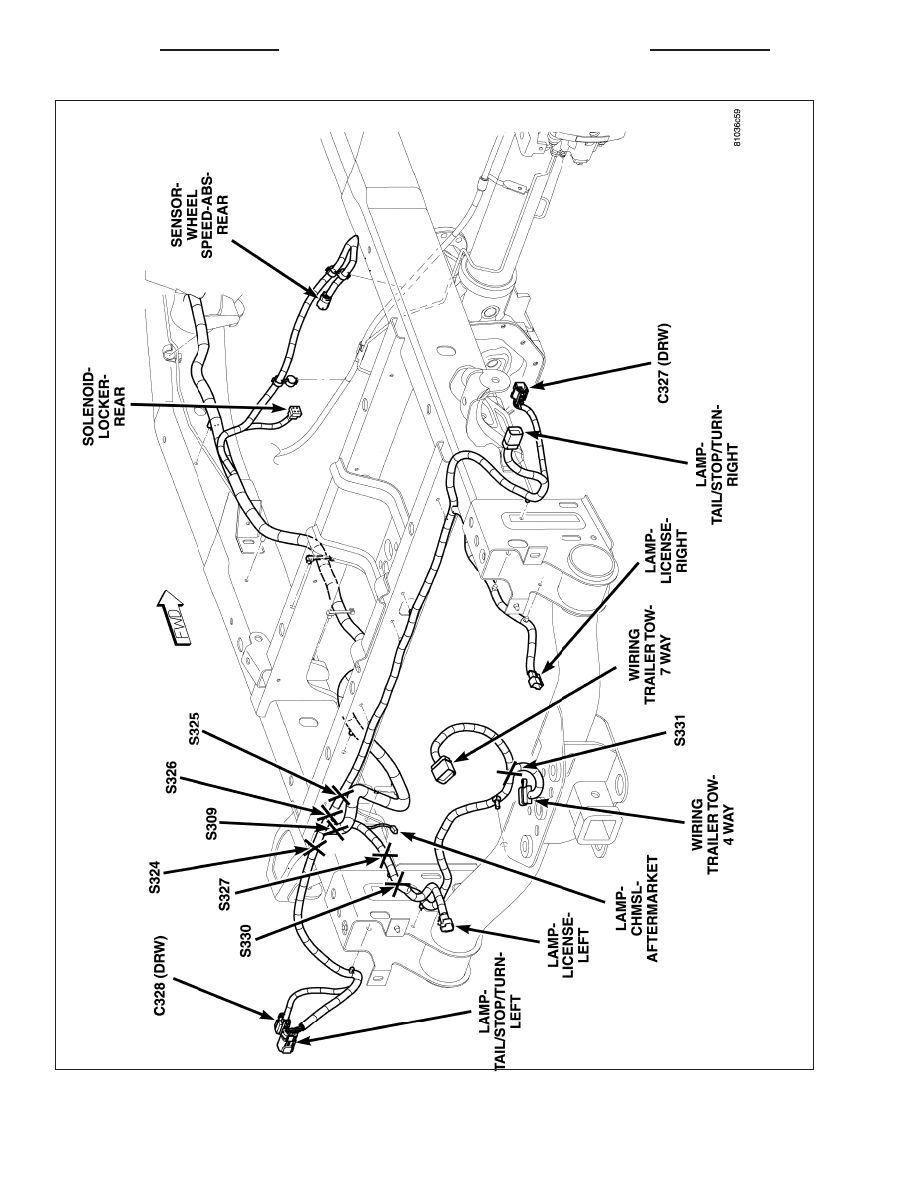

Fig.

70

REAR

CHASSIS

8W - 91 - 78

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

DR/DH

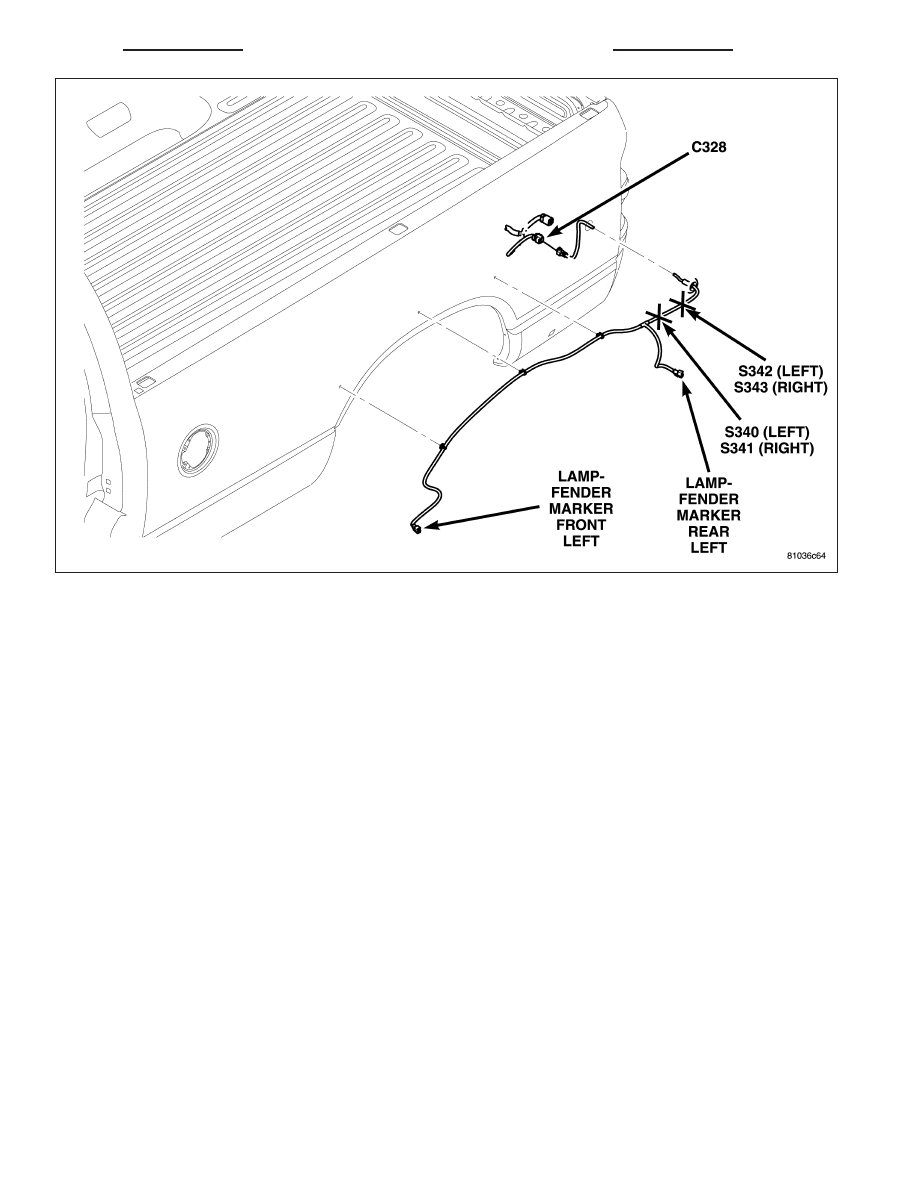

Fig. 71 LEFT REAR FENDER (RIGHT SIDE SIMILAR)

DR/DH

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 79
