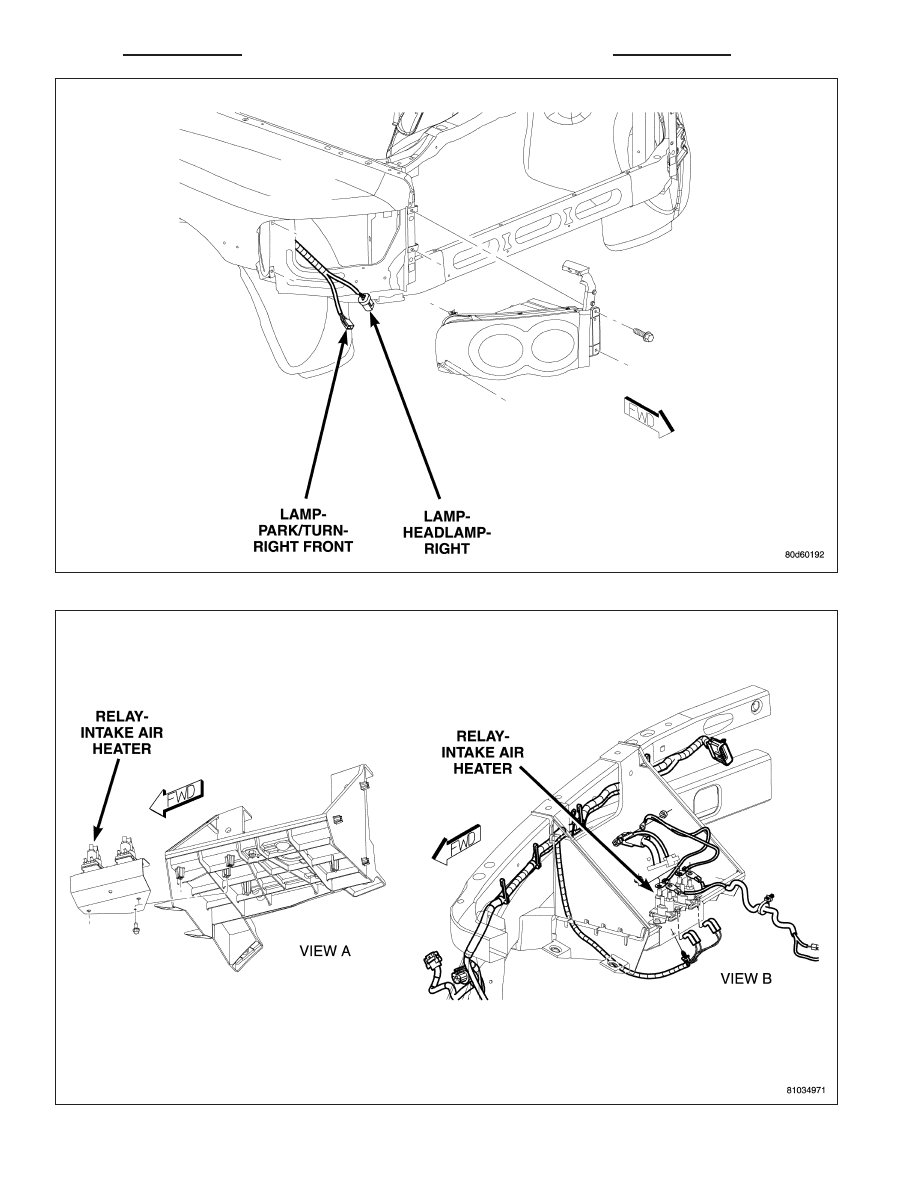

SPLICE NUMBER
LOCATION
FIG.
S138 (Except
SRT-10)
Left Rear of Engine
N/S
S138 (SRT-10)
Right Rear Engine Compartment
41
S139
Right Front of Transmission
N/S
S140
Right Rear Engine Compartment
32
S141 (SRT-10)
Right Rear Engine Compartment
41
S142
Left Side of Engine
3
S143
Left Side of Engine Compartment
N/S
S144
Top Front of Transmission
N/S
S145
Left Front Fender
32
S146
Left Front Transmission
22
S147
Left Side Engine Compartment
32
S148
Top Front of Transmission
3
S149
Left Rear of Engine
7
S150
Top Center of Engine
3, 4, 10
S151
Rear Engine Compartment
32
S152
Left Rear Engine Compartment
32
S153
Rear Engine Compartment
4
S154
Left Top Engine
N/S
S155
Left Rear Engine Compartment near T/O for Fuel Control Actuator
10
S156
Engine Harness in T/O for C115
N/S
S157
Near T/O for Camshaft Position Sensor
N/S
S158
Near T/O for C114
15
S159
Near T/O for Engine Control Module
N/S
S160
Top Left Engine
15
S161
Transfer Case Jumper Near T/O for Transfer Case Control Module
N/S
S162
Left Side Engine
N/S
S163
Right Side Engine
N/S
S164
Near Engine Control Module C2
15
S165
Near Engine Control Module C2
15
S166
In Battery Positive Harness
N/S
S168
Right Rear of Engine
3
S169
Right Rear of Engine
3, 8
S170
Left Engine
15
S171
Top Left Engine
15
S172
In T/O for Fuel Control Actuator
N/S
S173
Center Instrument Panel
50
S174
Left Side Engine Compartment
32
S175
Near T/O for Engine Control Module
N/S
S176
Left Side Engine Near T/O for Fuel Control Actuator
N/S
S177
On Engine Harness Near T/O for C115
N/S
S179
On Smart Bar Jumper
32
S180
On Smart Bar Jumper
32
8W - 91 - 12
8W-91 CONNECTOR/GROUND/SPLICE LOCATION
DR/DH
