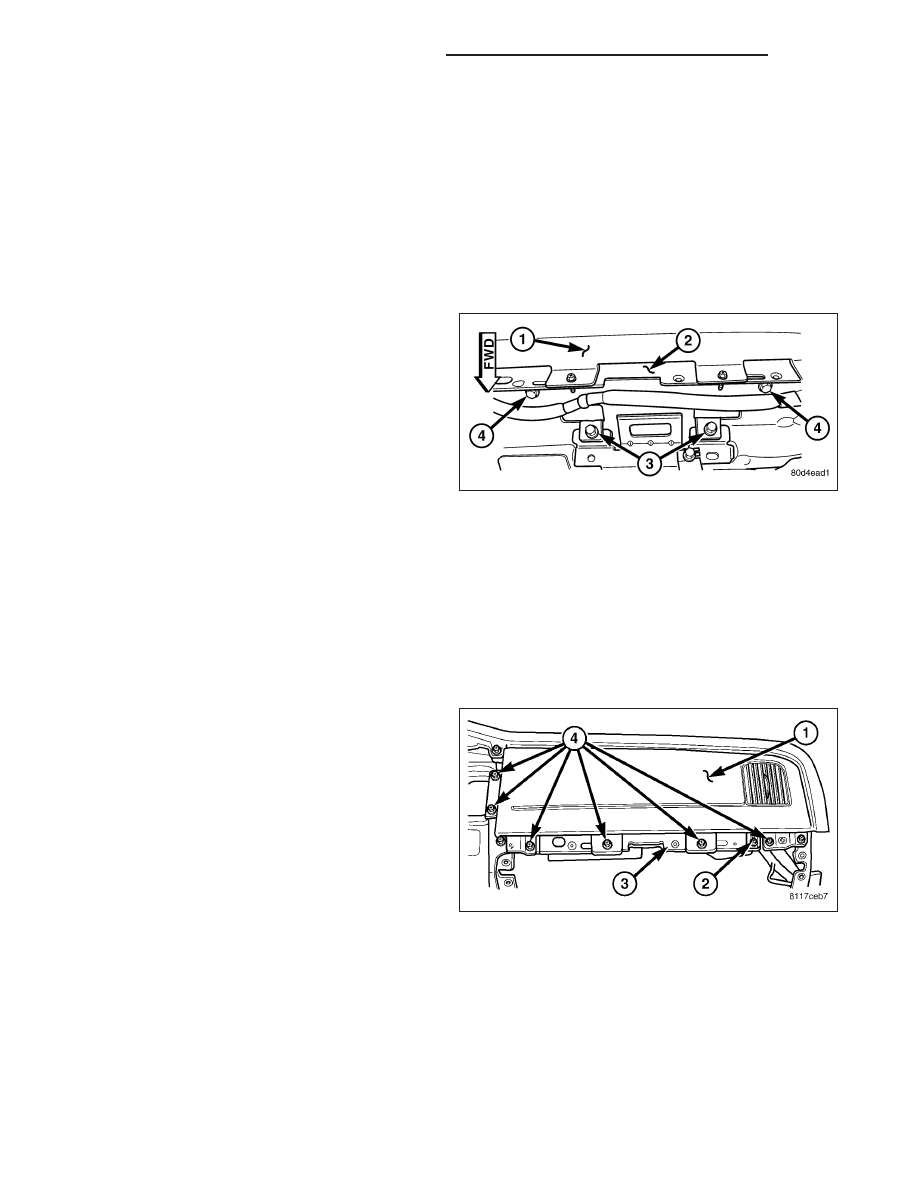

WARNING: To avoid personal injury or death, use extreme care to prevent any foreign material from enter- NOTE: The following procedure is for replacement of a faulty or damaged passenger airbag. If the airbag is 1. Carefully position the passenger airbag and airbag door (1) to the instrument panel as a unit. 2. Reconnect the passenger airbag pigtail wire con- nector to the instrument panel wire harness con- 3. Position the passenger airbag housing and door unit into the instrument panel. 4. Using hand pressure, press firmly and evenly over each of the seven snap features on the upper and outboard edges of the passenger airbag door until they snap into their receptacles in the instrument panel base trim. 5. Reach through and above the glove box opening to install and tighten the two screws (3) that secure the pas- senger airbag front brackets to the instrument panel structural support. Tighten the screws to 6 N·m (55 in. lbs.). 6. Reach through and above the glove box opening to install and tighten the two screws (4) that secure the pas- senger airbag rear brackets to the upper glove box opening reinforcement (2). Tighten the screws to 6 N·m (55 7. Install and tighten the six screws (4) that secure the inboard and lower flanges of the passenger air- 8. Install and tighten the screw (2) that secures the mounting tab of the panel outlet housing to the 9. Reinstall the lower surround onto the instrument panel. (Refer to 23 - BODY/INSTRUMENT PANEL/ 10. Do not reconnect the battery negative cable at this time. The supplemental restraint system verification test procedure should be performed following service of 8O - 290 RESTRAINTS - SERVICE INFORMATION DR/DH |
