DRIVER SQUIB 2 SHORT TO GROUND (CONTINUED)

CHECK CLOCKSPRING SQUIB CIRCUITS FOR A SHORT TO GROUND

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the 8443 Load Tool Jumper from the Driver Airbag Squib
connectors.

Disconnect the Clockspring connector.

NOTE: Check connectors - Clean and repair as necessary.

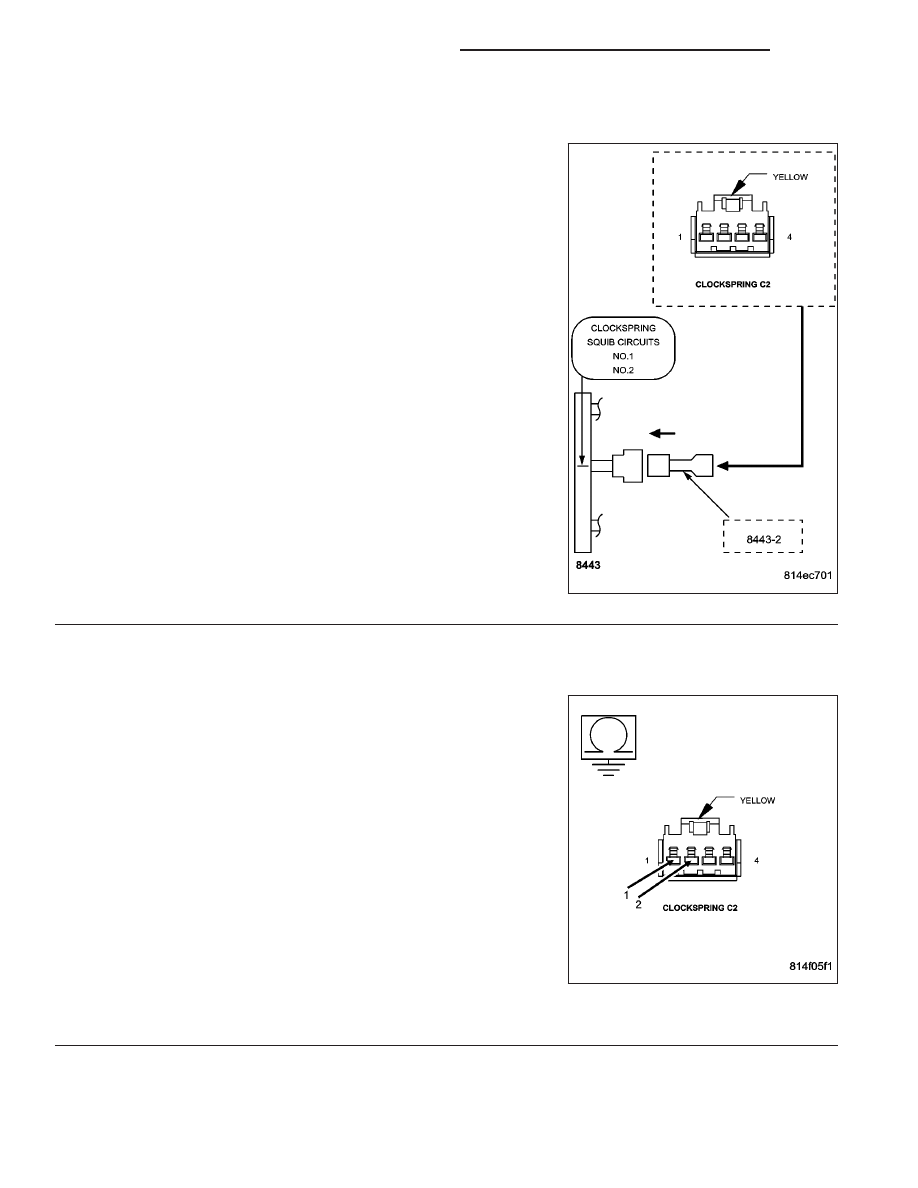

Connect the 8443 Load Tool and appropriate Jumper to the Clock-
spring connector.

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.
With the scan tool, read the active ORC DTC’s.

Does the scan tool display: DRIVER SQUIB 2 SHORT TO
GROUND?

Yes

>> Go To 4

>> Replace the Clockspring in accordance with the Service

Information.

Perform ORC VERIFICATION TEST - VER 1

CHECK DRIVER SQUIB 2 LINE 1 CIRCUIT AND DRIVER SQUIB 2 LINE 2 CIRCUIT FOR A SHORT TO
GROUND

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the 8443 Load Tool and Jumper from the Clockspring con-
nector.

Disconnect the ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.
Connect the 8443 Load Tool ORC Adaptor to the ORC connector.

Measure the resistance of the Driver Squib 2 Line 1 circuit between
ground and the Clockspring connector.

Measure the resistance of the Driver Squib 2 Line 2 circuit between
ground and the Clockspring connector.

Is the resistance below 10K ohms for either measurement?

Yes

>> Repair the Driver Squib 2 circuits with a resistance below

10K ohms for a short to ground.

Perform ORC VERIFICATION TEST - VER 1

>> Go To 5

8O - 70

RESTRAINTS - ELECTRICAL DIAGNOSTICS

DR/DH

DRIVER SQUIB 2 SHORT TO GROUND (CONTINUED)

REPLACE THE ORC

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to
take the proper precautions can result in accidental airbag deployment and personal injury or death.

NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must
be disconnected.

Repair

Replace the ORC in accordance with the Service Information.

Perform ORC VERIFICATION TEST - VER 1

STORED ORC DTC

With the scan tool, record and erase all DTC’s from all Airbag System Modules.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or
contaminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.

Wiggle the wiring harness and connectors of the related airbag circuit or component.

If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.

If only stored codes return continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

Are any ACTIVE DTCs present?

Yes

>> Select the appropriate diagnostic procedure from the Table of Contents in this section.

>> No problem found at this time. Erase all codes before returning vehicle to customer.

DR/DH

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 71

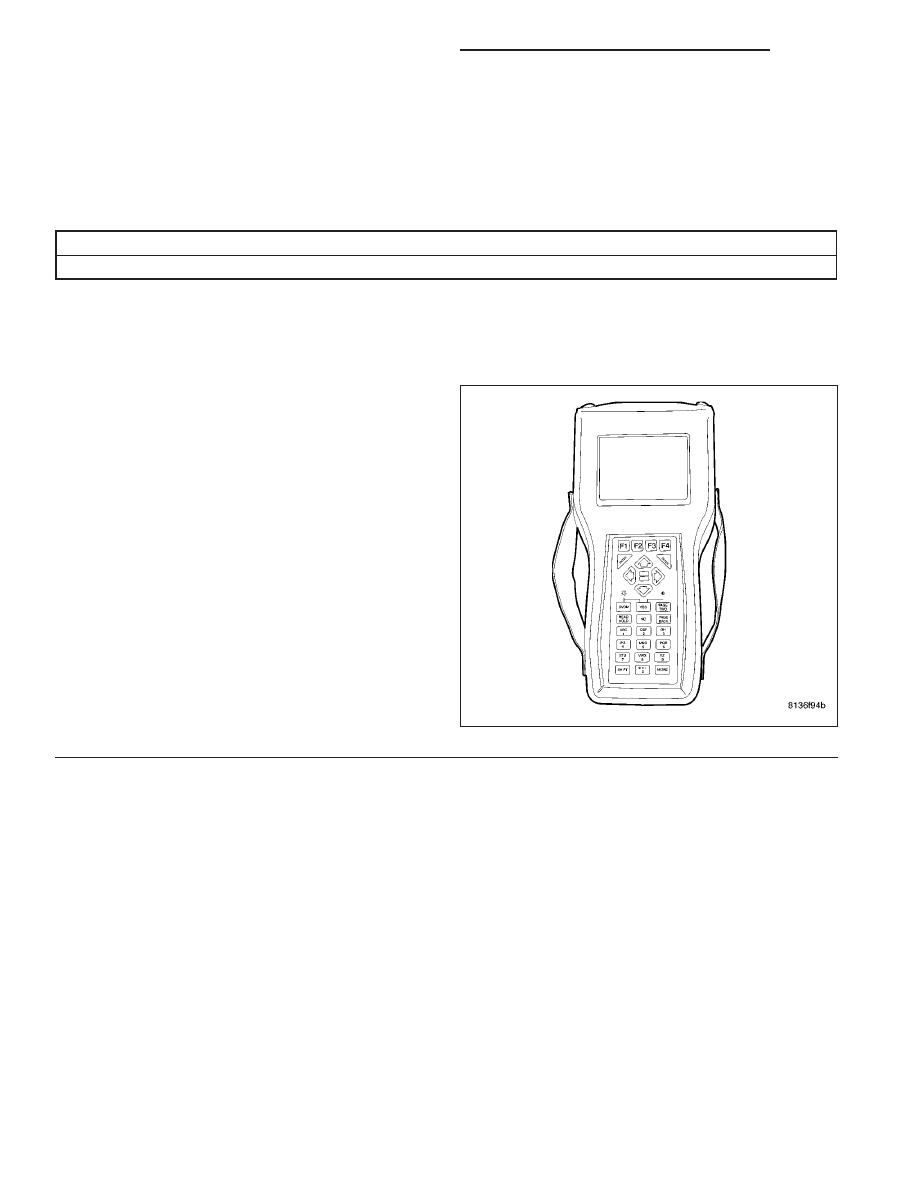

INTERNAL 1

For a complete wiring diagram Refer to Section 8W.

•

When Monitored:
With the ignition on. The module’s on board diagnostics continuously performs internal circuit tests.

•

Set Condition:
This DTC will set if the module identifies an out of range internal circuit.

Possible Causes

OCCUPANT RESTRAINT CONTROLLER

Diagnostic Test

REPLACE OCCUPANT RESTRAINT CONTROLLER

Turn the ignition on.

With the scan tool, erase and read ORC DTCs.

WARNING: To avoid personal injury or death, turn
the ignition off, disconnect the battery and wait
two minutes before proceeding.

WARNING: If the Occupant Restraint Controller is
dropped at any time, it must be replaced. Failure
to take proper precautions could result in acciden-
tal airbag deployment and personal injury or
death.

When this code is set, view repair.

Repair

Replace the Occupant Restraint Controller
in accordance with the Service Informa-
tion.

Perform the ORC VERIFICATION TEST-
VER. 1.

8O - 72

RESTRAINTS - ELECTRICAL DIAGNOSTICS

DR/DH

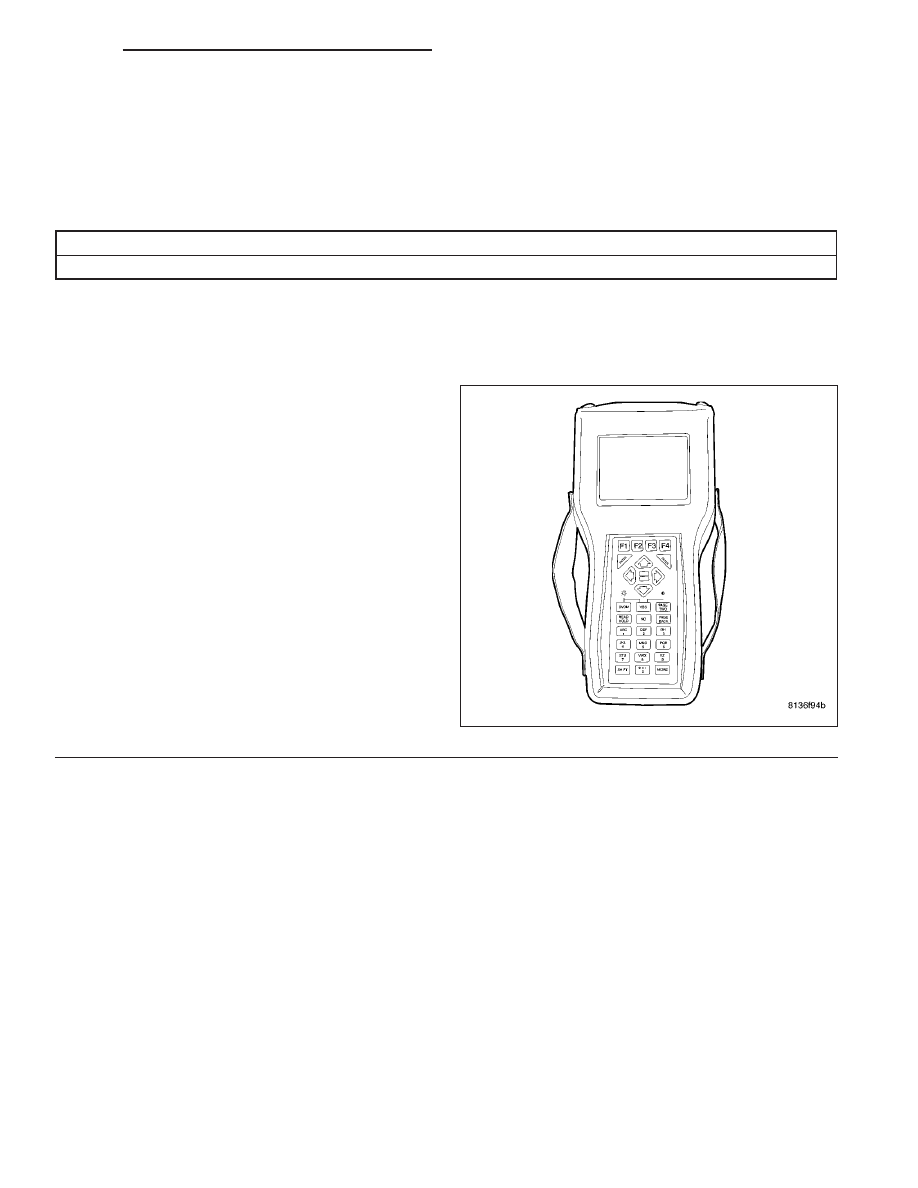

INTERNAL 2

For a complete wiring diagram Refer to Section 8W.

•

When Monitored:
With the ignition on. The module’s on board diagnostics continuously performs internal circuit tests.

•

Set Condition:
This DTC will set if the module identifies an out of range internal circuit.

Possible Causes

OCCUPANT RESTRAINT CONTROLLER

Diagnostic Test

REPLACE OCCUPANT RESTRAINT CONTROLLER

Turn the ignition on.

With the scan tool, erase and read ORC DTCs.

WARNING: To avoid personal injury or death, turn
the ignition off, disconnect the battery and wait
two minutes before proceeding.

When this code is set, view repair.

Repair

Replace the Occupant Restraint Controller
in accordance with the Service Informa-
tion.

Perform the ORC VERIFICATION TEST-
VER. 1.

DR/DH

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 73
