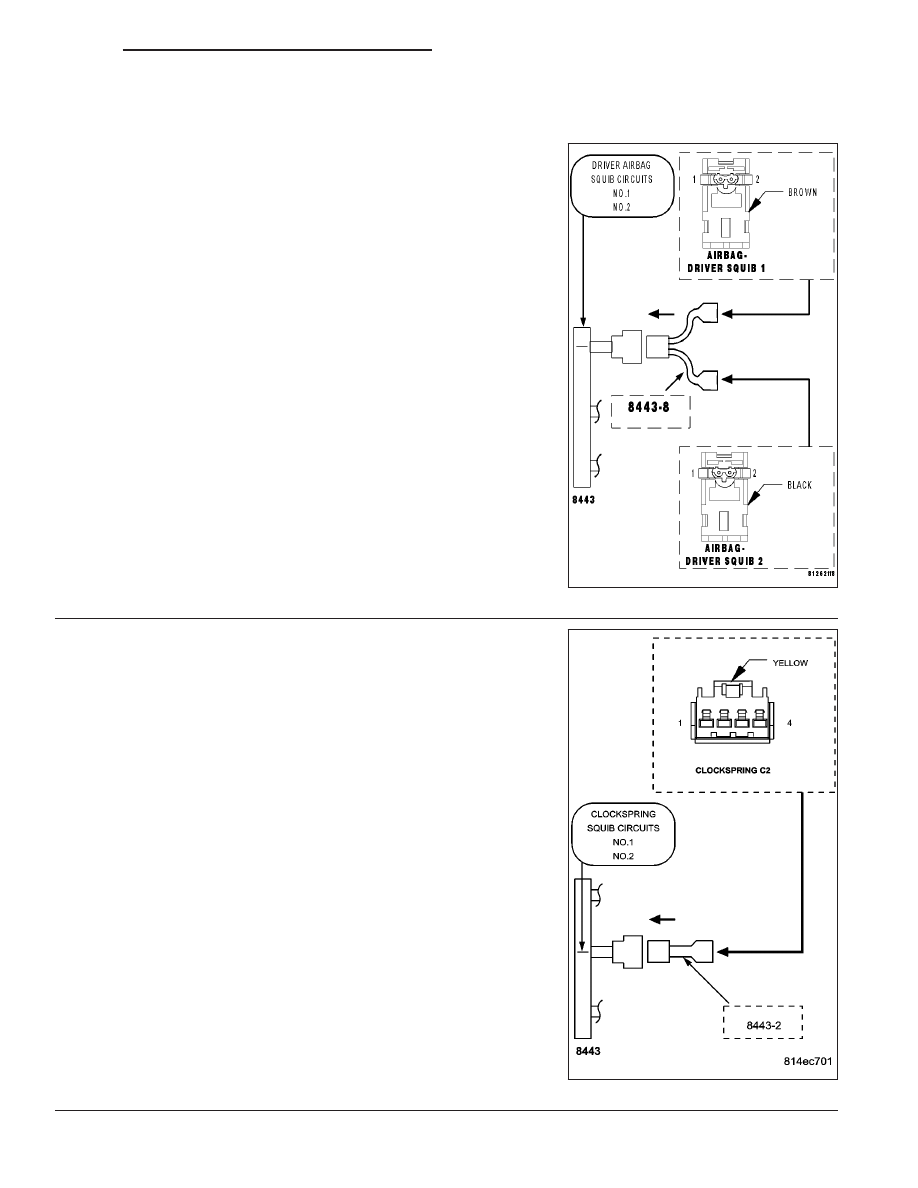

DRIVER SQUIB 2 CIRCUIT SHORT (CONTINUED) For the Air Bag System circuit diagram (Refer to 8 - ELECTRICAL/RESTRAINTS - SCHEMATICS AND DIA- For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes DRIVER SQUIB 2 LINE 1 CIRCUIT SHORTED TO DRIVER SQUIB 2 LINE 2 CIRCUIT CLOCKSPRING DRIVER AIRBAG ORC Diagnostic Test 1. DETERMINE ACTIVE OR STORED DTC NOTE: Ensure the battery is fully charged. NOTE: The Scan Tool, SRS Airbag Load Tool MRL 8443 and DVOM are required to perform the following NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must Is the DTC active or stored? ORC - ACTIVE DTC Go To 2 ORC - STORED DTC Go To 6 8O - 58 RESTRAINTS - ELECTRICAL DIAGNOSTICS DR/DH |
