WARNING: WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED AT ANY TIME, IT MUST
BE REPLACED. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG
DEPLOYMENT AND PERSONAL INJURY OR DEATH.

View repair.

Repair

Replace the Occupant Restraint Controller (ORC) in accordance with the Service Information.

Perform ORC VERIFICATION TEST - VER 1.

DR/DH

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 3

ACCELEROMETER 2

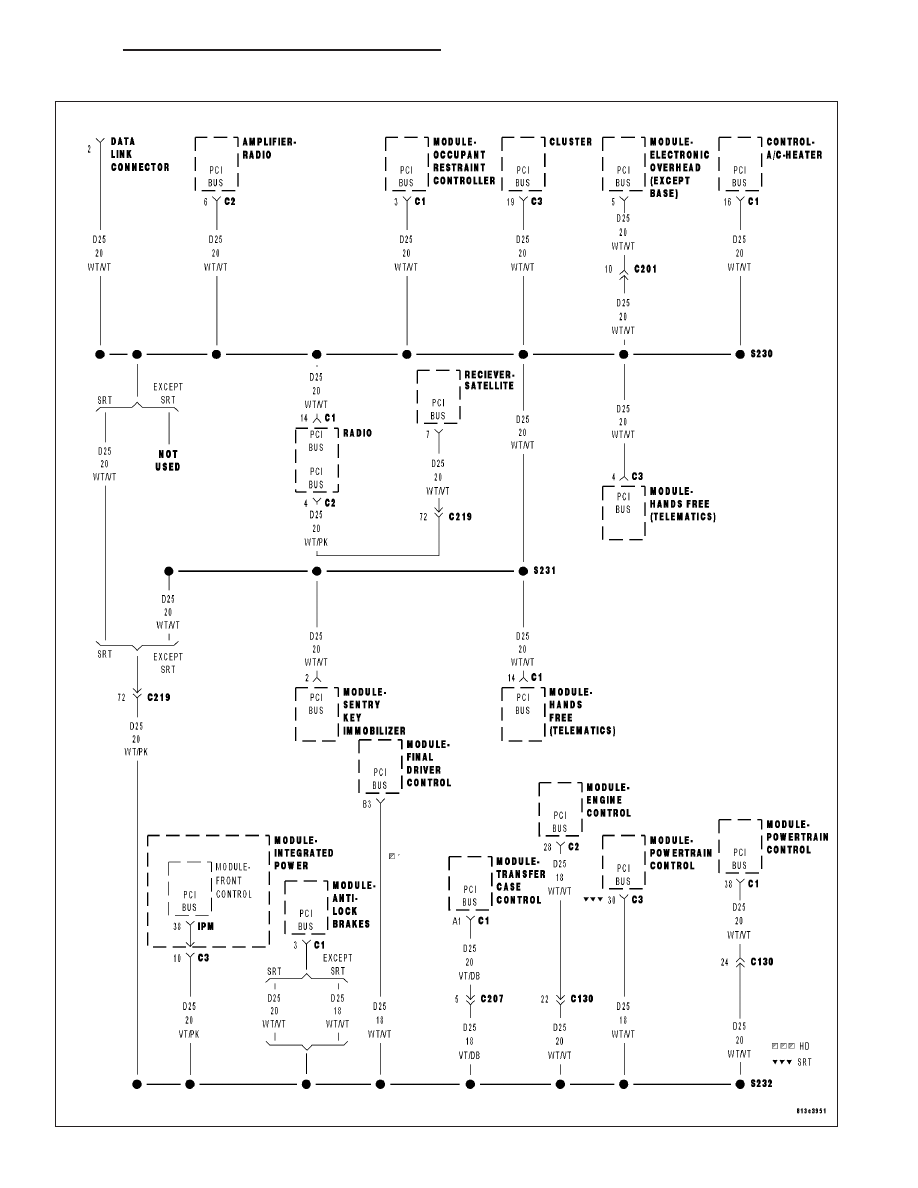

For a complete wiring diagram Refer to Section 8W.

•

When Monitored:
With the ignition on. The module’s on board diagnostics continuously performs internal circuit tests.

•

Set Condition:
This DTC will set if the module identifies an out of range internal circuit.

Possible Causes

OCCUPANT RESTRAINT CONTROLLER

Diagnostic Test

DETERMINE ACTIVE OR STORED DTC

Turn the ignition on.

NOTE: Ensure the battery is fully charged.

NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must
be disconnected.

Select ACTIVE or STORED DTC

ORC - ACTIVE DTC

Go To 2

ORC - STORED DTC

Test Complete.

OCCUPANT RESTRAINT CONTROLLER (ORC)

WARNING: WARNING: TO AVOID PERSONAL INJURY OR DEATH, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.

View repair.

Repair

Replace the Occupant Restraint Controller (ORC) in accordance with the Service Information.

Perform ORC VERIFICATION TEST - VER 1.

8O - 4

RESTRAINTS - ELECTRICAL DIAGNOSTICS

DR/DH

AIRBAG WARNING INDICATOR OPEN

DR/DH

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 5
