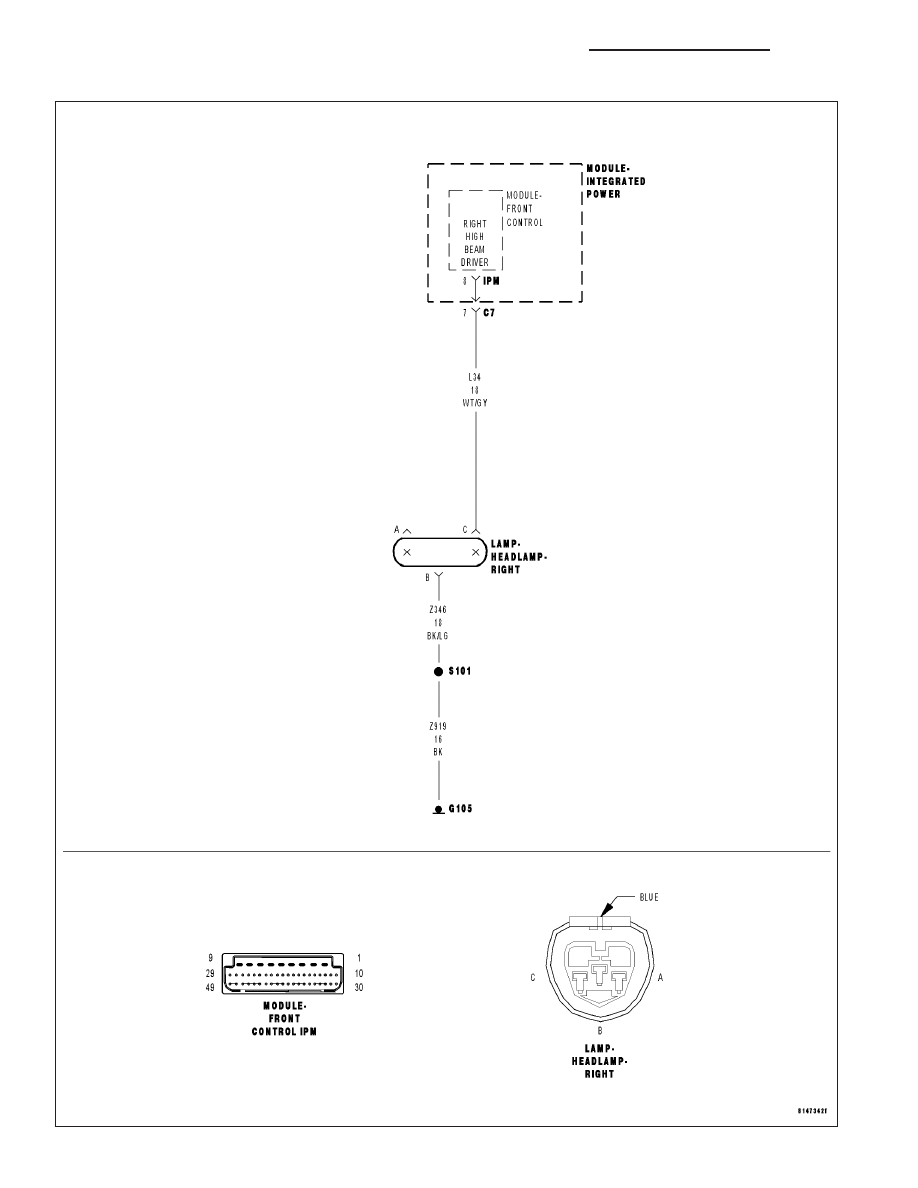

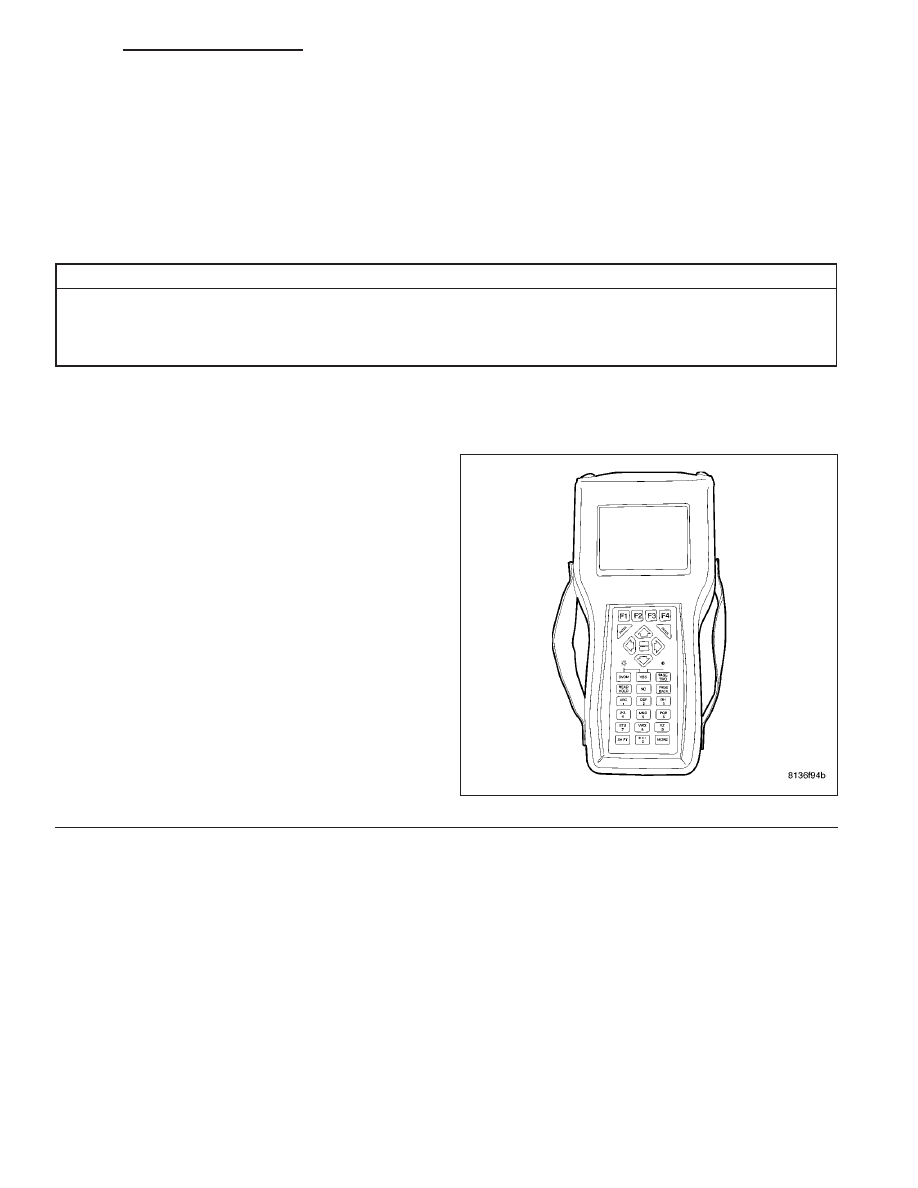

FCM-REAR RIGHT TURN OUTPUT CIRCUIT OPEN (CONTINUED) For the Exterior Lighting system circuit diagram (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR - For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes REAR RIGHT TURN SIGNAL OUTPUT CIRCUIT OPEN POWER DISTRIBUTION CENTER FRONT CONTROL MODULE 1. INTERMITTENT CONDITION Turn the ignition on. With the DRBIII T , clear all FCM DTC’s. Actuate the Right Rear Turn Signal lamp. With the DRBIII T , read the DTC information. Does the DRBIII T read: Rear Right Turn Output Circuit Open? Yes >> Go To 2 No >> The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires. Perform BODY VERIFICATION TEST - VER 1. 2. REAR RIGHT TURN SIGNAL OUTPUT CIRCUIT OPEN Turn the ignition off. Disconnect the IPM C3 harness connector Measure the resistance of the Rear Right Turn Signal Output circuit. Is the resistance above 5.0 ohms? Yes >> Repair the Rear Right Turn Signal Output circuit for an open. Perform BODY VERIFICATION TEST - VER 1. No >> Go To 3 8L - 74 LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS DR/DH |
