SUBWOOFER – QUAD CAB

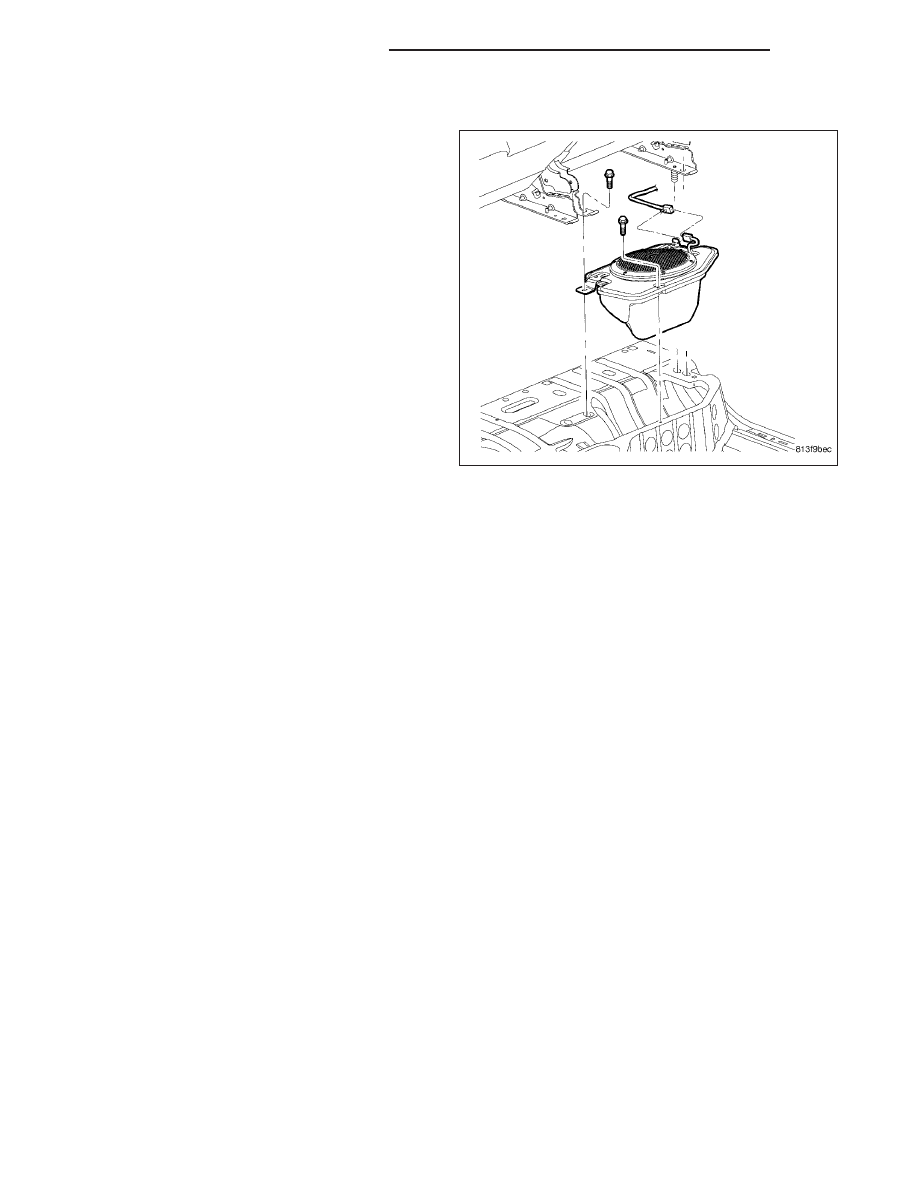

1. Position subwoofer to vehicle.

2. Connect electrical harness connector.

3. Install and tighten mounting fasteners.

4. Lower seat.

5. Connect battery negative cable.

SUPPRESSION COMPONENTS - RADIO NOISE

DESCRIPTION

Radio noise suppression devices are Installed on this vehicle. Radio Frequency Interference (RFI) and ElectroMag-
netic Interference (EMI) can be produced by any on-board or external source of electromagnetic energy. These elec-
tromagnetic energy sources can radiate electromagnetic signals through the air, or conduct them through the vehicle
electrical system.

When the audio system converts RFI or EMI to an audible acoustic wave form, it is referred to as radio noise. This
undesirable radio noise is generally manifested in the form of “buzzing,” “hissing,” “popping,” “clicking,” “crackling,”
and/or “whirring” sounds. In most cases, RFI and EMI radio noise can be suppressed using a combination of vehicle
and component grounding, filtering and shielding techniques. This vehicle is equipped with factory-installed radio
noise suppression devices that were designed to minimize exposure to typical sources of RFI and EMI; thereby,
minimizing radio noise complaints.

Factory-installed radio noise suppression is accomplished primarily through circuitry or devices that are integral to
the factory-installed radios, audio power amplifiers and other on-board electrical components such as generators,
wiper motors, blower motors, and fuel pumps that have been found to be potential sources of RFI or EMI. External
radio noise suppression devices that are used on this vehicle to control RFI or EMI, and can be serviced, include
the following:

Engine-to-body ground strap - This length of braided ground strap has an eyelet terminal connector crimped
to each end. One end is secured to the engine cylinder head(s). The other is secured to the plenum at the
exhaust heat shield forward/outer attaching stud.

Resistor-type spark plugs - This type of spark plug has an internal resistor connected in series between the
spark plug terminal and the center electrode to help reduce the production of electromagnetic radiation that
can result in radio noise.

OPERATION

There are two common strategies that can be used to suppress Radio Frequency Interference (RFI) and Electro-
Magnetic Interference (EMI) radio noise. The first suppression strategy involves preventing the production of RFI
and EMI electromagnetic signals at their sources. The second suppression strategy involves preventing the recep-
tion of RFI and EMI electromagnetic signals by the audio system components.

The use of braided ground straps in key locations is part of the RFI and EMI prevention strategy. These ground
straps ensure adequate ground paths, particularly for high current components such as many of those found in the
starting, charging, ignition, engine control and transmission control systems. An insufficient ground path for any of

8A - 82

AUDIO - SERVICE INFORMATION

DR/DH

these high current components may result in radio noise caused by induced voltages created as the high current
seeks alternative ground paths through components or circuits intended for use by, or in close proximity to the audio
system components or circuits.

Preventing the reception of RFI and EMI is accomplished by ensuring that the audio system components are cor-
rectly installed in the vehicle. Loose, corroded or improperly soldered wire harness connections, improperly routed
wiring and inadequate audio system component grounding can all contribute to the reception of RFI and EMI. A
properly grounded antenna body and radio chassis, as well as a shielded antenna coaxial cable with clean and tight
connections will each help reduce the potential for reception of RFI and EMI.

REMOVAL

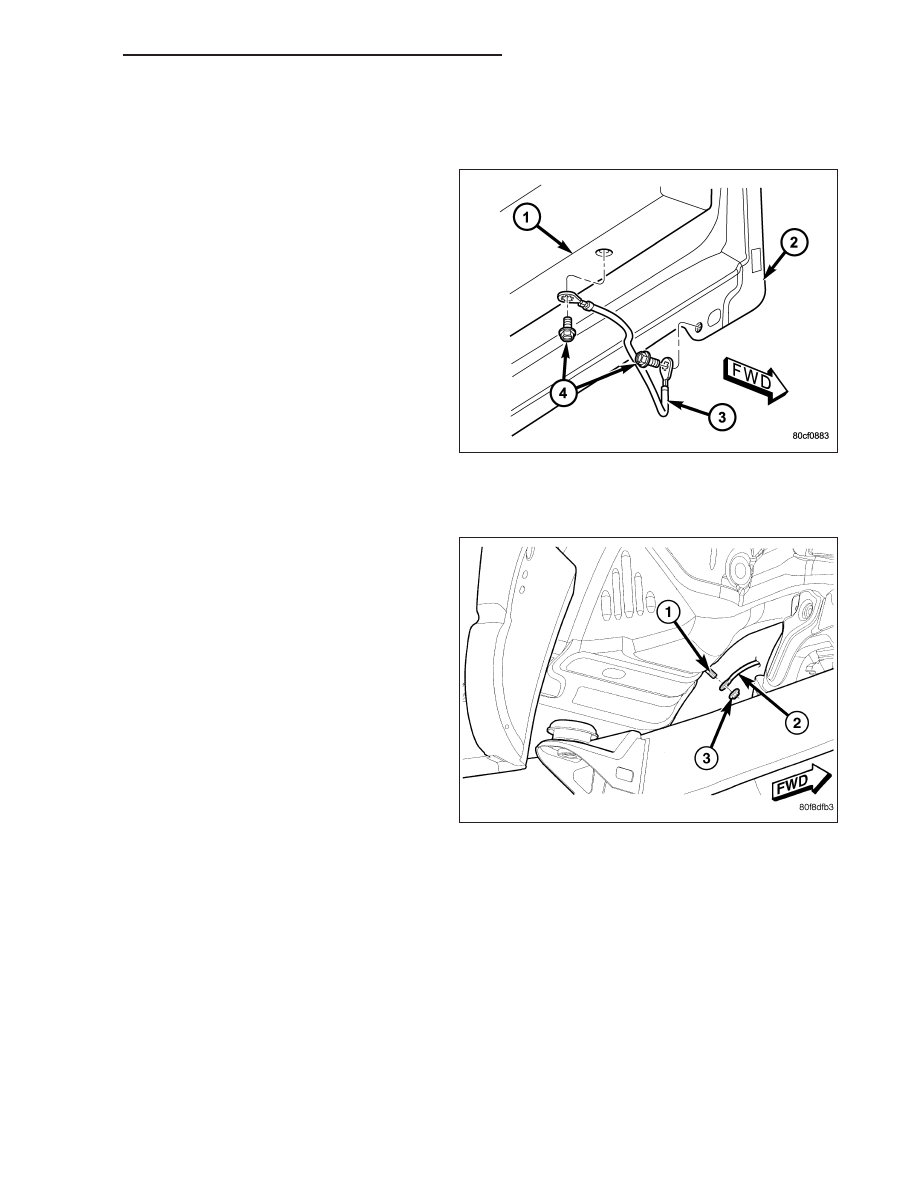

BED TO CAB

1. Disconnect and isolate the battery negative cable.

2. Remove the attaching bolts and strap.

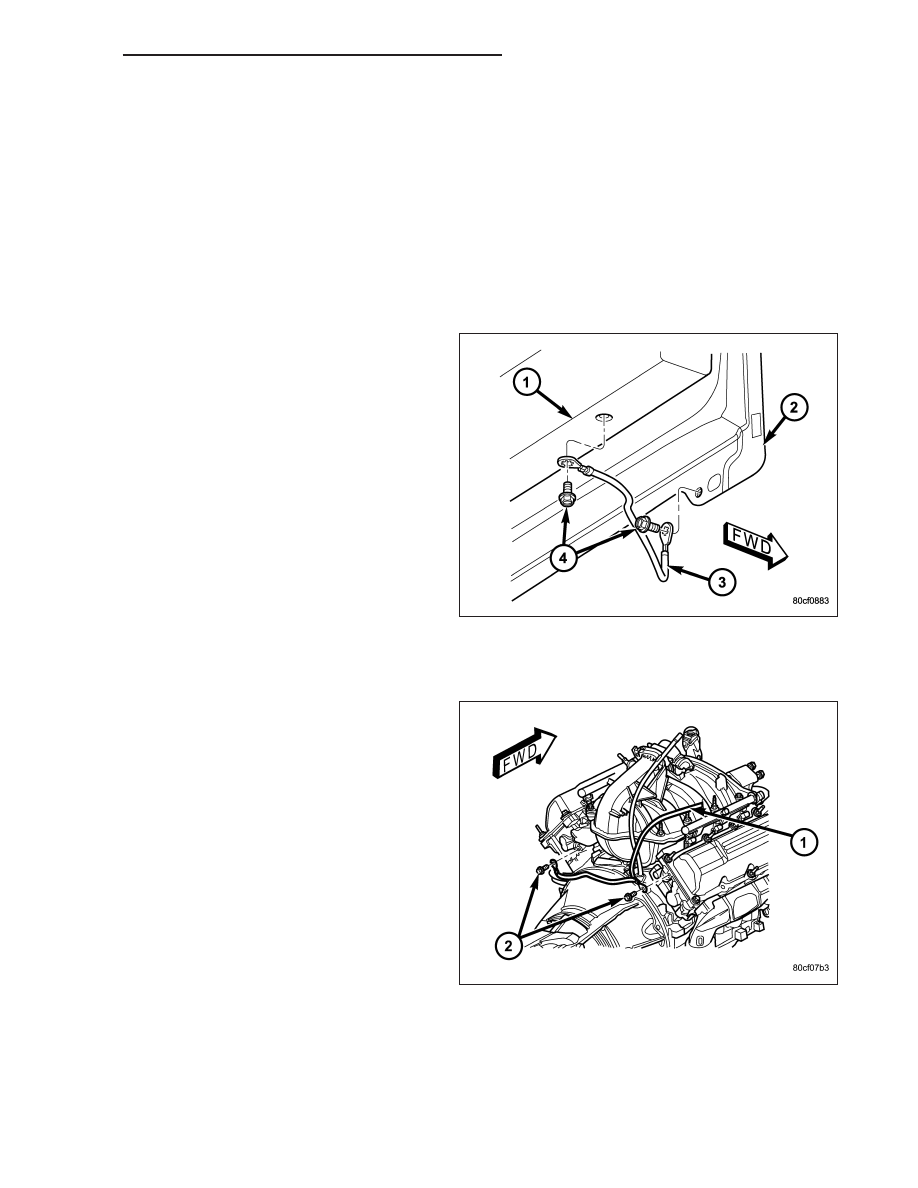

ENGINE TO HEAT SHIELD - 3.7L ENGINE

1. Disconnect and isolate the battery negative cable.

2. Remove the attaching bolts (2) from the cylinder

heads.

DR/DH

AUDIO - SERVICE INFORMATION

8A - 83

3. Remove nut (3) from heat shield (1) and remove

strap (2).

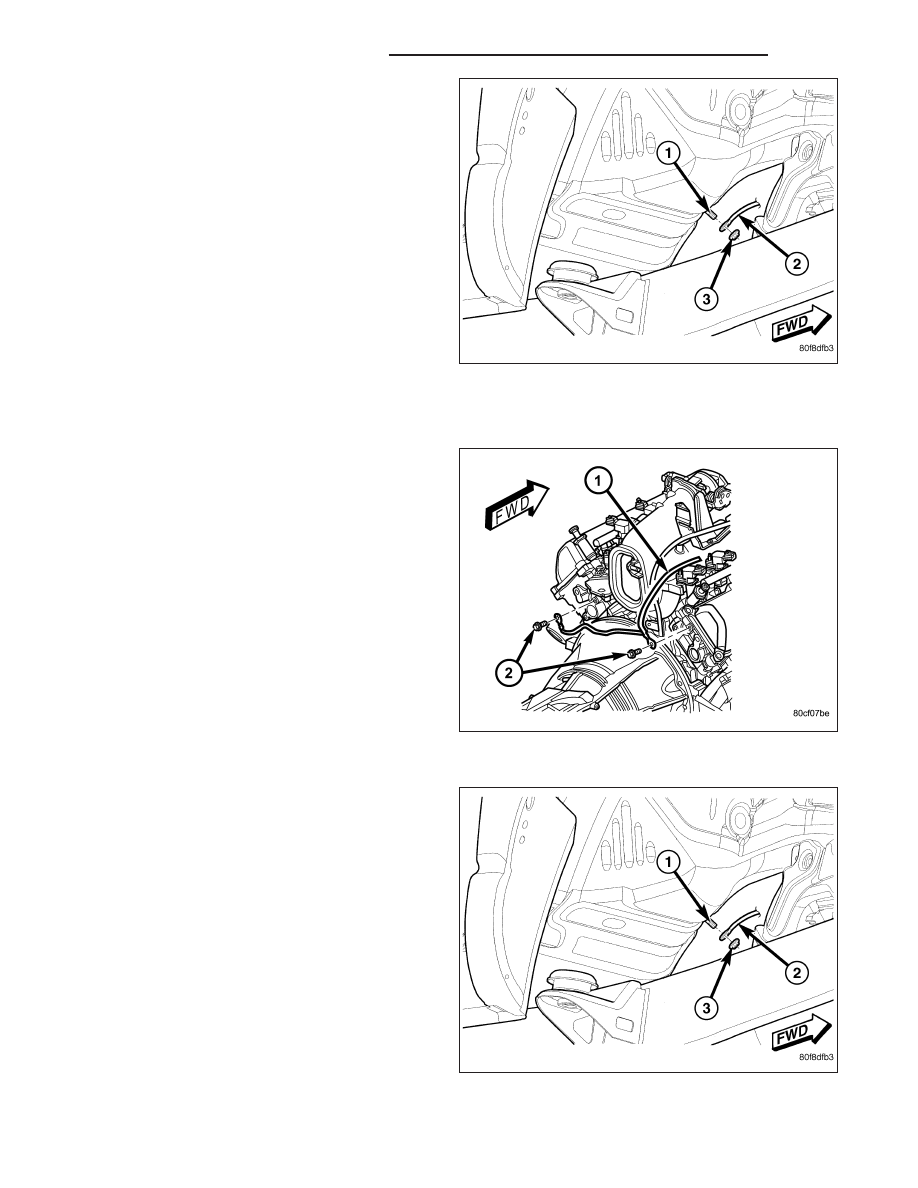

ENGINE TO HEAT SHIELD - 4.7L AND 5.7L ENGINE

1. Disconnect and isolate the battery negative cable.

2. Remove the attaching bolts (2) from the cylinder

heads.

3. Remove nut (3) from heat shield (1) and remove

strap (2).

8A - 84

AUDIO - SERVICE INFORMATION

DR/DH

INSTALLATION

BED TO CAB

1. Install the ground strap (3) and mounting fasteners

(4).

2. Tighten mounting fasteners.

3. Connect the battery negative cable.

ENGINE TO HEAT SHIELD

1. Install the mounting fastener (3) and ground strap

(2) to the heat shield (1).

2. Tighten mounting fastener.

DR/DH

AUDIO - SERVICE INFORMATION

8A - 85
