C1400-TRANSFER CASE RANGE SELECT SWITCH PERFORMANCE (CONTINUED)

7.

(T525) TRANSFER CASE RETURN CIRCUIT SHORT TO GROUND

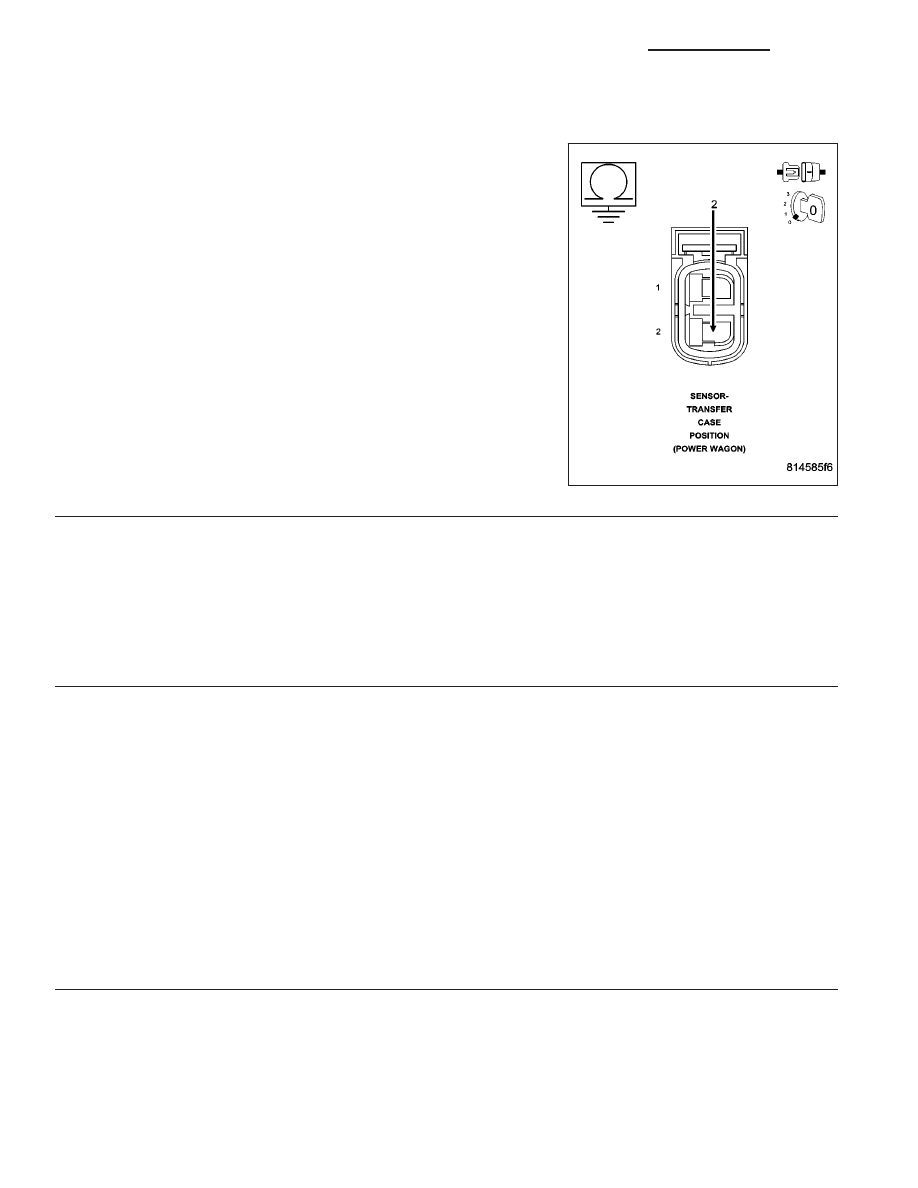

Measure the resistance between the (T525) Transfer Case Return cir-
cuit and ground.

Is the resistance less than 5.0 ohms?

Yes

>> Repair the (T525) Transfer Case Return circuit for a short

to ground.

Perform the FDCM VERIFICATION TEST. (Refer to 3 -
DIFFERENTIAL & DRIVELINE - DIAGNOSIS AND TEST-
ING)

No

>> Go To 8

8.

FINAL DRIVE CONTROL MODULE

View repair.

Repair

Replace the Final Drive Control Module in accordance with the Service Information.

Perform the FDCM VERIFICATION TEST (Refer to 3 - DIFFERENTIAL & DRIVELINE - DIAGNOSIS
AND TESTING)

9.

INTERMITTENT TRANSFER CASE RANGE SELECT SWITCH PERFORMANCE

The conditions necessary to set this DTC are not present at this time.

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

While monitoring the scan tool data relative to this circuit, move the selector switch to each position several times.

Look for the data to change other than as expected or for the DTC to reset.

Were any problems found?

Yes

>> Repair as necessary.

Perform the FDCM VERIFICATION TEST. (Refer to 3 - DIFFERENTIAL & DRIVELINE - DIAGNOSIS
AND TESTING)

No

>> Test complete.

21 - 1300

TRANSFER CASE - ELECTRICAL DIAGNOSTICS (POWER WAGON)

DR/DH

C1401-TRANSFER CASE RANGE SELECT SWITCH CIRCUIT LOW

DR/DH

TRANSFER CASE - ELECTRICAL DIAGNOSTICS (POWER WAGON)

21 - 1301

C1401-TRANSFER CASE RANGE SELECT SWITCH CIRCUIT LOW (CONTINUED)

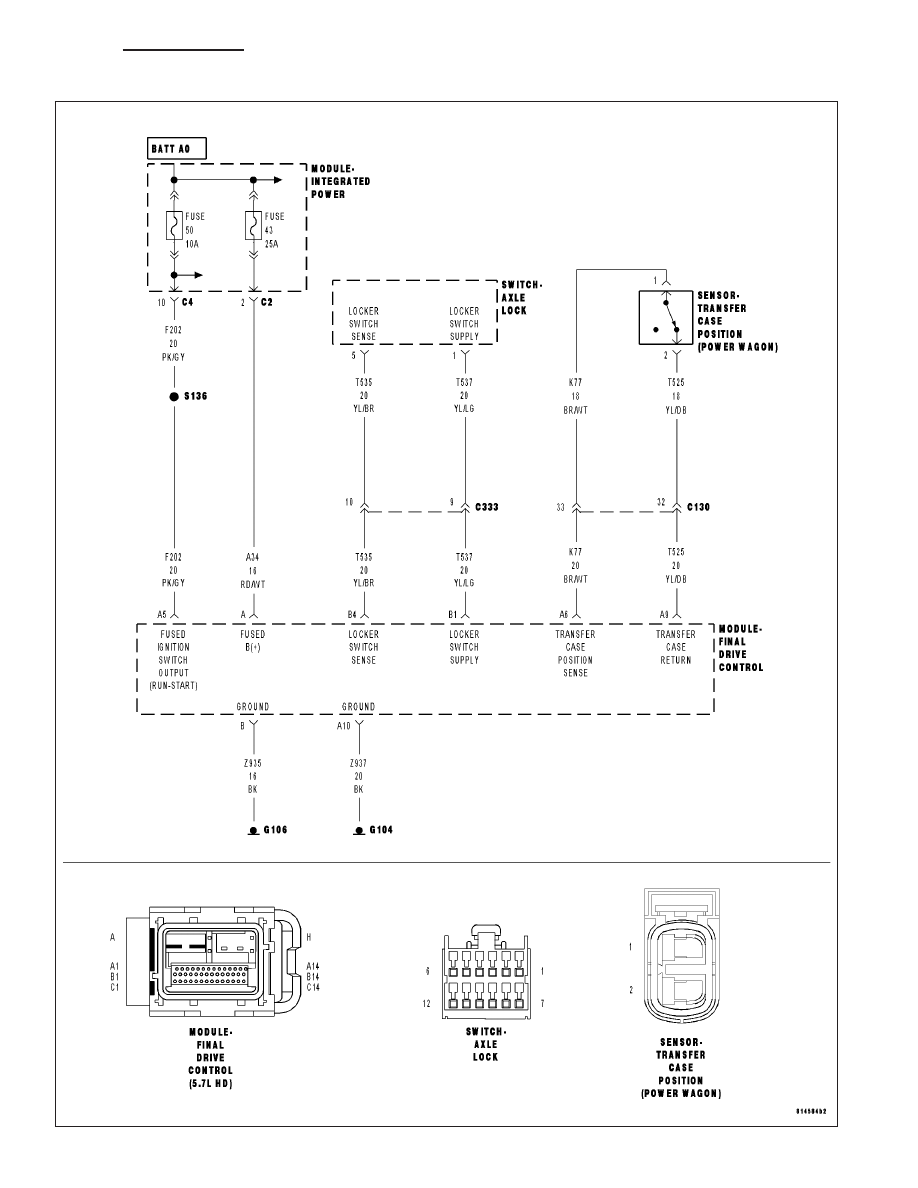

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on and no system undervoltage or overvoltage or supply voltage low conditions present.

Set Condition:
The sensed voltage is below a specified value for a calibrated amount of time.

Possible Causes

INTERMITTENT TRANSFER CASE RANGE SELECT SWITCH CIRCUIT LOW

(K77) TRANSFER CASE POSITION SENSE CIRCUIT SHORTED TO GROUND

(K77) TRANSFER CASE POSITION SENSE CIRCUIT OPEN

(T525) TRANSFER CASE RETURN CIRCUIT SHORT TO GROUND

(T525) TRANSFER CASE RETURN CIRCUIT OPEN

TRANSFER CASE POSITION SENSOR

FINAL DRIVE CONTROL MODULE

Diagnostic Test

1.

4WD RANGE SWITCH VOLTAGE LESS THAN 0.2 VOLTS

Ignition on, engine not running.

NOTE: Repair any system undervoltage or overvoltage DTCs that are set in this module before proceeding.
With the scan tool under Data Display, read the 4WD Range Switch Voltage.

Is the voltage less than 0.2 volts?

Yes

>> Go To 2

No

>> Go To 9

2.

TRANSFER CASE POSITION SENSOR

Turn the ignition off.

Disconnect the Transfer Case Position Sensor harness connector.

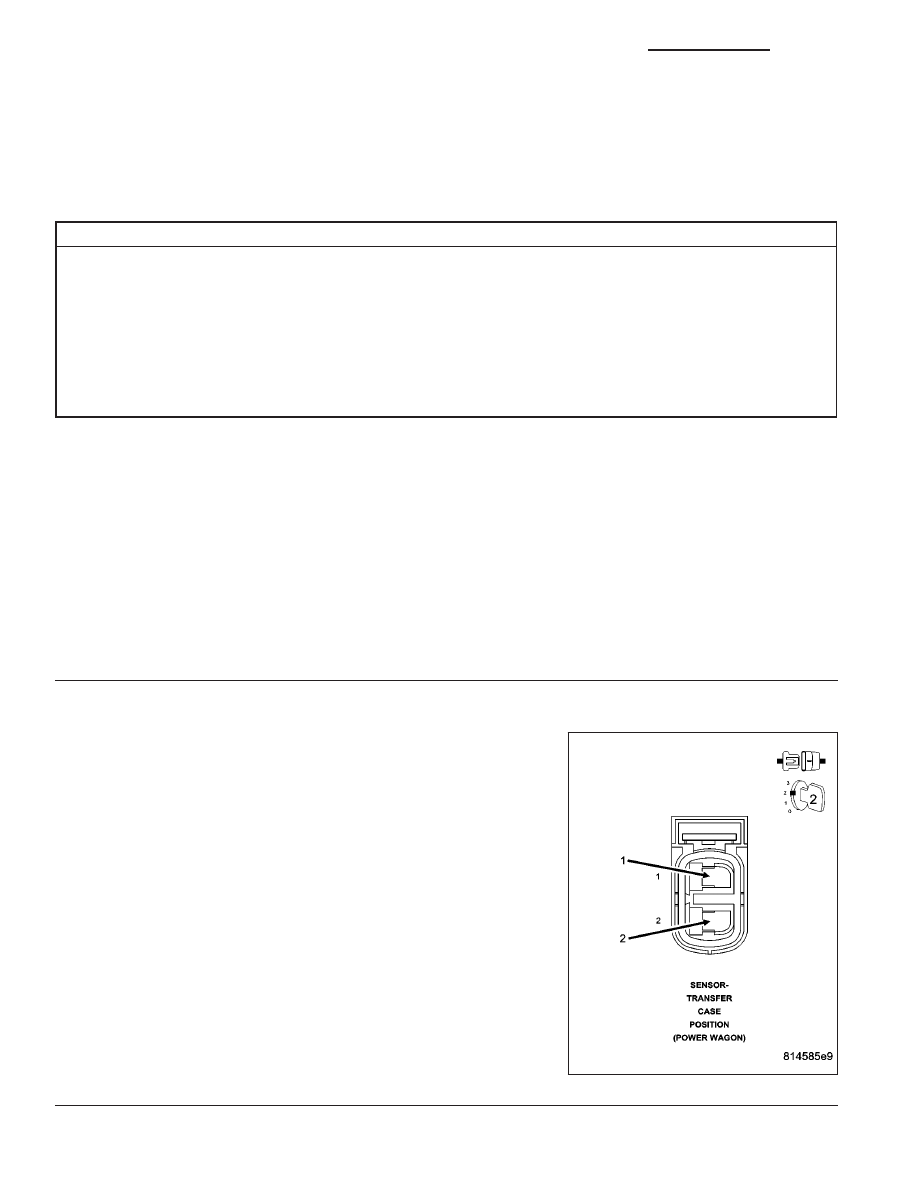

Connect a jumper wire between the (K77) Transfer Case Position
Sense circuit and the (T525) Transfer Case Return circuit in the Trans-
fer Case Position Sensor harness connector.

Ignition on, engine not running.

With the scan tool under Data Display, read the 4WD Range Switch
Voltage.

The switch voltage should be approximately 5.0 volts.

Does the voltage display as described?

Yes

>> Replace the Transfer Case Position Sensor.

Perform the FDCM VERIFICATION TEST. (Refer to 3 -
DIFFERENTIAL & DRIVELINE - DIAGNOSIS AND TEST-
ING)

No

>> Go To 3

21 - 1302

TRANSFER CASE - ELECTRICAL DIAGNOSTICS (POWER WAGON)

DR/DH

C1401-TRANSFER CASE RANGE SELECT SWITCH CIRCUIT LOW (CONTINUED)

3.

(K77) TRANSFER CASE POSITION SENSE CIRCUIT VOLTAGE

Turn the ignition on.

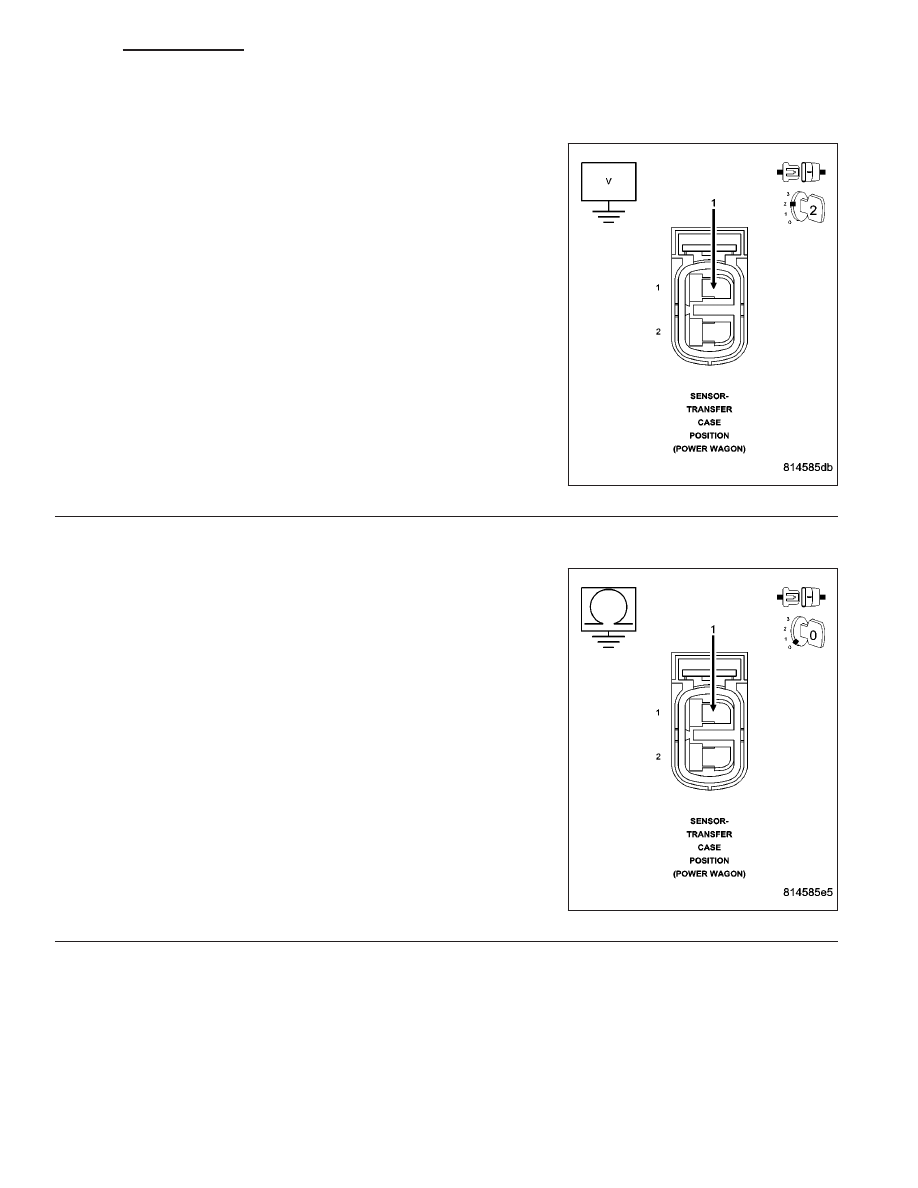

Measure the voltage of the (K77) Transfer Case Position Sense circuit.

The voltage should be approximately 5.0 volts.

Does the voltage display as described?

Yes

>> Go To 6

No

>> Go To 4

4.

(K77) TRANSFER CASE POSITION SENSE CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the Final Drive Control Module harness connector.

Measure the resistance between the (K77) Transfer Case Position
Sense circuit and ground.

Is the resistance less than 5.0 ohms?

Yes

>> Repair the (K77) Transfer Case Position Sense circuit for

a short to ground.

Perform the FDCM VERIFICATION TEST. (Refer to 3 -
DIFFERENTIAL & DRIVELINE - DIAGNOSIS AND TEST-
ING)

No

>> Go To 5

DR/DH

TRANSFER CASE - ELECTRICAL DIAGNOSTICS (POWER WAGON)

21 - 1303
