SCHEMATICS AND DIAGRAMS

HYDRAULIC SCHEMATICS

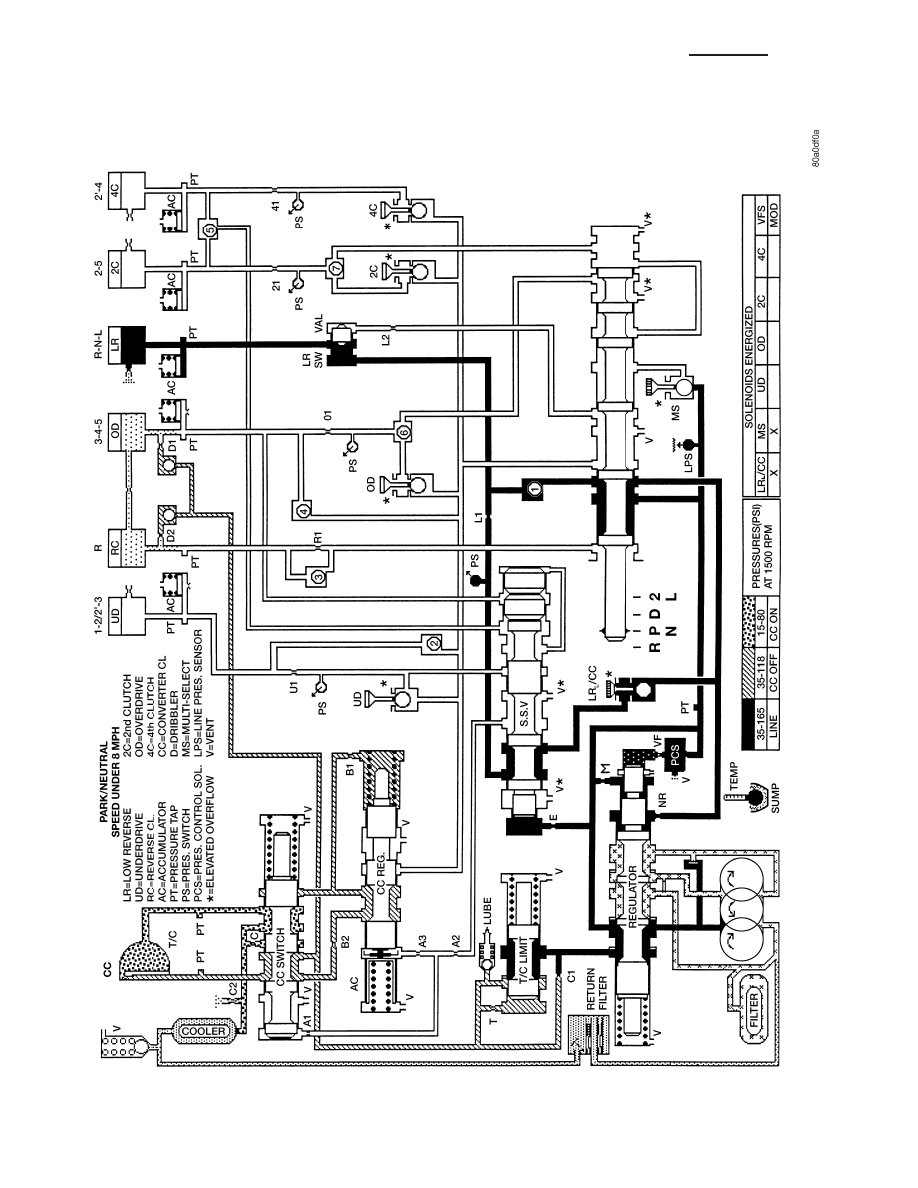

HYDRAULIC

FLOW

IN

P

ARK/NEUTRAL

21 - 588

AUTOMATIC TRANSMISSION - 45RFE/545RFE - SERVICE INFORMATION

DR/DH

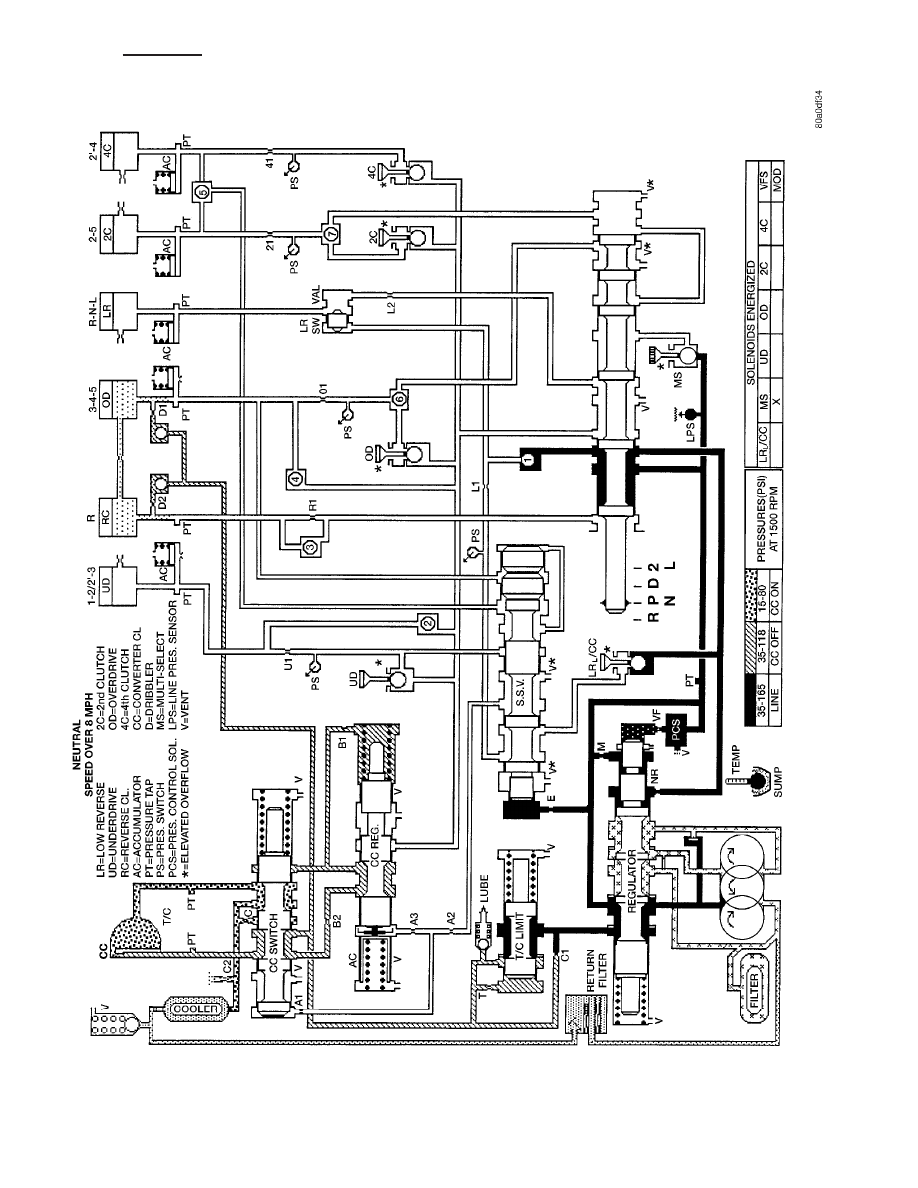

HYDRAULIC

FLOW

IN

NEUTRAL

OVER

8MPH

DR/DH

AUTOMATIC TRANSMISSION - 45RFE/545RFE - SERVICE INFORMATION

21 - 589

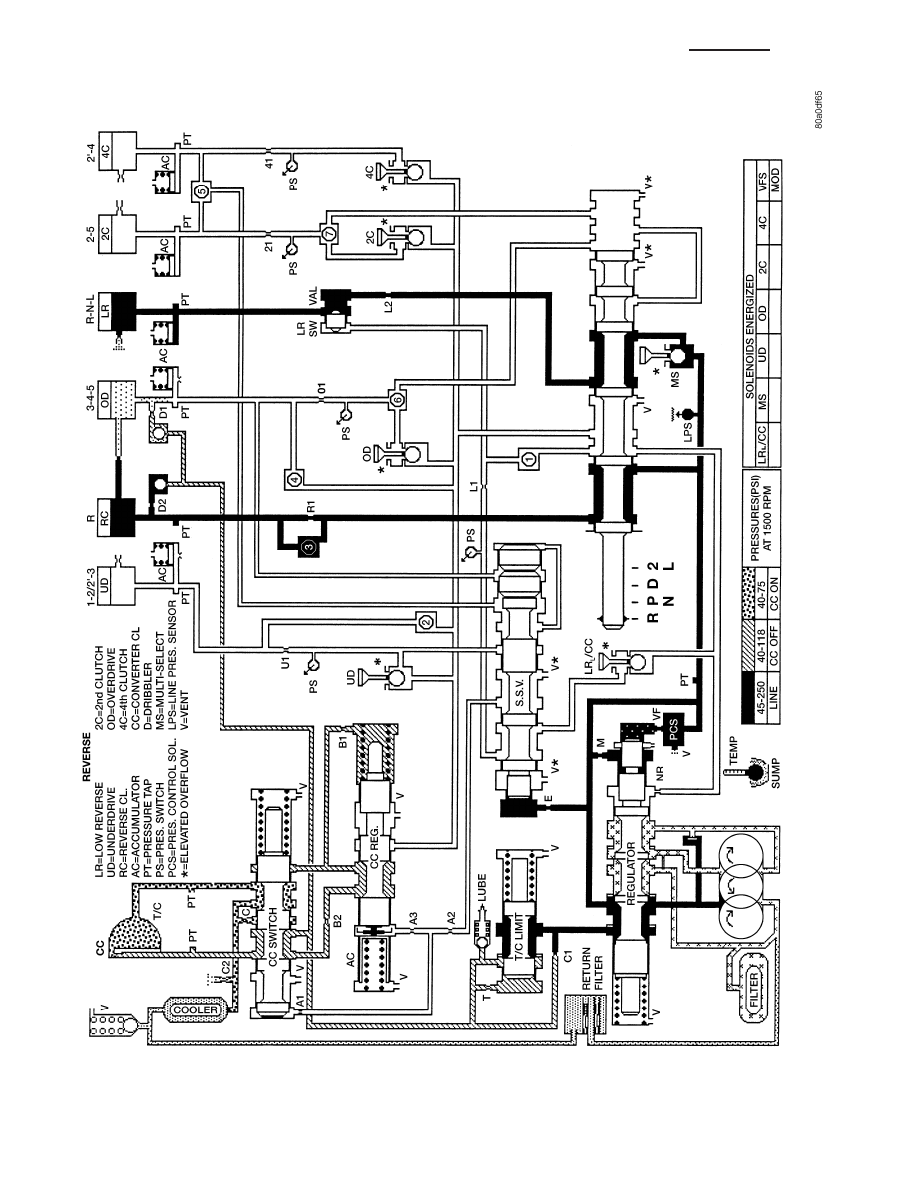

HYDRAULIC

FLOW

IN

REVERSE

21 - 590

AUTOMATIC TRANSMISSION - 45RFE/545RFE - SERVICE INFORMATION

DR/DH

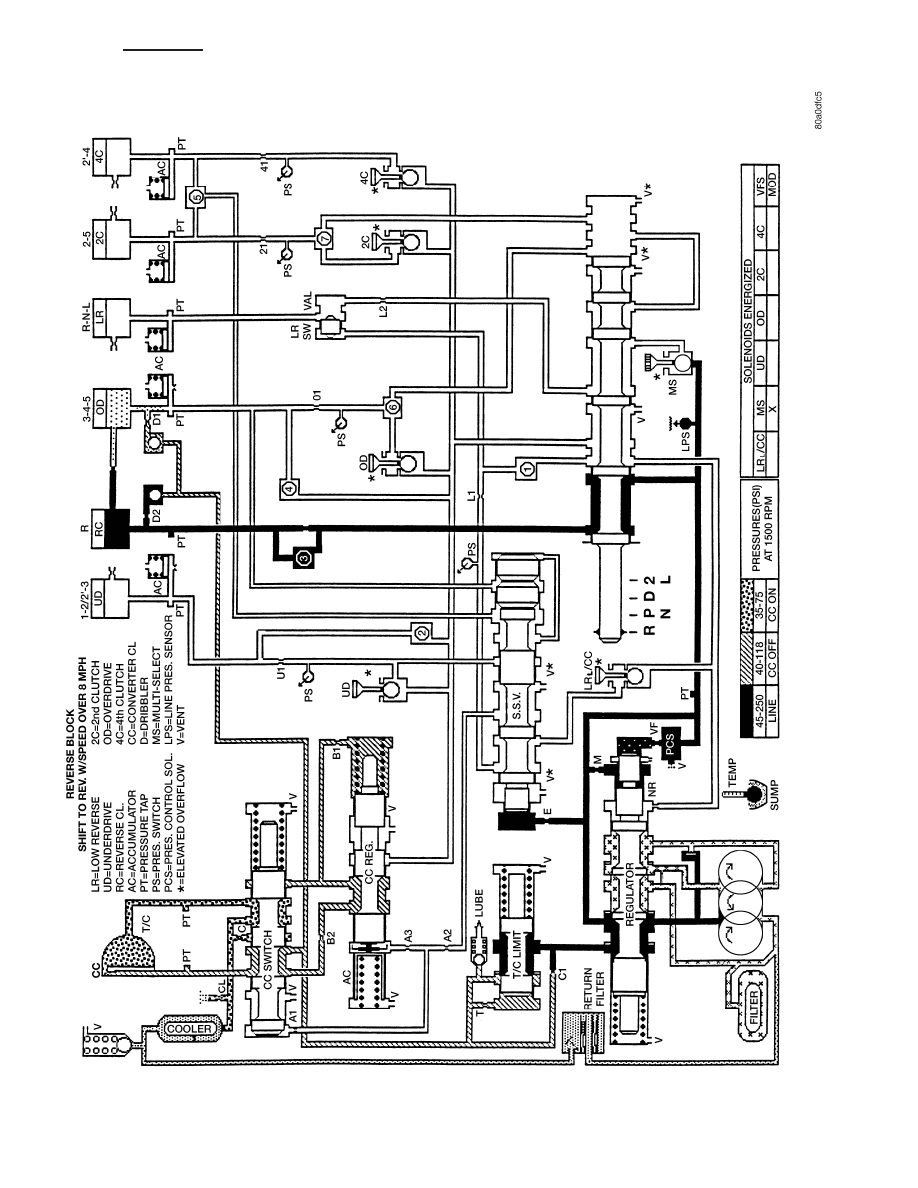

HYDRAULIC

FLOW

IN

REVERSE

BLOCK

DR/DH

AUTOMATIC TRANSMISSION - 45RFE/545RFE - SERVICE INFORMATION

21 - 591
