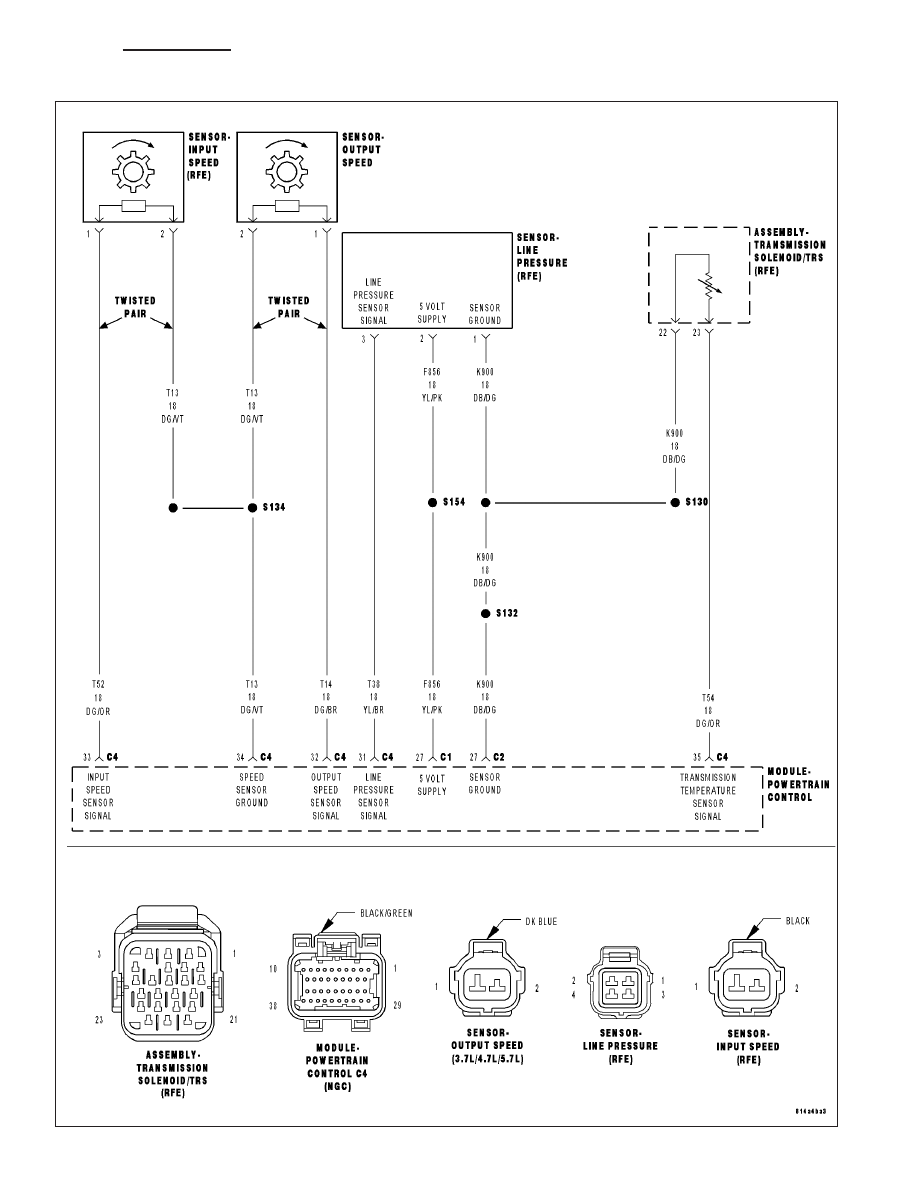

P0715-INPUT SPEED SENSOR 1 CIRCUIT (CONTINUED) 8. (T13) SPEED SENSOR GROUND CIRCUIT SHORT TO GROUND Measure the resistance between ground and the (T13) Speed Sensor Is the resistance below 5.0 ohms? Yes >> Repair the (T13) Speed Sensor Ground circuit for a short to ground. Perform 45RFE/545RFE TRANSMISSION VERIFICATION No >> Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or Perform 45RFE/545RFE TRANSMISSION VERIFICATION 9. INTERMITTENT WIRING AND CONNECTORS The conditions necessary to set this DTC are not present at this time. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit. Wiggle the wires while checking for shorted and open circuits. With the scan tool, check the EATX DTC EVENT DATA to help identify the conditions in which the DTC was set. Were there any problems found? Yes >> Repair as necessary. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. No >> Test Complete. 21 - 336 AUTOMATIC TRANSMISSION - 545RFE - ELECTRICAL DIAGNOSTICS DR/DH |
