15. Seperate the shaft from the coupler (1).

16. Remove the brake light switch and discard (Refer

to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERI-
OR/BRAKE LAMP SWITCH - REMOVAL).

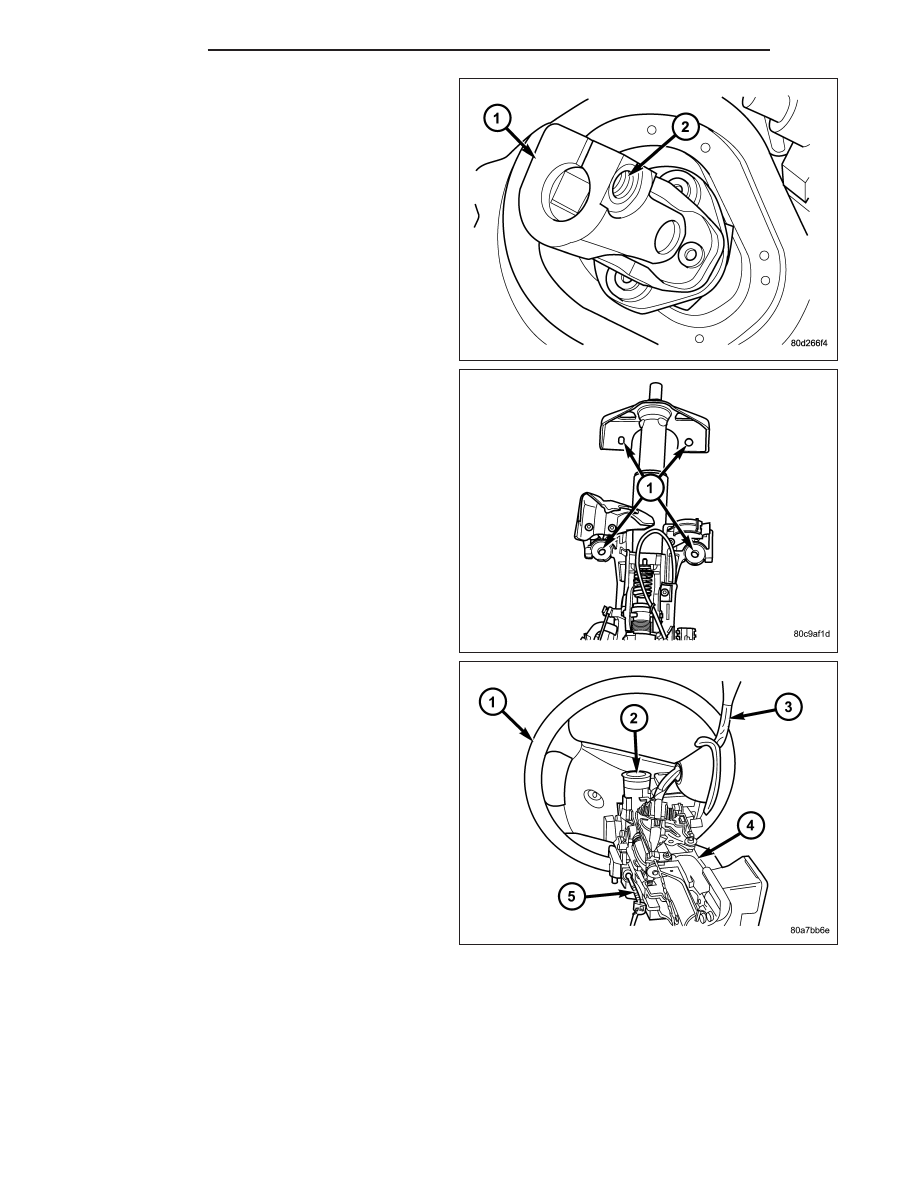

17. Remove the four steering column mounting nuts

(1).

18. Remove the steering column assembly (4) from

the vehicle..

INSTALLATION

WARNING: BEFORE SERVICING THE STEERING COLUMN THE AIRBAG SYSTEM MUST BE DISARMED.
REFER TO ELECTRICAL RESTRAINT SYSTEM FOR SERVICE PROCEDURES. FAILURE TO DO SO MAY
RESULT IN ACCIDENTAL DEPLOYMENT OF THE AIRBAG AND POSSIBLE PERSONAL INJURY.

CAUTION: All fasteners must be torqued to specification to ensure proper operation of the steering column.

19 - 10

COLUMN

DR/DH

1. Position the steering column on the dash panel

support and loosely install the mounting nuts (1).

2. Firmly slide the steering column upward against the

studs in dash panel and hand tighten the nuts.

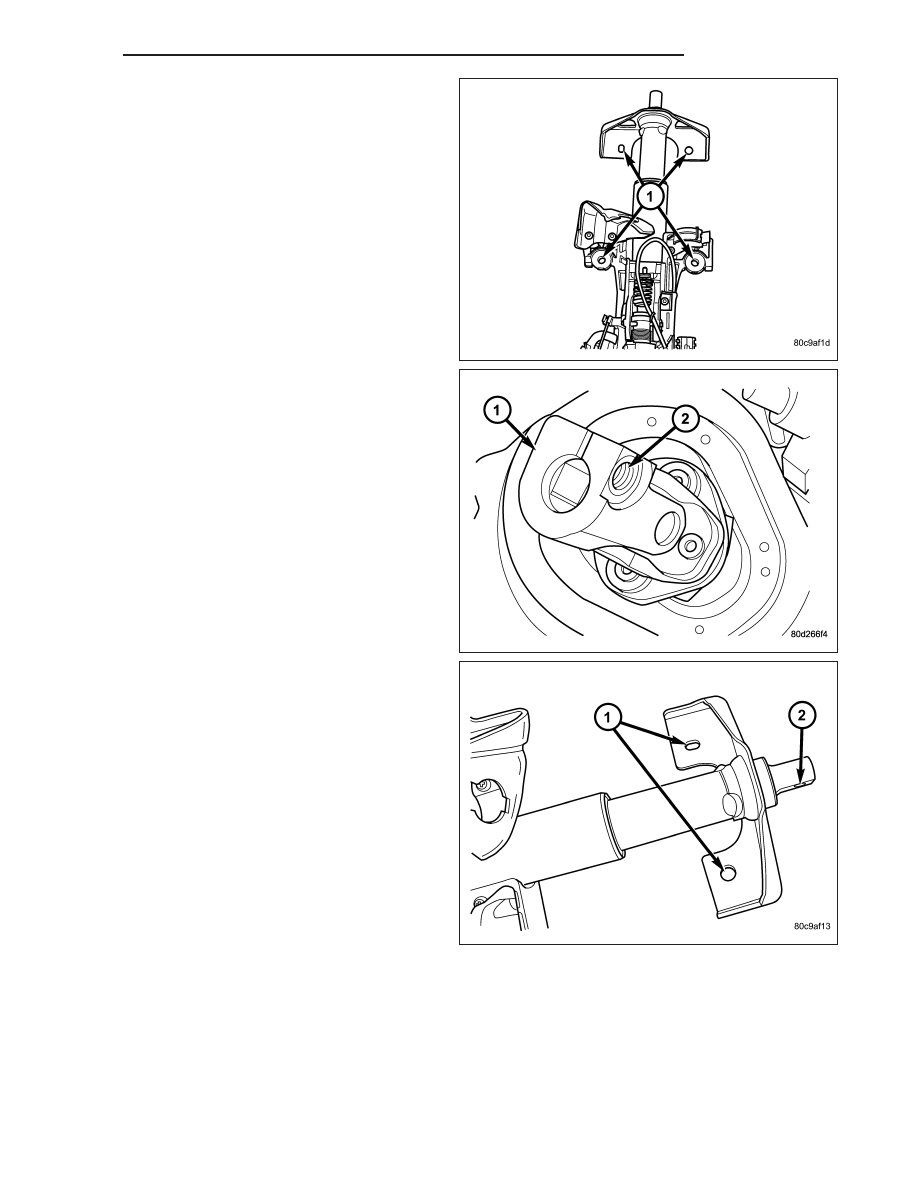

3. Install the steering shaft coupler (1) on the steering

shaft and loosely install a new bolt.

4. Center steering column in dash opening and

tighten mounting nuts (1) to 28 N·m (250 in. lbs.).

NOTE: Torque the upper left nut first then the
lower right nut. Then torque the lower left nut then
the upper right nut.

NOTE: A new bolt must be used for reinstallation.

5. Tighten the coupler bolt (2) to 57 N·m (42 ft. lbs.).

DR/DH

COLUMN

19 - 11

6. Install a new brake light switch (Refer to 8 - ELEC-

TRICAL/LAMPS/LIGHTING

-

EXTERIOR/BRAKE

LAMP SWITCH - REMOVAL).

7. Install the shifter cable (2). (Refer to 21 - TRANS-

MISSION/TRANSAXLE/AUTOMATIC - 32RH/GEAR
SHIFT CABLE - INSTALLATION)

8. Connect the wiring harness to the column.

9. Install the SKIM module.

10. Install the clockspring (Refer to 8 - ELECTRICAL/

RESTRAINTS/CLOCKSPRING - REMOVAL).

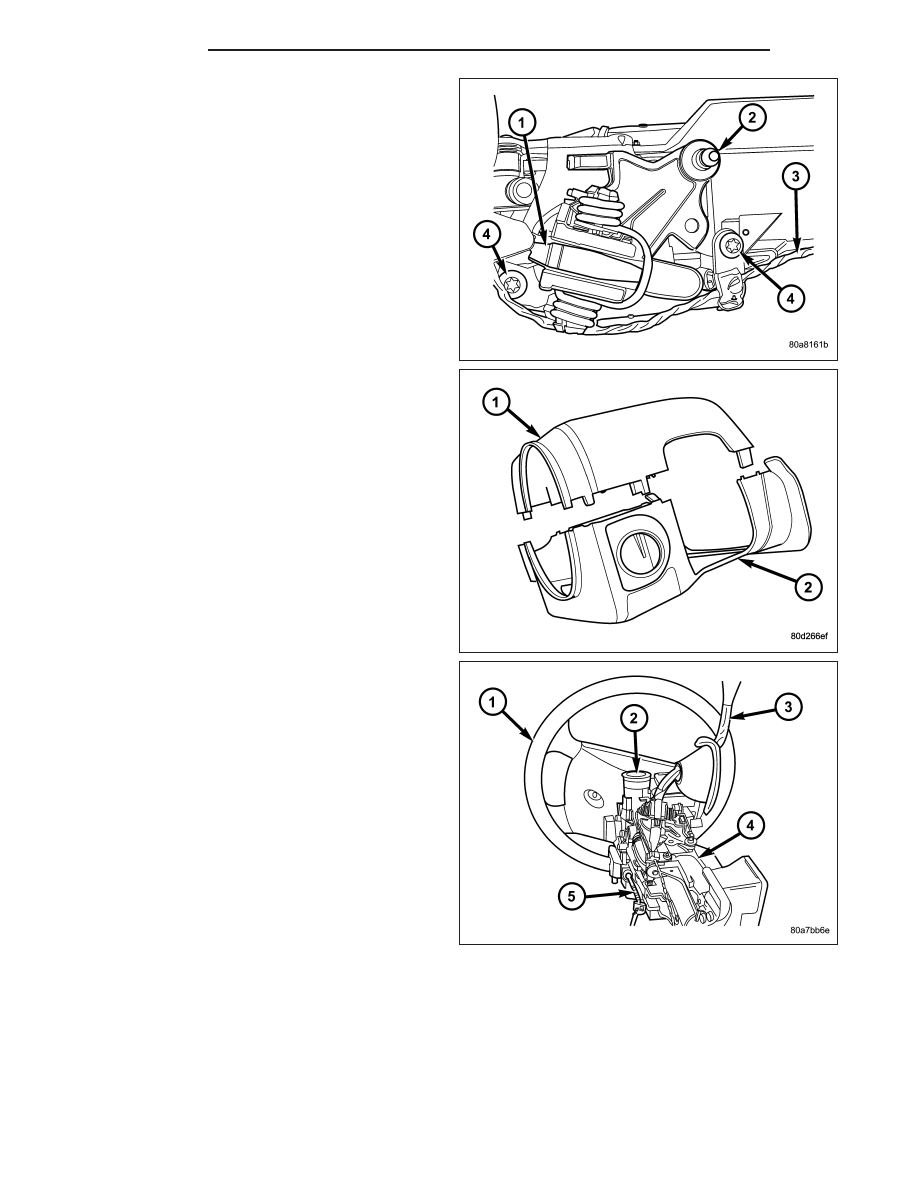

11. Install the shrouds (1&2).

12. Install the steering column opening cover (Refer

to 23 - BODY/INSTRUMENT PANEL/STEERING
COLUMN OPENING COVER - INSTALLATION).

13. Align the spline on the wheel hub to shaft.

14. Then install the steering wheel (1) and install a

new bolt. Tighten the bolt to 61 N·m (45 ft. lbs.).

15. Install the airbag (Refer to 8 - ELECTRICAL/RE-

STRAINTS/DRIVER AIRBAG - INSTALLATION).

16. Install the two steering wheel switches.

17. Install the tilt lever handle.

18. Install the negative battery terminal.

19. Test the operation of the horn, Electronic PRNDL

Indicator, lights and any other functions that are
steering column operated.

19 - 12

COLUMN

DR/DH

IGNITION SWITCH

DESCRIPTION

The ignition switch (5) is located on the steering col-
umn (4). It is used as the main on/off switching device
for most electrical components. The mechanical key
cylinder is used to engage/disengage the electrical
ignition switch.

OPERATION

Vehicles equipped with an automatic transmission and a steering column mounted shifter: an interlock
device is located within the shift cable. This interlock device is used to lock the transmission shifter in the PARK
position when the key cylinder is in any position and the brake pedal is not depressed.

DIAGNOSIS AND TESTING

IGNITION SWITCH

TEST AND REPAIR

If the key removal effort is excessive on a vehicle with a automatic transmission first adjust the shift linkage, (Refer
to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 46RE/GEAR SHIFT CABLE - ADJUSTMENTS).

If the ignition switch effort is excessive remove the ignition key cylinder from the steering column. (Refer to 19 -
STEERING/COLUMN/LOCK CYLINDER HOUSING - REMOVAL). Check the turning effort of the key cylinder. If the
ignition key cylinder effort is excessive replace the key cylinder.

REMOVAL

SERVICE PRECAUTIONS

NOTE: The steering column on vehicles equipped
with an automatic transmission is not equipped
with an internal locking shaft with the ignition cyl-
inder. Alternative methods of locking the steering
wheel for service will have to be used.

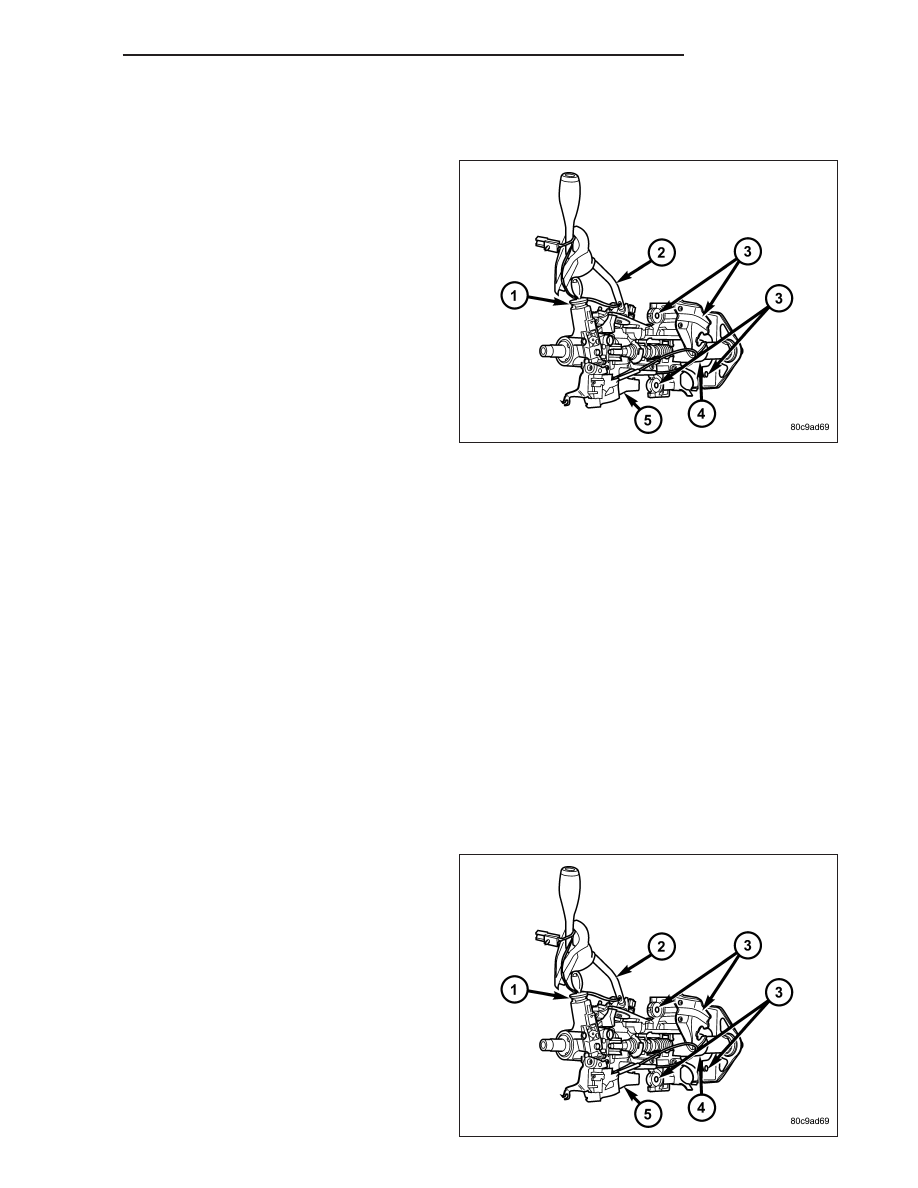

The tilt and standard column (4) have been designed
to be serviced as an assembly; without wiring,
switches, shrouds, steering wheel, etc. Most steering
column components can be serviced without removing
the steering column from the vehicle.

Safety goggles should be worn at all times when
working on steering columns.

DR/DH

COLUMN

19 - 13
