Dodge Ram Truck 1500-2500-3500. Manual - part 146





EXCESSIVE DUMP TIME — 69 (CONTINUED)

3.

WHEEL BEARING

Inspect each wheel bearing for excessive run out or improper clearance in accordance with the Service Information.

Were any problems found?

Yes

>> Repair or replace the wheel bearing(s) as necessary in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND
TESTING)

No

>> Go To 4

4.

WHEEL SPEED SENSOR WIRING HARNESS AND CONNECTORS

Start the engine.

With the scan tool, monitor the output of each Wheel Speed Sensor.

Raise and properly support the vehicle.

WARNING: BE SURE TO KEEP HANDS, FEET AND CLOTHING CLEAR OF ROTATING COMPONENTS.
Allow the drive wheels to rotate.

Rotate the non-driven wheels by hand.

Wiggle test the Wheel Speed wiring harnesses and connectors.

Look for any excessive variations in sensed wheel speed.

Were any problems found?

Yes

>> Repair the wiring harness or connectors as necessary in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND
TESTING)

No

>> Go To 5

5.

LOADED WHEEL BEARING/SUSPENSION CONCERN

CAUTION: Make sure that the vehicle has braking capability before performing a road test.

NOTE: Have an assistant drive the vehicle while monitoring the scan tool.
With the scan tool, monitor the output of each Wheel Speed Sensor.

Road test vehicle so wheel bearings and suspension are loaded.

Look for any excessive variations in sensed wheel speed.

Were any problems found?

Yes

>> Repair as necessary in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND
TESTING)

No

>> Replace the Hydraulic Control Unit in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND
TESTING)

5 - 12

BRAKES - ABS - ELECTRICAL DIAGNOSTICS

DR/DH

FOUNDATION BRAKE — 78

DR/DH

BRAKES - ABS - ELECTRICAL DIAGNOSTICS

5 - 13

FOUNDATION BRAKE — 78 (CONTINUED)

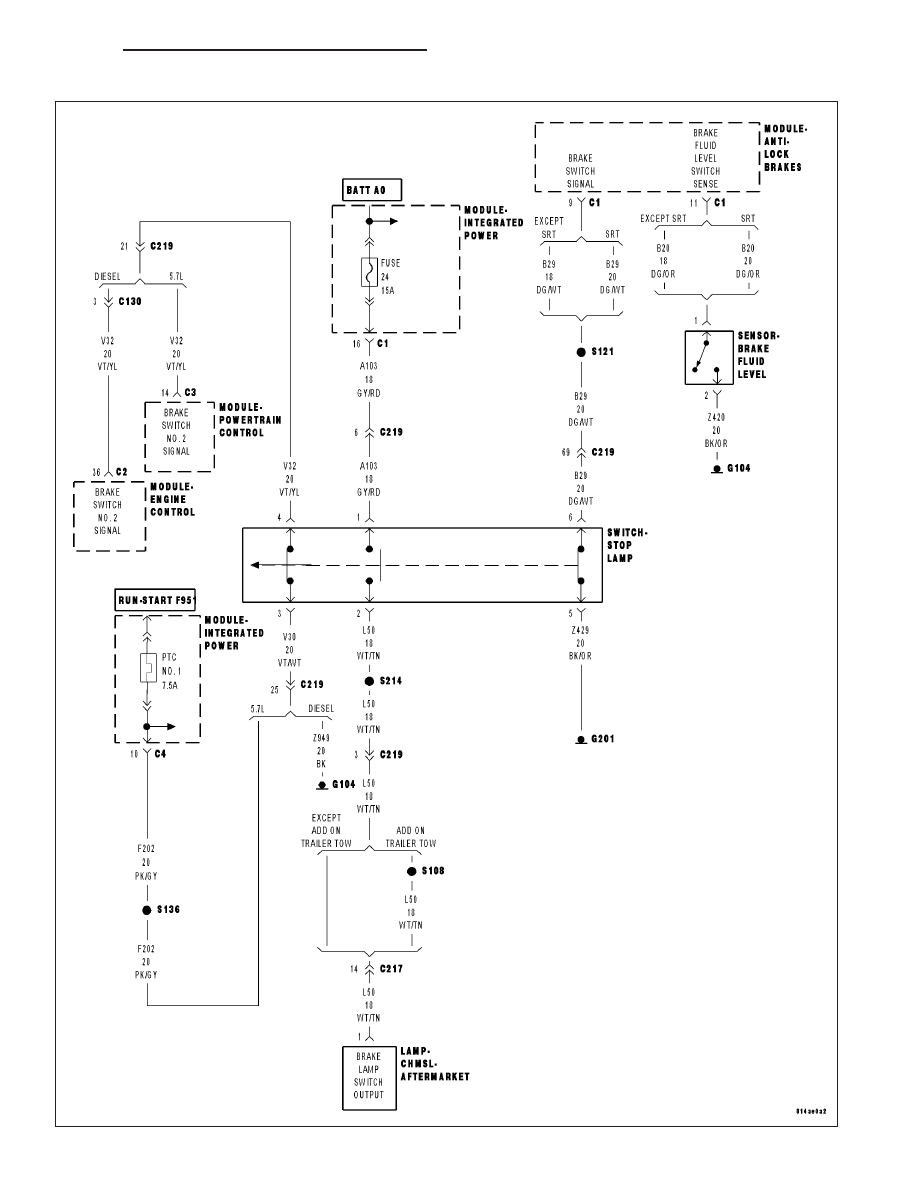

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on and no system under voltage DTC present.

Set Condition:
Low feedback voltage from the Brake Fluid Level Switch Sense circuit.

Possible Causes

INTERMITTENT BRAKE FLUID LEVEL LOW DTC

BRAKE FLUID LEVEL LOW

BRAKE FLUID LEVEL SWITCH SENSE CIRCUIT SHORT TO GROUND

GROUND CIRCUIT OPEN OR HIGH RESISTANCE

BRAKE FLUID LEVEL SENSOR

CONTROLLER ANTI-LOCK BRAKE

Diagnostic Test

1.

DTC CONDITION IS PRESENT

Release the Parking Brake.

Turn the ignition off.

Turn the ignition on.

Monitor the Instrument Cluster.

Does the red Brake Warning Indicator stay on?

Yes

>> Go To 2

No

>> Go To 6

2.

BRAKE FLUID LEVEL LOW

Turn the ignition off.

Inspect the Brake Fluid Level in accordance with the Service Information.

Is the Brake Fluid Level Low?

Yes

>> Inspect the system and repair as necessary in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND
TESTING)

No

>> Go To 3

5 - 14

BRAKES - ABS - ELECTRICAL DIAGNOSTICS

DR/DH

FOUNDATION BRAKE — 78 (CONTINUED)

3.

BRAKE FLUID LEVEL SWITCH SENSE CIRCUIT SHORT TO GROUND

Turn the ignition off.

Disconnect the Brake Fluid Level Sensor harness connector.

Disconnect the CAB harness connector.

NOTE: Check connector - Clean/repair as necessary.

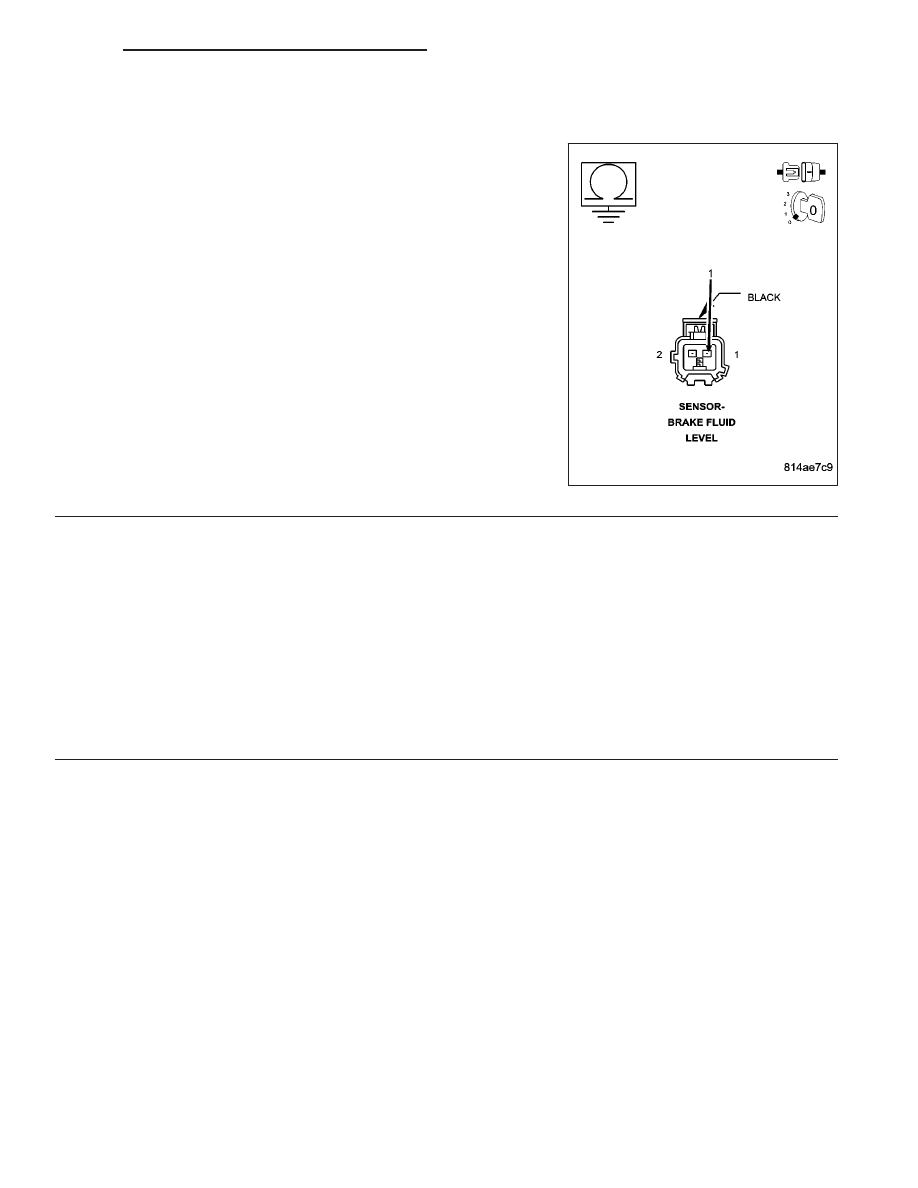

Measure the resistance between ground and the Brake Fluid Level
Switch Sense circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the Brake Fluid Level Switch Sense circuit for a

short to ground.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES/ELECTRICAL - DIAGNOSIS AND TESTING)

No

>> Go To 4

4.

BRAKE FLUID LEVEL SENSOR

NOTE: Determine if the Brake Fluid Level Sensor is stuck in the down position. Repair as necessary.
Measure the resistance of the Brake Fluid Level Sensor at the sensor terminals.

NOTE: Resistance should be approximately 10,000 ohms with the reservoir full.

Is the resistance between 9,500 and 10,500 ohms?

Yes

>> Go To 5

No

>> Replace the Brake Fluid Level Switch in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND
TESTING)

DR/DH

BRAKES - ABS - ELECTRICAL DIAGNOSTICS

5 - 15
