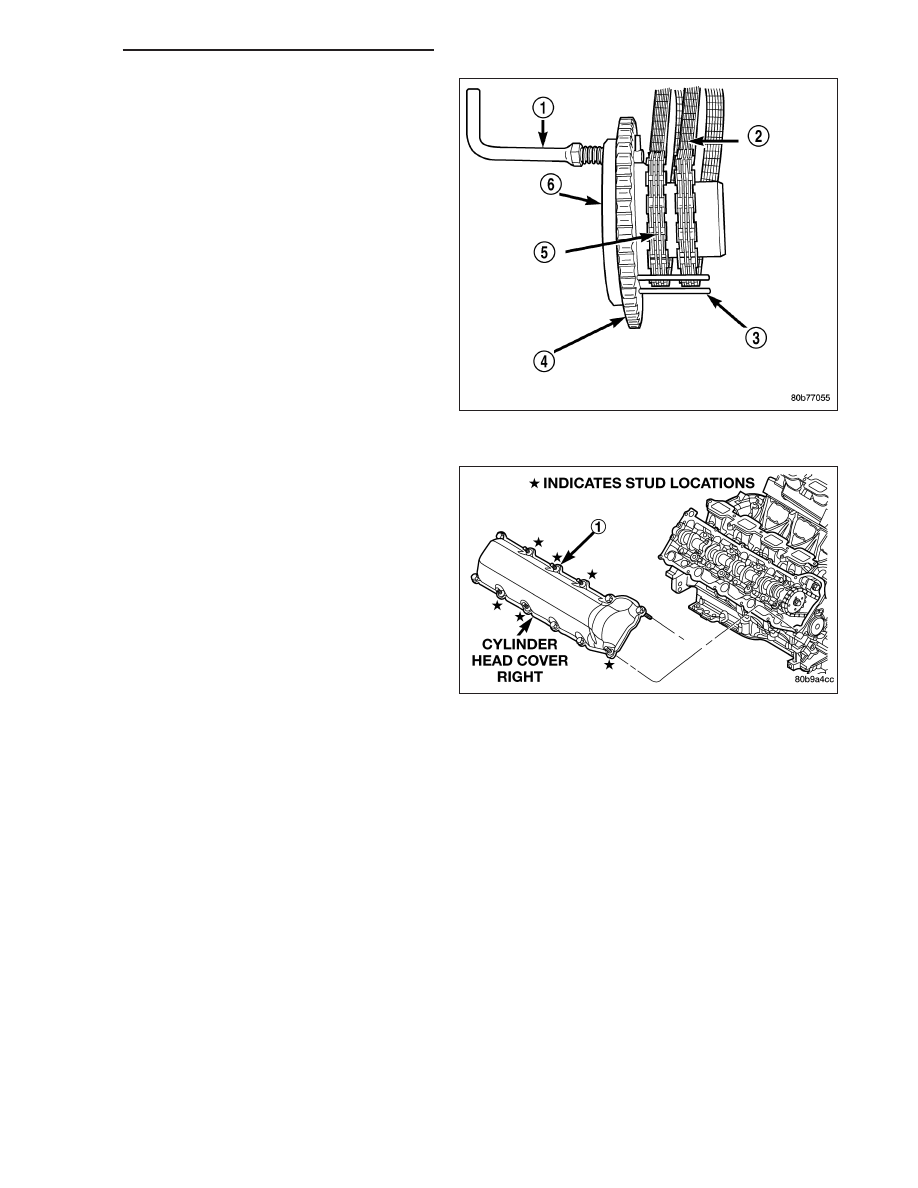

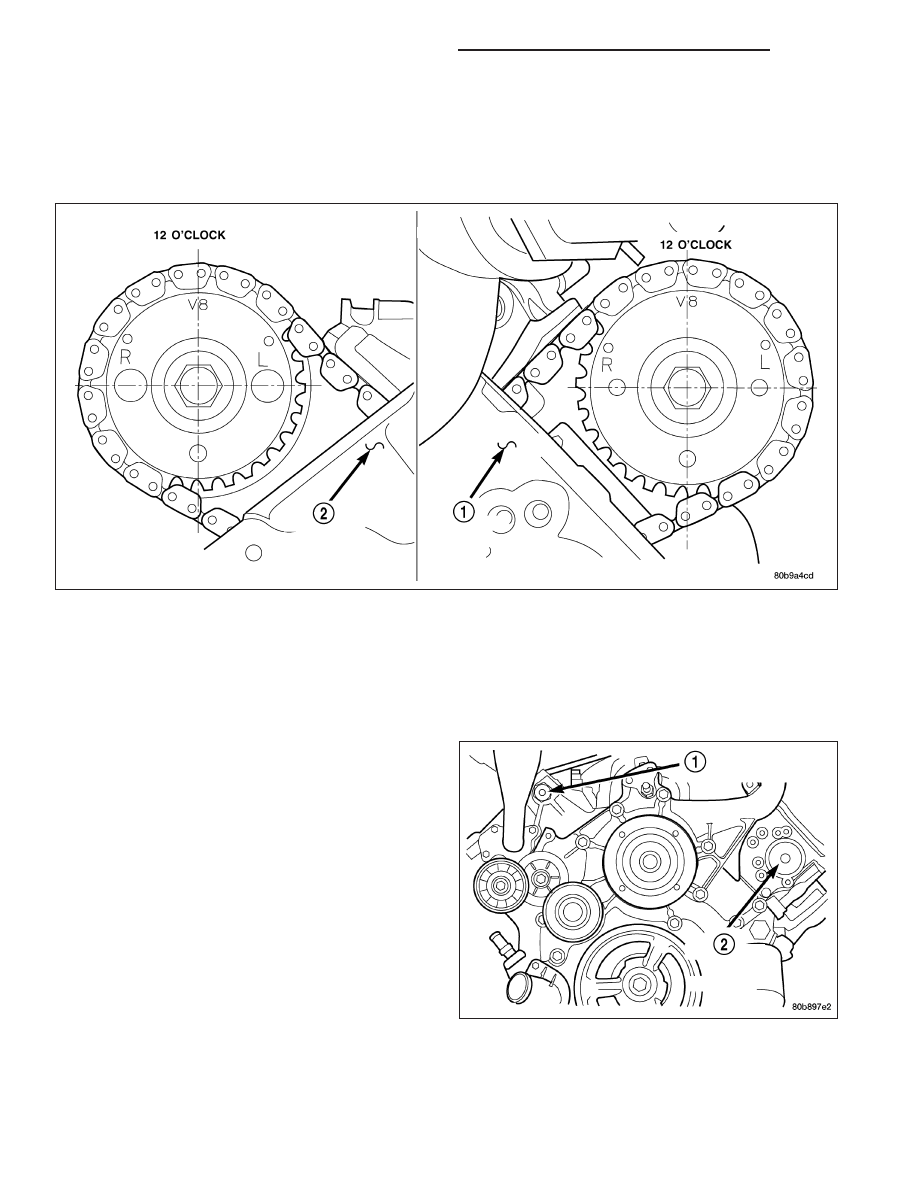

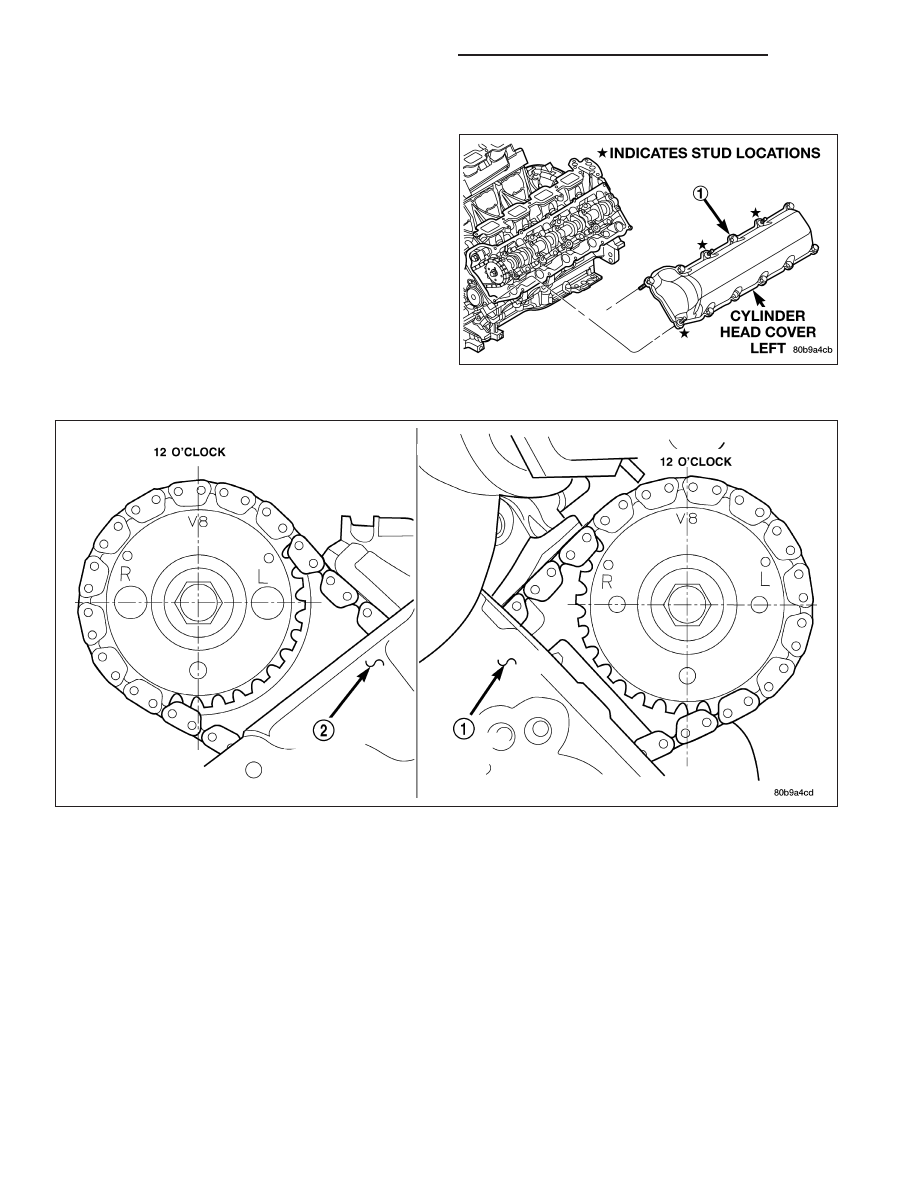

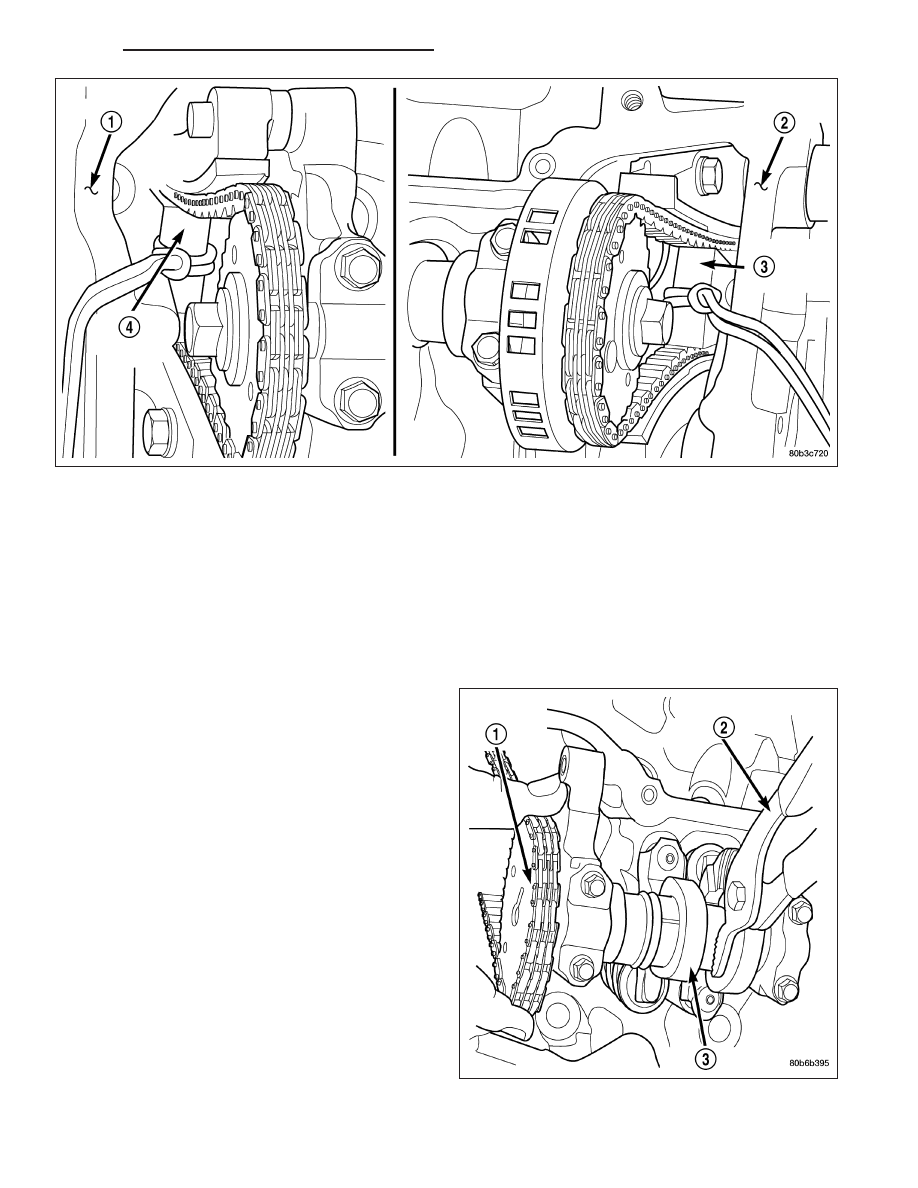

6. Tighten the bolts in sequence using the following steps and torque values: • Step 1: Tighten bolts 1–10, 20 N·m (15 ft. lbs.). • Step 2: Tighten bolts 1–10, 47 N·m (35 ft. lbs.). Tighten bolts 11–14, 25 N·m (18 ft. lbs.). • Step 3: Tighten bolts 1–10, 90 degrees. Tighten bolts 11–14, 30 N·m (22 ft. lbs.). 7. Position the secondary chain onto the camshaft drive gear, making sure one marked chain link is on either side of the V8 mark on the gear (2) and position the gear onto the camshaft. 8. Install the camshaft drive gear retaining bolt. 9. Install the right side secondary chain guide (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COV- ER(S) - INSTALLATION). 10. Install the right side cylinder head access plug (1). 11. Re-set and install the right side secondary chain tensioner. 9 - 2202 ENGINE - 4.7L - SERVICE INFORMATION DR/DH |
