Dodge Ram Truck 1500-2500-3500. Manual - part 1202





P0301-CYLINDER #1 MISFIRE (CONTINUED)

16.

(K19) IGNITION COIL CONTROL NO.1 CIRCUIT

Turn the ignition off.

Disconnect the C1 PCM harness connector.

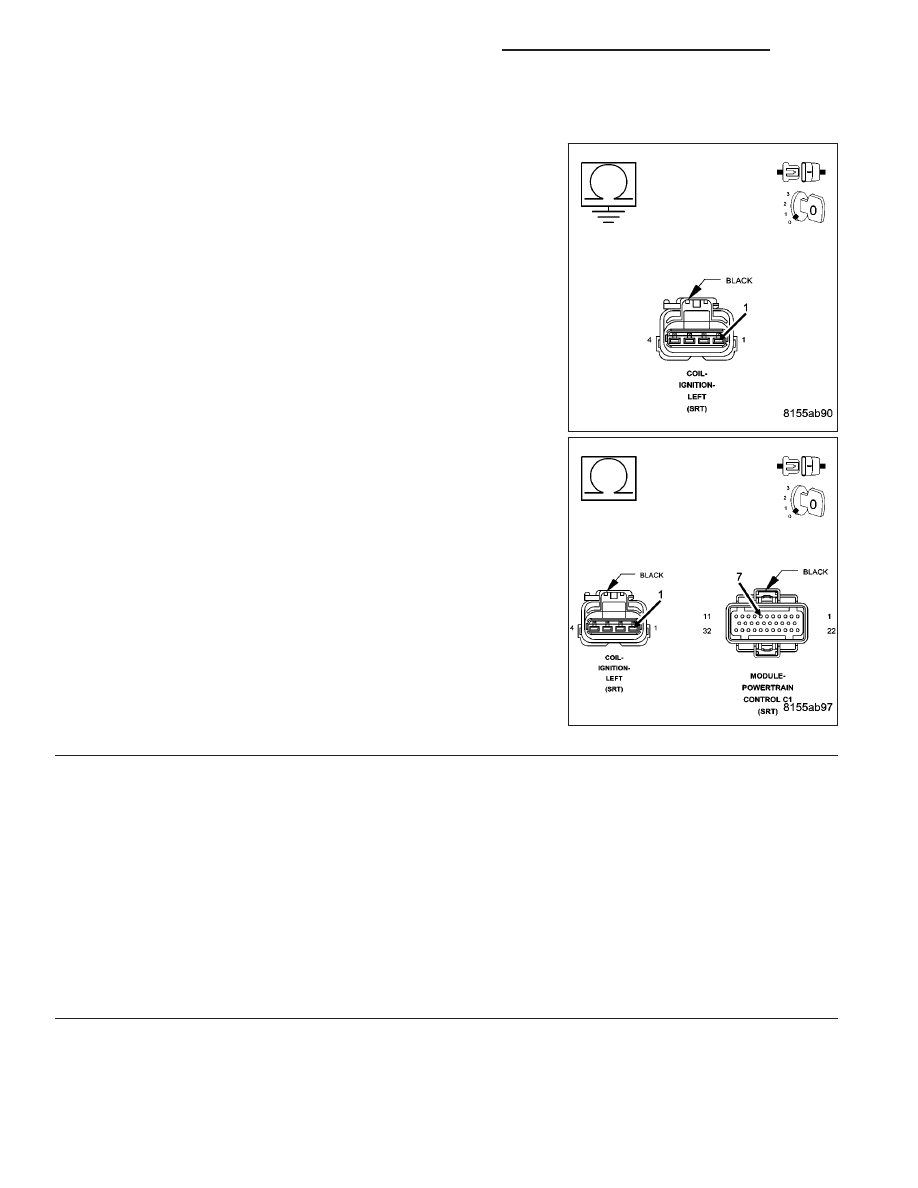

Check the (K19) Ignition Coil Control No.1 circuit for an open or short
to ground.

Was a problem found with the Coil Control circuit?

Yes

>> Repair the (K19) Ignition Coil Control No.1 circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 17

17.

PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Replace and program the Powertrain Control Module per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

9 - 1730

ENGINE - ELECTRICAL DIAGNOSTICS - SRT-10

DR/DH

P0302-CYLINDER #2 MISFIRE

DR/DH

ENGINE - ELECTRICAL DIAGNOSTICS - SRT-10

9 - 1731

P0302-CYLINDER #2 MISFIRE (CONTINUED)

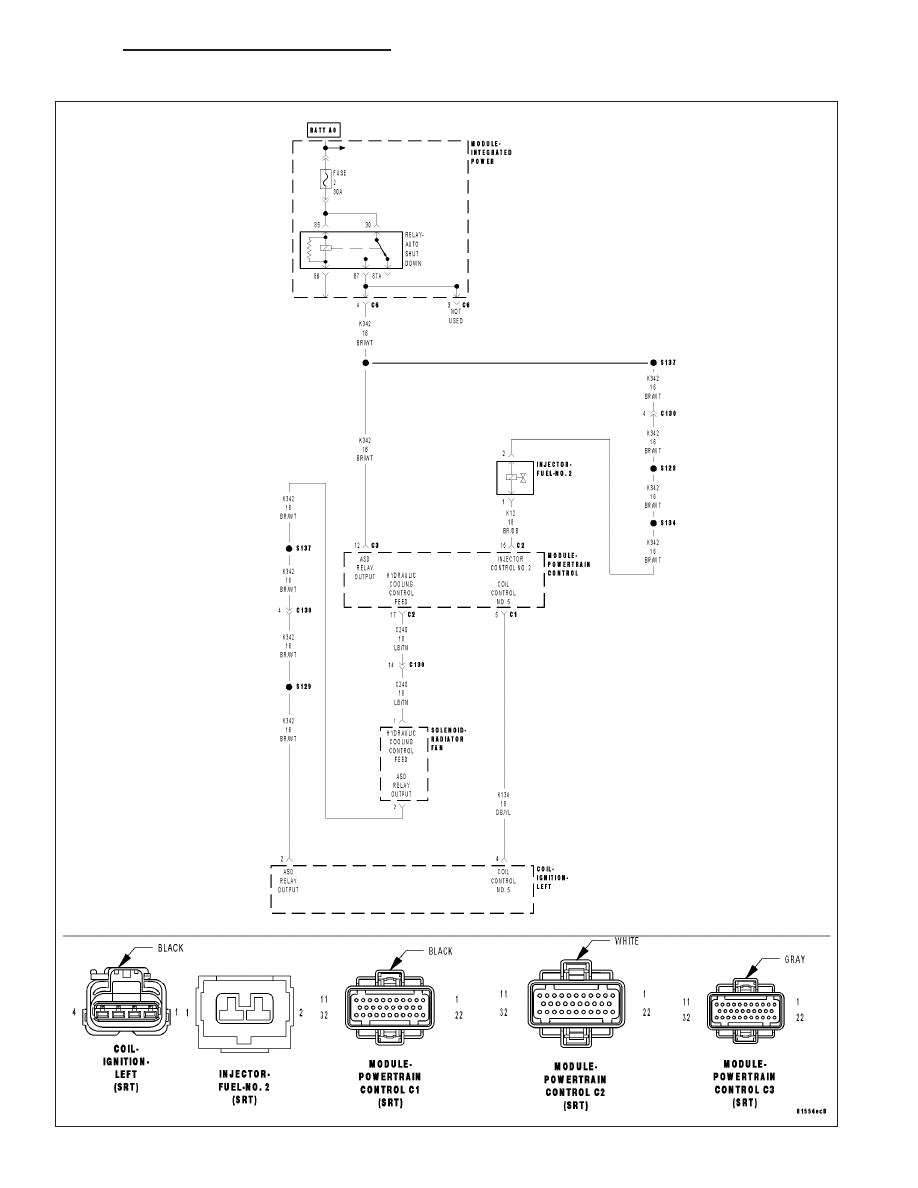

For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Any time the engine is running, and the adaptive numerator has been successfully updated.

Set Condition:
When more than a 1% misfire rate is measured during two trips, or with a 6% to 30% misfire rate during one
trip.

Possible Causes

(K342) ASD RELAY OUTPUT CIRCUIT

(K12) INJECTOR CONTROL CIRCUIT

(K134) COIL CONTROL CIRCUIT

IGNITION WIRE

SPARK PLUG

IGNITION COIL

FUEL PUMP INLET STRAINER PLUGGED

RESTRICTED FUEL SUPPLY LINE

FUEL PUMP MODULE

FUEL PRESSURE LEAK DOWN

FUEL INJECTOR

ENGINE MECHANICAL

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

CYLINDER MIS-FIRE CONDITION ACTIVE

Engine running.

Observe the WHICH CYLINDER IS MISFIRING screen for at least one minute on the scan tool.

Is there a misfire present at this time?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

9 - 1732

ENGINE - ELECTRICAL DIAGNOSTICS - SRT-10

DR/DH

P0302-CYLINDER #2 MISFIRE (CONTINUED)

2.

VISUAL INSPECTION

NOTE: Anything that affects the speed of the crankshaft can cause a misfire DTC.

NOTE: When a Misfire is detected for a particular cylinder, the PCM will shut down that cylinders Injector
Control circuit.
- Visually inspect the engine for any of the following conditions.

- Worn serpentine belt

- Binding Engine-Driven accessories: A/C Compressor, P/S Pump, Water pump.

- Misalignment of the Water pump, P/S Pump and A/C Compressor pulleys

- Corroded PCM power and ground circuits.

- Improper CKP, CMP, MAP, and TP Sensor mounting

- Poor connector/terminal to component connection. i.e., CKP sensor, Fuel Injector, Ign coil, etc.

- Vacuum leaks

- Restricted Air Induction system or Exhaust system.

- Internal engine component failures.

Were any of the above conditions present?

Yes

>> Repair as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 3

3.

(K342) ASD RELAY OUTPUT CIRCUIT

Turn the ignition off.

Disconnect the Ignition Coil harness connector.

Disconnect the Fuel Injector harness connector.

Ignition on, engine not running.

With the scan tool, actuate the ASD Relay.

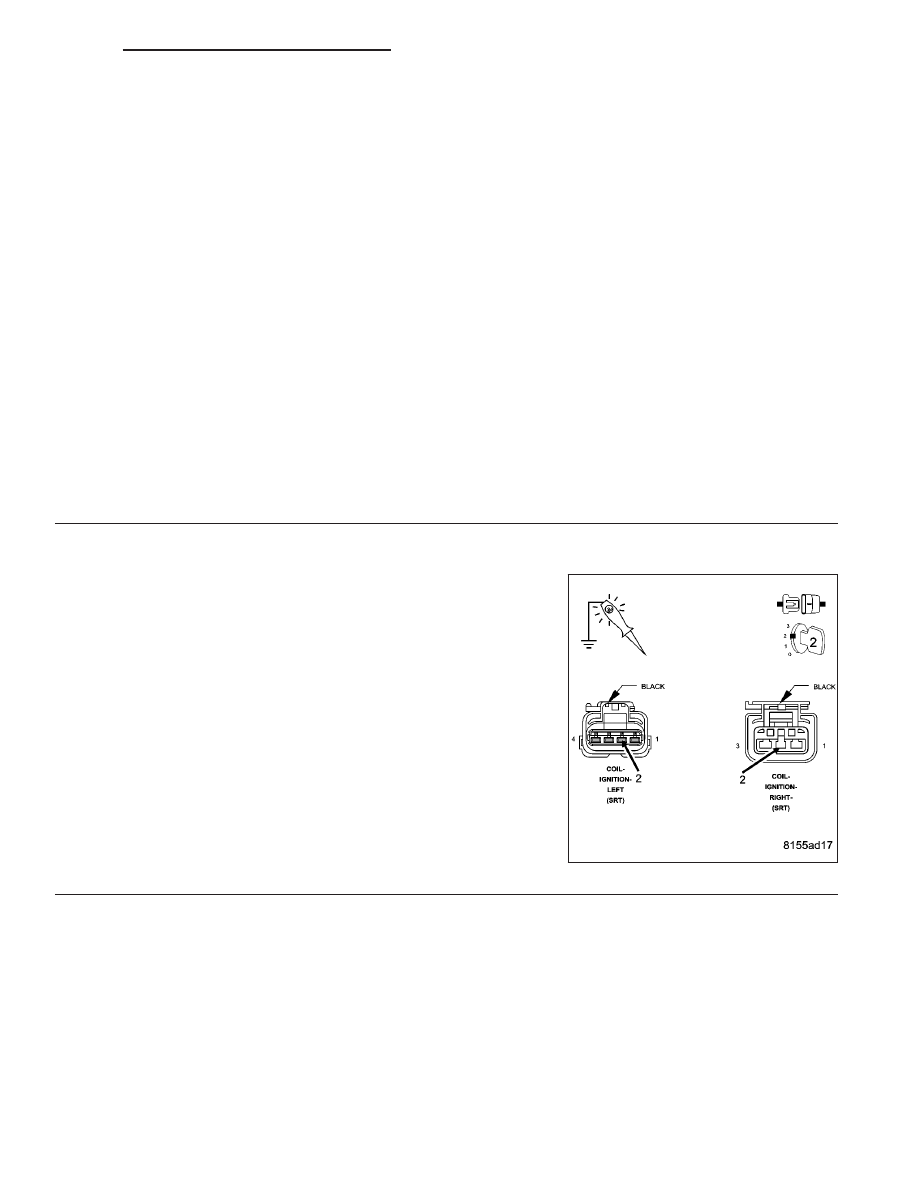

Using a 12-volt test light connected to ground, probe the (K342) ASD
Relay Output circuit in the Ignition Coil harness connector and Fuel
Injector harness connector while the relay is actuating.

Does the test light illuminate brightly?

Yes

>> Go To 4

No

>> Repair the excessive resistance or short to ground in the

(K342) ASD Relay Output circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

DR/DH

ENGINE - ELECTRICAL DIAGNOSTICS - SRT-10

9 - 1733
