C1447-FRONT DIFFERENTIAL RETURN CIRCUIT HIGH (CONTINUED)

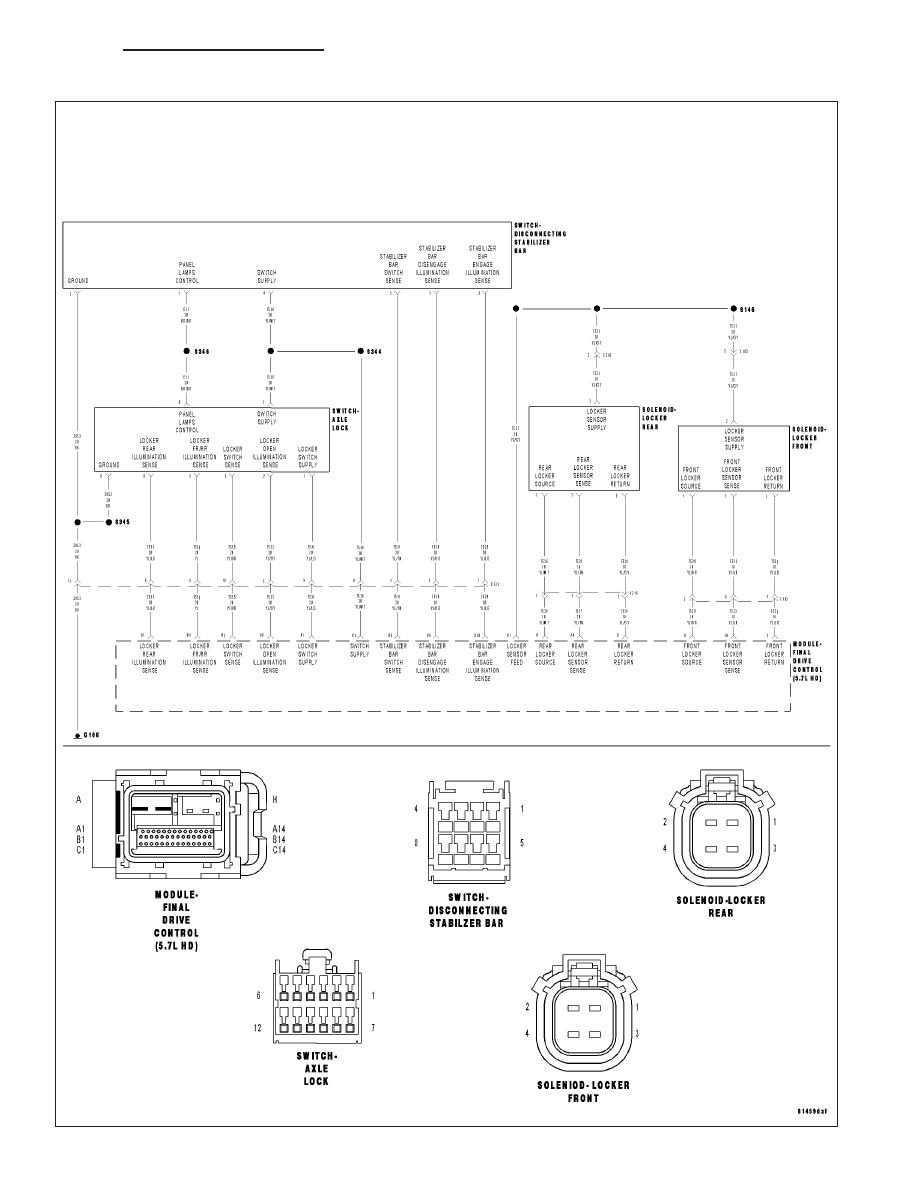

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Ignition on. Axle Locker Switch in the FR/RR position.

Set Condition:
The FDCM detects the Front Locker Source circuit is shorted low.

Possible Causes

FRONT LOCKER SOLENOID

(T520) FRONT LOCKER SOURCE CIRCUIT SHORTED TO GROUND

(T524) FRONT LOCKER RETURN CIRCUIT SHORTED TO (T520) FRONT LOCKER SOURCE CIRCUIT

FDCM

Diagnostic Test

1.

ACTIVE DTC

CAUTION: Before removing the FDCM harness connector, clean the connector and locking cam area of dirt
and debris. Failure to do so can result in the connector being jammed or damage to the locking cams on
the harness connector or module. Do not force the assist arm when releasing or installing the harness con-
nector.
Ignition on, engine not running.

With the DRBIII

T

, read DTCs.

Is the DTC active at this time?

Yes

>> Go To 2

No

>> Go To 6

2.

FRONT LOCKER SOLENOID OPERATION

NOTE: Before continuing with the below diagnostic test, ensure the FDCM harness connector seal is
installed correctly. Inspect the terminals on both harness connector and the module for damage. Failure to
do so can result in misdiagnoses of the system.
Turn the ignition off.

Disconnect the Front Locker Solenoid harness connector.

Ignition on, engine not running.

Using a 12-volt test light, jump across from the (T520) Front Locker Source circuit and the (T524) Front Locker
Return circuit in the Front Locker harness connector.

With a DRBIII

T

, actuate the Front Locker Solenoid.

Does the test light flash on and off?

Yes

>> Inspect the Front Locker Solenoid terminals and connectors for corrosion and/or dirty that may compro-

mise the connection. If OK, replace the Front Locker Solenoid.

Perform FDCM VERIFICATION TEST.

No

>> Go To 3

3 - 32

DIFFERENTIAL & DRIVELINE - ELECTRICAL DIAGNOSTICS

DR/DH

C1447-FRONT DIFFERENTIAL RETURN CIRCUIT HIGH (CONTINUED)

3.

(T524) FRONT LOCKER RETURN CIRCUIT SHORTED TO BATTERY VOLTAGE

Turn the ignition off.

Disconnect the FDCM harness connector.

Turn the ignition on.

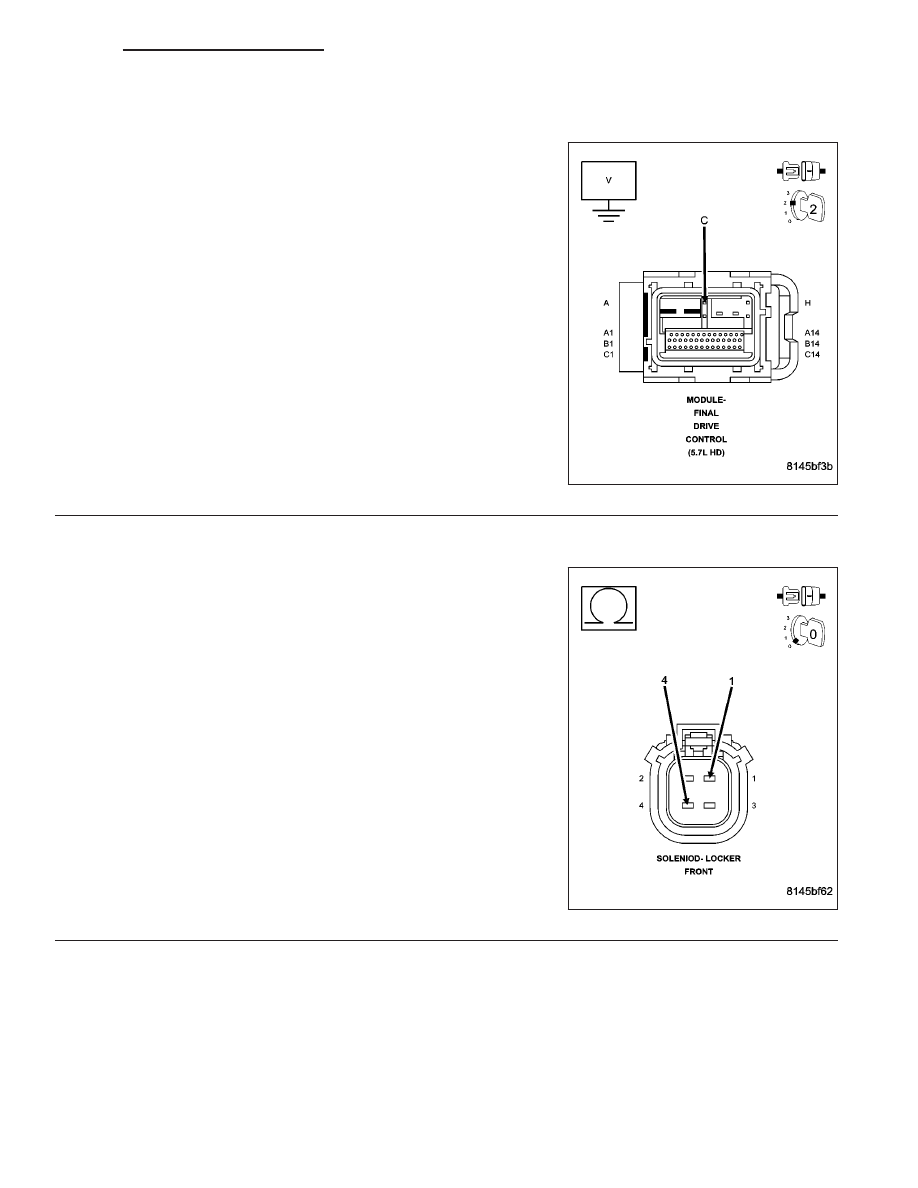

Measure the voltage of the (T524) Front Locker Return circuit at the
FDCM harness connector.

Does the voltmeter indicate voltage present?

Yes

>> Repair the short to voltage in the (T524) Front Locker

Return circuit.

Perform FDCM VERIFICATION TEST.

No

>> Go To 4

4.

(T524) FRONT LOCKER RETURN CIRCUIT SHORTED TO (T520) FRONT LOCKER SOURCE CIRCUIT

Turn the ignition off.

Measure the resistance between the (T520) Front Locker Source cir-
cuit and the (T524) Front Locker Return circuit in the Front Locker
Solenoid harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short between (T520) Front Locker Source cir-

cuit and the (T524) Front Locker Return circuit.

Perform FDCM VERIFICATION TEST

No

>> Go To 5

DR/DH

DIFFERENTIAL & DRIVELINE - ELECTRICAL DIAGNOSTICS

3 - 33

C1447-FRONT DIFFERENTIAL RETURN CIRCUIT HIGH (CONTINUED)

5.

FDCM

NOTE: Before continuing, check the FDCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform FDCM VERIFICATION TEST

No

>> Replace and program the Final Drive Control Module in accordance with Service Information.

Perform FDCM VERIFICATION TEST.

6.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle test the wiring harness and connectors while checking for shorted and open circuits.

Using the DRBIII

T

, monitor the data related to this circuit while performing the wiggle test. Look for the data to

change or for the DTC to reset.

Were there any problems found?

Yes

>> Repair as necessary.

Perform FDCM VERIFICATION TEST.

No

>> Test Complete.

3 - 34

DIFFERENTIAL & DRIVELINE - ELECTRICAL DIAGNOSTICS

DR/DH

C144A-REAR DIFFERENTIAL RETURN CIRCUIT LOW
