(2) Align the mirror glass holder’s attaching fin-
gers to the mirror motor housing.
NOTE: Ensure that the protective rubber cover of
the mirror motor housing is positioned correctly
around the bottom of the fingers area.
(3) Using one hand, firmly press the mirror glass
holder assembly into place while at the same time
supporting the housing assembly from the backside
with the other hand.
NOTE: Pressure must be applied equally over the
center portion of the mirror to engage the mirror
glass holder’s attaching fingers to the correspond-
ing fingers on the housing assembly. One or more
clicks may be heard when finger engagement takes
place.
(4) Verify retention of the mirror glass holder
assembly by gently pulling outward on the mirror
glass holder.
SILL EXTENSION
REMOVAL
(1) Raise and support vehicle (Refer to LUBRICA-
TION & MAINTENANCE/HOISTING - STANDARD
PROCEDURE).

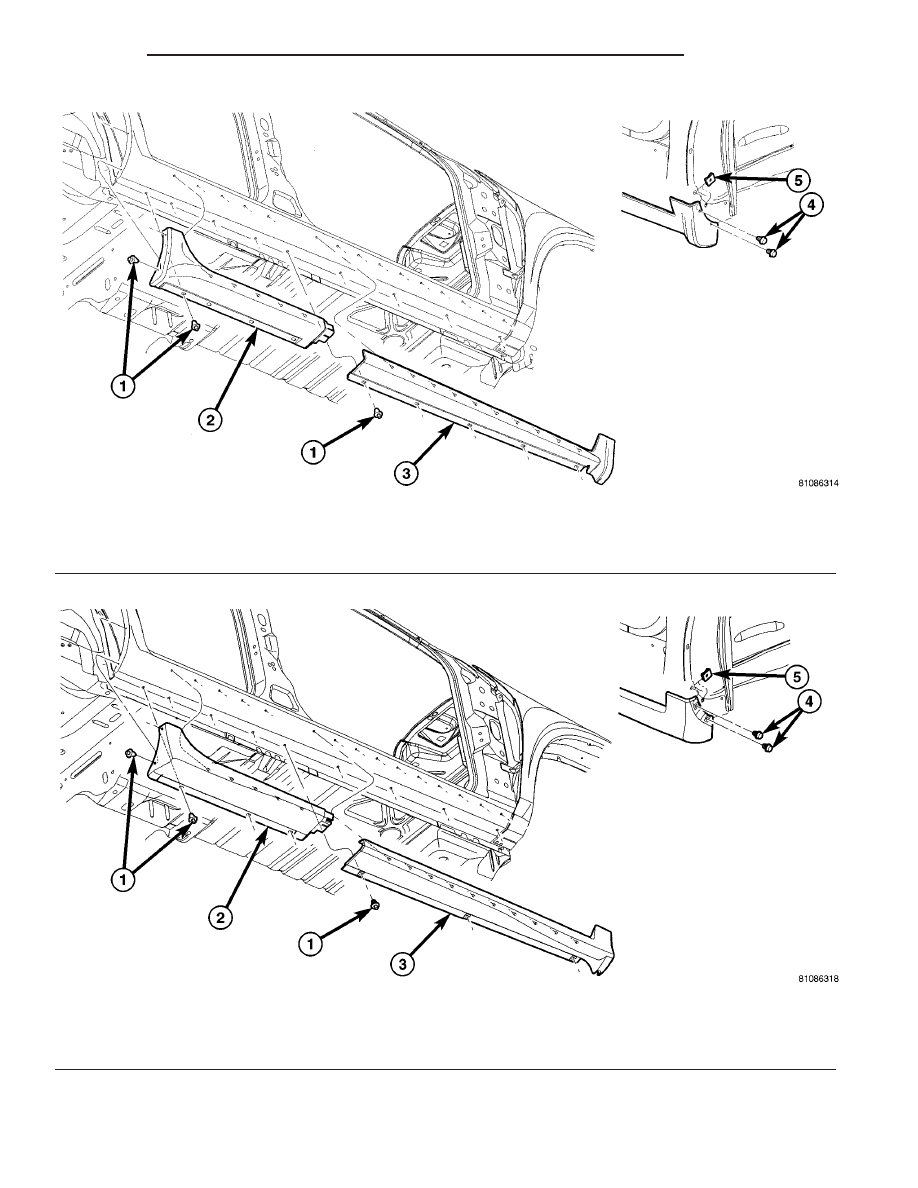

(2) Remove screws attaching the forward end of
the front sill extension (Fig. 12) or (Fig. 13).
(3) Using proper tool, remove lower push pin fas-
teners attaching sill extension molding to sill.
(4) Using a trim stick, remove front sill molding
from vehicle.
(5) Remove lower push pin fasteners attaching
rear sill molding to sill.
(6) Using trim stick, remove rear sill molding from
vehicle.
INSTALLATION
(1) Place rear sill molding into position and seat
pins fully (Fig. 12) or (Fig. 13).
(2) Install screws attaching the forward end of the
front sill extension.
(3) Install lower push pin fasteners attaching rear
sill molding to sill.
(4) Place front sill molding into position and seat
pins fully.
(5) Install lower push pin fasteners attaching sill
extension molding to sill.
23 - 44
EXTERIOR
PL/SRT-4
SIDE VIEW MIRROR GLASS (Continued)
