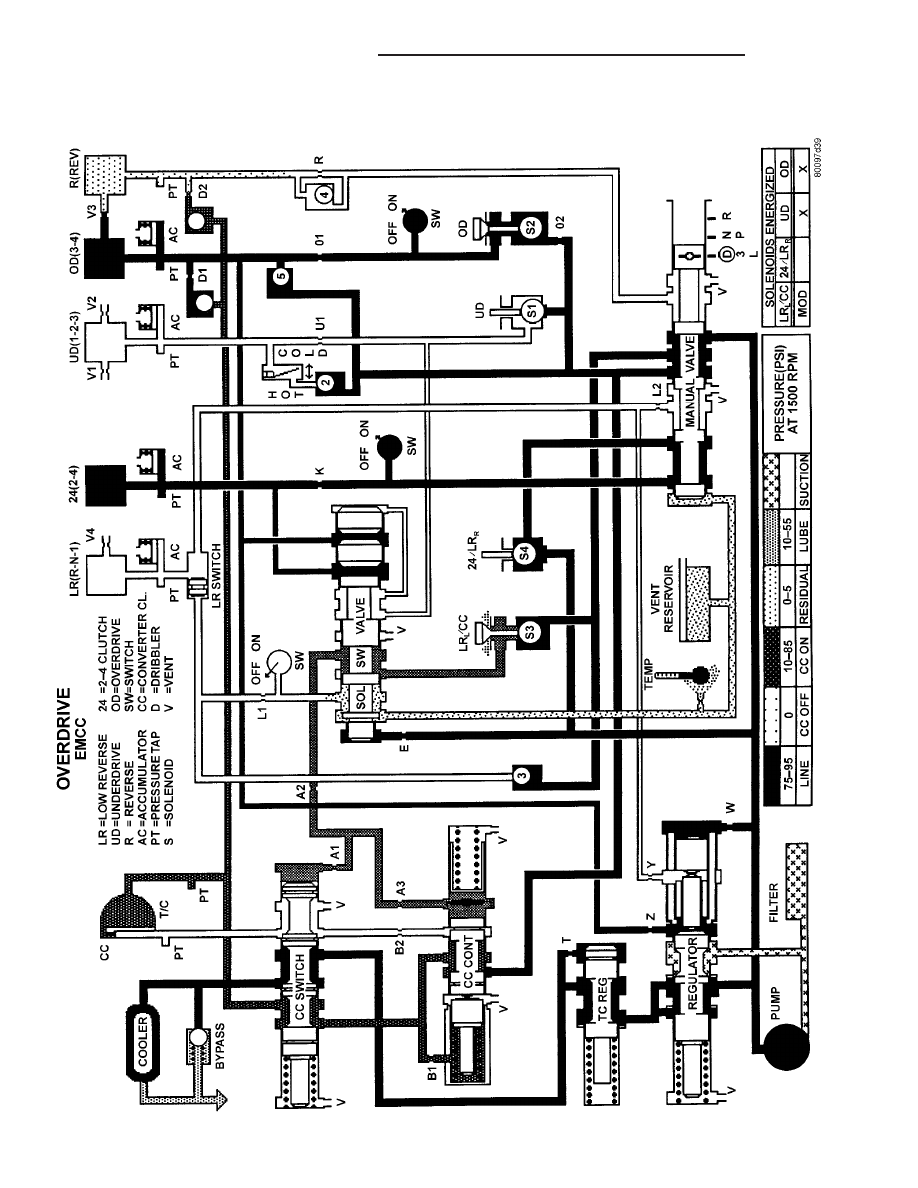

Overdrive

(EMCC)

21 - 192

40TE AUTOMATIC TRANSAXLE

PL/SRT-4

40TE AUTOMATIC TRANSAXLE (Continued)

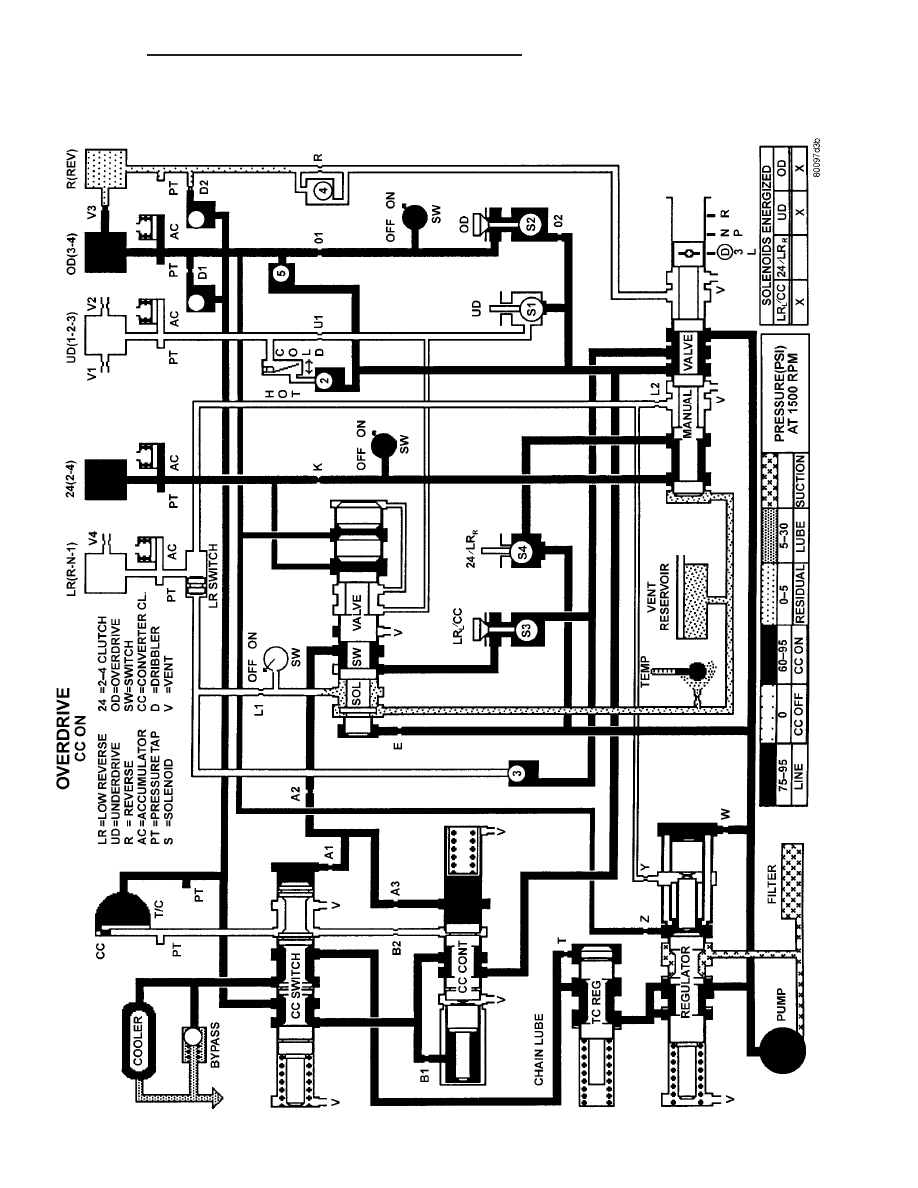

Overdrive

(CC

On)

PL/SRT-4

40TE AUTOMATIC TRANSAXLE

21 - 193

40TE AUTOMATIC TRANSAXLE (Continued)

SPECIFICATIONS

GENERAL SPECIFICATIONS

DESCRIPTION

SPECIFICATION

Transaxle Type

Fully adaptive, electronically controlled, four speed

automatic with torque converter and integral differential

Cooling Method

Oil-to-Water Heat Exhanger

Lubrication

Pump (internal-external gear-type

GEAR RATIOS

DESCRIPTION

SPECIFICATION

First Gear

2.84

Second Gear

1.57

Direct Gear

1.00

Overdrive Gear

0.69

Reverse Gear

2.21

BEARING SETTINGS (END PLAY & TURNING TORQUE)

DESCRIPTION

METRIC

STANDARD

Differential Assembly

0.6-2 N·m

5-18 in. lbs.

Output Hub

0.3-2 N·m

3-8 in. lbs.

Transfer Shaft (End Play)

0.051-0.102 mm

0.002-0.004 in.

Overall Drag At Output Hub

0.3-1.9 N·m

3-16 in. lbs.

CLUTCH CLEARANCES

DESCRIPTION

METRIC

STANDARD

Low/Rev Clutch (Select Reaction

Plate)

0.89-1.47 mm

0.035-0.058 in.

Two/Four Clutch (No Selection)

0.76-2.64 mm

0.030-0.104 in.

Reverse Clutch (Select Snap Ring)

0.89-1.37 mm

0.035-0.054 in.

Overdrive Clutch (No Selection)

1.07-3.25 mm

0.042-0.128 in.

Underdrive Clutch (Select Reaction

Plate)

0.94-1.50 mm

0.037-0.059 in.

OIL PUMP CLEARANCES

DESCRIPTION

METRIC

STANDARD

Outer Gear-to-Crescent

0.060-0.298 mm

0.0023-0.0117 in.

Inner Gear-to-Crescent

0.093-0.385 mm

0.0036-0.0151 in.

Outer Gear-to-Pocket

0.089-0.202 mm

0.0035-0.0079 in.

Outer Gear Side Clearance

0.020-0.046 mm

0.0008-0.0018 in.

Inner Gear Side Clearance

0.020-0.046 mm

0.0008-0.0018 in.

21 - 194

40TE AUTOMATIC TRANSAXLE

PL/SRT-4

40TE AUTOMATIC TRANSAXLE (Continued)

INPUT SHAFT

DESCRIPTION

METRIC

SPECIFICATION

End Play

0.127-0.635mm

0.005-0.025 in.

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Bolt, Differential Cover-to-Case

19

—

165

Bolt, Differential Ring Gear-to-Case

95

70

—

Bolt, Differential Bearing Retainer-to-Case

28

21

—

Bolt, Driveplate-to-Crankshaft

95

70

—

Bolt, Extension Housing/Plate-to-Case

28

21

—

Bolt, Oil Pan-to-Case

19

—

165

Bolt, Output Gear

271

200

—

Bolt, Output Gear Stirrup/Strap

23

17

—

Bolt, Oil Pump-to-Case

27

20

—

Bolt, Reaction Support-to-Case

27

20

—

Bolt, Solenoid/Pressure Switch Assy.-to-

Case

12

—

110

Bolt, Torque Converter-to-Driveplate

75

55

—

Bolt, Transfer Gear Cover

20

—

175

Bolt, Valve Body-to-Case

12

—

105

Fitting, Oil Cooler Line

12

—

105

Nut, Tranfer Gear

271

200

—

Tap, Transaxle Pressure

5

—

45

Screw, L/R Clutch Retainer

5

—

45

Screw, Solenoid/Pressure Switch Assy.

Connector

4

—

35

Screw, Valve Body-to-Transfer Plate

5

—

45

Sensor, Input Speed

27

20

—

Sensor, Output Speed

27

20

—

Sensor, Transmission Range Sensor

5

—

45
