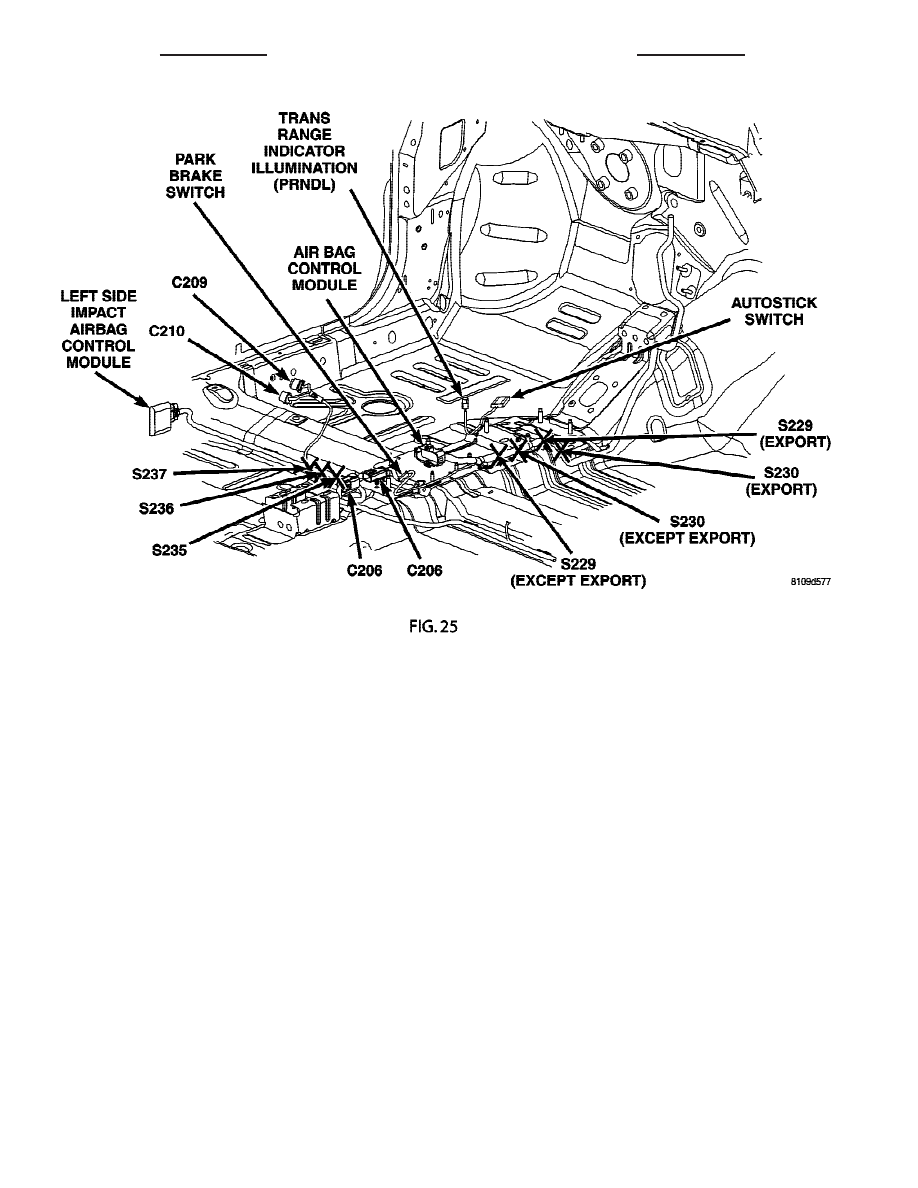

Fig. 25 CENTER CONSOLE - LHD

8W - 91 - 30

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PL/SRT-4

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

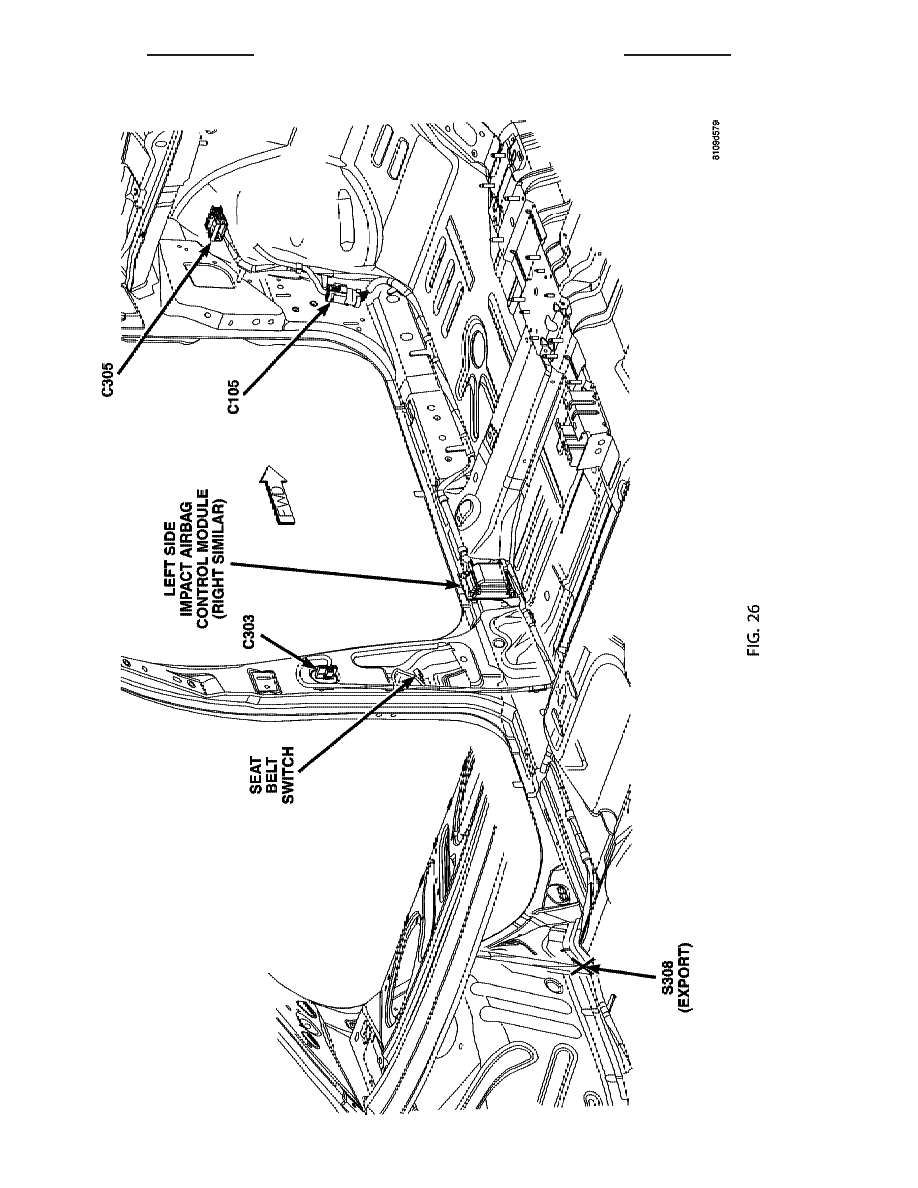

Fig.

26

BODY

(LEFT

FRONT)

-

LHD

PL/SRT-4

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 31

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

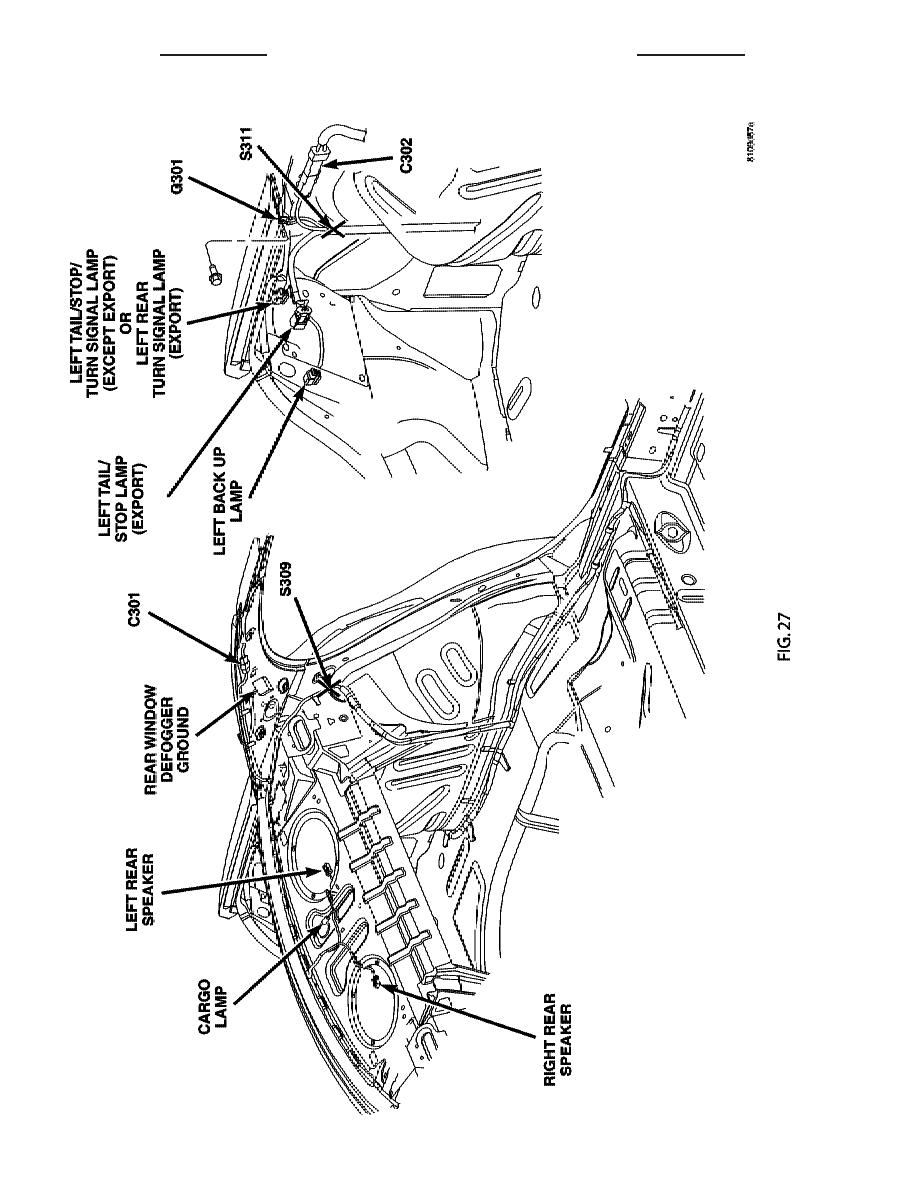

Fig.

27

BODY

(LEFT

REAR)

-

LHD

8W - 91 - 32

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PL/SRT-4

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

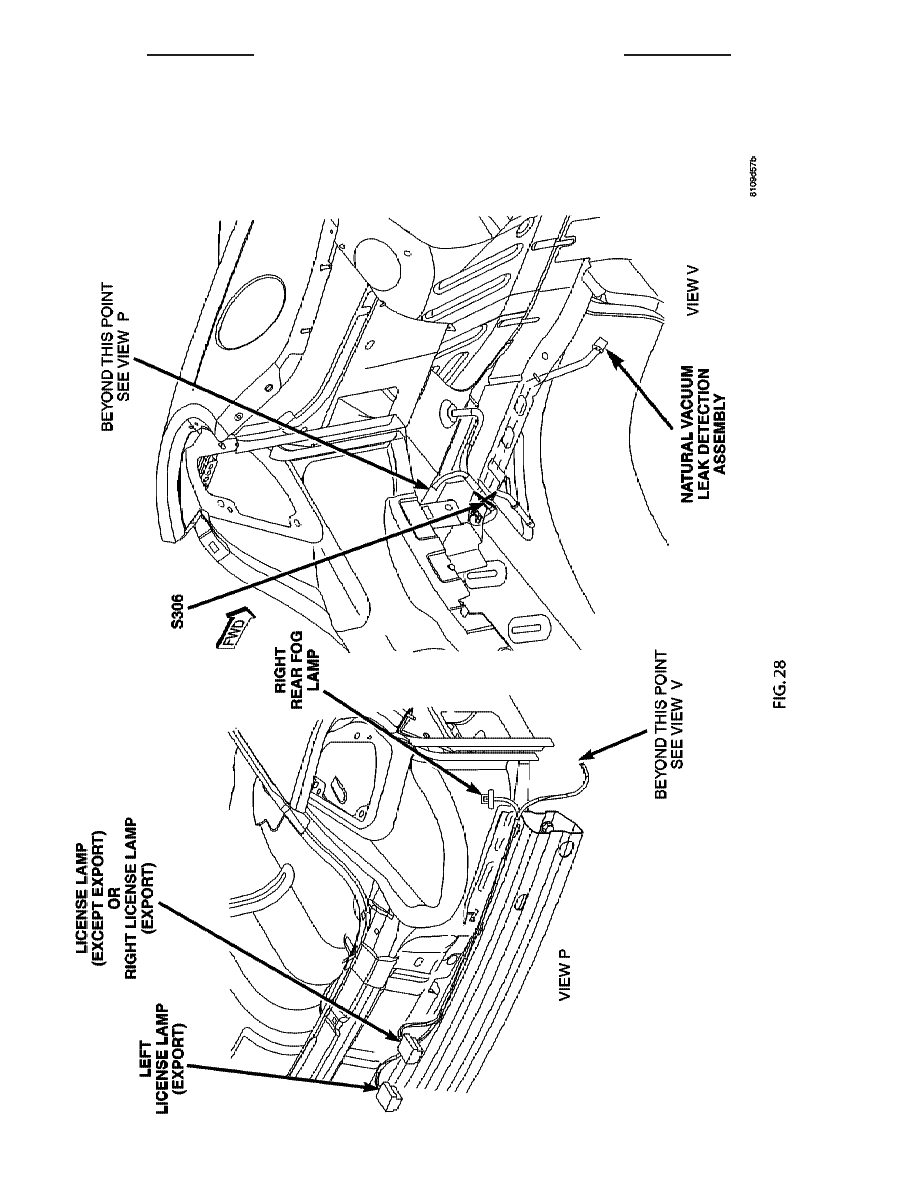

Fig.

28

BODY

(REAR)

-

LHD

PL/SRT-4

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 33

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
