Dodge Nitro. Manual - part 894

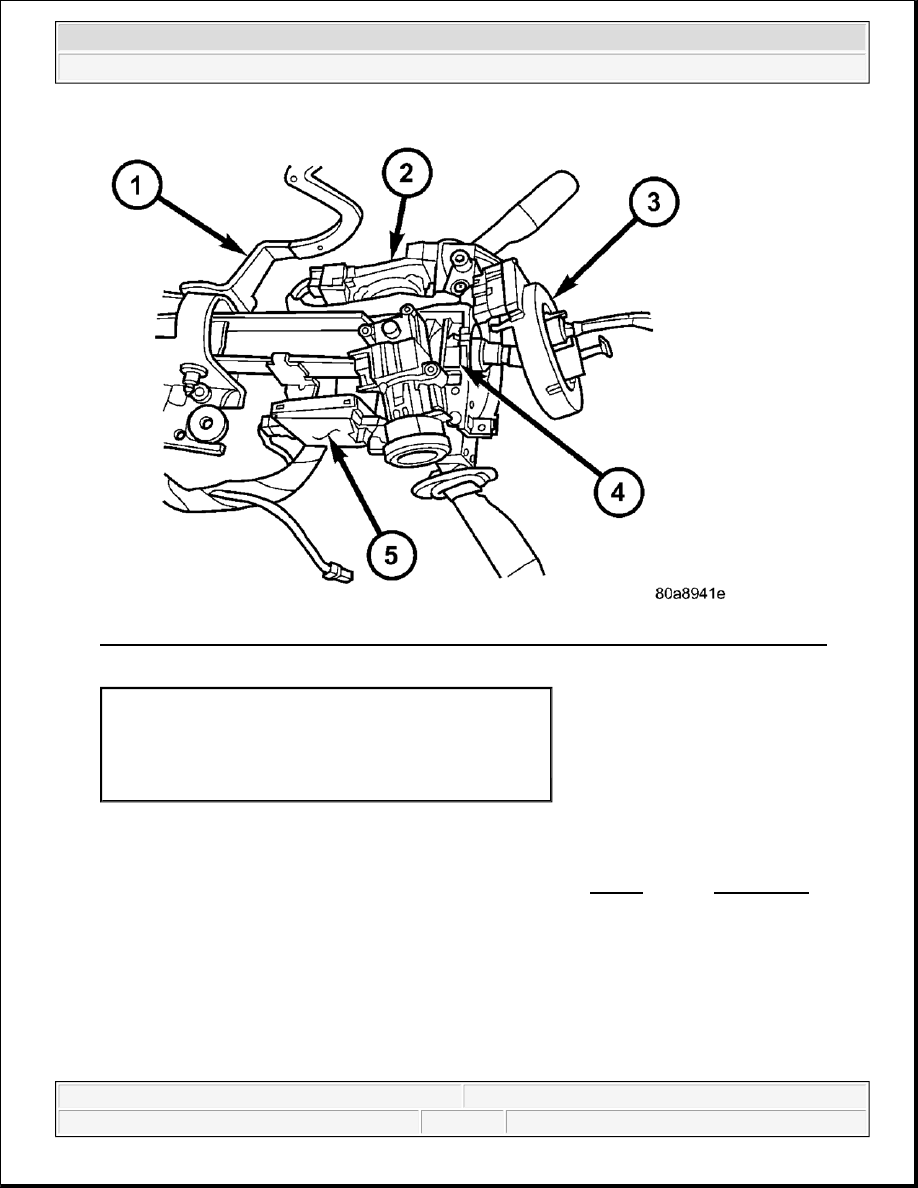

Fig. 11: Identifying Tilt Lever, Ignition Switch, Clockspring, Steering Column & Skim/Skreem
Courtesy of CHRYSLER LLC

12. Remove column (4).

13. Transfer the necessary parts if needed.

14. Remove clock spring (3), switches, (SKREEM if equipped) (5) See Fig. 11. Refer to REMOVAL .

INSTALLATION

STEERING COLUMN

1 - Tilt Lever
2 - Ignition Switch
3 - Clockspring
4 - Steering Column
5 - skim/skreem



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



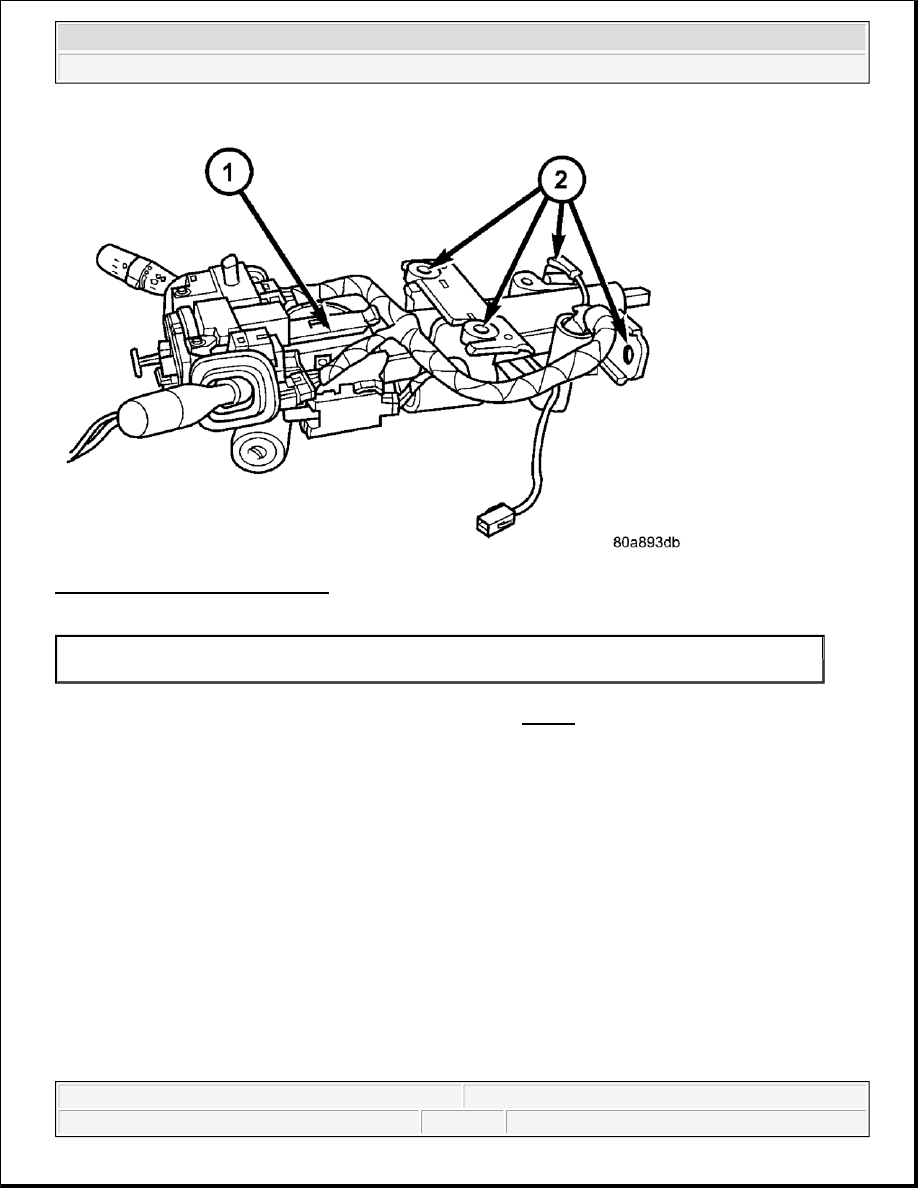

Fig. 12: Steering Column Mounting
Courtesy of CHRYSLER LLC

1. Align and install column (1) into the steering coupler. See Fig. 12.

1 - Steering Column
2 - Mounting Holes



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



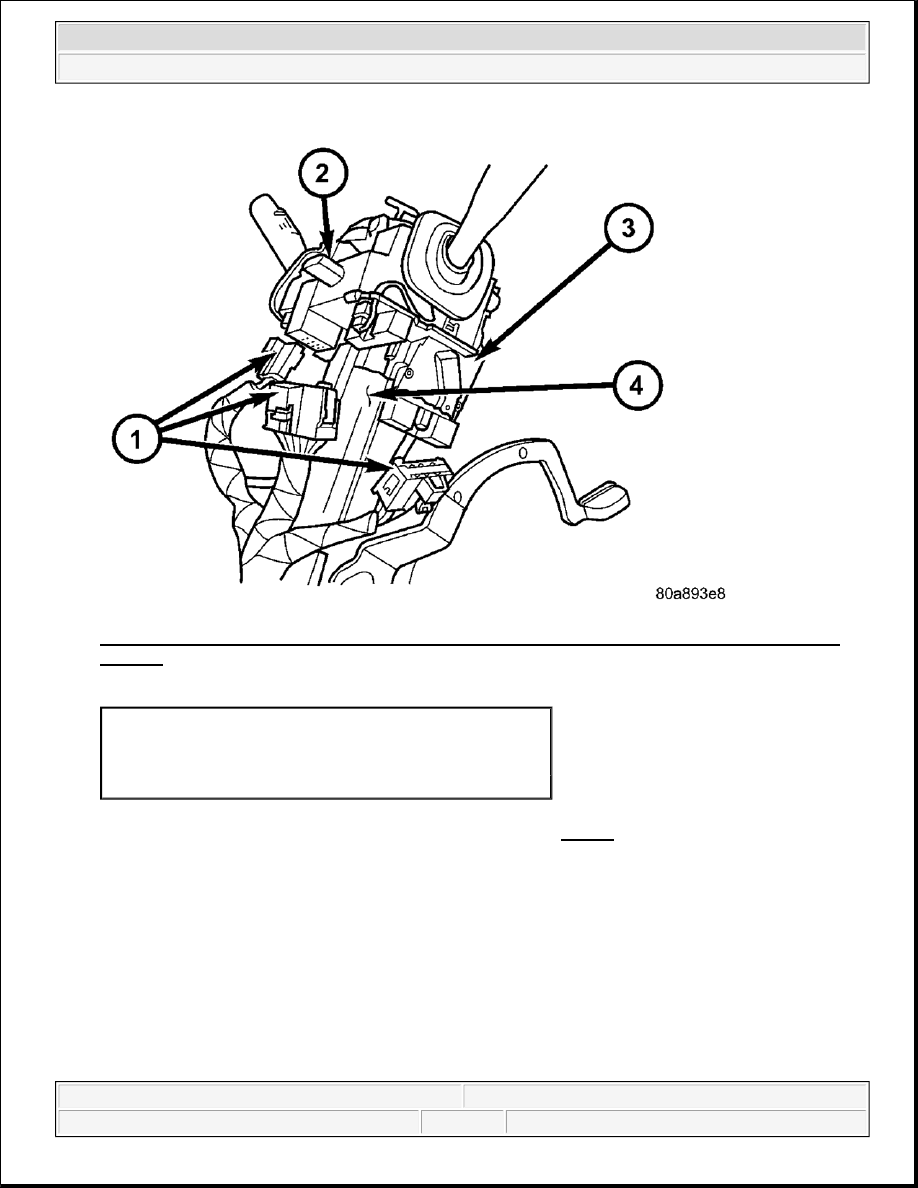

Fig. 13: Identifying Wiring Harness Column, Multi-Function Switch, Ignition Switch & Steering
Column
Courtesy of CHRYSLER LLC

2. Install column harness (1) and connect harness to switches. See Fig. 13.

3. Reroute the shifter interlock cable through the tie straps.

1 - Column Wiring Harness
2 - Multi-function Switch
3 - Ignition Switch
4 - Steering Column



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



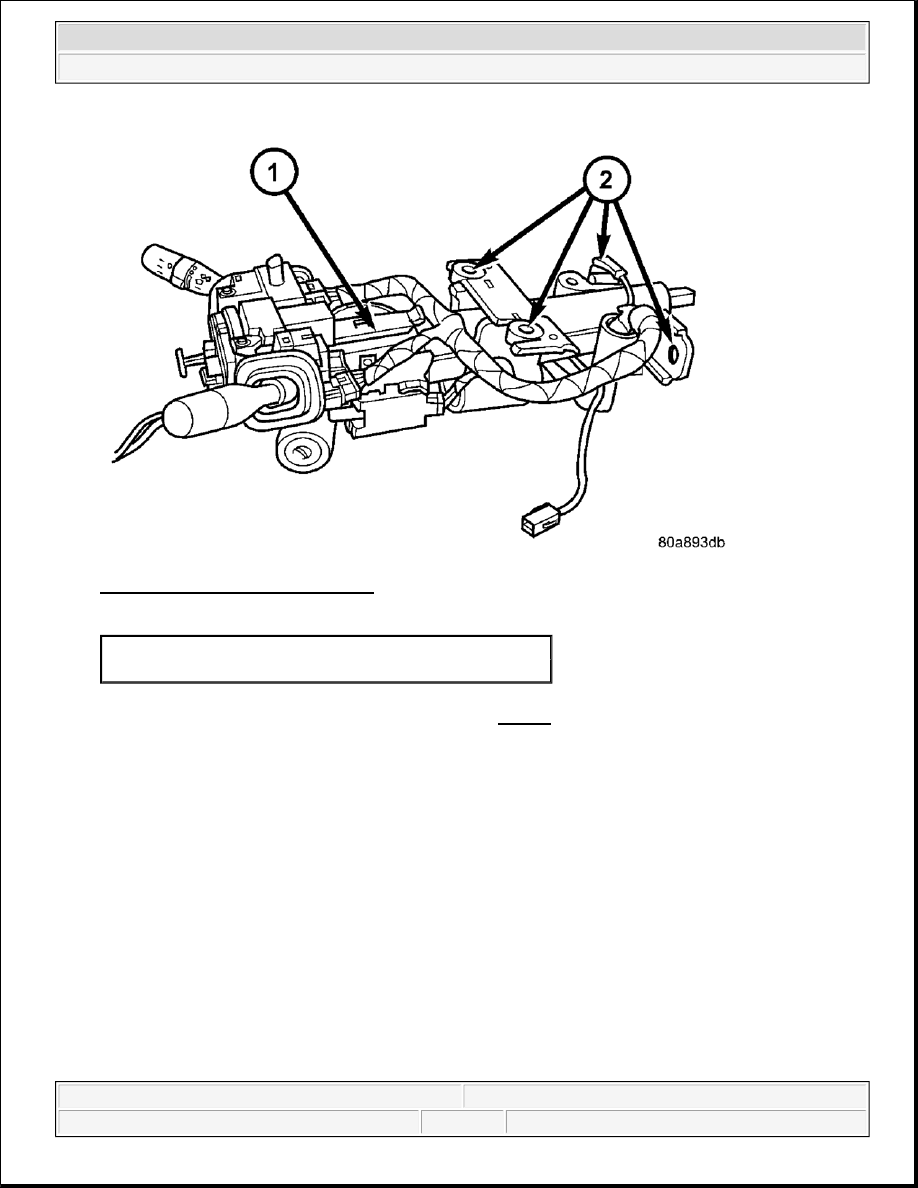

Fig. 14: Steering Column Mounting
Courtesy of CHRYSLER LLC

4. Install the column (1) onto the mounting studs (2). See Fig. 12.

5. Install the two mounting nuts and the two mounting bolts all finger tight.

6. Tighten the lower mounting nuts to 17 N.m (150 in. lbs.).

7. Tighten the upper mounting nuts to 17 N.m (150 in. lbs.).

1 - Steering Column
2 - Mounting Holes

CAUTION: Lower nuts must be installed and tightened first then the upper nuts

in order to prevent damage to the capsules.



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro
