4. Remove the two screws (1) that secure the upper front passenger side floor duct to the passenger side of

the air distribution housing (3) and remove the upper duct.

INSTALLATION

DUCT-FLOOR DISTRIBUTION

DRIVER SIDE

Fig. 66: Removing/Installing Screws That Secure Driver Side Front Floor Duct To Driver Side Of Air
Distribution Housing And Duct
Courtesy of CHRYSLER LLC

1. Install the driver side front floor duct (3) to the driver side of the air distribution housing (2) and install

the two retaining screws (1). Tighten the screws to 1.2 N.m (10 in lbs.).

2. If equipped, install the silencer below the driver side of the instrument panel. Refer to

INSTALLATION .

PASSENGER SIDE

NOTE:

LHD model shown in illustrations. RHD model similar.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



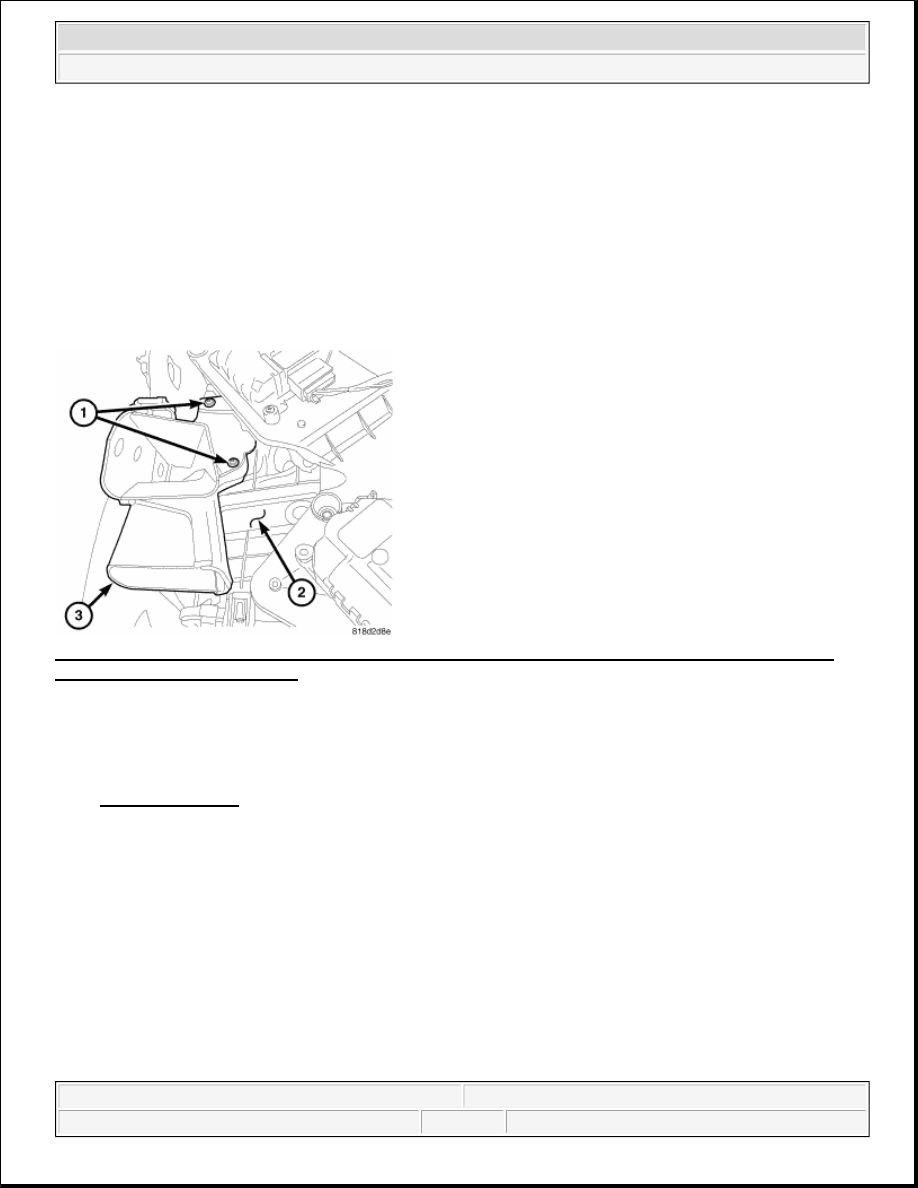

Fig. 67: Removing/Installing Two Screws That Secure Upper Front Passenger Side Floor Duct To
Passenger Side Of Air Distribution Housing And Upper Duct
Courtesy of CHRYSLER LLC

1. Install the upper front passenger side floor duct (2) to the passenger side of the air distribution housing (3)

and install the two retaining screws (1). Tighten the screws to 1.2 N.m (10 in lbs.).

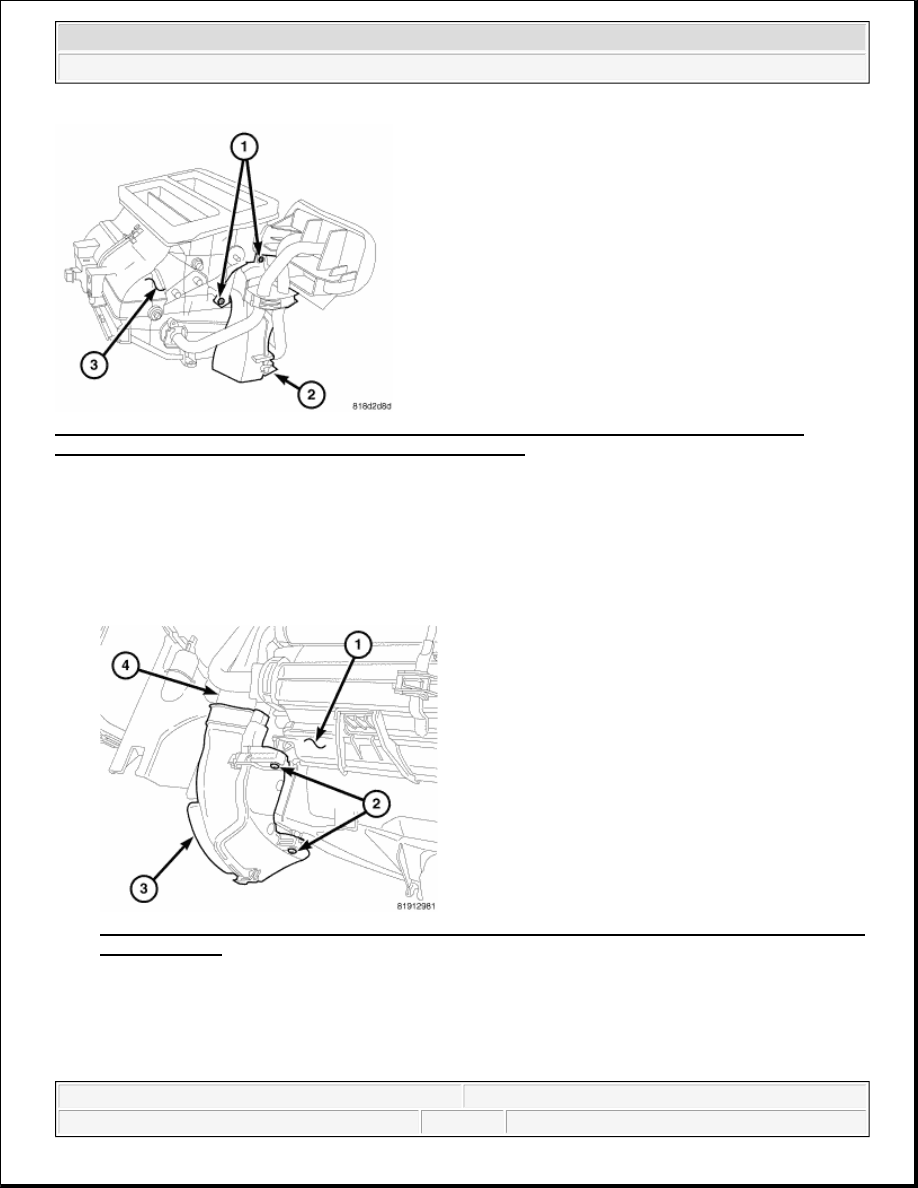

Fig. 68: HVAC Housing, Screws, Lower Front Passenger Side Floor Duct & Upper Front Passenger
Side Floor Duct
Courtesy of CHRYSLER LLC

2. Connect the lower front passenger side floor duct (3) to the upper front passenger side floor duct (4).

3. Install the two screws (2) that secure the lower front passenger side floor duct to the bottom of the HVAC

housing (1). Tighten the screws to 1.2 N.m (10 in lbs.).

NOTE:

Illustration shown with air distribution housing removed from HVAC housing for
clarity.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



4. Install the HVAC housing assembly. See INSTALLATION.

DUCT-REAR FLOOR HEAT

REMOVAL

DUCT-REAR FLOOR HEAT

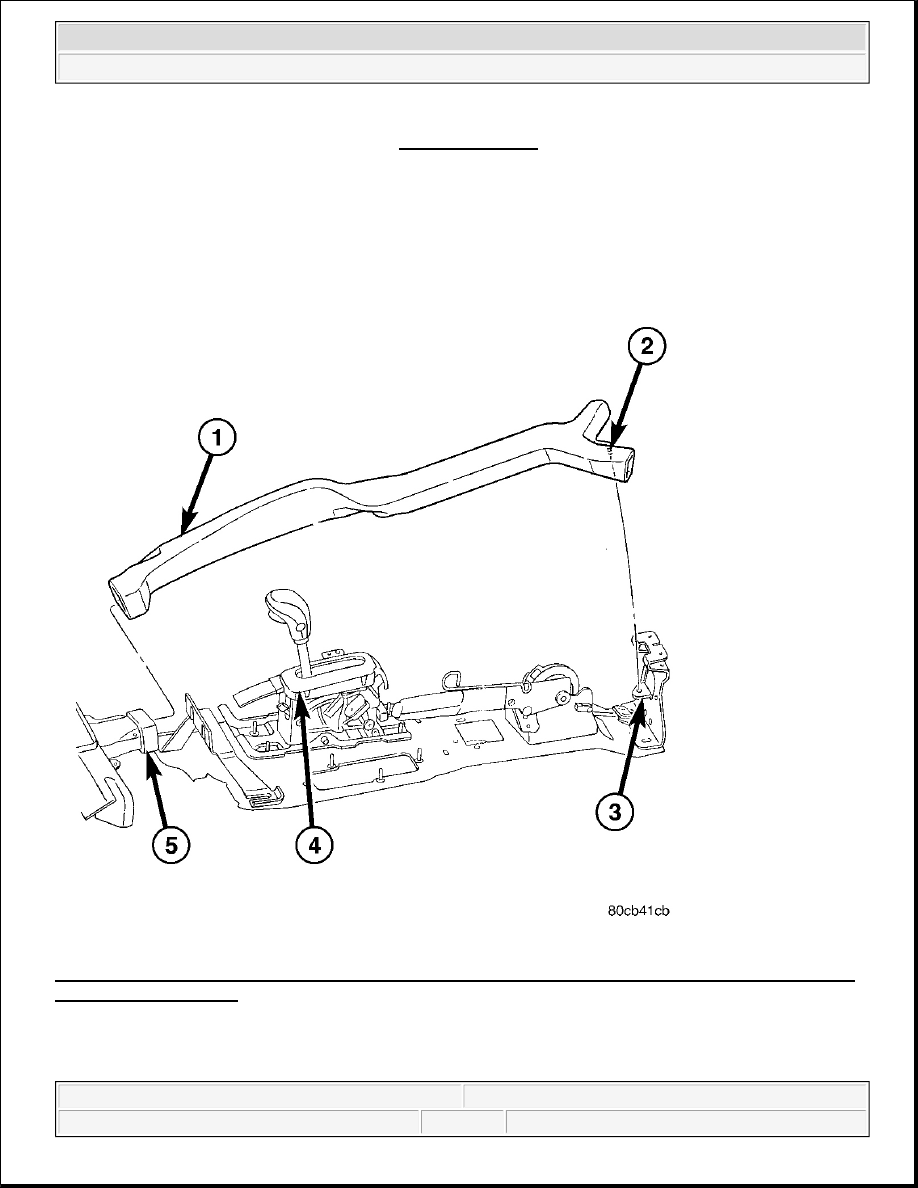

Fig. 69: Rear Floor Heat Duct, Push-Pin Retainer, Floor Console Bracket, Gear Shift Lever Assembly &
Floor Distribution Duct
Courtesy of CHRYSLER LLC

NOTE:

Typical rear floor heat duct shown.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



1. Remove the floor console. Refer to REMOVAL .

2. Remove the push-pin retainer (2) that secures the rear floor heat duct (1) to the floor console bracket (3)

located behind the gear shift lever assembly (4).

3. Disconnect the rear floor heat duct from the floor distribution duct (5).

4. Remove the rear floor heat duct from the vehicle.

INSTALLATION

DUCT-REAR FLOOR HEAT

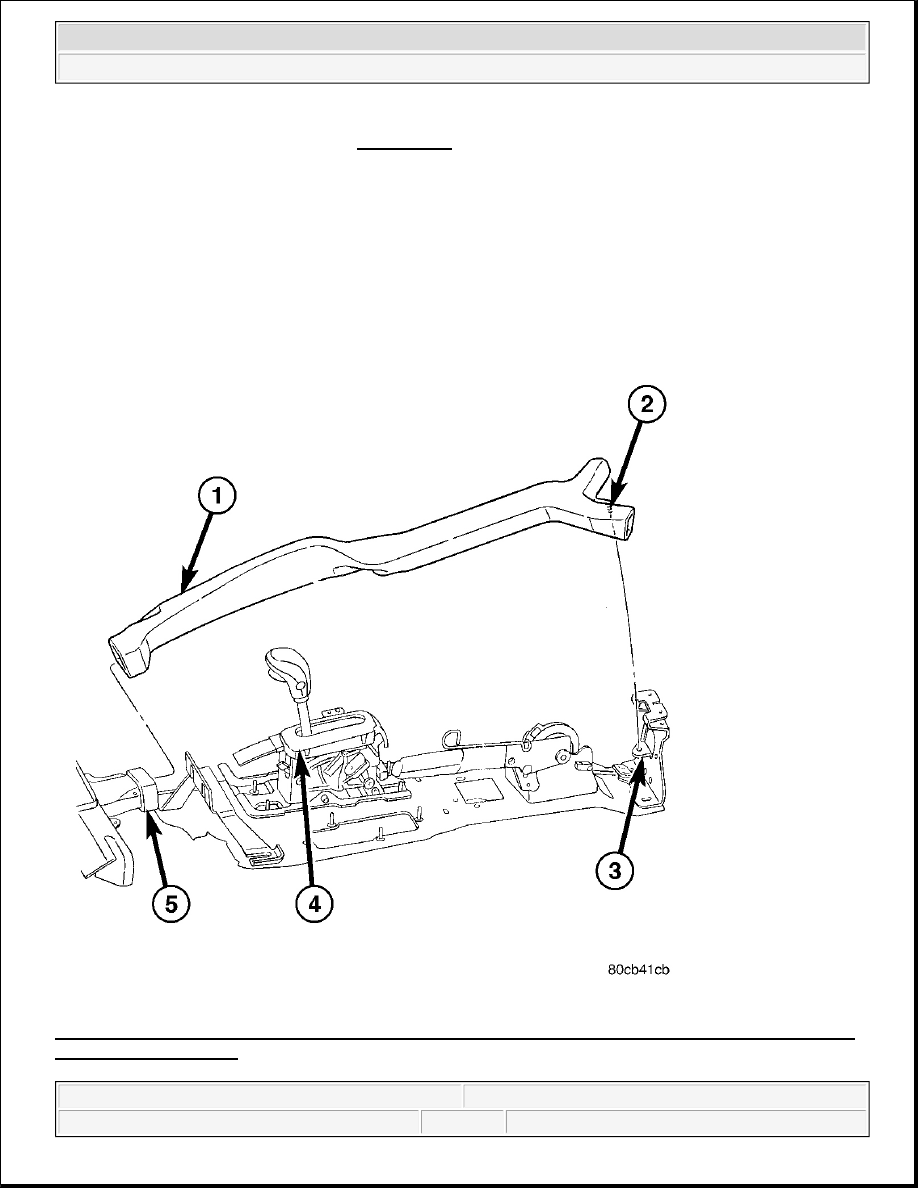

Fig. 70: Rear Floor Heat Duct, Push-Pin Retainer, Floor Console Bracket, Gear Shift Lever Assembly &
Floor Distribution Duct
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro
